Product Overview

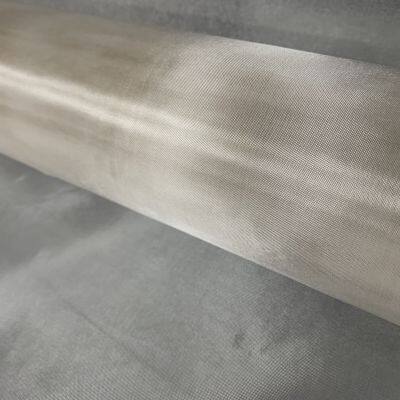

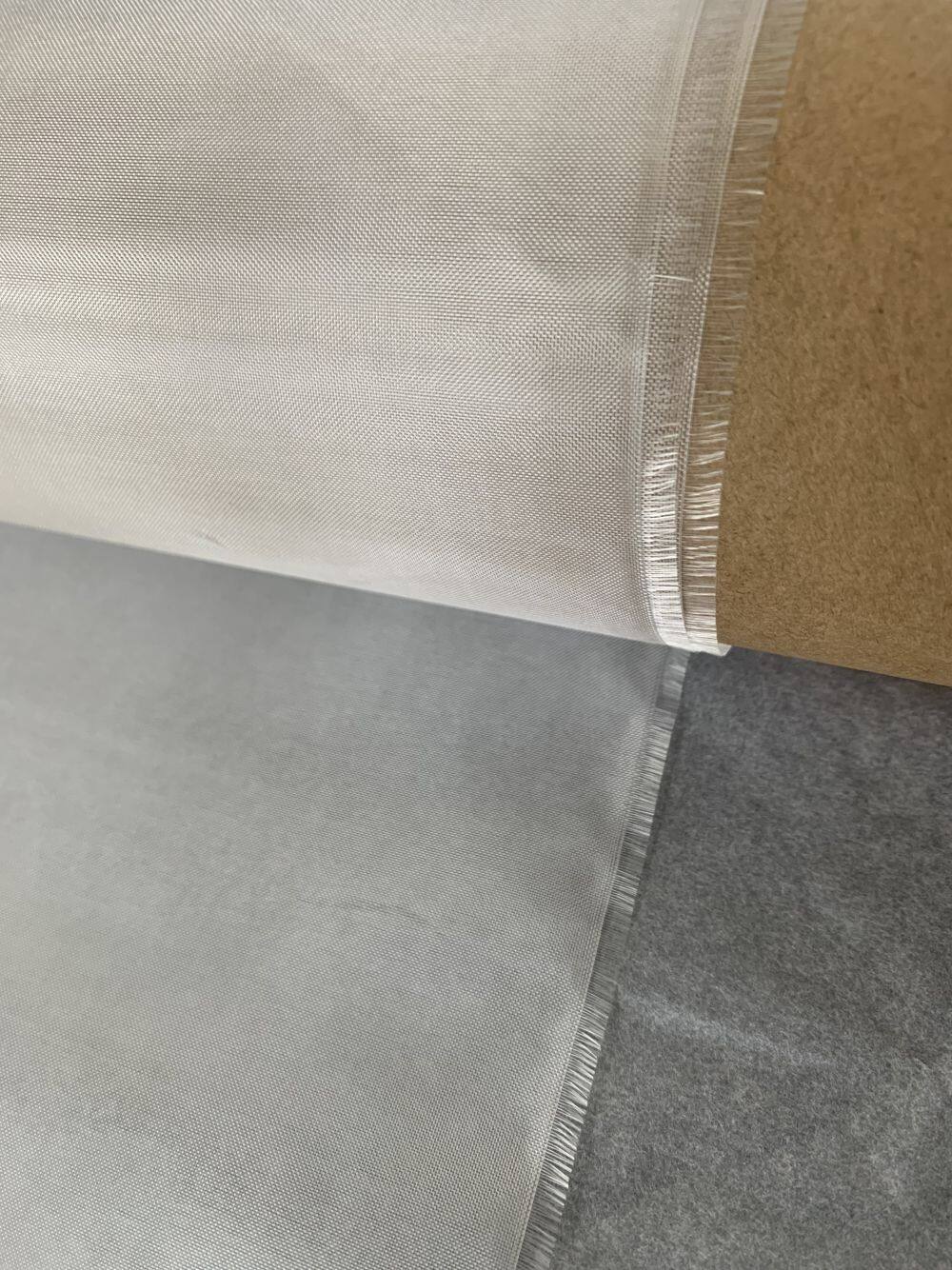

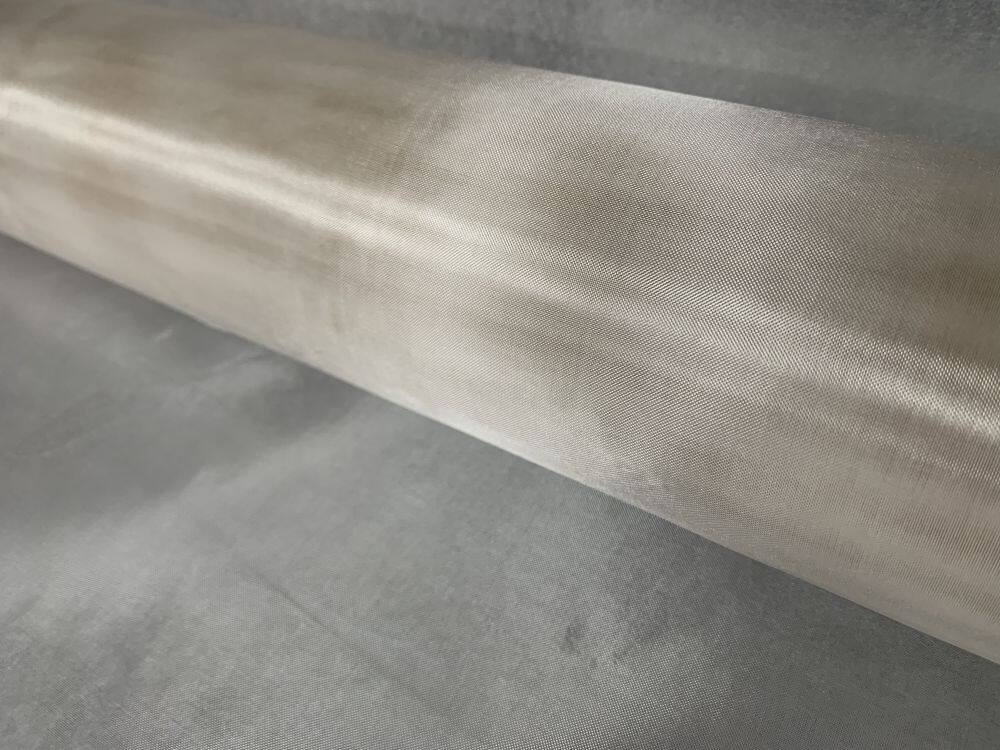

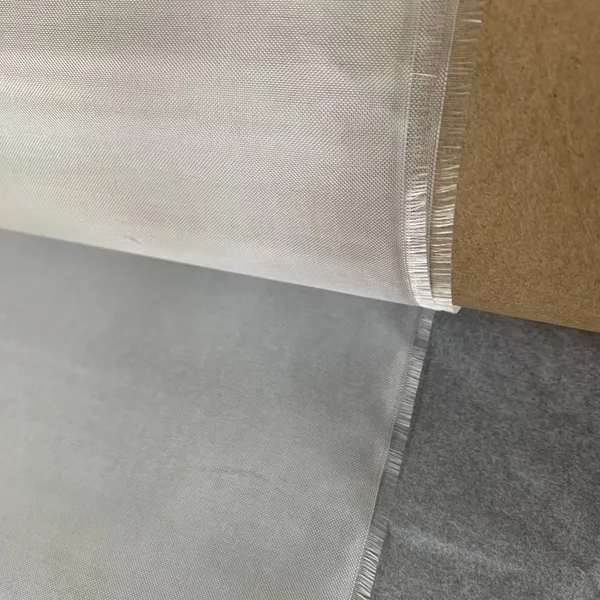

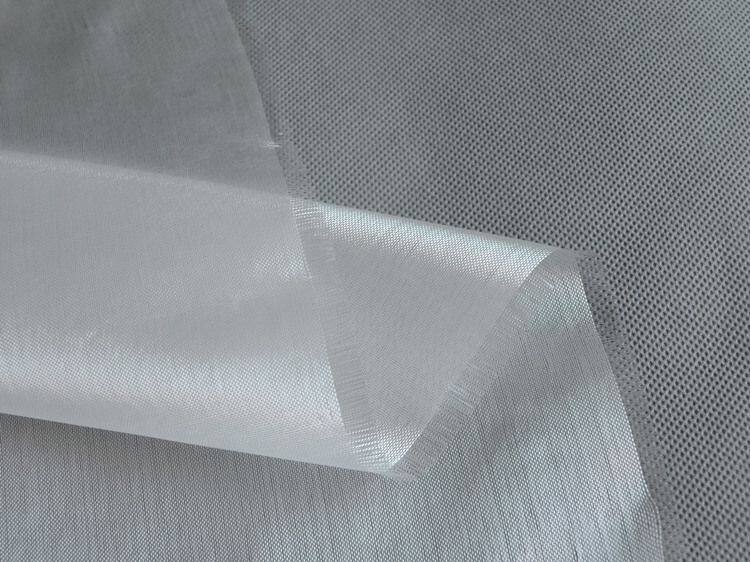

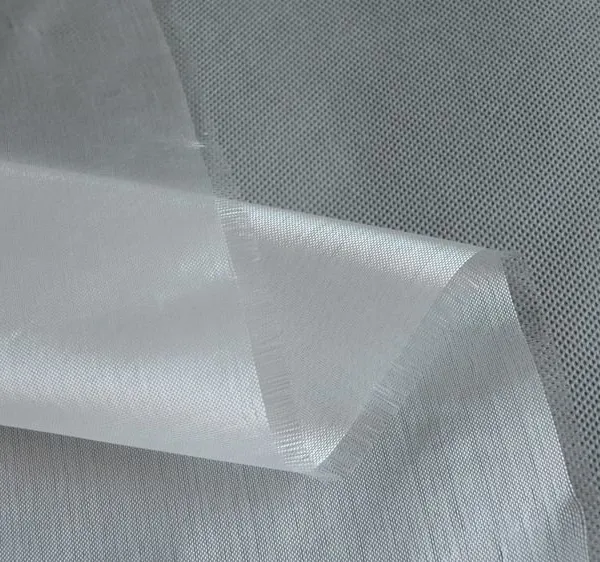

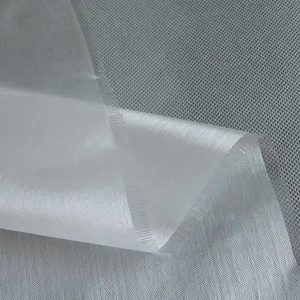

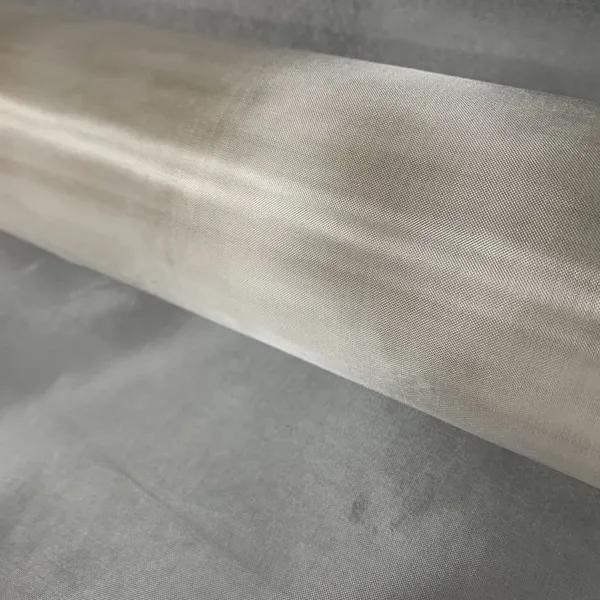

Our SR108-3 Quartz Fiber Ultra-Thin Cloth is a high-performance, ultra-fine woven fabric made from 100% high-purity quartz fiber, with a SiO₂ content of no less than 99.95%. This premium plain weave quartz fiber fabric is engineered with an ultra-thin nominal thickness of 0.03mm and a basis weight of 30g/m², delivering outstanding high-temperature resistance, excellent dimensional stability, and superior mechanical strength while maintaining an ultra-light, ultra-thin form factor.
With a uniform single fiber diameter of 7.5μm and optimized Epoxy K-grade sizing agent, our ultra thin quartz fiber woven fabric offers excellent compatibility with various resin systems, making it an ideal base material for high-end advanced composite materials, precision electronic components, and extreme environment applications. We supply this high purity quartz fiber cloth with a standard nominal width of 1m, and support fully customized specifications to meet your diverse project and bulk procurement needs.
Core Technical Specifications
| Item | Standard Specification |
|---|---|
| Product Name | Quartz Fiber Ultra-Thin Cloth |
| Product Model | SR108-3 |
| Standard Format | 0.03mm Plain Weave / 30g/m² / Width 1m |
| SiO₂ Content | ≥99.95% |
| Sizing Agent Grade | Epoxy K |
| Single Fiber Diameter | 7.5μm |
| Nominal Thickness | 0.03mm (Typical Test Value: 0.04mm) |
| Weave Structure | Plain Weave |
| Warp / Weft Density | 27.5 × 27.5 Threads/cm |
| Typical Basis Weight | 30.63g/m² |
| Breaking Strength | Warp: 73.5N/25mm; Weft: 74.8N/25mm |
| Standard Width | 101cm (1m Nominal Width) |
| HS Code | 7019632090 |
*Note: All data above are typical average values from batch sampling tests for reference only.
Key Advantages of Our Quartz Fiber Ultra-Thin Cloth
Ultra-High Purity & Stable Extreme PerformanceWith a ≥99.95% SiO₂ content, our high purity quartz fiber cloth delivers exceptional high-temperature resistance, excellent corrosion resistance, and outstanding dielectric properties, maintaining stable mechanical and insulation performance even in extreme high-temperature and harsh chemical environments.
Ultra-Thin & Lightweight Precision DesignThe 0.03mm ultra-thin thickness and 30g/m² ultra-light basis weight make this quartz fiber ultra-thin cloth perfect for precision applications where space and weight are strictly limited, without compromising on tensile strength and structural stability.
Superior Balanced Mechanical PropertiesEngineered with 7.5μm uniform single fiber and optimized plain weave structure, our ultra thin quartz fiber woven fabric features balanced warp and weft breaking strength, excellent dimensional stability, and good flexibility, easy for die cutting, laminating and secondary processing.
Excellent Resin CompatibilityAdopted with high-quality Epoxy K-grade sizing agent, this quartz fiber fabric has excellent wetting and bonding properties with epoxy resin and other polymer matrix systems, ideal for manufacturing high-performance composite laminates and prepregs.
Main Application Scenarios
Our SR108-3 99.95% high purity quartz fiber ultra-thin cloth is widely used in high-end industrial and advanced technology fields, including but not limited to:
Aerospace & Aviation: High-temperature thermal insulation systems, aircraft interior fireproof materials, aerospace composite structural parts
Electronic & Electrical: High-frequency circuit substrates, electronic insulation materials, semiconductor packaging components, dielectric insulation layers
High-Temperature Insulation: Industrial furnace thermal insulation, high-temperature pipeline wrapping, fire-resistant and flame-retardant materials
Advanced Composite Materials: Prepreg manufacturing, fiber-reinforced composite laminates, high-performance sports equipment substrates
New Energy & Environmental Protection: Fuel cell components, high-temperature filtration materials, thermal management systems
Packaging, Shipping & Service
Packaging
Our quartz fiber ultra-thin cloth is carefully packaged to ensure intact delivery during long-distance international transportation:

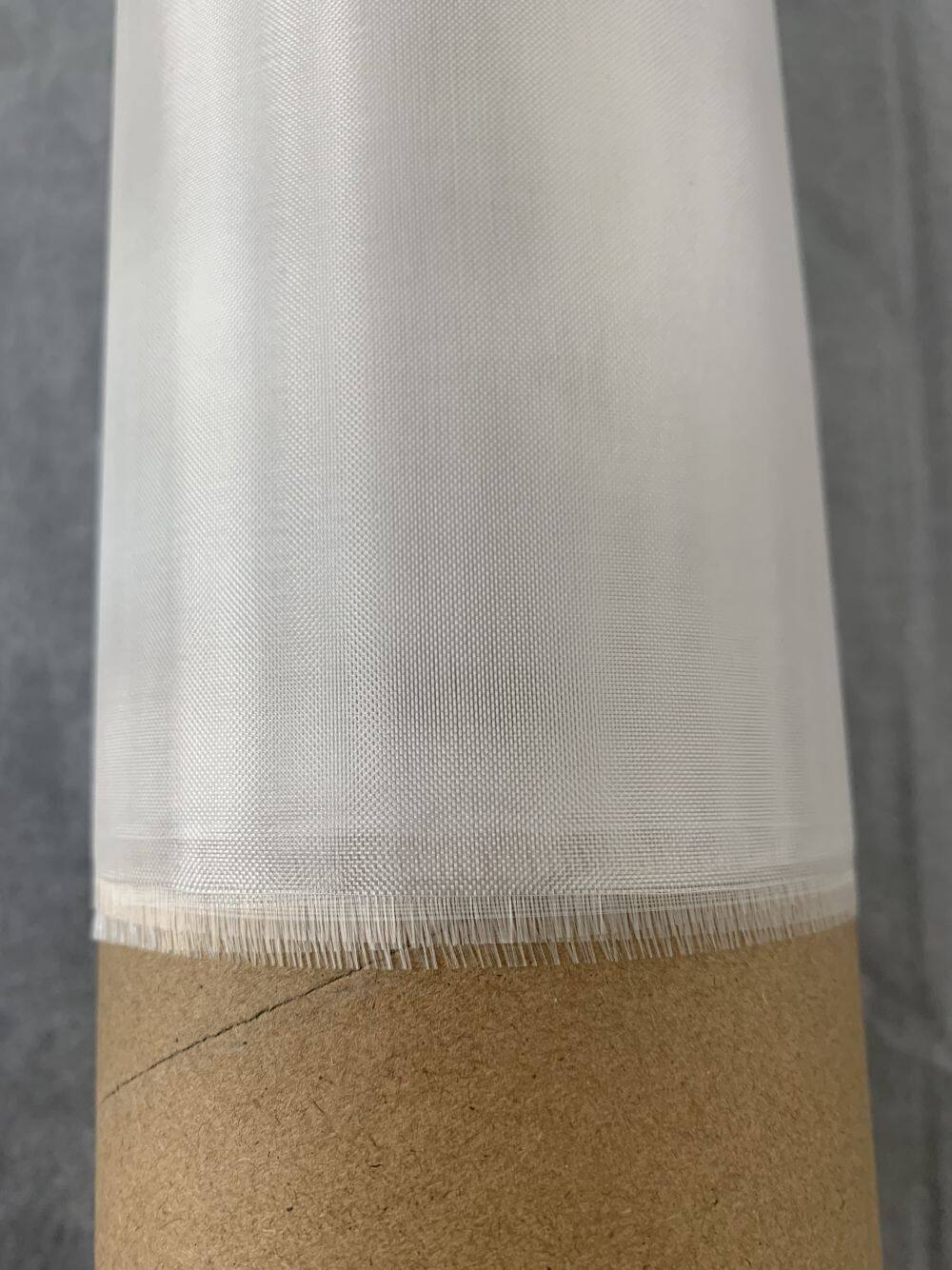

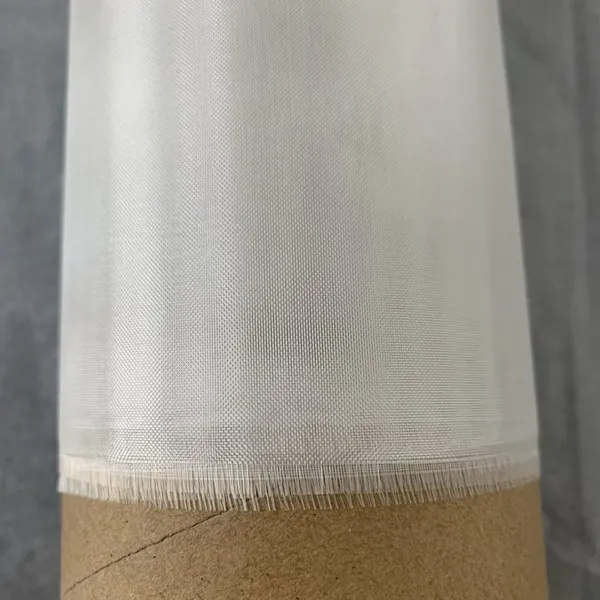

Standard export packaging: Wound on hard paper tubes, wrapped with moisture-proof PE film, and packed in sturdy export-grade cartons or fumigation-free wooden cases
Custom packaging available according to your specific requirements for bulk orders
Shipping & Trade Terms
We support multiple international shipping methods: Sea freight, air freight, international express (DHL, FedEx, UPS, TNT) for both sample and bulk wholesale orders
EXW, FOB, CIF, DAP and other mainstream international trade terms are accepted
We provide a full set of export documents, including commercial invoice, packing list, bill of lading, certificate of origin, etc.
Our Commitment
Customization: Support customized width, length, weave structure and sizing agent grade of quartz fiber fabric according to your technical drawings and requirements
Sample Service: We can provide free samples (freight collect) of SR108-3 quartz fiber ultra-thin cloth for your quality testing and verification before bulk order
Quality Control: Strict batch-by-batch sampling inspection to ensure stable product quality consistent with the technical specifications
Full-Process Support: Professional technical and sales teams provide 24/7 online support to solve your pre-sales consultation and after-sales problems in a timely manner
As a professional manufacturer and supplier of high-performance quartz fiber products in China, we are committed to providing premium quality quartz fiber ultra-thin cloth, competitive wholesale prices, and comprehensive customized solutions for global buyers. Whether you need bulk wholesale of standard SR108-3 quartz fiber fabric, or customized specifications for your special projects, we are your reliable long-term partner.
Welcome to contact us via the platform to request samples, complete technical datasheets, or the latest wholesale quotation!
