Product Overview

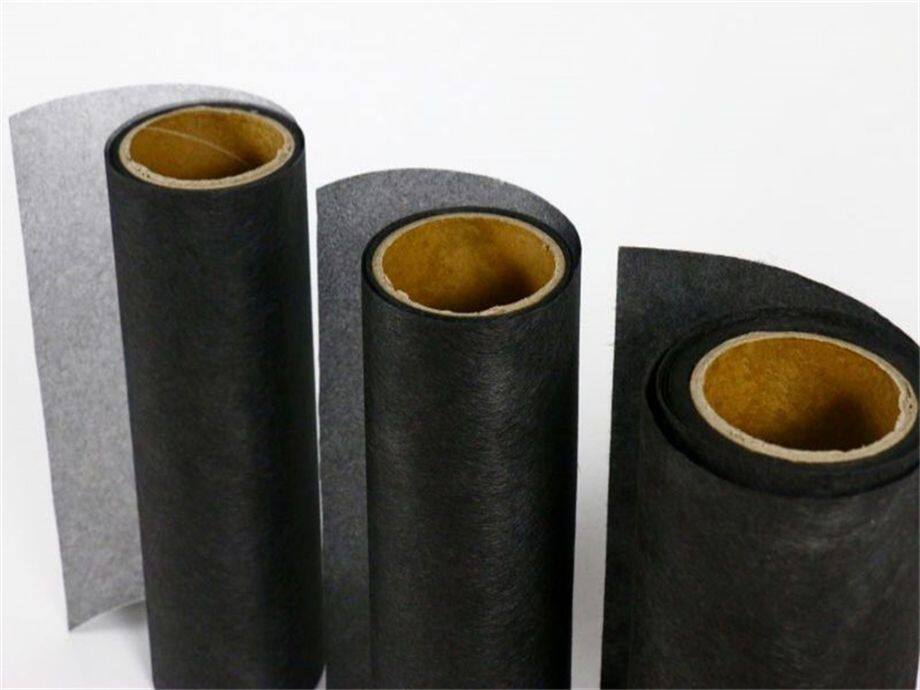

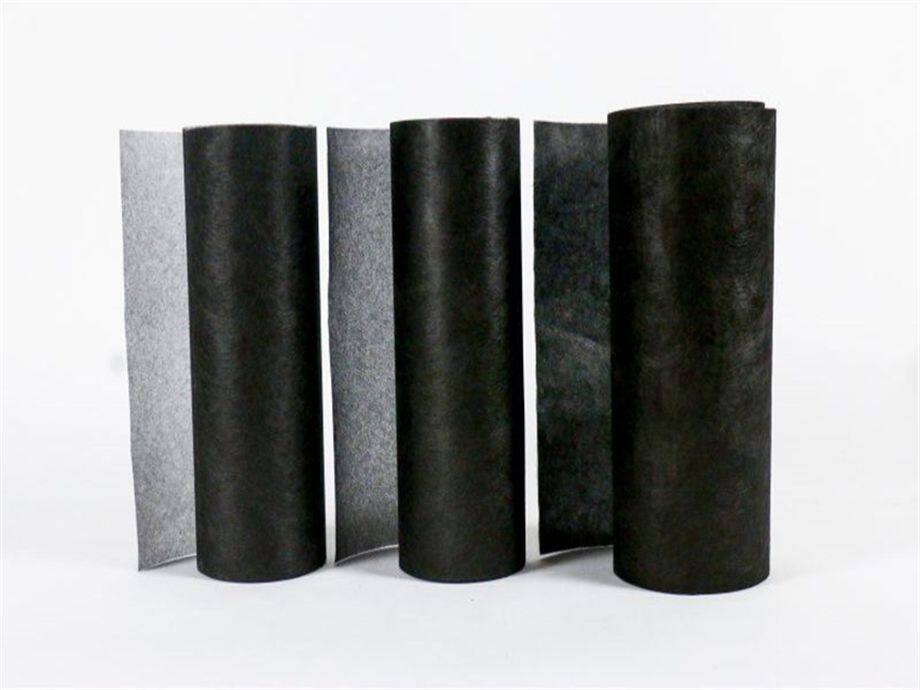

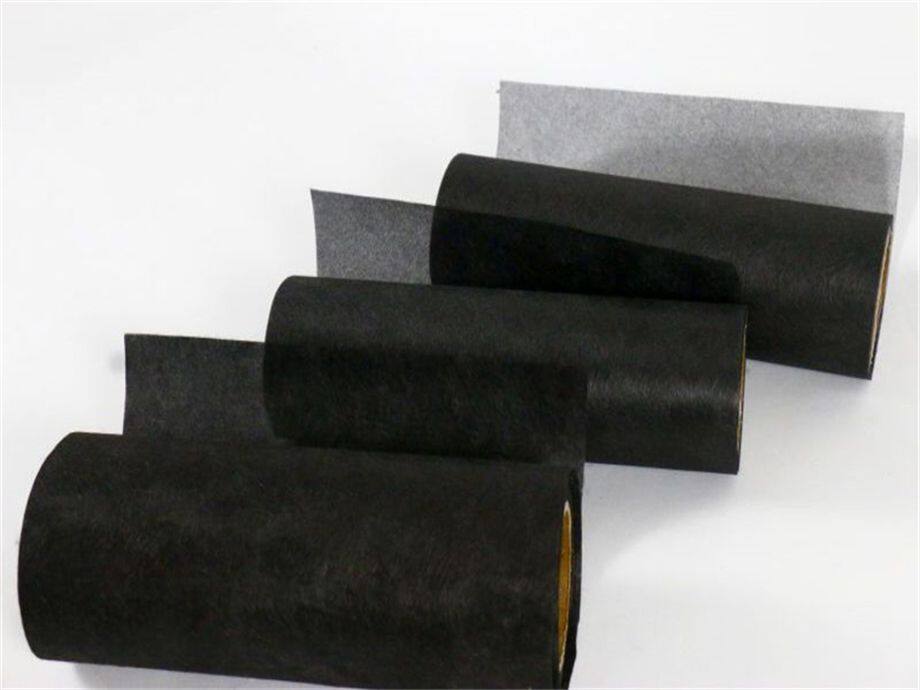

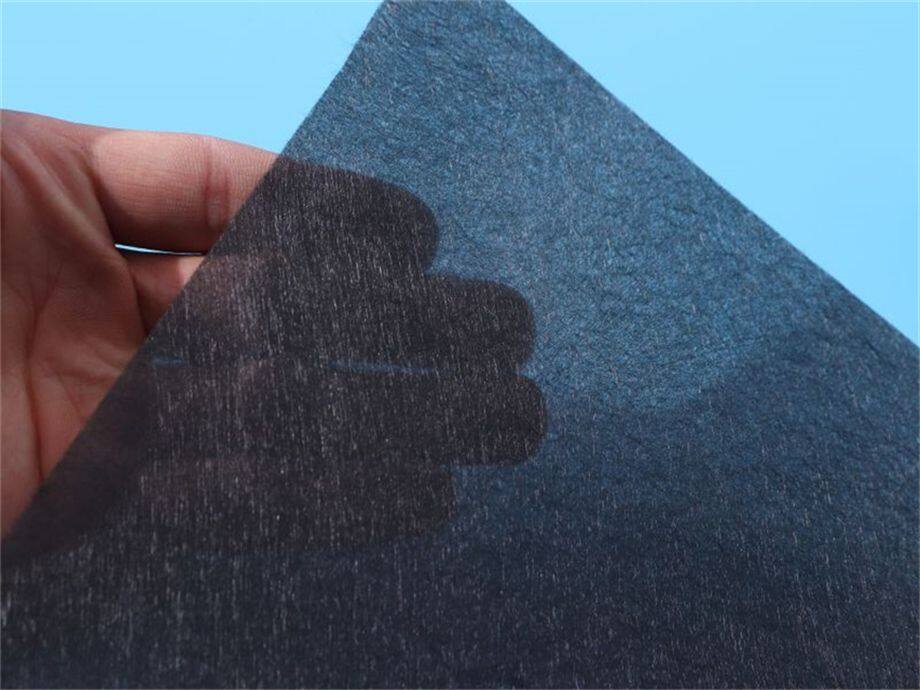

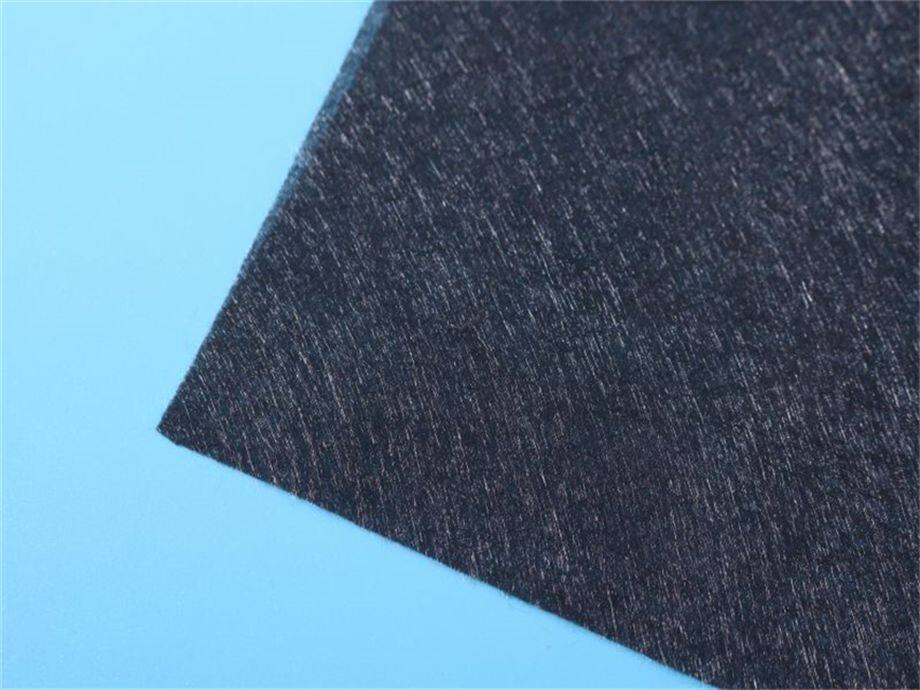

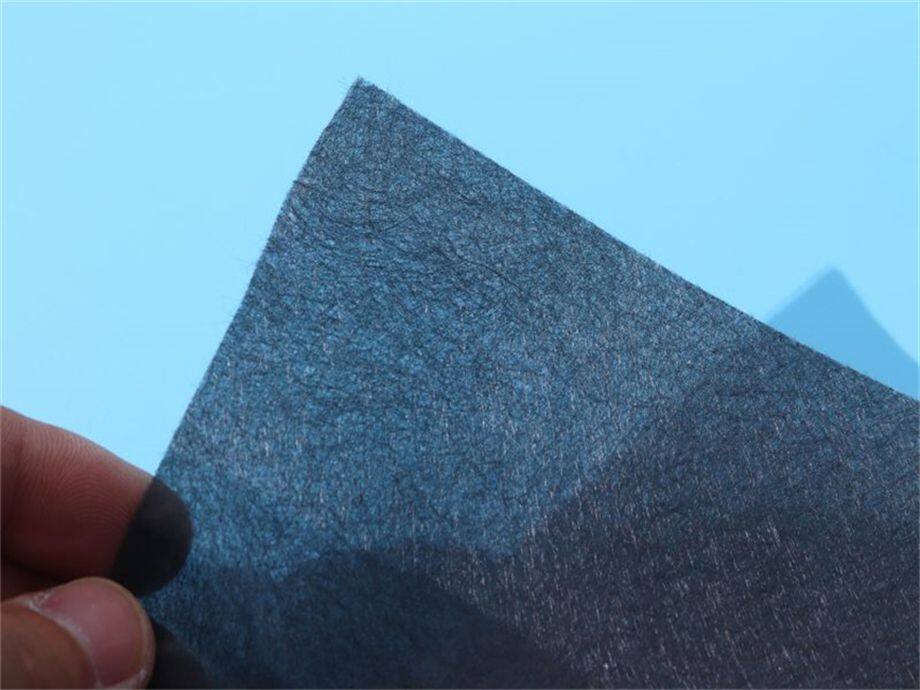

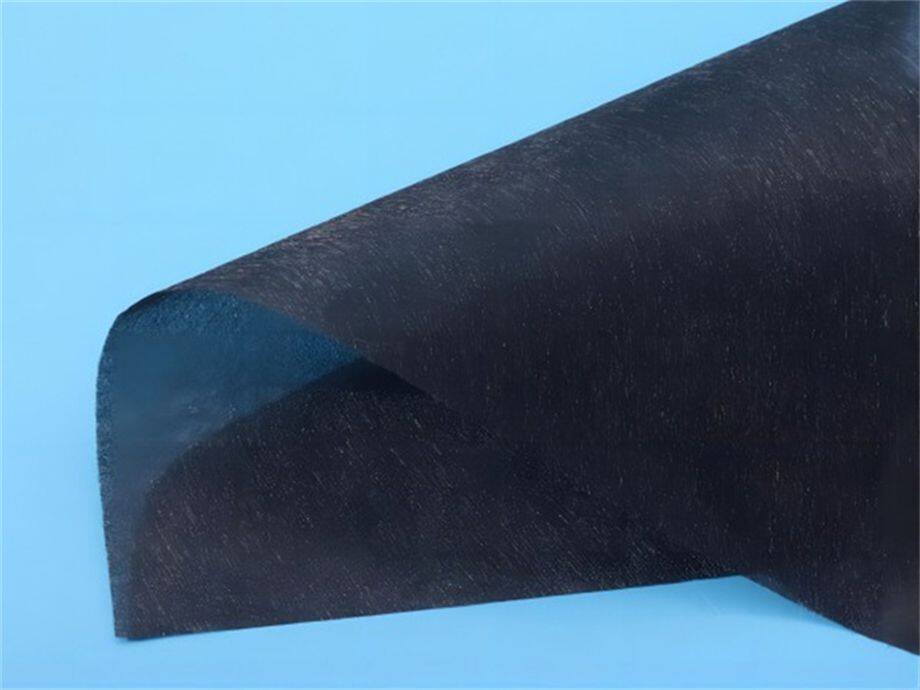

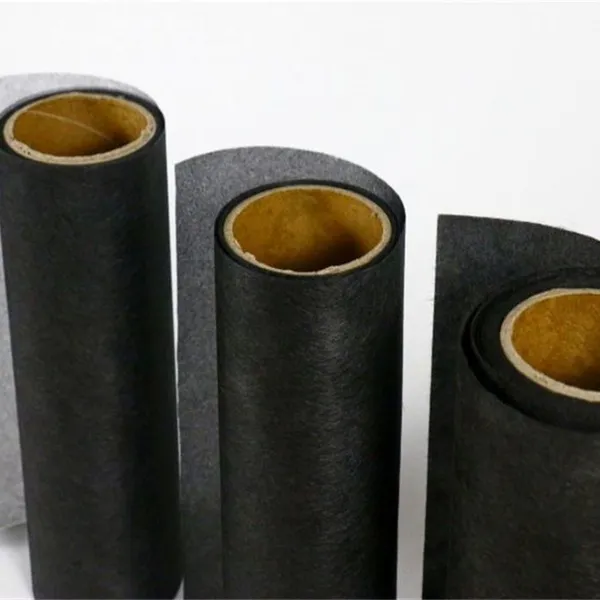

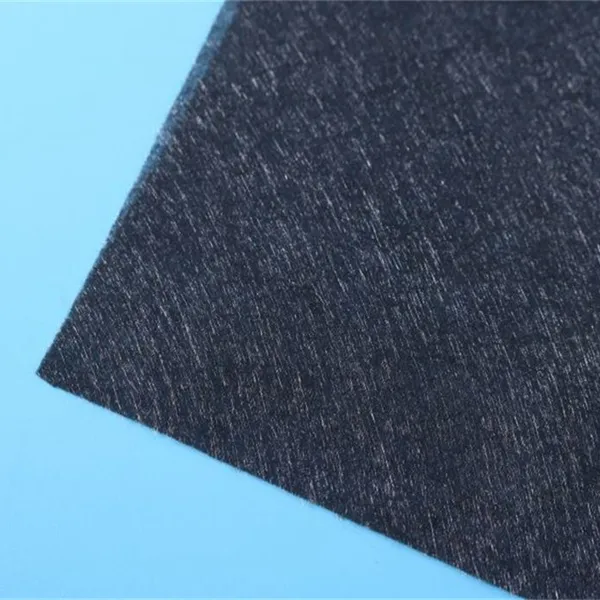

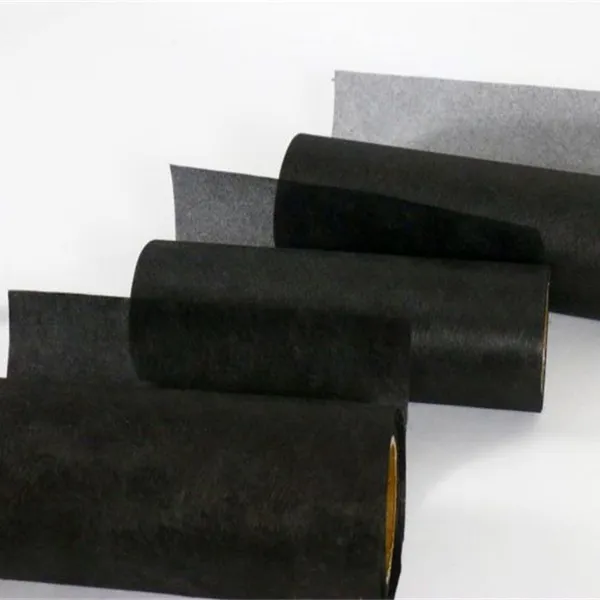

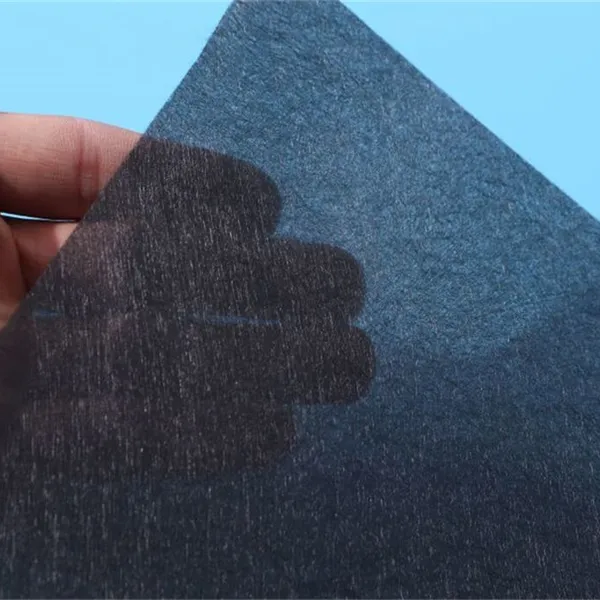

Our wet-laid Carbon Fiber Nonwoven (also named carbon fiber veil/tissue) is a high-performance industrial nonwoven fabric manufactured with advanced wet-laid production technology. This process ensures exceptional fiber uniformity, ultra-thin thickness control, stable mechanical properties and consistent quality across full rolls, making it an ideal material for a wide range of high-end industrial applications.
We offer a complete range of specifications for our carbon fiber non woven fabric, with area weight ranging from 6gsm to 50gsm, customizable thickness and tensile properties to meet your specific project requirements. Our products strictly comply with international quality standards, with strict control of moisture content to ensure stable performance in long-term use and storage.
Detailed Product Specifications
Below are the standard specifications of our wet-laid carbon fiber nonwoven fabric, custom parameters are available upon request:
Area Weight (g/m²) |
Thickness (mm) |
Tensile Strength (N/50mm) |
Moisture Content (%) |
6±1 |
0.06±0.01 |
2.5±0.5 |
≤0.28 |
8±1 |
0.08±0.01 |
5.5±0.5 |
≤0.29 |
10±1 |
0.09±0.01 |
5.6±0.5 |
≤0.295 |
15±1 |
0.13±0.01 |
6.9±1 |
≤0.35 |
20±1 |
0.18±0.02 |
11±2 |
≤0.37 |
30±2 |
0.21±0.02 |
16.9±2 |
≤0.38 |
50±2 |
0.38±0.02 |
25.8±0.3 |
≤0.38 |
Additional Customizable Parameters
• Roll width: Customizable (max width up to 2000mm)
• Roll length: Customizable according to your requirements
• Surface treatment: Available upon request
• Conductivity: Adjustable based on application needs
Core Advantages of Our Wet-Laid Carbon Fiber Nonwoven
1. Advanced Wet-Laid Production Technology
Our carbon fiber nonwoven is produced via state-of-the-art wet-laid process, which delivers superior fiber dispersion and web uniformity compared to dry-laid alternatives. This ensures consistent performance across the entire fabric surface, with no weak points or uneven thickness.
2. Excellent Mechanical Properties
With high tensile strength ranging from 2.5N/50mm to 25.8N/50mm, our carbon fiber non woven fabric offers outstanding dimensional stability and tear resistance, suitable for high-speed processing and demanding industrial applications.
3. Ultra-Low Moisture Content
We strictly control the moisture content of our products (max 0.38%), which effectively prevents performance degradation during storage and transportation, and ensures stable performance in sensitive applications such as battery manufacturing and electronic components.
4. Ultra-Thin & Lightweight Design
Our product range includes ultra-thin specifications starting from 0.06mm thickness and 6gsm area weight, making it ideal for applications where space and weight are critical factors, without compromising on strength and functionality.
5. Full Customization Capability
We support full customization of area weight, thickness, roll size and surface treatment to perfectly match your unique application requirements, whether for R&D projects or mass production.
Wide Applications of Carbon Fiber Nonwoven Fabric
Our wet-laid carbon fiber nonwoven fabric is widely used in multiple high-end industrial fields, including but not limited to:
• New Energy Industry: Lithium battery electrode substrates, fuel cell components, battery thermal management systems
• Thermal Management & Fire Protection: High-temperature thermal insulation materials, fire-resistant fabrics, aerospace thermal protection components
• Industrial Filtration: High-temperature gas filtration, corrosive liquid filtration, air purification filter media
• Composite Materials: Surface veil for FRP/GRP composites, wind turbine blade surface treatment, automotive composite components
• Electronics & Electrical: Electromagnetic shielding materials, conductive components, anti-static fabrics
• Aerospace & Defense: Lightweight structural components, thermal insulation systems, radar absorbing materials
Packaging & Shipping
Packaging Details
• Standard packaging: Rolls are wrapped with moisture-proof PE film, then fixed with cardboard tubes and packed in export-grade wooden cases/cartons
• Custom packaging: Available according to customer requirements, with labels including product specifications, batch number, production date and other information
• All packaging is designed to ensure the product remains intact during long-distance international transportation, with full moisture-proof, shock-proof and anti-collision protection
Shipping Terms
• We support multiple international trade terms: EXW, FOB, CIF, DAP, etc.
• Shipping methods: Sea freight, air freight, international express (DHL, FedEx, UPS, TNT) for sample orders
• Lead time: 3-7 working days for sample orders, 10-20 working days for bulk production orders (depending on order quantity and customization requirements)
Why Choose Us
1. Professional Manufacturer: We are a professional manufacturer of high-performance nonwoven fabrics with years of experience in carbon fiber material R&D and production, ensuring industry-leading product quality and technical support.
2. Strict Quality Control: Every batch of our carbon fiber nonwoven fabric undergoes strict quality inspection before delivery, with full testing of key parameters to ensure 100% compliance with your requirements.
3. Customization Expertise: We have a professional R&D team that can provide tailored material solutions according to your specific application needs, from formula adjustment to parameter optimization.
4. Global Trade Experience: We have rich experience in foreign trade, with products exported to more than 30 countries and regions. We are familiar with international trade rules and can provide you with one-stop service from inquiry to after-sales.
5. Competitive Factory Pricing: As a direct source factory, we offer factory-direct pricing with no middleman markup, ensuring you get the best value for high-quality carbon fiber nonwoven products.
FAQ
Q1: Can you provide samples of your carbon fiber nonwoven fabric?
A1: Yes, we can provide free A4-size sample pieces for quality testing, with the customer only responsible for the shipping cost. Custom sample rolls are also available upon request.
Q2: What is the minimum order quantity (MOQ) for your products?
A2: Our standard MOQ is 1 roll for in-stock specifications. For custom specifications, the MOQ can be negotiated according to your specific requirements.
Q3: Can you customize the product according to our technical requirements?
A3: Absolutely. We have strong customization capability, and can adjust the area weight, thickness, tensile strength, roll size and other parameters according to your application needs.
Q4: What is the lead time for bulk orders?
A4: For standard in-stock specifications, the lead time is 3-5 working days. For custom bulk orders, the lead time is usually 10-20 working days, depending on the order quantity and customization complexity.
