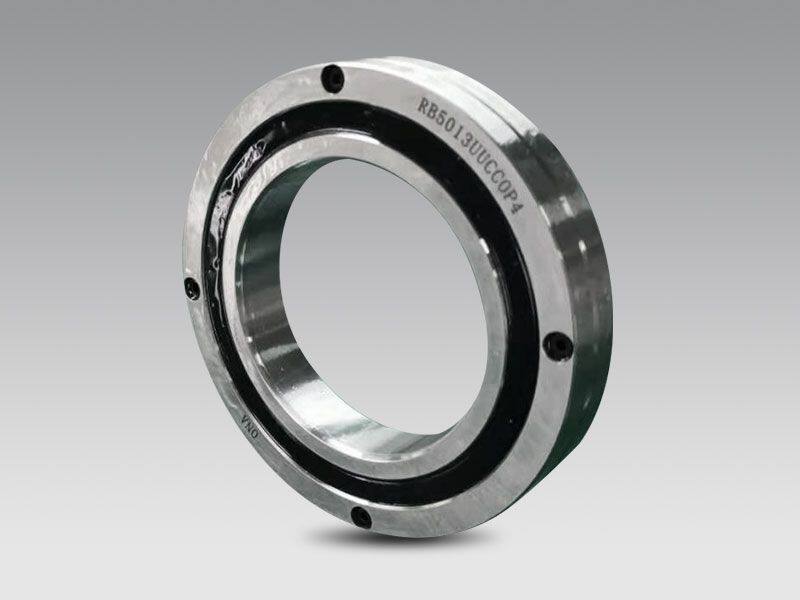

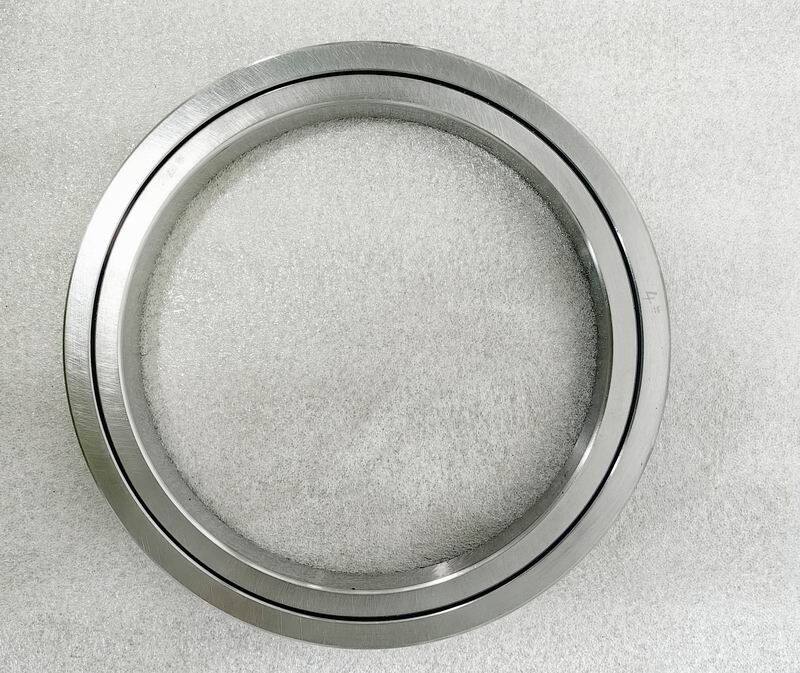

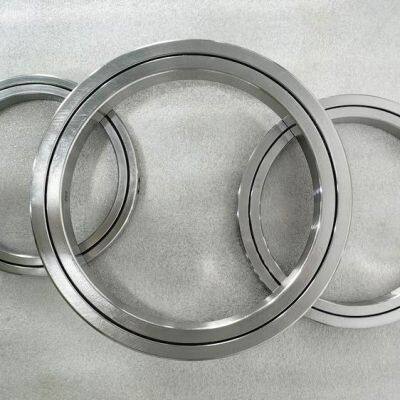

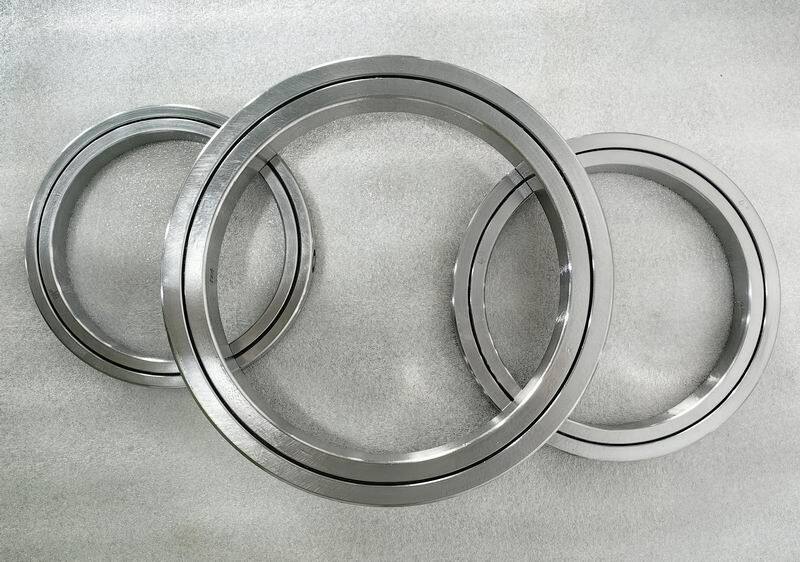

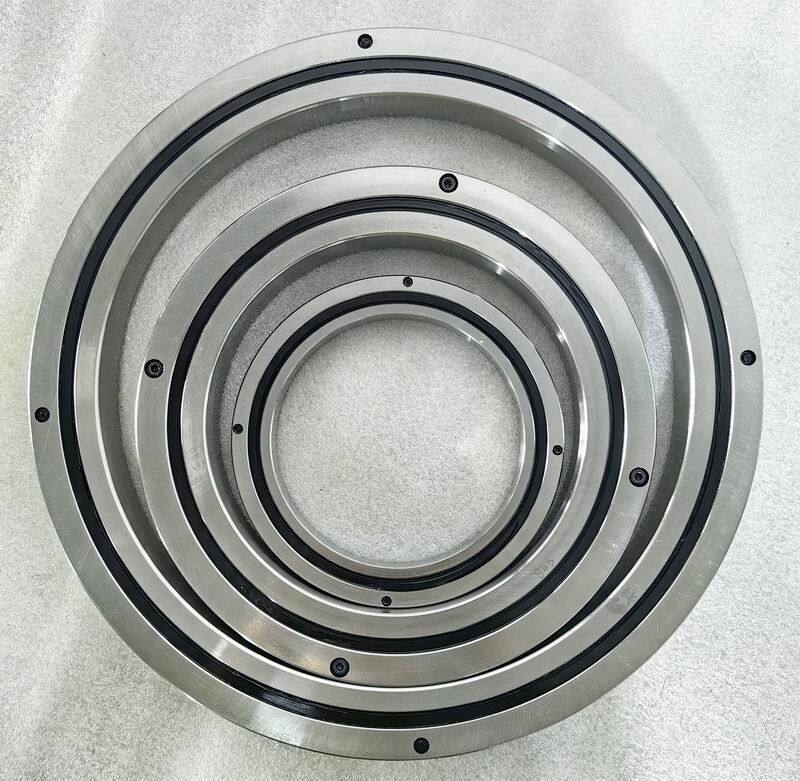

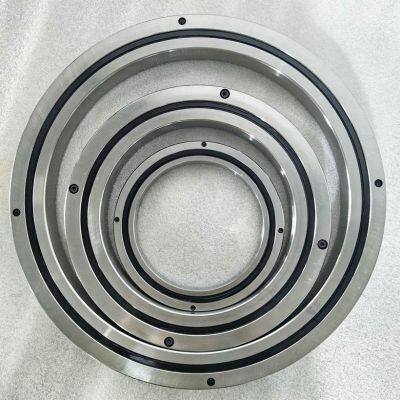

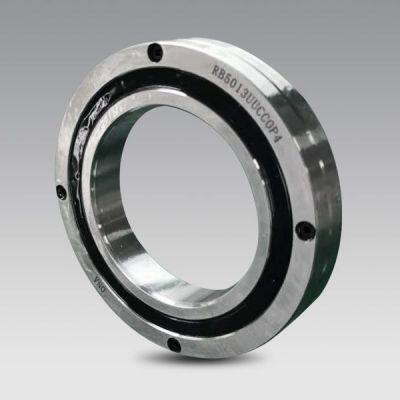

Help CenterThin-Walled Crossed Roller Bearings ORB 3510
Product Spotlights
Related Products
-
Thin-Walled Crossed Roller Bearings ORB 4010NegotiableMOQ: 5 Pieces -
Thin-Walled Crossed Roller Bearings ORB 4510NegotiableMOQ: 5 Pieces
-
Thin-Walled Crossed Roller Bearings ORB 5013NegotiableMOQ: 5 Pieces
-
Thin-Walled Crossed Roller Bearings ORB 6013NegotiableMOQ: 5 Pieces
-
Thin-Walled Crossed Roller Bearings ORB 2008NegotiableMOQ: 5 Pieces

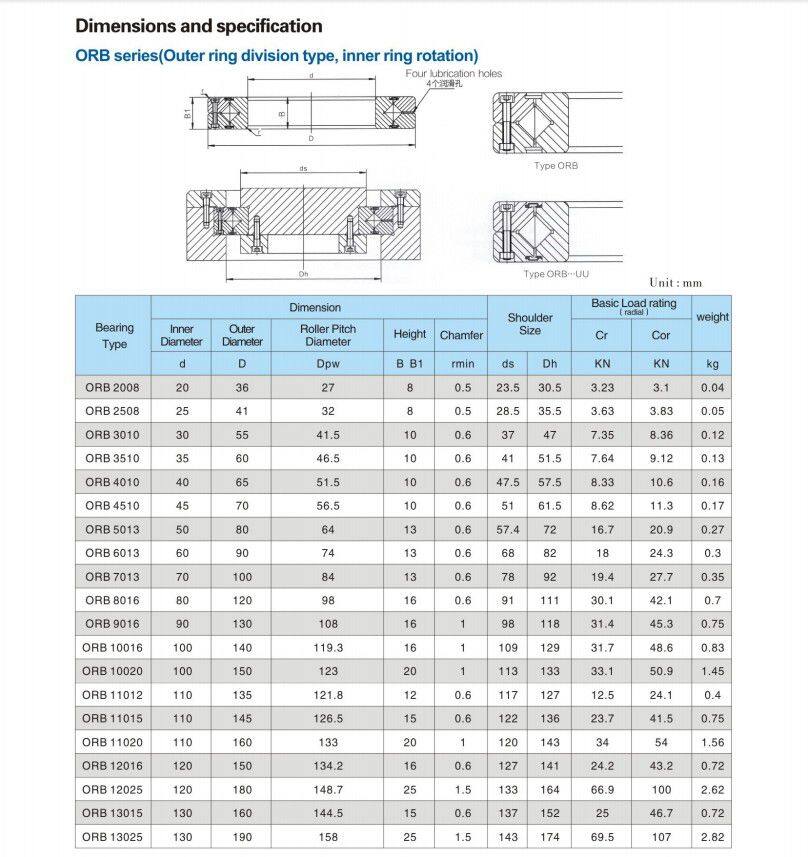

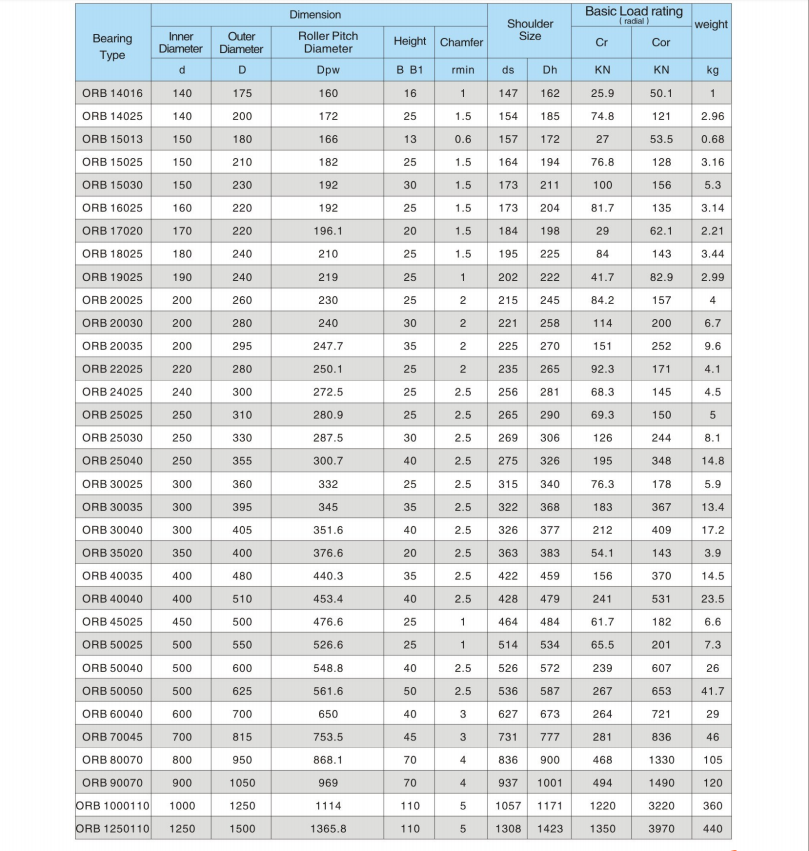

In cross roller bearings, since the cylindrical rollers are arranged perpendicularly to each other on the rolling surfaces of the V-shaped grooves through the spaced retainers, they can withstand all kinds of loads in various directions, including radial loads, axial loads, and torque loads. The dimensions of the inner and outer rings are minimally reduced, and the thin type is close to the limit of small size, with high rigidity. Therefore, it is suitable for applications in industrial robots' joints or rotating parts, rotating worktables of machining centers, rotating parts of mechanical hands, precision rotating worktables, medical machines, measuring instruments, IC manufacturing devices, etc.
Cross roller bearings are designed such that the inner or outer ring that is divided is fixed with the cross roller raceway after the rollers and spacer retainers are installed, to prevent them from separating from each other. Therefore, the installation of the cross roller raceway is very simple. Since the rollers are arranged in a cross pattern, only one set of cross roller raceways is needed to bear loads in all directions. Compared with traditional models, the rigidity is increased by 3 to 4 times. At the same time, because the inner or outer ring of the cross roller bearing is constructed in a two-segmented manner, the bearing clearance can be adjusted. Even when a preload is applied, high-precision rotational motion can be achieved.
1.Having excellent rotational accuracy
The internal structure of the cross roller bearing features rollers arranged perpendicularly and at a 90° angle to each other.
Between the rollers, there are spacer retainers or isolation blocks, which can prevent the rollers from tilting and rubbing against each other. This helps prevent an increase in the rotational torque. Moreover, there will be no phenomenon of direct contact between the rollers or locking. At the same time, because the inner and outer rings are of a separated structure, the gap can be adjusted. Even if pre-pressure is applied, high-precision rotational motion can still be achieved.
2. Simplified operation and installation process
The outer ring or inner ring that has been divided into two parts is fixed in place after the rollers and retainers are inserted. Therefore, the installation process is very simple.
3. Capable of withstanding significant axial and radial loads
Because the rollers are arranged perpendicularly to each other on the rolling surface of the 90° V-shaped groove through the spacer retainers, this design enables the cross roller bearing to withstand all kinds of loads in all directions, including radial load, axial load and torque load.
4. Significantly reduce installation space
The inner and outer ring dimensions of the cross roller bearing have been minimally miniaturized. Especially, the ultra-thin structure is close to the limit of small size and has high rigidity. Therefore, it is suitable for various applications such as the joint parts or rotating parts of industrial robots, the rotating worktable of machining centers, the rotating part of mechanical hands, precision rotating worktables, medical instruments, measuring instruments, IC manufacturing devices, etc.
5. High rotational speed capability
6. Reduce the length of the shaft and processing costs, and the thermal expansion causes only limited changes in geometric dimensions.
7. Utilizing nylon separators, the rotational inertia is low, the starting torque is also low, and it is easy to control the angular division.
8. Optimized preload, high rigidity, and high precision in guiding the rollers' operation.
9. Carburized steel offers excellent impact resistance and surface wear resistance.
10. Simple yet effective and smooth
