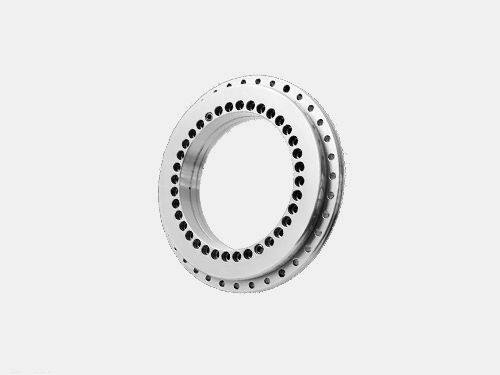

The ORTS high-speed turntable bearing series has a higher rotational speed compared to the ORT standard series, and the friction torque is low and uniform throughout the entire rotational speed range. The external structure dimensions are the same as those of the ORT series, but the internal structure is different from that of the ORT series. This series is more suitable for use with direct-drive motors.
The ORTS high-speed turntable bearing (referred to as ORTS turntable bearing) series has the same external structural dimensions as the ORT series, but its internal structure is different from that of the ORT series. This determines that the rotational speed limit of the ORTS turntable bearing series is higher than that of the ORT turntable bearing series, and its friction torque is lower and more uniform than that of the ORT turntable bearing series. Therefore, for applications that require relatively low friction but relatively high speed, this series can be selected, such as the bearings used for the shaft driven by a direct drive motor. Due to the fact that ORTS bearings have a high limit rotational speed and very low stable friction torque, this type of bearing is particularly suitable for engines with torque.
Advantages of the bearing:
1. High precision: The accuracy can reach P4 and P2;
2. High rigidity: All bearings in this series are equipped with preload.
3. High load-bearing capacity: Capable of withstanding axial load, radial load and overturning load.
4. High rotational speed: The YRTS series bearings can be used in applications with high rotational speeds.
Scope of application: Widely used in precision rotary table horizontal grinding machines, indexing heads, gear hobbing machines, gear milling machines, and workpiece shafts of precision devices.
