Product Description
Metal crushers are core crushing equipment developed for the recycling and reuse of scrap metal. Through shearing, tearing, and hammering principles, they crush various scrap metal materials into metal particles, briquettes, or flakes that meet recycling standards. They are widely used in industries such as waste recycling, renewable resources, metallurgy, and environmental protection, and are key equipment for realizing the recycling of metal resources.
Metal scrap hammermill shredder metal scrap crusher is for the light material. bulky material or the steel wire scrap to process them into smaller density material through the hammer squezing, rubbing,crashing of hammer and the material, to down size of material, meanwhile to get out the impurities .cut off the cost of transportation, increase the melting ratio. there is fit with jet pulse filter to proect environment.
Material enters the crushing chamber through the feed inlet. A high-speed rotating rotor drives high-manganese steel hammers to forcefully impact the material, causing initial fragmentation.

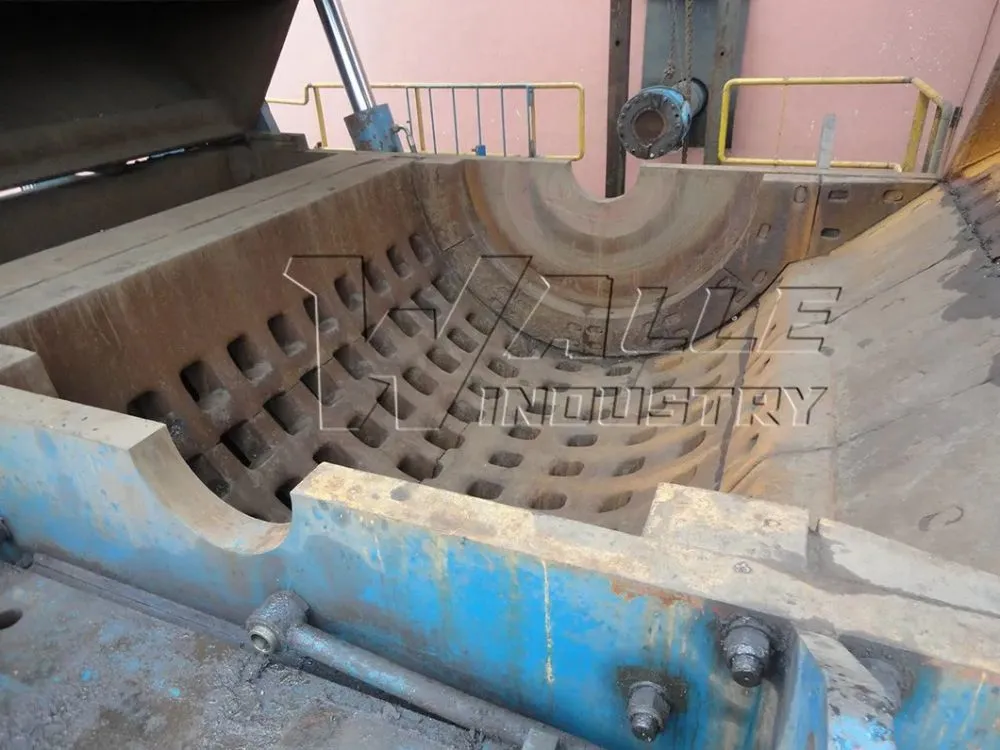

The fragmented material repeatedly collides and rubs against the lining plates and screen plates inside the crushing chamber, further refining it.
Metal particles that meet the size requirements are discharged through the screen, while unqualified materials continue to circulate and be crushed within the chamber, ultimately yielding a uniformly crushed material.
A magnetic separator separates ferrous and non-ferrous metals, and a dust removal system treats the dust generated during the crushing process.
Product Parameters
| Type | power | feeder | rotary | capacity | size | weight |
| PGS-800 | 37-55 KW | 800 mm | 1250 rpm | 0.7-1 t/h | 3800*1600*1800mm | 3.2t |
| PGS-1000 | 45-75 KW | 1000 mm | 1250 rpm | 0.8-1.5t/h | 2560*1800*2200 mm | 7.6t |
| PGS-1300 | 90-150 KW | 1300 mm | 860 rpm | 2-4 t/h | 4000*3500*3200 mm | 11.5-26t |
| PGS-1600 | 200-280 KW | 1600 mm | 750 rpm | 4-6 t/h | 4800*4000*3800 mm | 16.6-35 t |
| PGS-1800 | 220-450 KW | 1800 mm | 650 rpm | 6-10 t/h | 4800*4100*4000 mm | 32-48 t |
| PGS-2000 | 315-630 KW | 2000 MM | 650 rpm | 8-12 T/H | 5000*4500*4300 MM | 35-65 T |
| PGS-2200 | 500-900 KW | 2200 MM | 650 rpm | 15-20 T/H | 5000*4500*4500 MM | 35-65 T |
| PGS-2400 | 1250-2250 KW | 2400 MM | 650 rpm | 20-45 T/H | 6300*4800*4500 MM | 85-120T |
| PGS-2800 | 1600-3000 KW | 2600 MM | 650 rpm | 70-100 T/H | 6400*5200*4800 MM | 145-230T |
| PGS-3000 | 3300-4400 KW | 3000 MM | 650 rpm | 110-140 T/H | 8500*7200*5500 MM | 280-760T |

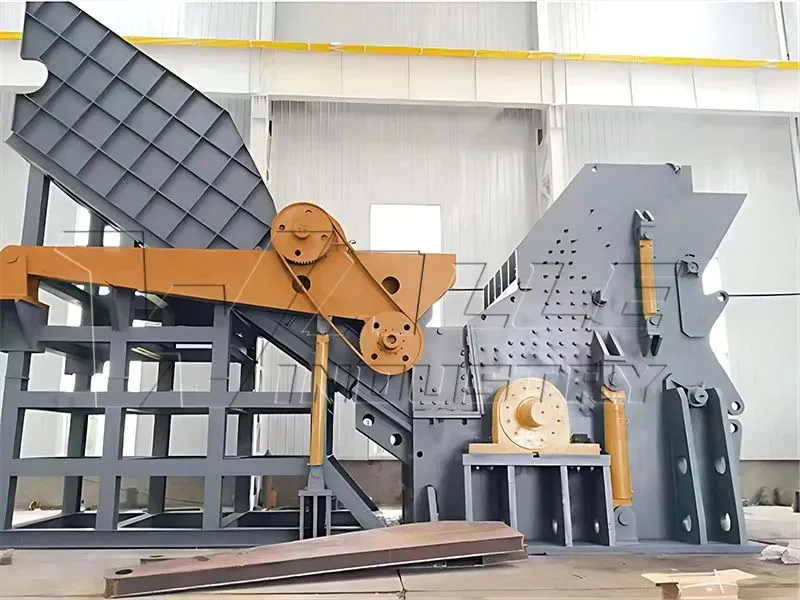

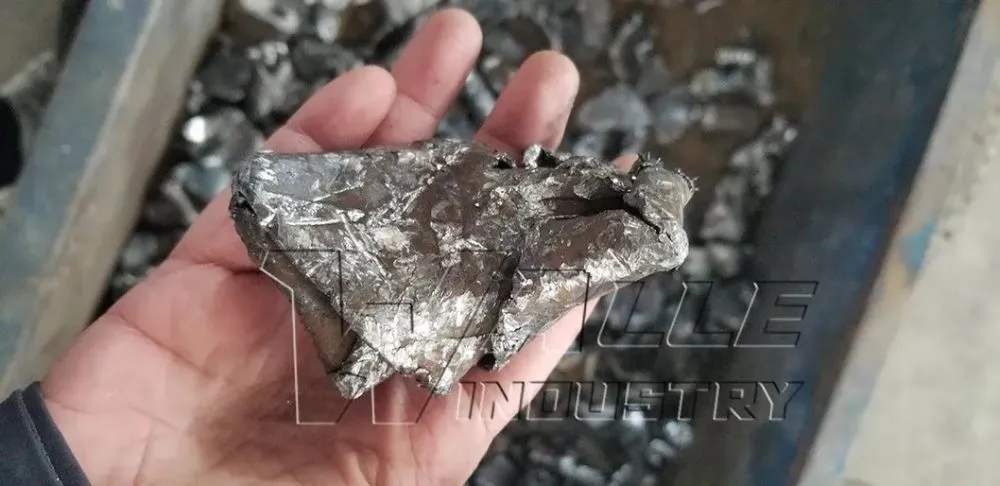

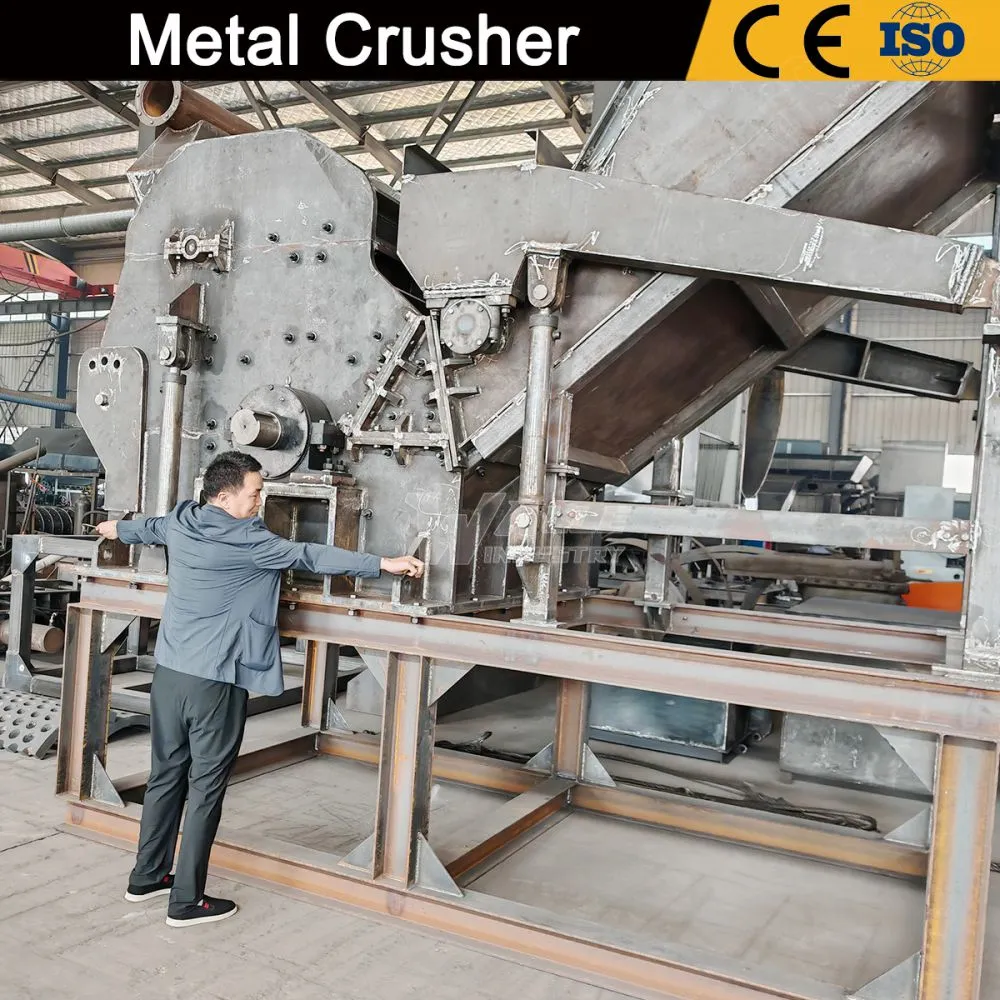

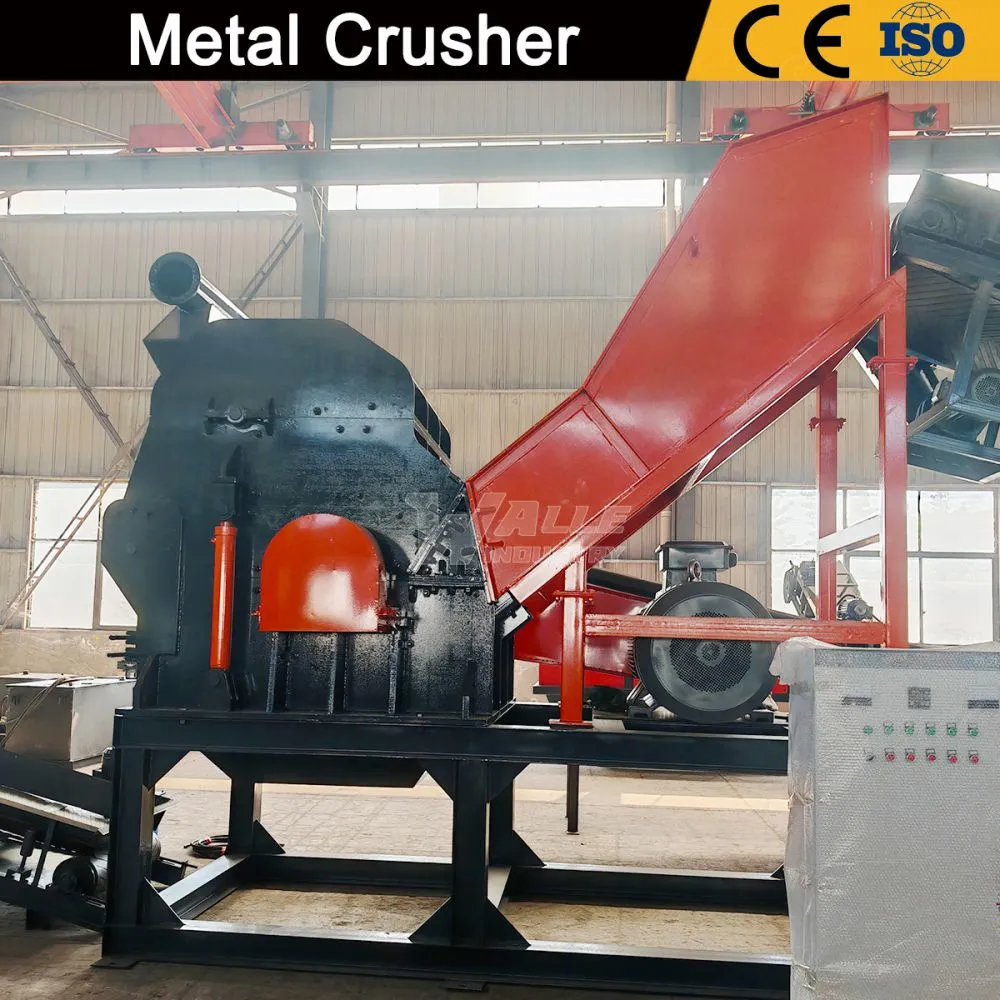

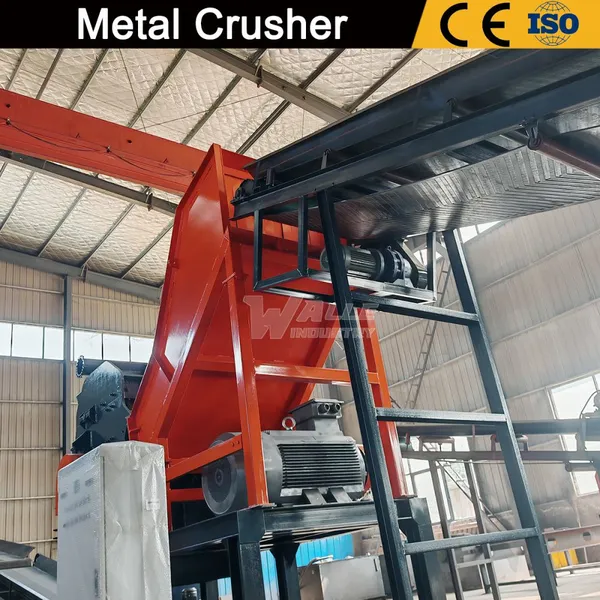

Detailed Photos
Advantage
Features of the hammermill shredder
1.The hammer is made of high maganese
2. construction is robust and durable, dense reinforcement plate to ensure strong box.
3. Liner Special alloy to ensuare in operation and uptime.
4. Ejection device to avoid damage the hammer and electronics.
5. Hydraulic cyclinder to facilitate mechanical maintenance and repair.
6. PLC controller system to confirm the safety
Metal shredders have a wide range of applications, covering almost all types of scrap metal:
Everyday scrap metal: Various aluminum cans (Cola, Sprite, Red Bull, etc.), paint cans, oil cans, mooncake boxes, etc.
Light and thin metal materials: Corrugated steel sheets, sheet metal, scrap roller shutters, bicycle/motorcycle/car shells, etc.
Industrial scrap metal: Scrap steel, scrap iron, aluminum blocks, copper blocks, motor rotors, metal shavings, etc.
