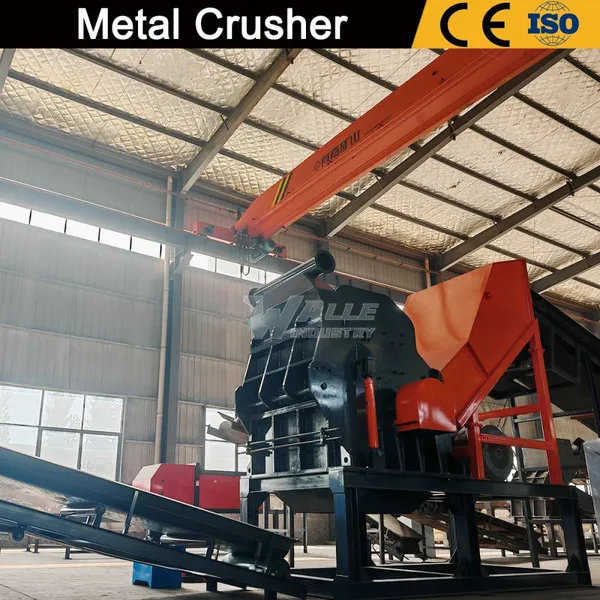

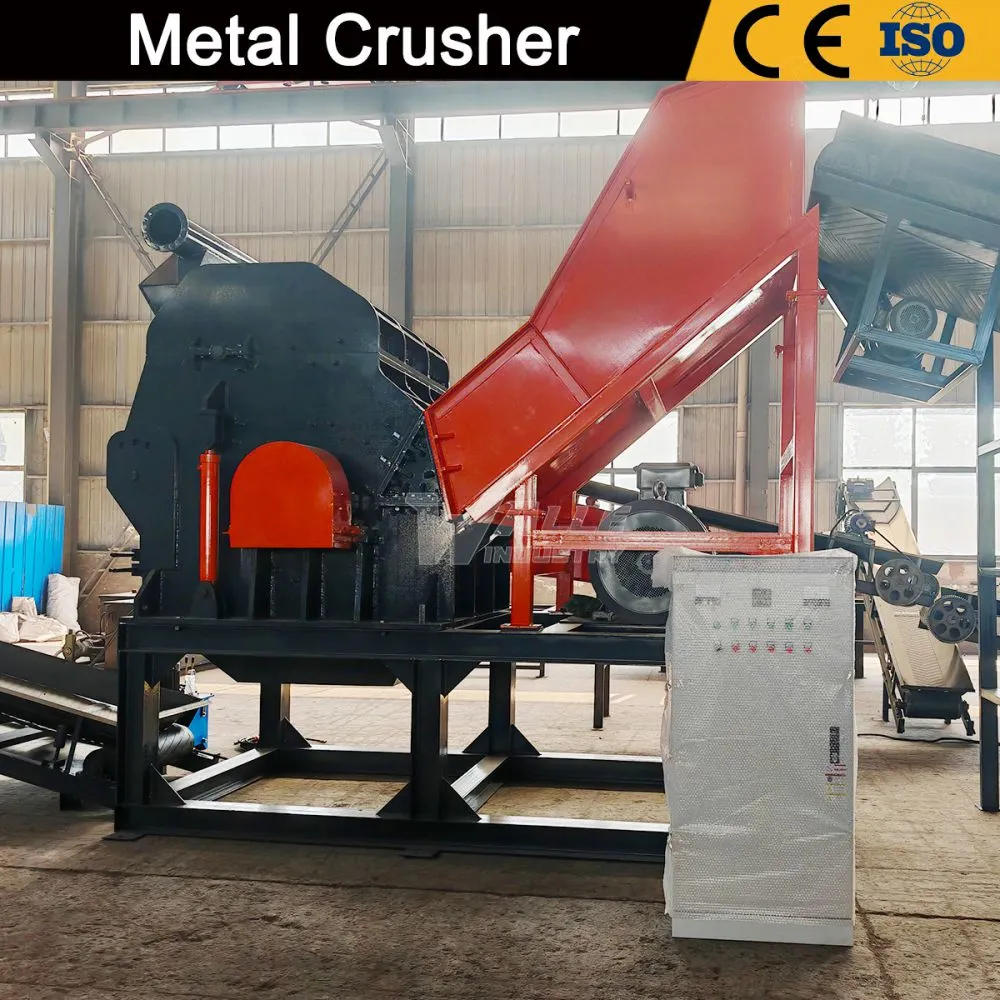

Help CenterLarge-Scale Car Body Shredder for Metal Scrap Processing
Product Spotlights
Related Products
-
Fully Automatic Motor Oil Drum Crusher for Scrap Metal ProcessingUS$ 18600MOQ: 1 Set -
Scrap Car Body Shredder, Metal Scrap Crushing EquipmentUS$ 18600MOQ: 1 Set
-
Dual-Shaft Wire and Cable Shredder, Metal Scrap Recycling EquipmentUS$ 18600MOQ: 1 Set
-
New-Generation Oil Drum Shredder, Recycled Metal Hammer MillUS$ 18600MOQ: 1 Set
-
New-Generation Car Body Shredder, Metal Scrap Hammer MillUS$ 18600MOQ: 1 Set
Product Description
Metal scrap hammermill shredder metal scrap crusher is for the light material. bulky material or the steel wire scrap to process them into smaller density material through the hammer squezing, rubbing,crashing of hammer and the material, to down size of material, meanwhile to get out the impurities .cut off the cost of transportation, increase the melting ratio. there is fit with jet pulse filter to proect environment.
Crushing Processing: Efficiently crushes various scrap metals such as scrap steel, scrap iron, scrap aluminum, corrugated steel sheets, paint buckets, car shells, and metal briquettes.
Volume Reduction Transportation: Significantly reduces material volume, lowering storage and transportation costs.
Sorting and Purification: Equipped with a sorting system, it can separate plastics, rubber, and impurities from metals, improving the purity of recycled materials.
Recycling: Crushed metal materials can be directly recycled back into the furnace, achieving resource recycling.
Product Parameters
| Type | power | feeder | rotary | capacity | size | weight |
| PGS-800 | 37-55 KW | 800 mm | 1250 rpm | 0.7-1 t/h | 3800*1600*1800mm | 3.2t |
| PGS-1000 | 45-75 KW | 1000 mm | 1250 rpm | 0.8-1.5t/h | 2560*1800*2200 mm | 7.6t |
| PGS-1300 | 90-150 KW | 1300 mm | 860 rpm | 2-4 t/h | 4000*3500*3200 mm | 11.5-26t |
| PGS-1600 | 200-280 KW | 1600 mm | 750 rpm | 4-6 t/h | 4800*4000*3800 mm | 16.6-35 t |
| PGS-1800 | 220-450 KW | 1800 mm | 650 rpm | 6-10 t/h | 4800*4100*4000 mm | 32-48 t |
| PGS-2000 | 315-630 KW | 2000 MM | 650 rpm | 8-12 T/H | 5000*4500*4300 MM | 35-65 T |
| PGS-2200 | 500-900 KW | 2200 MM | 650 rpm | 15-20 T/H | 5000*4500*4500 MM | 35-65 T |
| PGS-2400 | 1250-2250 KW | 2400 MM | 650 rpm | 20-45 T/H | 6300*4800*4500 MM | 85-120T |
| PGS-2800 | 1600-3000 KW | 2600 MM | 650 rpm | 70-100 T/H | 6400*5200*4800 MM | 145-230T |
| PGS-3000 | 3300-4400 KW | 3000 MM | 650 rpm | 110-140 T/H | 8500*7200*5500 MM | 280-760T |
Detailed Photos
Advantage
Features of the hammermill shredder

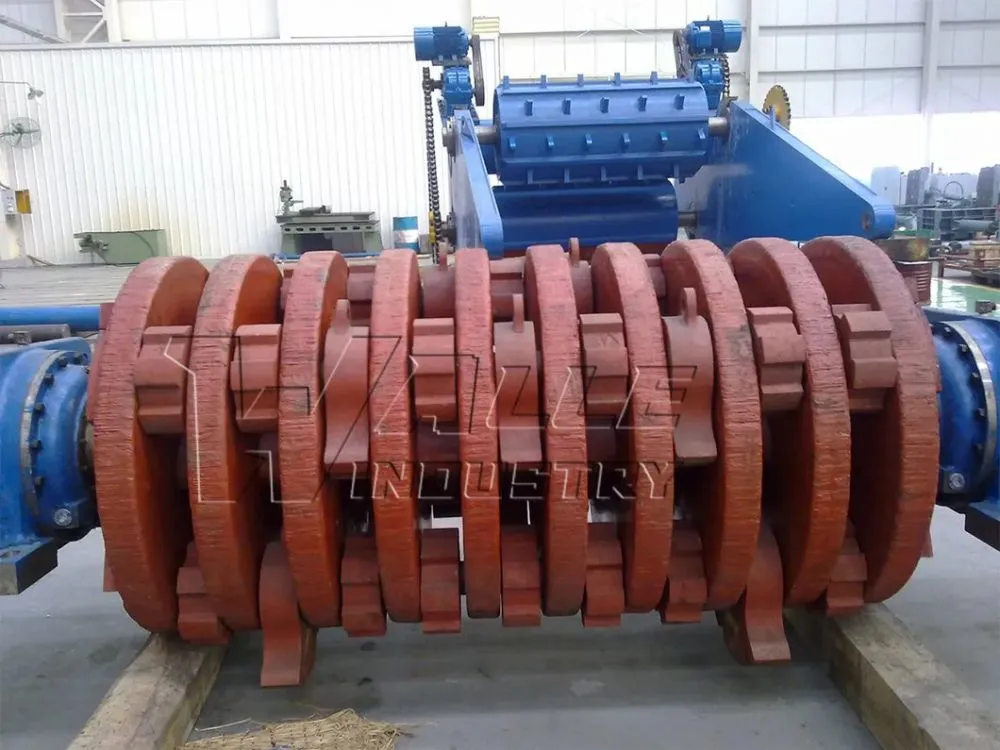

1.The hammer is made of high maganese
2. construction is robust and durable, dense reinforcement plate to ensure strong box.
3. Liner Special alloy to ensuare in operation and uptime.
4. Ejection device to avoid damage the hammer and electronics.
5. Hydraulic cyclinder to facilitate mechanical maintenance and repair.
6. PLC controller system to confirm the safety
Metal shredders have a wide range of applications, covering almost all types of scrap metal:
Everyday scrap metal: Various aluminum cans (Cola, Sprite, Red Bull, etc.), paint cans, oil cans, mooncake boxes, etc.
Light and thin metal materials: Corrugated steel sheets, sheet metal, scrap roller shutters, bicycle/motorcycle/car shells, etc.
Industrial scrap metal: Scrap steel, scrap iron, aluminum blocks, copper blocks, motor rotors, metal shavings, etc.
