Product Description

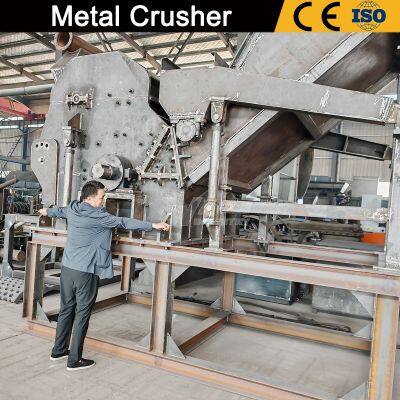

Metal scrap hammermill shredder metal scrap crusher is for the light material. bulky material or the steel wire scrap to process them into smaller density material through the hammer squezing, rubbing,crashing of hammer and the material, to down size of material, meanwhile to get out the impurities .cut off the cost of transportation, increase the melting ratio. there is fit with jet pulse filter to proect environment.
Scrap metal recycling plants and material recycling stations; end-of-life vehicle dismantling and waste appliance dismantling and processing centers; metallurgical smelting enterprises and renewable resource industrial parks; construction waste treatment and industrial metal scrap processing.
Material enters the crushing chamber through the feed inlet. A high-speed rotating rotor drives high-manganese steel hammers to forcefully impact the material, causing initial fragmentation.
The fragmented material repeatedly collides and rubs against the lining plates and screen plates inside the crushing chamber, further refining it.
Metal particles that meet the size requirements are discharged through the screen, while unqualified materials continue to circulate and be crushed within the chamber, ultimately yielding a uniformly crushed material.
A magnetic separator separates ferrous and non-ferrous metals, and a dust removal system treats the dust generated during the crushing process.
Product Parameters
| Type | power | feeder | rotary | capacity | size | weight |
| PGS-800 | 37-55 KW | 800 mm | 1250 rpm | 0.7-1 t/h | 3800*1600*1800mm | 3.2t |
| PGS-1000 | 45-75 KW | 1000 mm | 1250 rpm | 0.8-1.5t/h | 2560*1800*2200 mm | 7.6t |
| PGS-1300 | 90-150 KW | 1300 mm | 860 rpm | 2-4 t/h | 4000*3500*3200 mm | 11.5-26t |
| PGS-1600 | 200-280 KW | 1600 mm | 750 rpm | 4-6 t/h | 4800*4000*3800 mm | 16.6-35 t |
| PGS-1800 | 220-450 KW | 1800 mm | 650 rpm | 6-10 t/h | 4800*4100*4000 mm | 32-48 t |
| PGS-2000 | 315-630 KW | 2000 MM | 650 rpm | 8-12 T/H | 5000*4500*4300 MM | 35-65 T |
| PGS-2200 | 500-900 KW | 2200 MM | 650 rpm | 15-20 T/H | 5000*4500*4500 MM | 35-65 T |
| PGS-2400 | 1250-2250 KW | 2400 MM | 650 rpm | 20-45 T/H | 6300*4800*4500 MM | 85-120T |
| PGS-2800 | 1600-3000 KW | 2600 MM | 650 rpm | 70-100 T/H | 6400*5200*4800 MM | 145-230T |
| PGS-3000 | 3300-4400 KW | 3000 MM | 650 rpm | 110-140 T/H | 8500*7200*5500 MM | 280-760T |
Detailed Photos
Advantage
Features of the hammermill shredder
1.The hammer is made of high maganese
2. construction is robust and durable, dense reinforcement plate to ensure strong box.
3. Liner Special alloy to ensuare in operation and uptime.
4. Ejection device to avoid damage the hammer and electronics.
5. Hydraulic cyclinder to facilitate mechanical maintenance and repair.
6. PLC controller system to confirm the safety
8 the force feeding device, two stage pressing the bulky material to the crushing chamber . improve the processing efficiency. 9.Robust frame and liar to keep continue uptime.
10. Eject design to avoid heavy material damage the core part.
11. Hydraulic cylinder to open caps , which is convenient to speed up offtime.
12. The New hammer design with the cover to expand working hours.
13. The crushing chamber takes the thickness and durable material to reliable and keep Operation hours. 14. expedition of sorting device, Zig zag separator , and drum magnetic separator equipped.
