Product Overview:

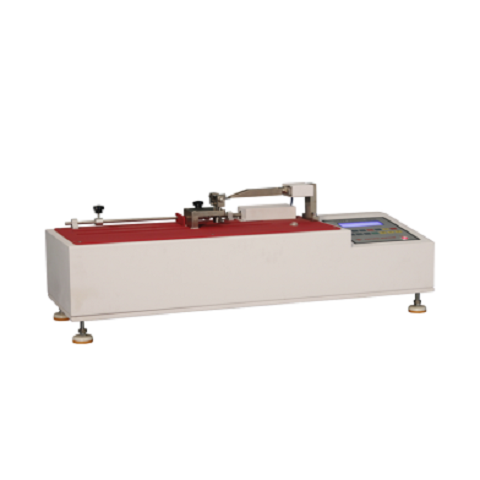

This testing machine is used to bend the pen clip 2 - 3 times, fix the pen cap on the fixture of the pen clip clamping force tester, insert the insert between the pen cap and the pen clip with an insertion depth of (10 + 1) mm, and start the instrument to make the insert separate from the pen clip. Check whether the value when the insert separates from the pen clip meets the specified requirements.
Compliance Standards:
Clause 7.14 of QB/T 1655 - 2006, Clause 5.6 of QB/T 2775 - 2006
Technical Parameters:
1. Metal insert A: Surface roughness of the accessory: Ra0.32μm - Ra0.63μm, thickness (0.80 ± 0.02) mm, surface hardness HRC 58
2. Metal insert B: Surface roughness of the accessory: Ra0.32μm - Ra0.63μm, thickness (3 ± 0.02) mm, surface hardness HRC > 58
3. Sensor: 5kg
4. Stroke: 0 - 300 mm
5. Power supply: AC220V 50HZ
