Product Overview
HLM2400 large vertical mill is professionally designed for bauxite grinding by HCM, a top Chinese grinding mill manufacturer. It efficiently processes bauxite ore into 325/400 mesh fine powder, widely used for petroleum industry refractory materials, aluminum smelting and metallurgy fields.
HLM2400 Parameter Table
Key Parameters
• Raw Material: Bauxite Ore
• Finished Fineness: 325 mesh, 400 mesh
• Capacity: 16-25t/h（Preliminary output estimate, subject to grinding mill configuration.）
• Feature: Energy saving, intelligent, stable
Core Advantages
• Energy saving: 40-50% lower power consumption than ball mill
• High efficiency: large single-machine capacity, stable output
• Intelligent control: PLC automatic system, remote monitoring
• Quality guarantee: uniform powder size, stable product performance
• Wear-resistant parts: long service life, low maintenance cost
Application
Mainly used for producing high-grade bauxite powder for petroleum industry kiln lining, refractory materials, aluminum smelting, steelmaking and other high-temperature industries.

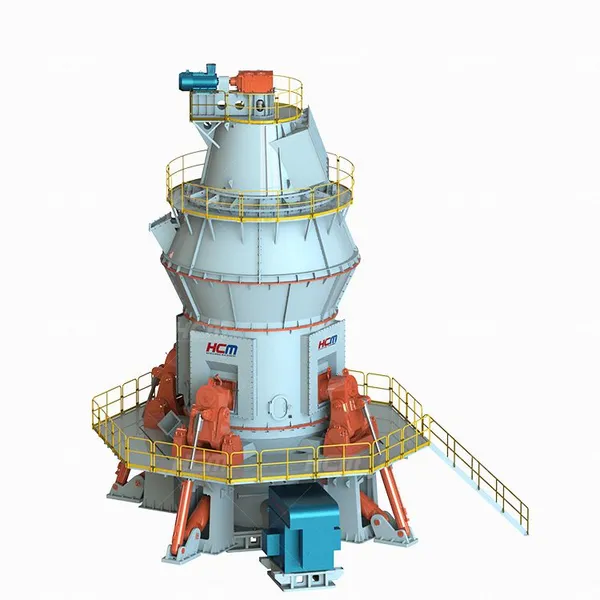

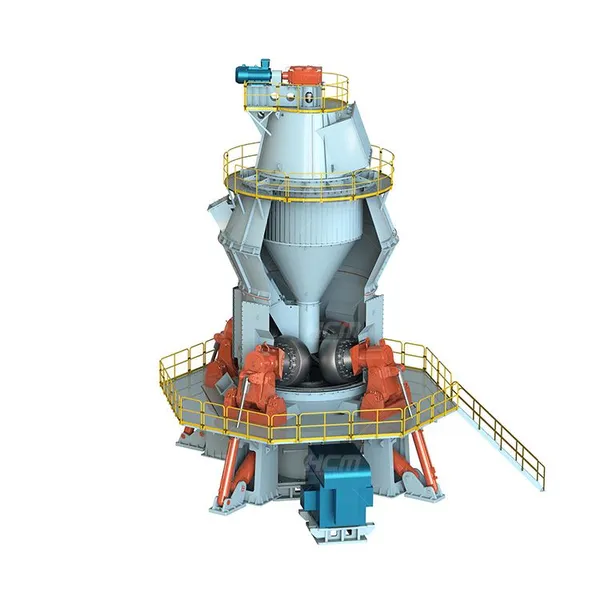

HCM Vertical Mill Product Introduction：
HLM vertical grinding mill and vertical roller mill is a high-efficiency energy-saving advanced pulverizing equipment integrating drying, pulverizing, grading and conveying, which has been researched and developed by Guilin Hongcheng Company for more than 20 years.
Hongcheng HLM vertical grinding mill has the advantages of high grinding efficiency, low power consumption, large feed particle size, easy adjustment of product fineness, simple equipment process, small footprint, low noise, small dust, convenient use and maintenance, and convenient operation. It has the advantages of low cost and low consumption of wear-resistant materials.
Max feeding size:50mm
Capacity: 10-150t/h
Fineness: 200-325 mesh (75-44μm)
Our Service
Customized solution, factory direct supply, installation & commissioning, after-sales support
