HCM China mill manufacturer produces HLMX1700 ultra-fine vertical mill Designed for large-scale ultrafine powder production, stable and reliable High grinding efficiency, low energy consumption, save 30%-50% energy Adopts static-dynamic classifier, precise fineness control Low iron contamination, high whiteness and purity of final powder Easy maintenance, long service life of wear parts PLC intelligent control, fully automatic operation Suitable for coating, plastic, rubber, paper, ink, chemical industry

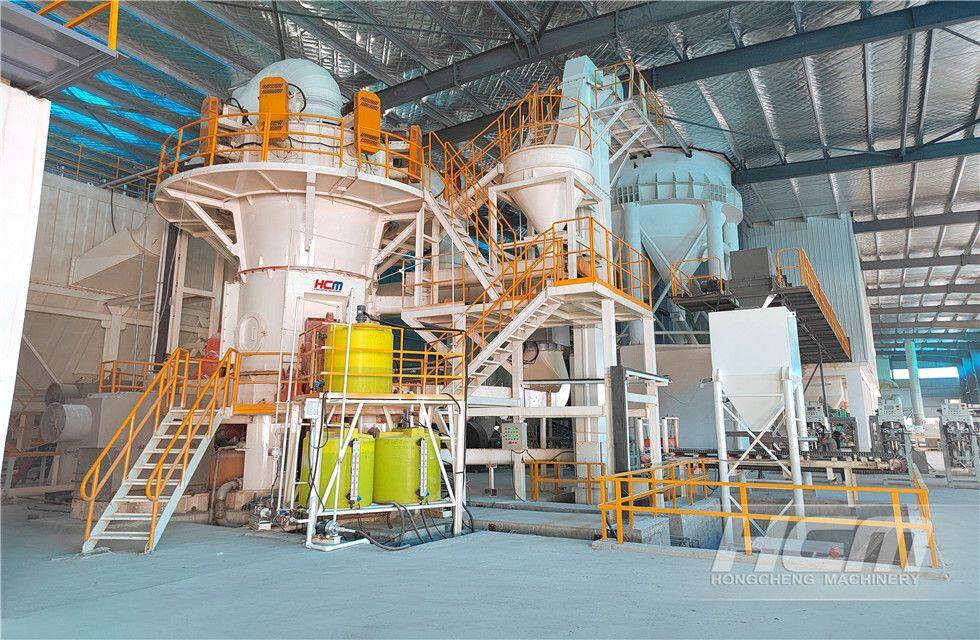

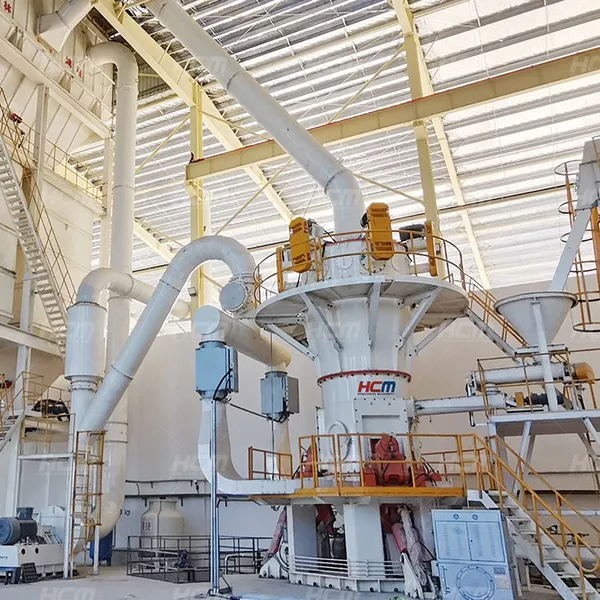

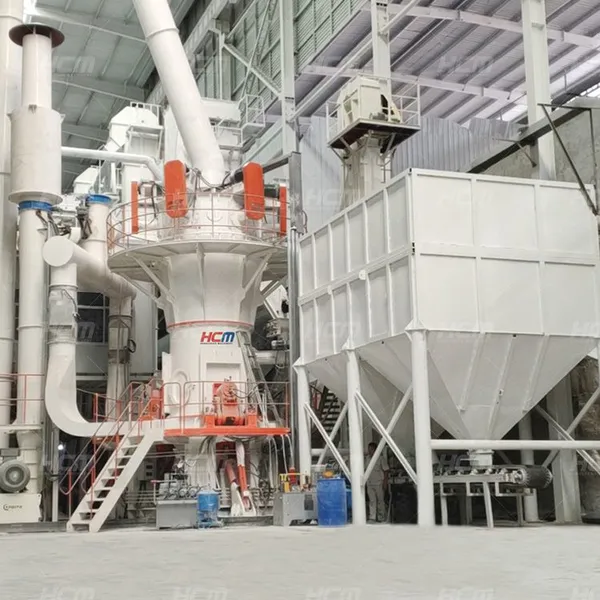

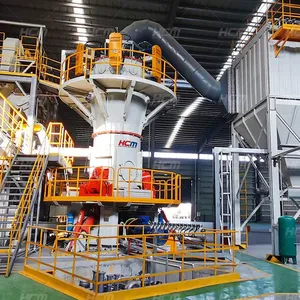

1.HCM HLMX1700 Ultra-Fine Vertical Mill Project Case for Producing Ultra-Fine Calcium Carbonate Powder:

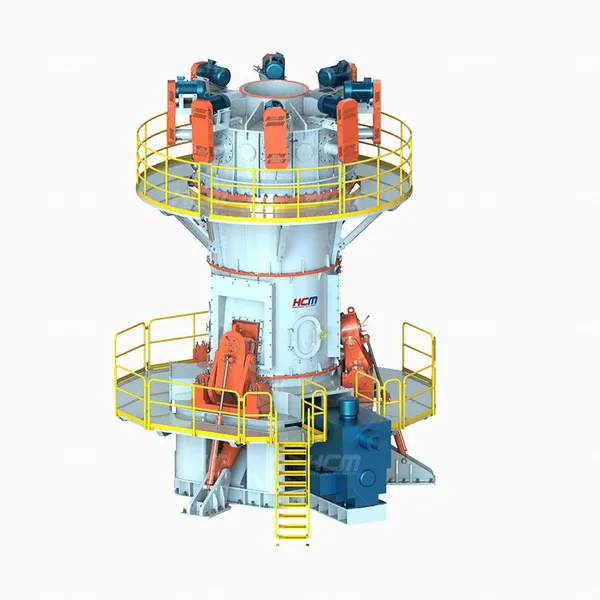

Product Name: HCM HLMX1700 Ultrafine Vertical Grinding Mill
Brand: HCM (Guilin Hongcheng)
Model: HLMX1700
Application: Calcium Carbonate (GCC/Calcite/Limestone/Marble)
Fineness: 1250 Mesh
Capacity: 7t/h（Actual output shall be determined by the mill configuration plan）

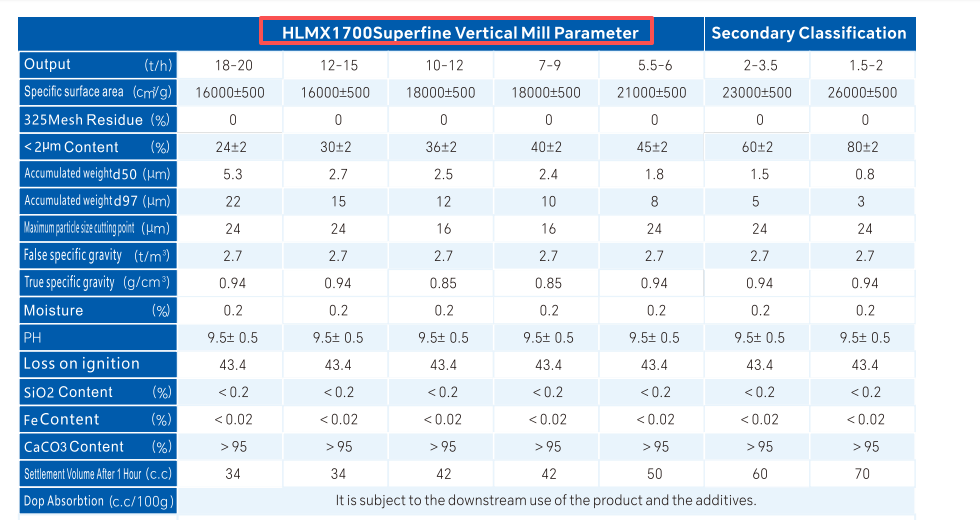

2.Technical Parameters of HCM HLMX 1700 Ultrafine Vertical Mill：

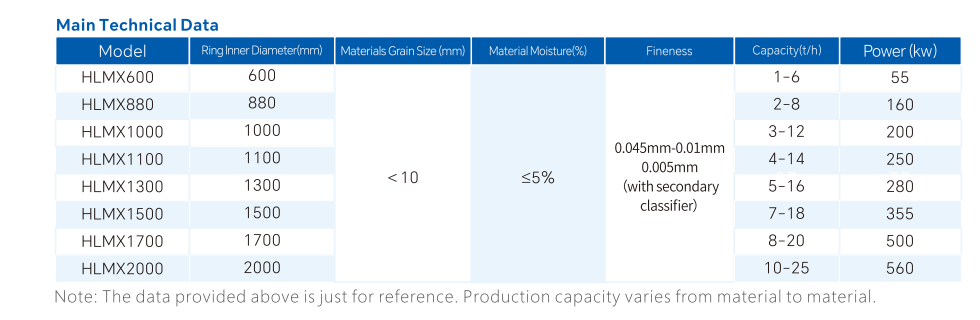

Technical Parameters of HCM HLMX Ultrafine Vertical Mill
3.Advantages of HCM HLMX Series Ultra-Fine Vertical Mill in Producing Ultra-Fine Calcium Carbonate Powder:
1-1.High grinding efficiency and energy saving. The production capacity of a single machine is large, it can reach 40t/h. Adopt of single head and multi head classifiers, without secondary air separation and classification, it can save 30%-50% energy than common mills.
1-2.Stable product quality and excellent quality. The material remains in the mill for a short time, which makes it easier to detect the particle size. distribution and composition of the product and reduces repeated grinding. The final product contains less iron, and has high brightness and purity.
1-3.Environmental Protection. The whole system of HLMX vertical mill has low vibration and low noise level; the system is sealed as a whole, works under full negative pressure and has no dust spillage, and can basically realize a dust-free workshop.
1-4.Easy maintenance and low operating cost. The grinding roller can be taken out of the machine by hydraulic device, it is convenient for maintenance; the roller cover can be flipped over and used, which extends the service life. The mill can be started without materials, eliminating start-up problems.
1-5：High reliability. The roller limit device is used to prevent vibration caused by material interruption during mill work. The new type of grinding roller seal is reliable, no need for sealed fan, reduces the oxygen content in the mill, has excellent explosion suppression performance.

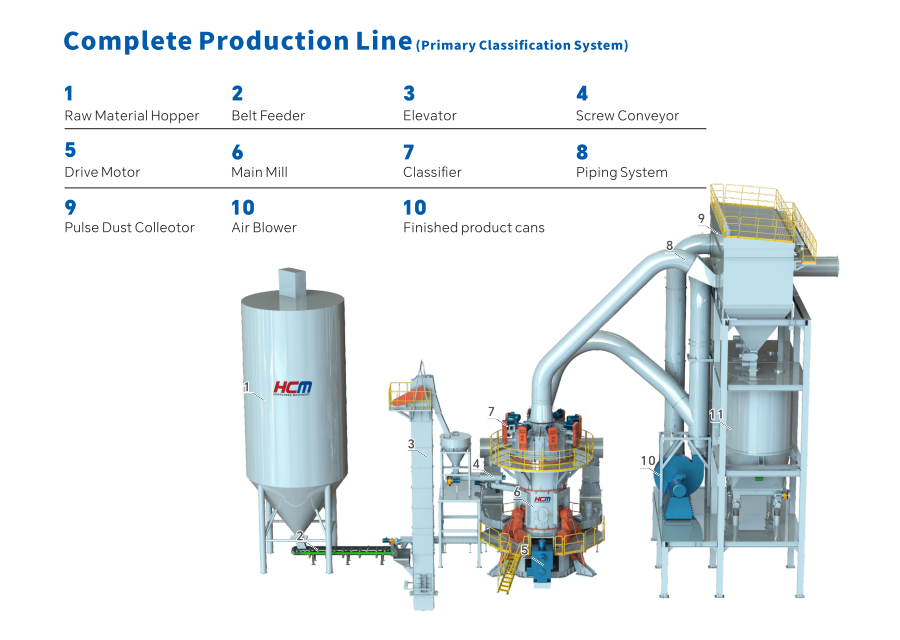

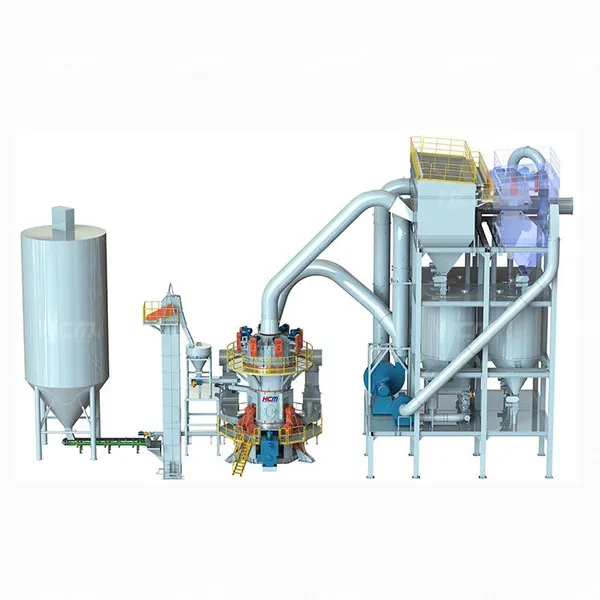

1-6：It integrates crushing, drying, classification and transportation. The process flow is simple, the system equipment is small, the structure is compact, and the area is small, which is 50% of the ball mill. It can be placed outdoors, and the construction cost is low, which directly reduces the investment cost of the company.
1-7：High degree of automation. It adopts PLC automatic control system and can realize remote control, which is easy to operate, convenient to maintain, and reduces labor cost.
about HCM：
HCM Guilin Hongcheng is a grinding mill production base specializing in the production of powder processing equipment such as Raymond vertical mills. Guilin Hongcheng mining equipment manufacturing Co., Ltd. is a leading enterprise in China's powder metallurgy equipment industry and a professional supplier of comprehensive solutions for domestic powder metallurgy equipment. The company is mainly engaged in professional development, design, manufacturing and sales of all kinds of rolling mills and complete production lines.
The factory has three production bases and a research center. The main plant is located in Yangtang Industrial Park, Xicheng Economic Development Zone, Guilin, with a total construction area of 170000 square meters and 5000 meters of plant and office land. It is located 12 kilometers east of Guilin railway station and 10 kilometers west of Liangjiang International Airport. Now it has 60 high-quality technicians and more than 600 well-trained employees to serve the company. It has the most advanced technology and provides the best service.
The products of Guilin HCM factory have passed the ISO9001:2008 international quality management system certification, relying on the cooperation experience with major readers in the world. Our customers cover Vietnam, Laos, Malaysia, Indonesia, South Africa, Russia, the Philippines, Egypt, Mexico, the United States, Brazil and other countries.
Guilin Hongcheng insists on building a global brand, looks forward to your choice and provides you with high-quality service at any time.
