Product Overview
HCH1395 Ring Roller Mill is a high-efficiency ultra fine grinding equipment independently developed and manufactured by HCM, a professional Chinese ring roller mill manufacturer. This machine is specially designed for grinding calcite into 1250 mesh ultra fine powder, with a stable hourly output of 4 tons. Adopting patented grinding and classification technology, it features large crushing ratio, uniform powder fineness, low energy consumption, dust-free operation and long service life. It is widely used to produce high-standard ultra fine calcite powder for global plastics, coatings, papermaking, rubber, ceramics and other industrial fields, catering to various high-end filler production demands.(explain：Preliminary output fineness estimate, subject to grinding mill configuration)
Core Product Parameters
• Model: HCH1395 Ring Roller Mill
• Grinding Material: Calcite, Calcium Carbonate
• Finished Fineness: 1250 Mesh (Adjustable 400-2500 Mesh)
• Hourly Capacity: 4 TPH
• Feeding Size: ≤10mm
• Fine Powder Size: ≤10μm (97% pass rate), ≤3μm approx. 40%
• Brand: HCM (Professional Ultra Fine Grinding Mill Manufacturer)
Core Advantages & Patented Technologies
1. Large Crushing Ratio & High Powder Quality
This machine boasts a large crushing ratio. With feeding particle size ≤10mm, it can process materials into ≤10μm fine powder (97% pass rate) in a single pass, and the proportion of -3μm ultra fine powder reaches about 40%, featuring a large specific surface area. The produced ultra fine calcite powder has uniform particle size, high purity and excellent dispersibility, fully meeting the strict quality demands of high-end industrial fillers and finished products.
2. Patented Turbine Classification System (Patent No.: ZL201030143470.6)
Equipped with a mandatory turbine classification system (Patent No.: ZL201030143470.6), the finished powder has fine and uniform particle size without coarse particles. The fineness can be flexibly adjusted between 0.04mm (400 mesh) and 0.005mm (2500 mesh) to match diverse market demands. Customers can produce calcite powder of different fineness grades to expand application scenarios and boost core business competitiveness.
3. Patented Pulse Dust Collection System (Patent No.: CN200920140944.3)
Adopting a patented pulse dust collection system (Patent No.: CN200920140944.3), the dust collection efficiency reaches over 99.9%, realizing a totally dust-free workshop and complying with international environmental protection standards. Each filter bag can be cleaned individually with compressed air, effectively avoiding filter bag blockage caused by long-term dust accumulation, ensuring stable and uninterrupted operation of the whole grinding line.
4. Low Consumption, Good Shock Absorption & Long Service Life
The machine comes with a compact structure, low power consumption and outstanding shock absorption performance. The grinding roller and grinding ring are forged from special wear-resistant steel, which greatly prolongs the service life of wearing parts and cuts down daily maintenance costs. The main machine base adopts an integrated casting structure, which ensures high structural strength and excellent shock absorption, keeping the equipment running stably for a long term.

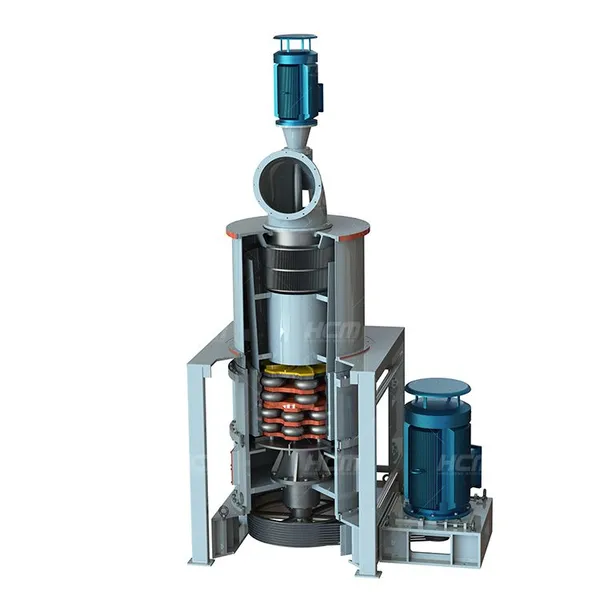

Structure & Working Principle

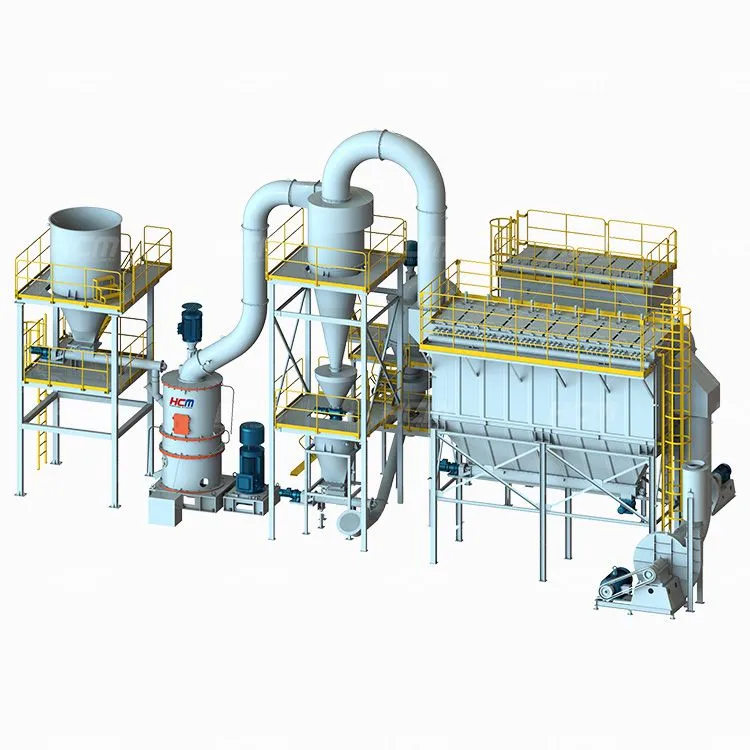

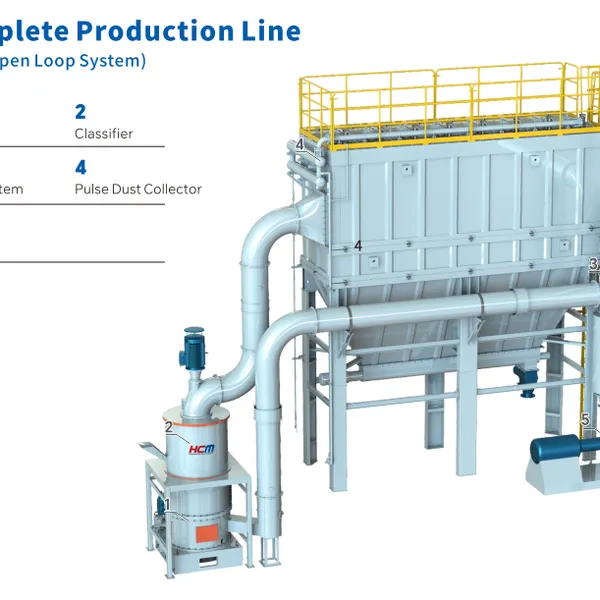

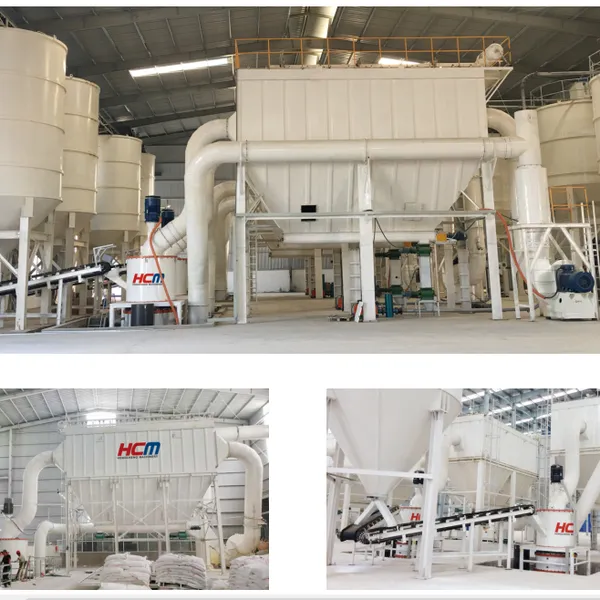

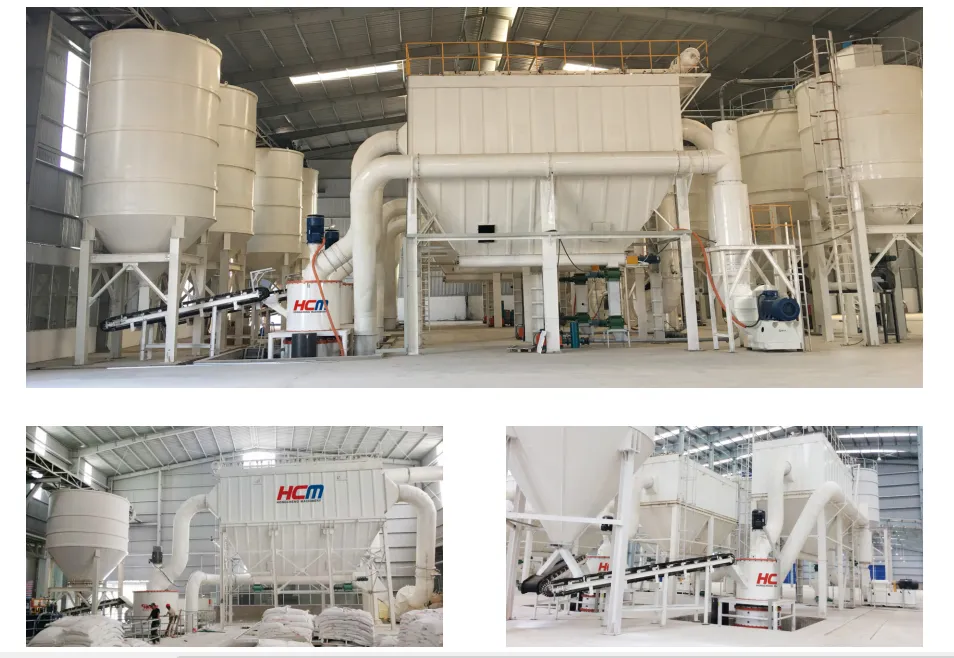

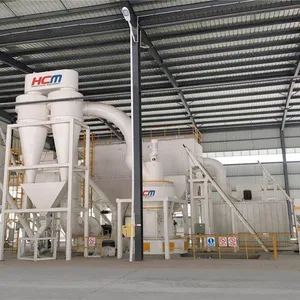

HCH1395 Ring Roller Mill consists of main grinding unit, turbine classifier, pulse dust collector, feeder, fan and electric control system. Under the action of high-speed rotating rollers and rings, materials are crushed and ground into fine powder. The qualified fine powder is separated by the patented turbine classifier and collected, while unqualified coarse powder falls back for re-grinding. The whole grinding process is closed and efficient, with stable performance and easy operation.
Overseas Downstream Applications of 1250 Mesh Ultra Fine Calcite Powder
• Plastic Industry: Used as high-performance filler for plastics, PVC, cables, etc., improving product rigidity, wear resistance, dimensional stability and reducing production costs.
• Paint & Coating Industry: Applied as functional filler for water-based coatings, paints and inks, enhancing product whiteness, smoothness, adhesion and weather resistance.
• Papermaking Industry: Used for paper surface coating and filling, improving paper smoothness, whiteness and printing performance.
• Rubber Industry: Added to rubber products to enhance wear resistance, tensile strength and prolong service life.
• Ceramics & Construction Materials: Used in ceramic glazes, building materials and other fields, improving product density and finish.
Our Factory & Service Strengths
• Professional ring roller mill manufacturer with independent R&D and patented technologies
• Factory direct supply, strict quality control and stable equipment performance
• Customized ultra fine powder production solutions according to customer demands
• Complete overseas after-sales service: installation, commissioning and technical guidance
• Adequate spare parts supply and long-term technical support
Welcome to contact us for a detailed quotation, full technical parameters, customized ultra fine grinding solutions and after-sales support!
