1.Product Introduction

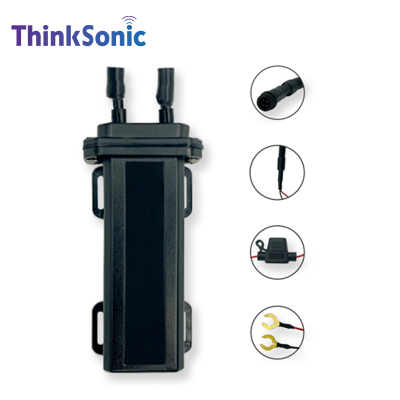

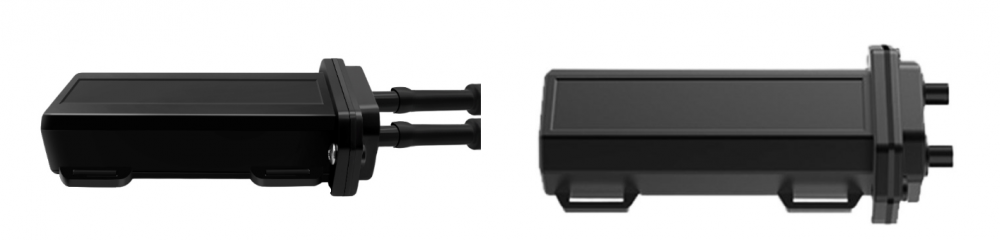

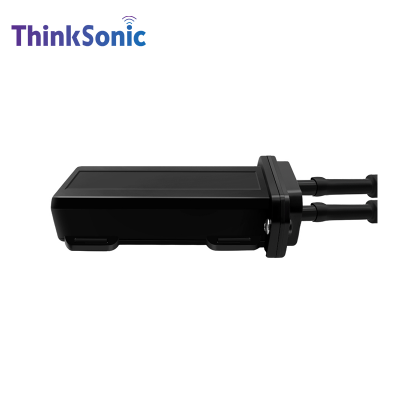

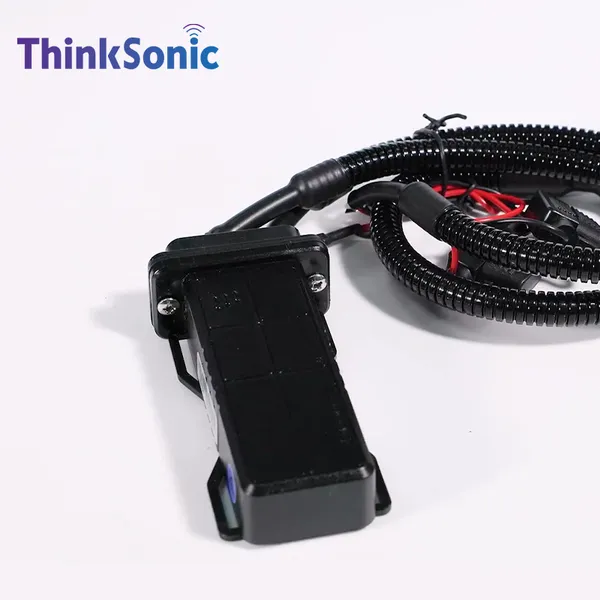

Product Model:QCK508A

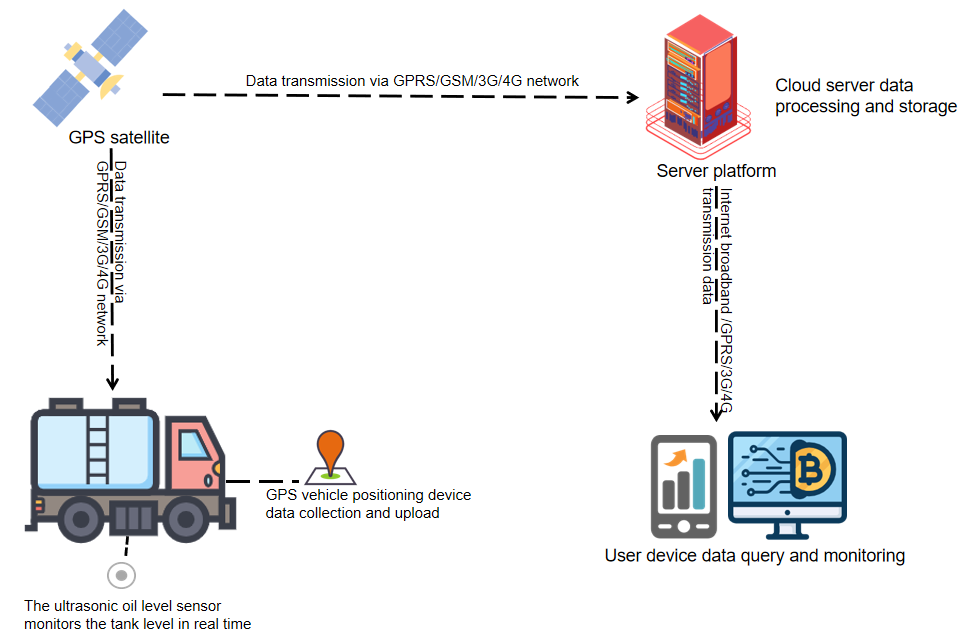

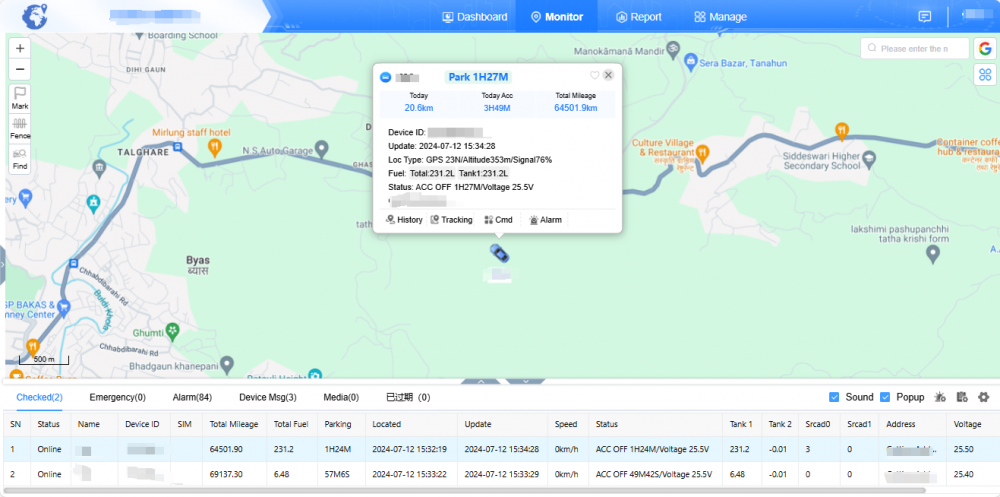

This product utilizes 4G full-netcom networks and BeiDou/GPS global satellite positioning, featuring a highly modular design.It enables remote target positioning and monitoring via SMS or internet platforms, while integrating ACC detection, mileage statistics, forward/reverse rotation detection, fuel consumption monitoring, working hour statistics, etc., notifying vehicle status to owners through SMS and platform alerts.
Supporting multiple protocols (e.g., JT808), BeiDou dual-mode customization, custom firmware programming, and remote upgrades, it delivers powerful functionality, stable performance, and exceptional customization for professional positioning applications.
Application Scope: Suitable for all motor vehicles; anti-theft systems, logistics/dump truck fleet management; global satellite positioning; command and dispatch systems across diverse vehicle industries.
2.Product Features

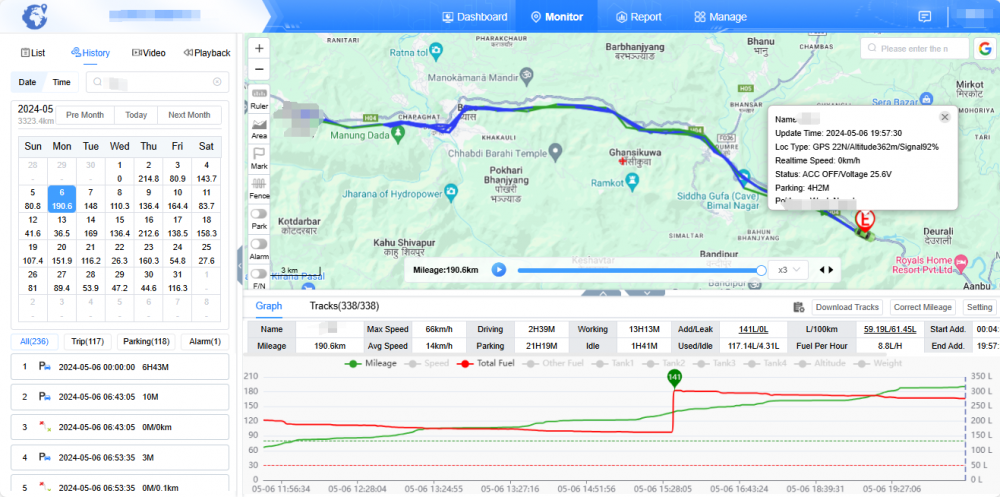

Tracking and positioning - Timed tracking: Upload per set time interval (default 30 seconds)
Vehicle status detection - Ignition/shutdown status: ACC ON/OFF status in each uploaded data packet
Vehicle status detection - Vehicle power-off reminder: Power outage alarm reported when vehicle voltage
Vehicle status detection - Overspeed alarm: Power outage alarm reported when vehicle voltage

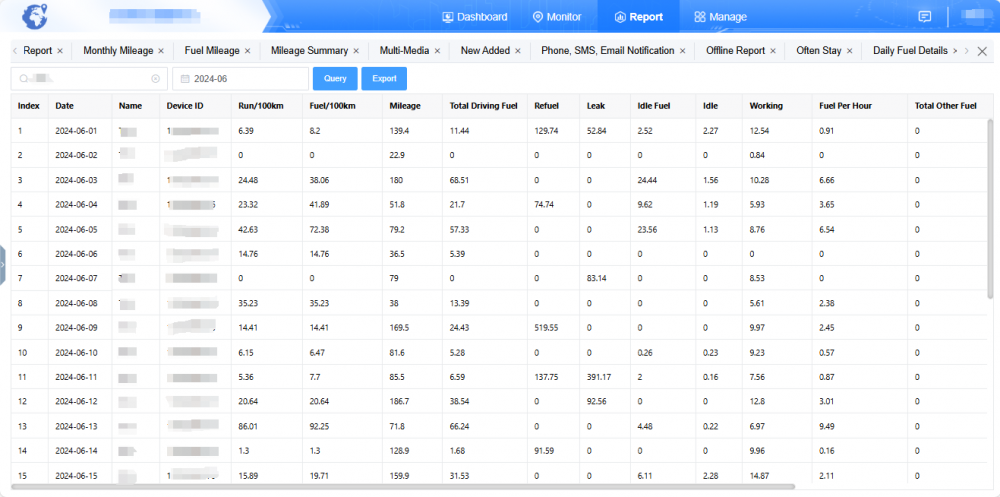

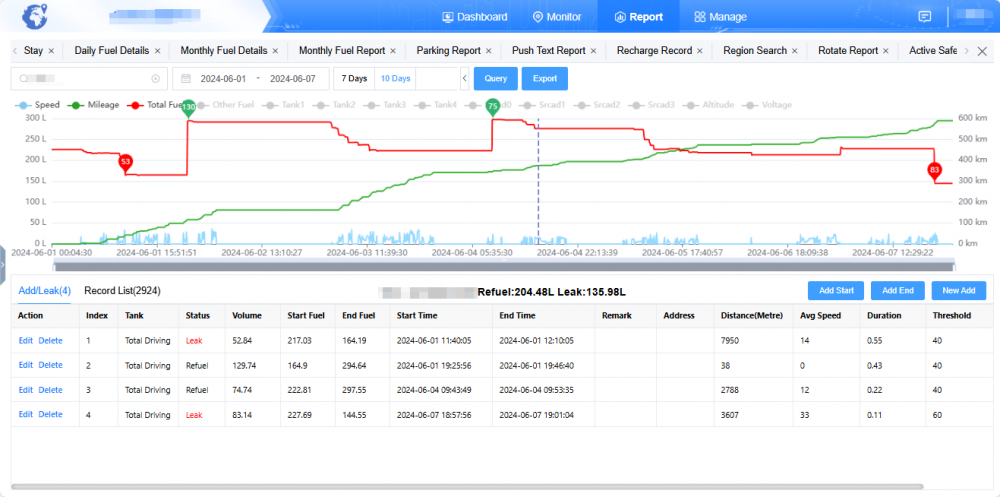

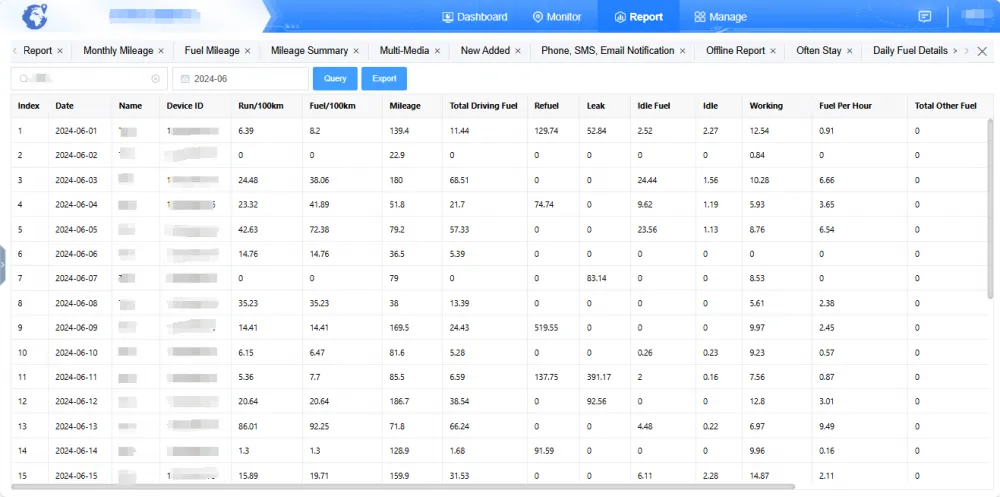

Vehicle status detection - Fuel consumption detection: Platform displays fuel consumption data, supports refueling and oil leakage functions
Vehicle status detection - Load detection: Platform displays vehicle cargo weight
Peripheral functions - Temperature and humidity sensor: Platform displays temperature and humidity values
Peripheral functions - Normal and reverse sensor: Platform displays mixer truck forward and reverse stop status
Peripheral functions - Working hours statistics: Calculate equipment operation vehicle working hours
Other functions - blind area retransmission: Offline terminal stores historical data (default up to 30,000 items)
Other functions - Inflection point supplement: Immediate position upload when device orientation angle change exceeds threshold to optimize trajectory (default off)
Other functions - Remote upgrade: Remote terminal upgrade via server-deployed TFTP
3.Specification
| project |
Technical Parameters |
Device Model |
QCK508A |
| Overall dimension | 103mm *32mm *18mm |
| weight | 70g |
| communication network | 4G full network connectivity |
| Network frequency band | FDD-LTE(B1/B3) TDD-LTE (B38/B39/B40/B41) |
| Positioning module | BD/GPS |
| Sensitivity | -165dBm |
| Positioning Accuracy | 5m |
| Working voltage | DC9V--45V |
| Standby current | |
Storage temperatur |
-40℃ ~ +85℃ |
| Working temperature | -20℃ ~ +70℃ |
| Backup capacity | 4.2V/180mA Lithium battery |
4.Application Fields
Application Advantages:
(1)Tracking and positioning system: Real time tracking, precise positioning, vehicle anti-theft and efficient fleet management.
(2)Vehicle status monitoring: detecting ignition/shutdown status; Vehicle power failure and overspeed alarm; Oil level testing, etc.
(3) Rich peripheral functions: Temperature and humidity detection/positive and negative sensors/working hours statistics, etc.
Application Scenarios:
(1)Anti theft and fleet management of logistics vehicles, construction machinery vehicles, mud trucks, and other vehicles.
(2)Global satellite positioning, vehicle location inquiry, real-time monitoring, and scheduled tracking.
(3)Command and dispatch systems for vehicles in various industries.
(4)Applicable to all motor vehicles.
5.Packing & Delivery

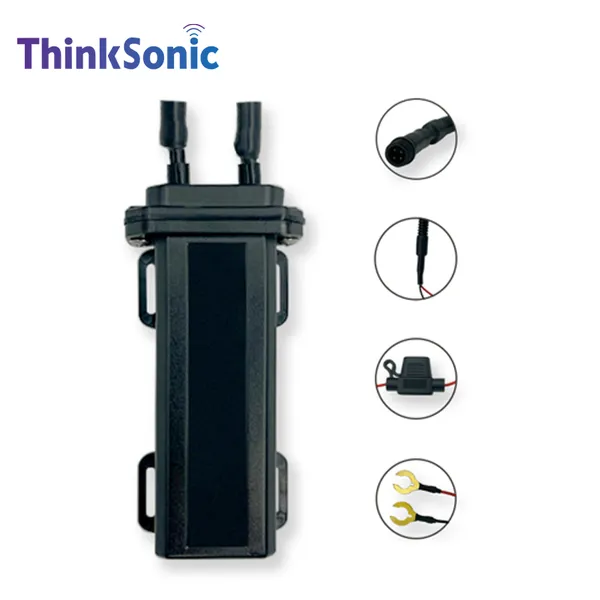

| project | quantity | remarks |
| QCK 508A | 1 | Pieces |

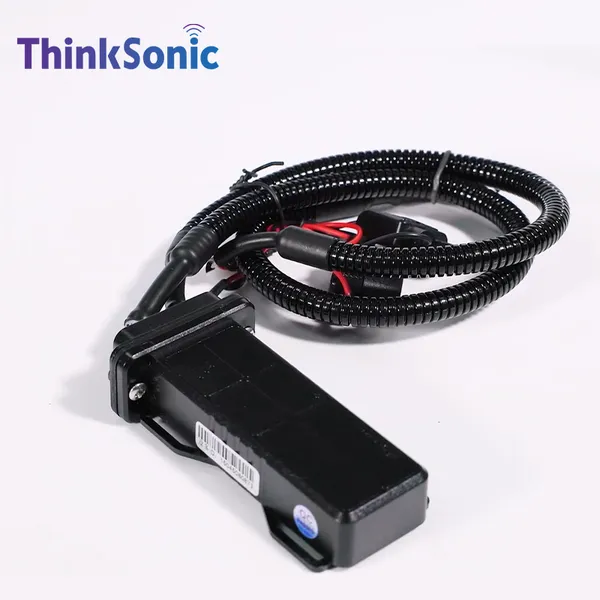

| Extended Line | 1 | / |
| Instruction manual, warranty card, certificate of conformity | 1 | Respectively |
| Cable tie | 1 | / |
When unpacking the product, please check whether the package is complete according to the above list of standard fittings.
6.FAQ
Q1: What is your company's core business?
A: Xiamen Xinde loT Technology Co., Ltd. specializes in R&D and manufacturing of precision sensors and IoT solutions. Our product lines cover:
- Automotive IoT: Ultrasonic level sensors, Vehicle Telematics Units, Active Safety Video Terminals
- Structural Monitoring: Settlement/inclination sensors, Hydrostatic level gauges, Strain/pressure gauges, Data loggers with wireless transmission
Q2: Are you a manufacturer or trading company?

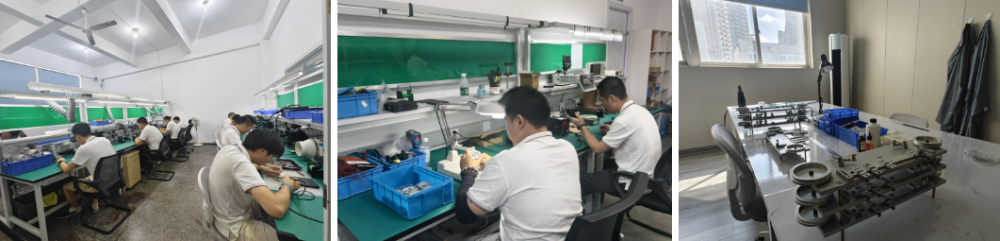

A: We are a manufacturer with in-house R&D center and production facilities in Xiamen, China. All products are independently designed and strictly quality-controlled.
Q3: What is your minimum order quantity (MOQ)?
A: Standard products start from 10 units. MOQ for customized items varies by project complexity - contact us for evaluation.
Q4: How long is your lead time?
A: Standard products: 15-30days after order confirmation. , a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
Q5: Can I get samples?
A: We have to charge both samples and freight cost, and when you place orders, we'll refund your sample cost.
