1.Product Introduction

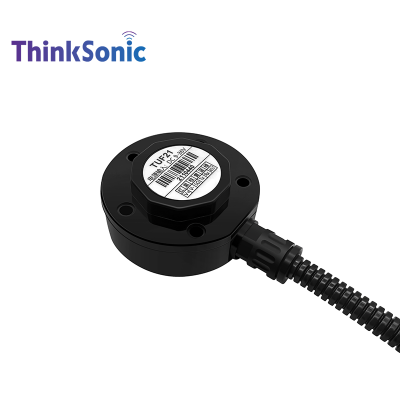

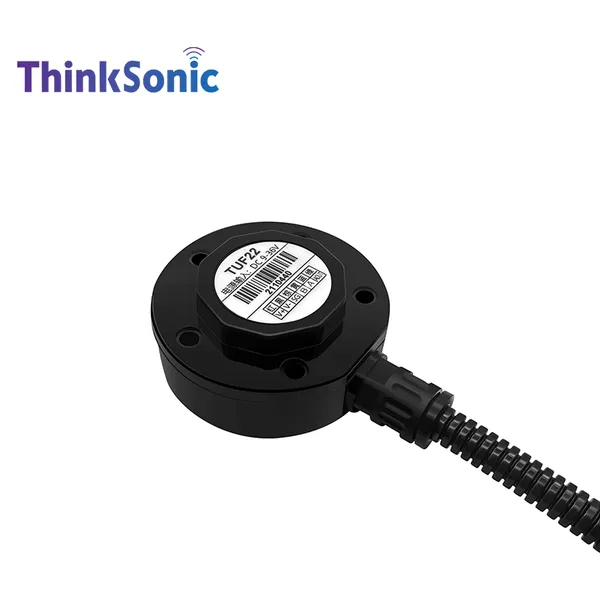

The YTUF series ultrasonic sensor is an air type liquid level measurement sensor used to measure the liquid level height inside oil tanks, tanks, and containers.

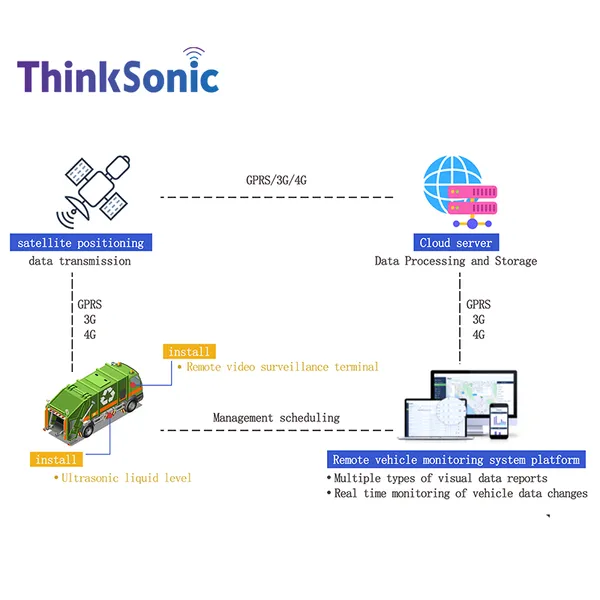

The sensor uses the principle of ultrasonic detection to detect the air height inside the fuel tank, and then calculates the obtained fuel level height data. Through calibration processing, the fuel level height value is converted into an oil quantity value, which is sent to the system platform through GPS. The oil quantity data is then transmitted to the backend supervision system to achieve real-time monitoring of vehicle fuel consumption.
At present, the product is mainly used in the field of vehicle networking, to monitor the changes in fuel tank oil level in real-time to achieve fuel detection. It can be used to prevent fuel theft, optimize operating costs, optimize driver driving behavior, assist in statistical decision-making, and so on.At the same time, this product can also be used in fields with liquid level detection requirements such as chemical engineering, water conservancy, and storage tanks.
2.Working Principle

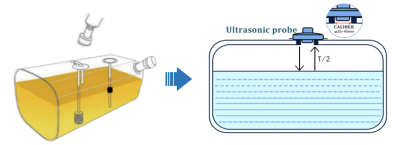

Through an ultrasonic transducer, ultrasonic waves are emitted and propagate downwards, reflecting back when encountering the liquid level of a container or oil tank. Reflected on the surface of the liquid level, the reflected echo is received by the transducer and converted into an electrical signal. The propagation time of the sound wave is proportional to the distance from the sound wave emitted to the surface of the object.
The relationship between sound wave transmission distance D, sound speed C, and sound transmission time T can be expressed by the formula: D=C × T/2, and then the height of the liquid can be obtained through conversion.
3.Product Features
Range:1M
High-Precision:Measurement resolution 0.1mm, measurement accuracy ± 0.5% FS.

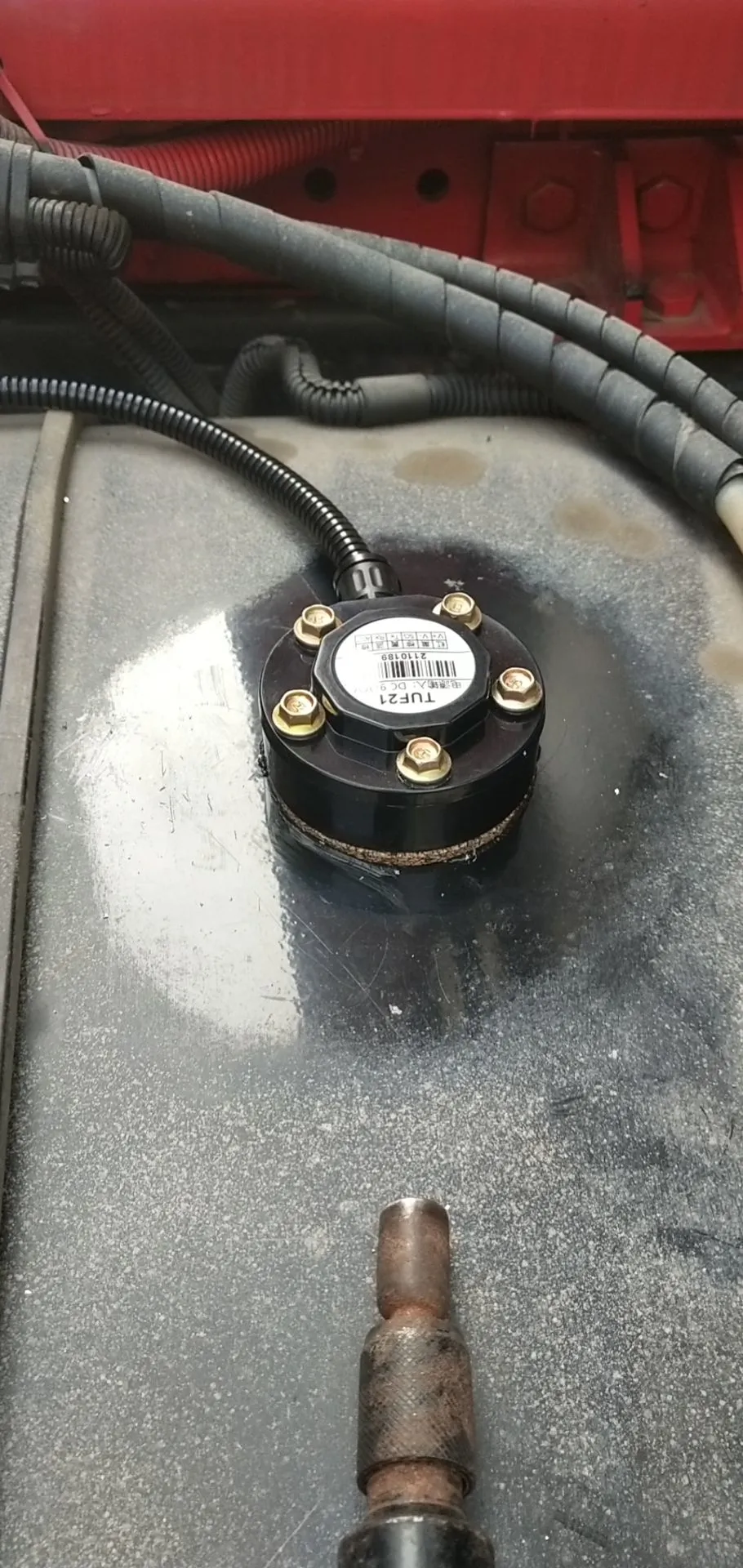

Easy Installation:No need for pipe cutting or customization, can be configured on-site according to the height of the fuel tank.
Rich Interfaces:Supports RS232, voltage analog output.
Good Stability:Working temperature range -20 ℃~+70 ℃.
Professional Certification:CNEX explosion-proof certification/IP67 protection certification.
4.Specification
| Project | Explain |
| Working voltage | 9~36VDC |
| Power Consumption | power dissipation:0.45W |
| Operation Temperature | -20℃~+70℃ |
| Store Temperature | -40℃~+80℃ |
| Measurement Range | 2-100cm |
| Measurement Accuracy | ±0.5% FS |
| Measurement Resolution | 0.1mm |
| Probe Specifications | IP67 |
| Communication Interface | RS232,Voltage analog |
| Communication Port Parameters | Baud rate Default 9600(Baud rate can be configured ) No check bit , 8 data bit , 1 stop bit , no flow control |
5.Application Fields

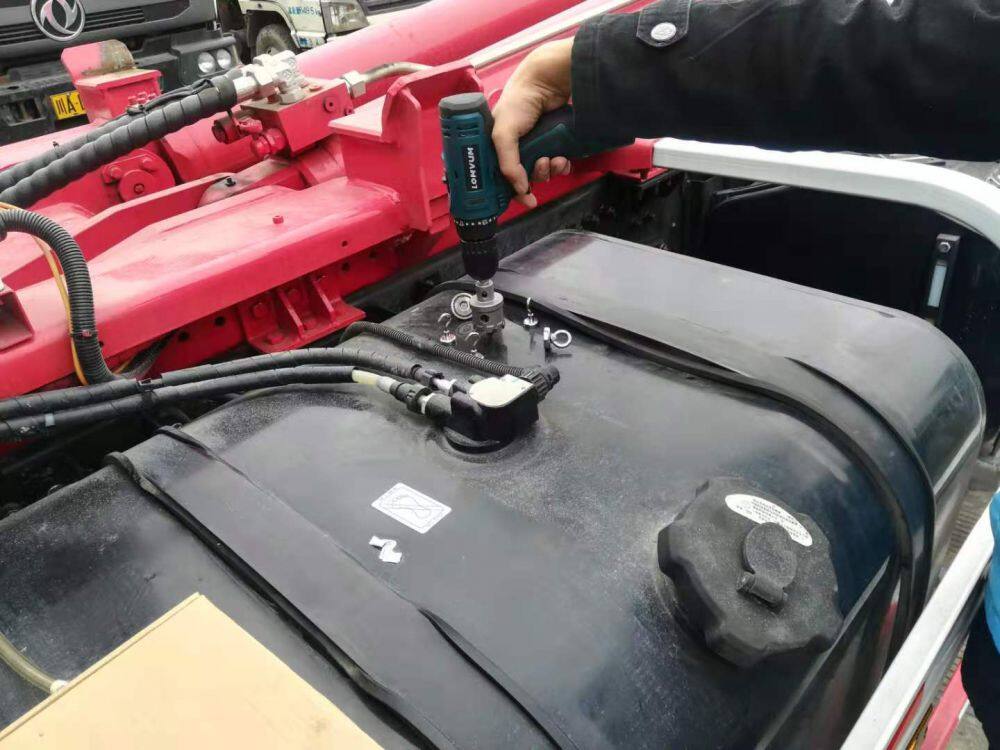

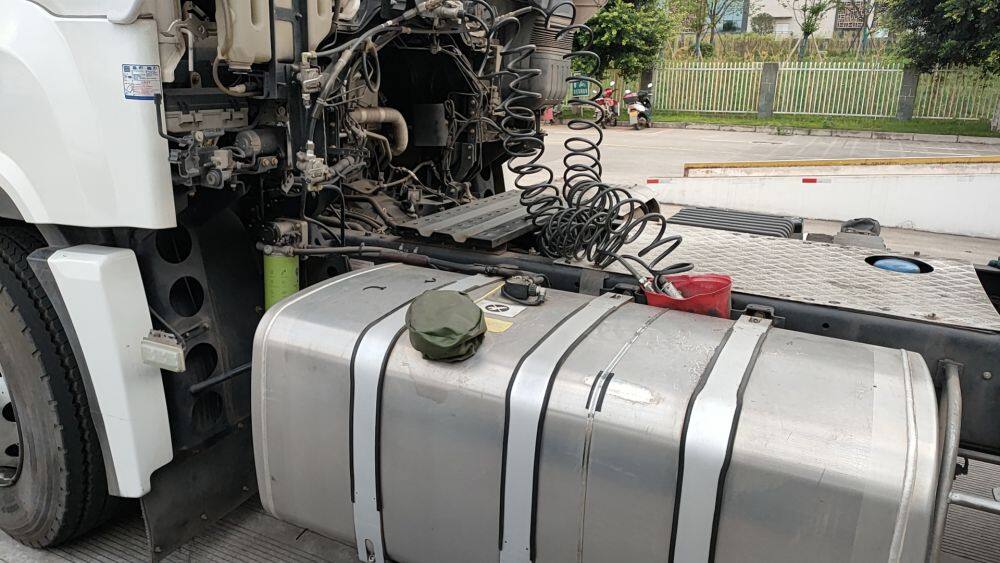

The TUF ultrasonic sensor has been widely used for real-time oil level monitoring in logistics fleets, buses, oil tankers, fire trucks, various sanitation vehicles, and different commercial vehicle models.
6.Packing & Delivery

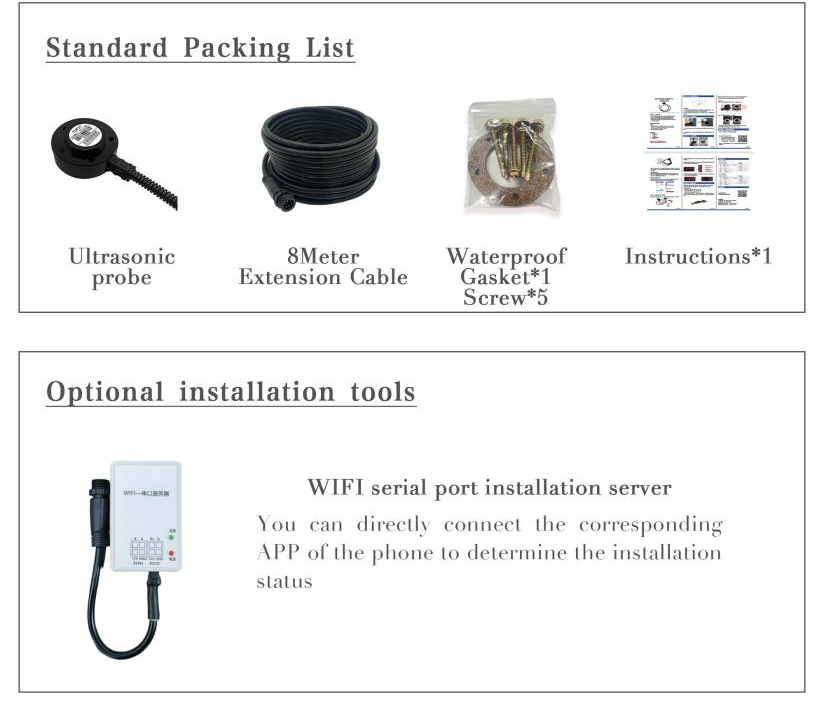

(1) When unpacking the product, please check whether the packaging is complete according to the above standard equipment list diagram;
(2) Optional installation tool, WiFi serial port server, can be connected to mobile apps to configure fuel tank height, making it more convenient to debug data during installation; Before installation, please scan the QR code on the installation manual to download the TUF21 installation tool.
7.FAQ
Q1: What is your company's core business?
A: THINKSONIC TECHNOLOGY CO., LTD. specializes in R&D and manufacturing of precision sensors and IoT solutions. Our product lines cover:
- Automotive IoT: Ultrasonic level sensors, Vehicle Telematics Units, Active Safety Video Terminals
- Structural Monitoring: Settlement/inclination sensors, Hydrostatic level gauges, Strain/pressure gauges, Data loggers with wireless transmission.
Q2: Are you a manufacturer or trading company?
A: We are a manufacturer with in-house R&D center and production facilities in Xiamen, China. All products are independently designed and strictly quality-controlled.
Q3: What is your minimum order quantity (MOQ)?
A: Standard products start from 10 units. MOQ for customized items varies by project complexity - contact us for evaluation.
Q4: How long is your lead time?
A:Standard products: 15-30days after order confirmation. , a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
Q5:Can you customize products?
A:Yes. We offer: Logo printing; Packaging redesign; Technical parameter adjustments; Private labeling
Q6:Can I get samples?
A:We have to charge both samples and freight cost, and when you place orders, we'll refund your sample cost.
Q7:How to handle after-sales issues?
A:Our support includes: (1)Online troubleshooting (2)Technical documentation & video guides
Q8:How to visit your factory?
A:A: Welcome to schedule an audit: (1) Submit visit request via "Contact Supplier"(2) We'll send official invitation letter within 48h (3) Virtual factory tour available via video call
