Home > Small Hydraulic System - Power Unit - 12v Small Hydraulic Station for Sanitation Vehicles, Small in Size and Free Shipping

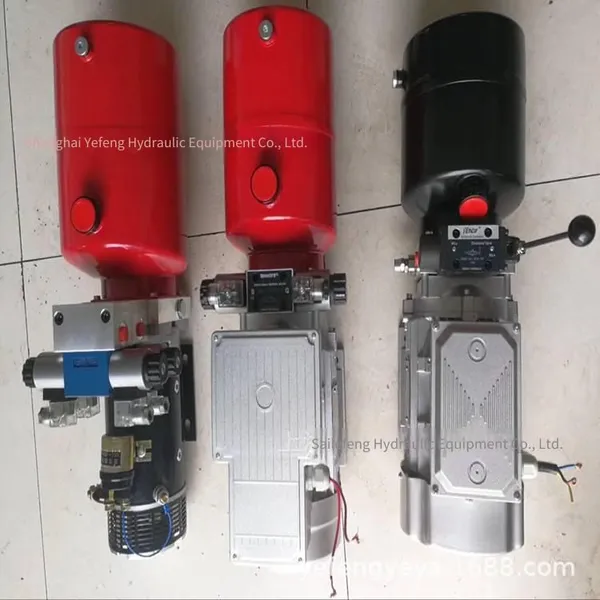

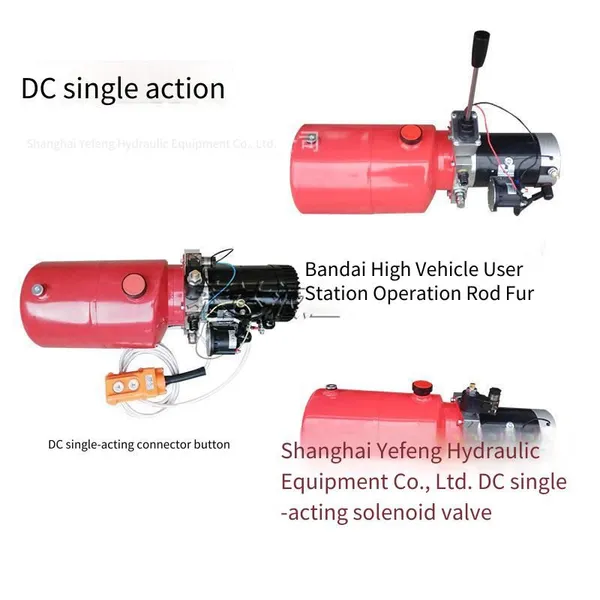

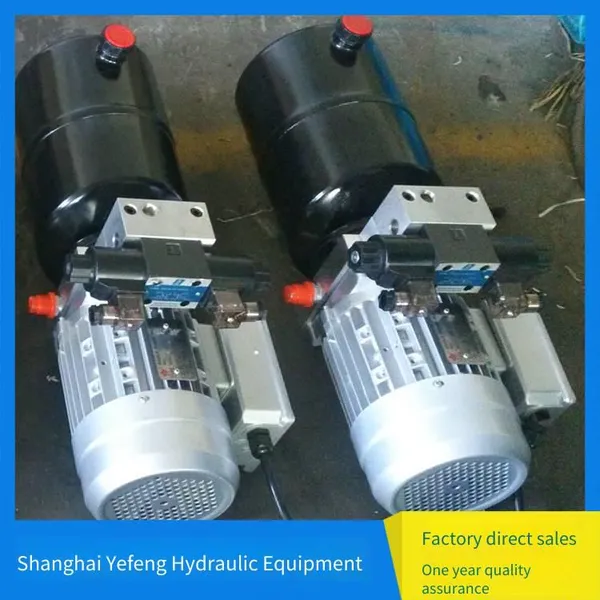

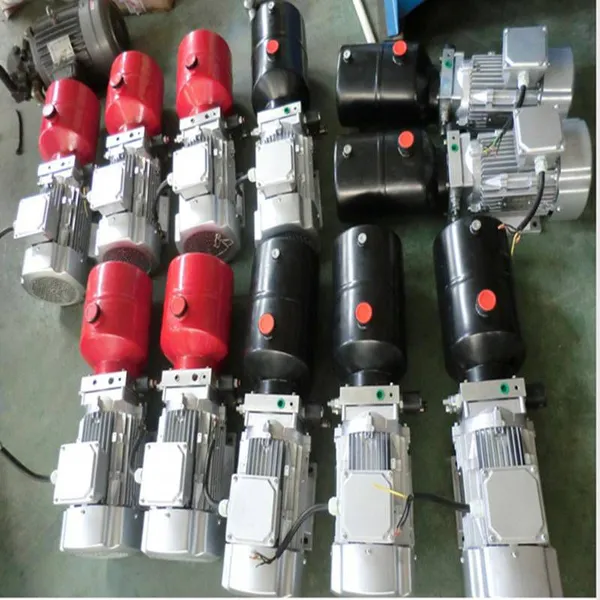

Small Hydraulic System - Power Unit - 12v Small Hydraulic Station for Sanitation Vehicles, Small in Size and Free Shipping

Small Hydraulic System - Power Unit - 12v Small Hydraulic Station for Sanitation Vehicles, Small in Size and Free Shipping thumbnail-1
Small Hydraulic System - Power Unit - 12v Small Hydraulic Station for Sanitation Vehicles, Small in Size and Free Shipping thumbnail-2
Small Hydraulic System - Power Unit - 12v Small Hydraulic Station for Sanitation Vehicles, Small in Size and Free Shipping thumbnail-3
Small Hydraulic System - Power Unit - 12v Small Hydraulic Station for Sanitation Vehicles, Small in Size and Free Shipping thumbnail-4
Small Hydraulic System - Power Unit - 12v Small Hydraulic Station for Sanitation Vehicles, Small in Size and Free Shipping thumbnail-5
Small Hydraulic System - Power Unit - 12v Small Hydraulic Station for Sanitation Vehicles, Small in Size and Free Shipping photo-1
Small Hydraulic System - Power Unit - 12v Small Hydraulic Station for Sanitation Vehicles, Small in Size and Free Shipping photo-2
Small Hydraulic System - Power Unit - 12v Small Hydraulic Station for Sanitation Vehicles, Small in Size and Free Shipping photo-3
Small Hydraulic System - Power Unit - 12v Small Hydraulic Station for Sanitation Vehicles, Small in Size and Free Shipping photo-4
Small Hydraulic System - Power Unit - 12v Small Hydraulic Station for Sanitation Vehicles, Small in Size and Free Shipping photo-5
US$ 276.92 ≥1 Piece
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shanghai, China
Contact Supplier Request Quote Chat Now
Shanghai Yefeng Hydraulic Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Place of origin: Shanghai Yefeng Hydraulic Equipment Co., Ltd. is a professional company engaged in the design and manufacture of small hydraulic stations with rich experience.



The power unit is composed of a pump device, an integrated block and valve group, an oil tank, and a circuit system. It controls the direction change, force magnitude, and speed of the hydraulic motor, and is a power unit that drives various hydraulic machinery to do work.

Scope of application: Construction machinery; CNC equipment, electric power, metallurgy, mining, petrochemical, and plastic machinery industries.

System features: 1. Classic high and low pressure hydraulic control system with energy-saving and environmental protection design;

2. Rigorous design, reasonable configuration, and flexible application;

3. Low noise, compact system structure, strong power, safe and stable;

4. The system components are mainly well - known international and domestic brands, and the quality is guaranteed;

   Welcome to use the Shanghai hydraulic power unit of Shanghai Yefeng Hydraulic Equipment Co., Ltd.

Our company has rich experience in hydraulic system design. The products are of reliable quality, excellent appearance,
with obvious cost - performance advantages. Professional engineers can provide customers with the most timely pre - sales and after - sales services.
Welcome to call for consultation.




Power unit model description

Y--

 1   2    3    4    5    6    7    8    9



  1. 1.     Product code
  2. 2.     Motor voltage

AC1-Single-phase AC110V   AC2-Single-phase AC220V   AC3-Three-phase AC380V

DC12-DC12V       DC24-DC24V       DC48-DC48V

  1. 3.     Motor power(KW)

A(0.5)  B(0.75)  C(1.1)  D(1.5)  E(2.2)  F(3.0)  G(4.0)  H(5.0)

  1. 4.     Gear pump displacement(ml/r)

a (0.4)  b(0.75)  c(1.0)  d(1.6)  f(2.1)  g(2.5)  h(3.2)  i(3.7)  j(4.2)  k(4.8)  m(5.8)

n(7.8)

  1. 5.     Installation method

W(Horizontal installation)    L（Vertical installation）

  1. 6.     Solenoid valve voltage

12-DC12V  24-DC24V  110-AC110V   220-AC220V  380-AC380  415-AC415V

7.System pressure（Mpa）

   D-10  E-16   F-18  G-21  H-25

8.Tank capacity (L)

   2  3  4  5  6  8  12  16  20  25  35  50  80  100  120(Please specially mark for square ones)

9.Hydraulic circuit

  System schematic diagram (see the drawing)

10.Oil port size

A-G1/4  B-Z1/4  C-M14*1.5  D-16/1.5  E-20*1.5  F-G3/8  H-ZG3/8  I-Z3/8

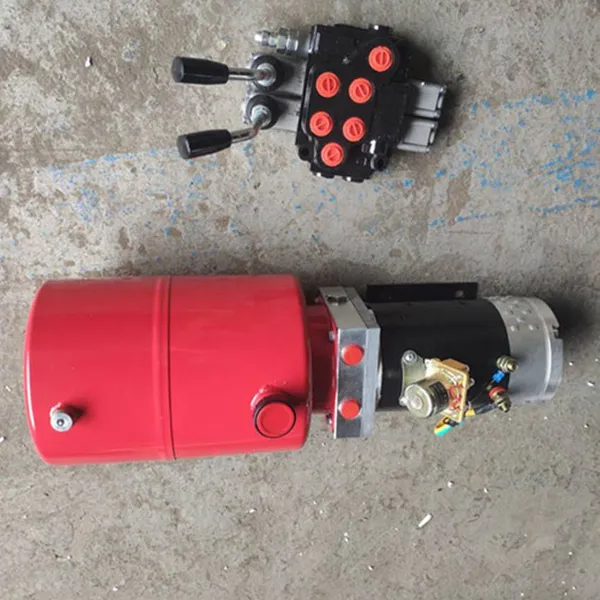

DC power unit

Voltage:12V   24V   48V     72V

Power:200W   550W   800W   1600W   2200W    3000W   4000W

Duty cycle:2min

Speed:2800 rpm/Minute

Working pressure:0-25Mpa



AC power unit

Voltage:110V   220V   380V    415V     600V

Power:370W   550W  750W    1100W   1500W  2200W  3000W   4000W

Working system:10min

Rotation speed:1400/2800Revolutions

Working pressure:0-31.5Mpa
