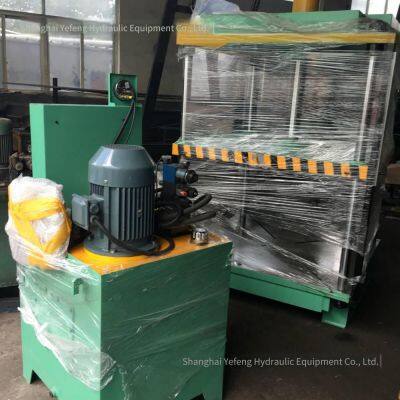

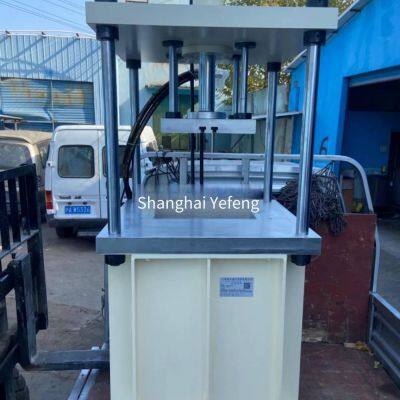

Help CenterSupply Shanghai Y32 Four-column Hydraulic Press, 40t, Non-standard Three-beam Four-column Press
Related Products
-
Shanghai Jiading Hydraulic Cylinders, Oil Cylinders, Hydraulic Oil Cylinders, Heavy-duty Engineering Hydraulic Cylinders, 80-ton Welded Cylinder AssemblyUS$ 15.38MOQ: 1 Piece -
Manufacture of Water-cooled Hydraulic SystemsUS$ 53.85MOQ: 1 Piece
-
Shanghai Small Machine Tool Lathe Hydraulic Station, Hydraulic Chuck, Hydraulic System, vp Variable Vane Pump, Order Hydraulic CylinderUS$ 553.85MOQ: 1 Piece
-
Hydraulic Cylinder Repair, Customization and Direct Sales of Cylinder Barrels and Piston Rods in Jiading District, ShanghaiUS$ 75.38 - 76.92MOQ: 1 Piece
-
Supply of Front Flange Single-acting Engineering Hydraulic Cylinders With 30mpa, Non-standard Customized Heavy-duty Hydraulic CylindersUS$ 200MOQ: 1 Piece
Shanghai Yefeng Hydraulic Equipment Co., Ltd. is located in the east hall of Shanghai International Automobile City - Jiangqiao Development Zone, Jiading District, beside the 312 National Highway. It is a technology-based enterprise. It jointly designs with the postgraduate students of Tongji University in Shanghai and is an expert in the hydraulic industry. Relying on its strong technical strength and combining with years of accumulated practical experience, it is committed to the development of the hydraulic cause. The company specializes in the design, production, maintenance and transformation of hydraulic systems. All kinds of hydraulic equipment such as hydraulic presses, hydraulic jacks, oil cylinders, hydraulic power units and lifting platforms. For the hydraulic unit category: complete hydraulic pump stations can be designed and manufactured according to the mechanical function requirements. The company's products are widely used in machine tools, grinding machines, rubber machinery, forging machinery, leather machinery, etc.
| Y32 Series Four-column Hydraulic Press |
|

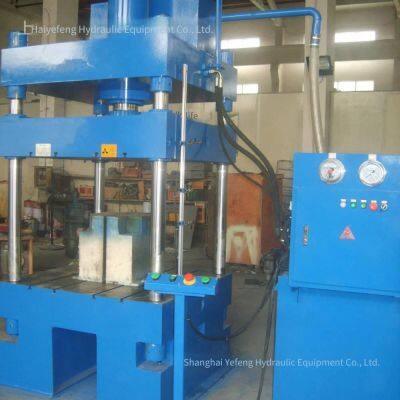

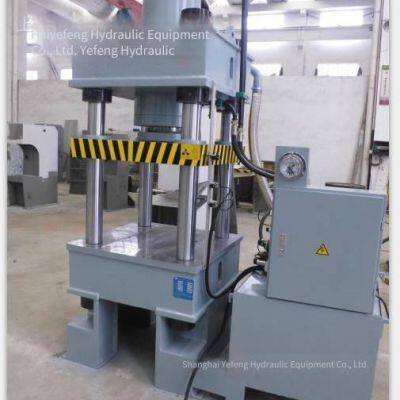

Y32 Series Four-column Hydraulic Press SERIES Y32 FOUR COLUMN HYDRAULIC PRESS |
|
Performance Features: For this series of hydraulic presses, the hydraulic system adopts a cartridge valve integrated system; the electrical control system can be equipped with a "PLC" programmable controller and has independent electrical and hydraulic power mechanisms. It uses button centralized control, which can realize adjustment, manual and semi-automatic operation processes, and has functions such as pressure holding and delay. In addition, the working pressure and stroke can be adjusted within the specified range according to the process requirements. Scope of application: This machine model is suitable for the pressing processes of plastic materials, such as stamping, stretching, bending, flanging (cold and hot extrusion), etc. It can also be used for processes such as correction, press-fitting, pressing and forming of powder products, abrasive products, as well as pressing and forming of plastic products and insulating materials. |
| Main technical parameters: |
| Model | Unit | 40T | 63T | 100T | 160T | 200T | 315T | 400T | 500T | |
| Nominal force | KN | 400 | 630 | 1000 | 1600 | 2000 | 3150 | 4000 | 5000 | |
| Ejection force | KN | 63 | 100 | 250 | 250 | 400 | 630 | 1000 | 1000 | |
| Liquid working pressure | Mpa | 25 | 25 | 26.2 | 26 | 25 | 25 | 25 | 28 | |
| Slider stroke | mm | 400 | 450 | 500 | 500 | 700 | 800 | 800 | 900 | |
| Opening height | KN | 600 | 700 | 900 | 900 | 1120 | 1250 | 1400 | 1500 | |
| Workbench size | Front and back | mm | 400 | 500 | 630 | 800 | 900 | 1200 | 1200 | 1400 |
| Left and right | mm | 400 | 500 | 710 | 800 | 900 | 1200 | 1260 | 1400 | |
| Ejection stroke | mm | 120 | 160 | 200 | 200 | 250 | 300 | 300 | 300 | |
| Slider speed | Idle down | mm/s | 40 | 40 | 76 | 80 | 100 | 100 | 100 | 100 |
| Working | mm/s | 10 | 10 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 5 | |
| Return stroke | mm/s | 60 | 60 | 85 | 60 | 2780 | 3440 | 3440 | 4100 | |
| Machine tool overall dimensions | Left and right | mm | 1484 | 1900 | 2650 | 2076 | 2120 | 1220 | 1220 | 2420 |
| Front and back | mm | 1350 | 1000 | 1000 | 1600 | 2120 | 1220 | 1220 | 2420 | |
| Height above the ground | mm | 2406 | 2430 | 3300 | 3330 | 3900 | 3690 | 3782 | 5348 | |
| Motor power | Kw | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 11 | 18.5 | 37 | |
| Total weight (approx.) | T | 1.95 | 2.5 | 4 | 6 | 12 | 15 | 20 | 30 | |
Welcome to choose the Y32 four-column hydraulic press produced by Shanghai Yefeng Hydraulic Equipment Co., Ltd. Single-column, double-column, gantry and frame hydraulic presses can be customized according to customer requirements.
