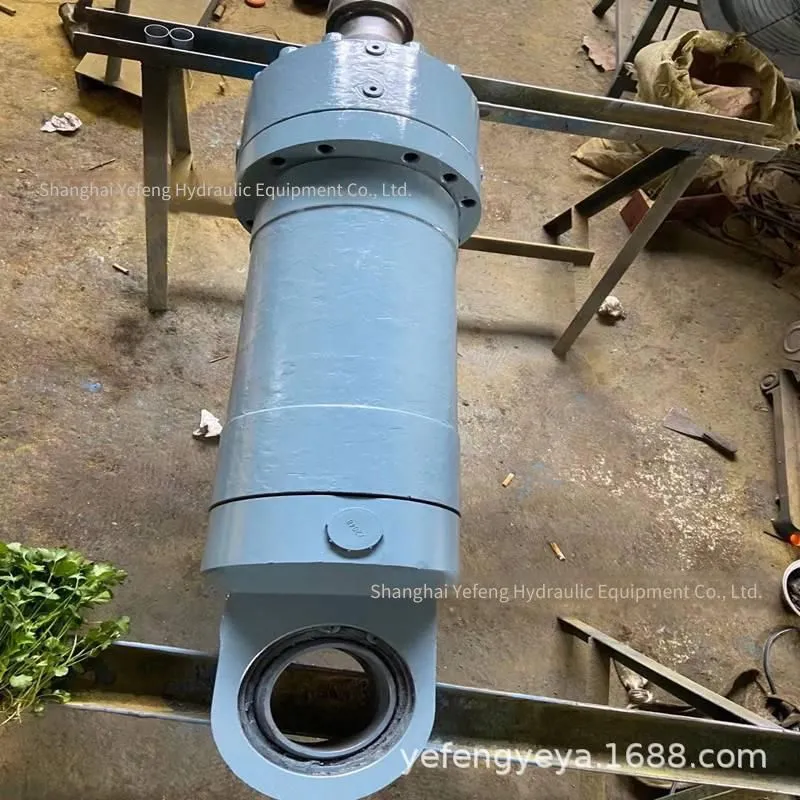

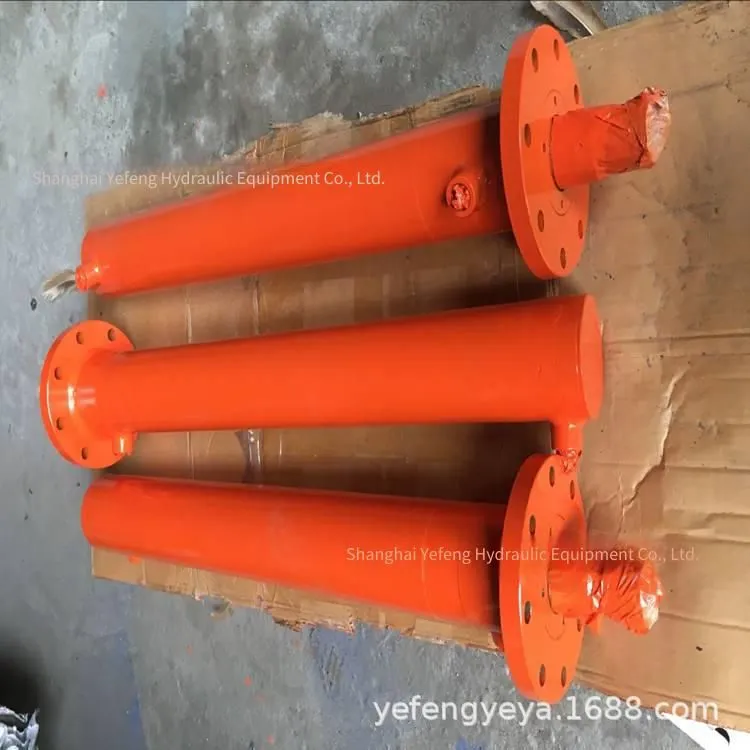

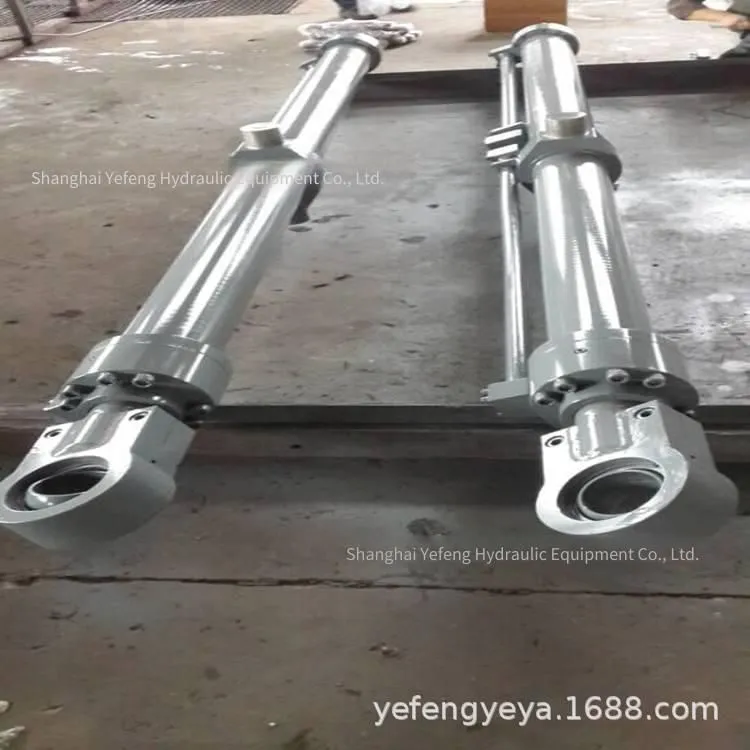

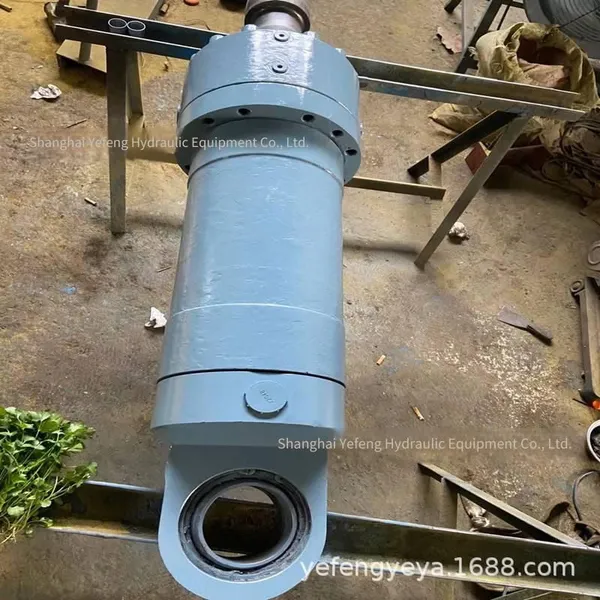

Help CenterLarge Hydraulic Cylinders, Oil Pressure Cylinders, Marine and Vehicle Cylinder Assemblies, Self-locking Front Flange Type Micro Cylinders
Related Products
-
Customized Hsg40 Small Two-way Excavator Hydraulic Cylinder, 2-ton Double-lug Hydraulic Cylinder, Processed in ShanghaiUS$ 138.46MOQ: 1 Piece -

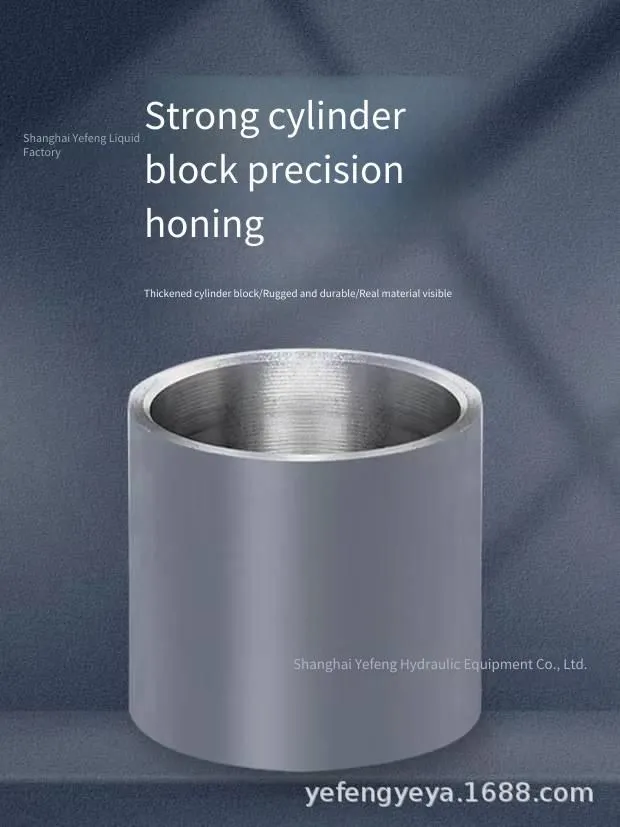

Shanghai Manufacturer of Hydraulic Cylinder Barrels, Honed Tubes, Cylinder Barrel Material: 20# SteelUS$ 61.54MOQ: 1 Piece
-
New Products, Maintenance, Parameter Customization of Shanghai Yefeng Hydraulic System Assembly Pump Station, Vertical and Horizontal Types, 5 - Ton MobileUS$ 253.85MOQ: 1 Piece
-
Shanghai Yefeng Supplies Sealing Part Presses, Two-column Small-tonnage Split Hydraulic PressesUS$ 2307.69MOQ: 1 Unit
-
Shanghai Hydraulic Cylinders, Marine Hydraulic Cylinders, Yacht Hydraulic Cylinders, Electric Double-ear Cylinders for Hydraulic Steering Gears ManufacturerUS$ 76.92MOQ: 1 Piece
Shanghai Yefeng Hydraulic Equipment Co., Ltd. The price is determined by the model. Please call or consult on Wangwang before placing an order. If you have special requirements, we can customize and process any size according to your needs. Please confirm the product specifications, quantity, unit price, taxes, and shipping fees before placing an order. We apologize for any inconvenience caused!

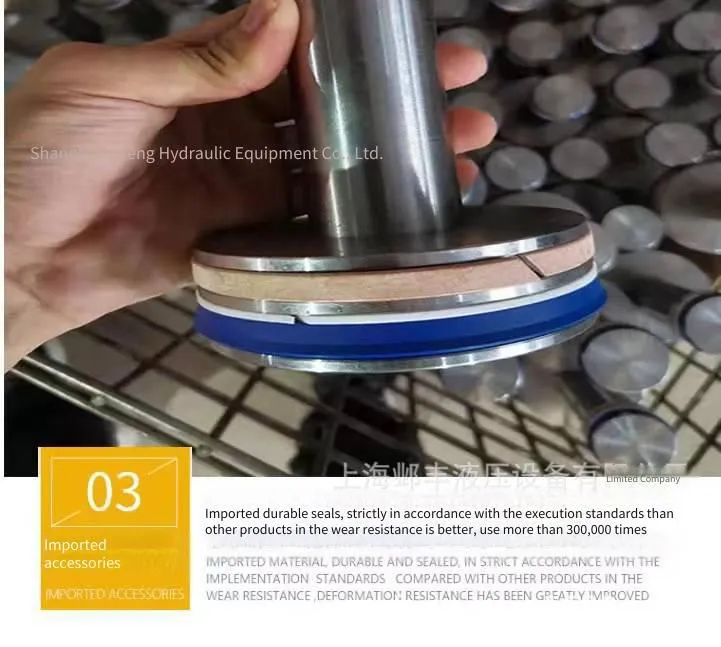

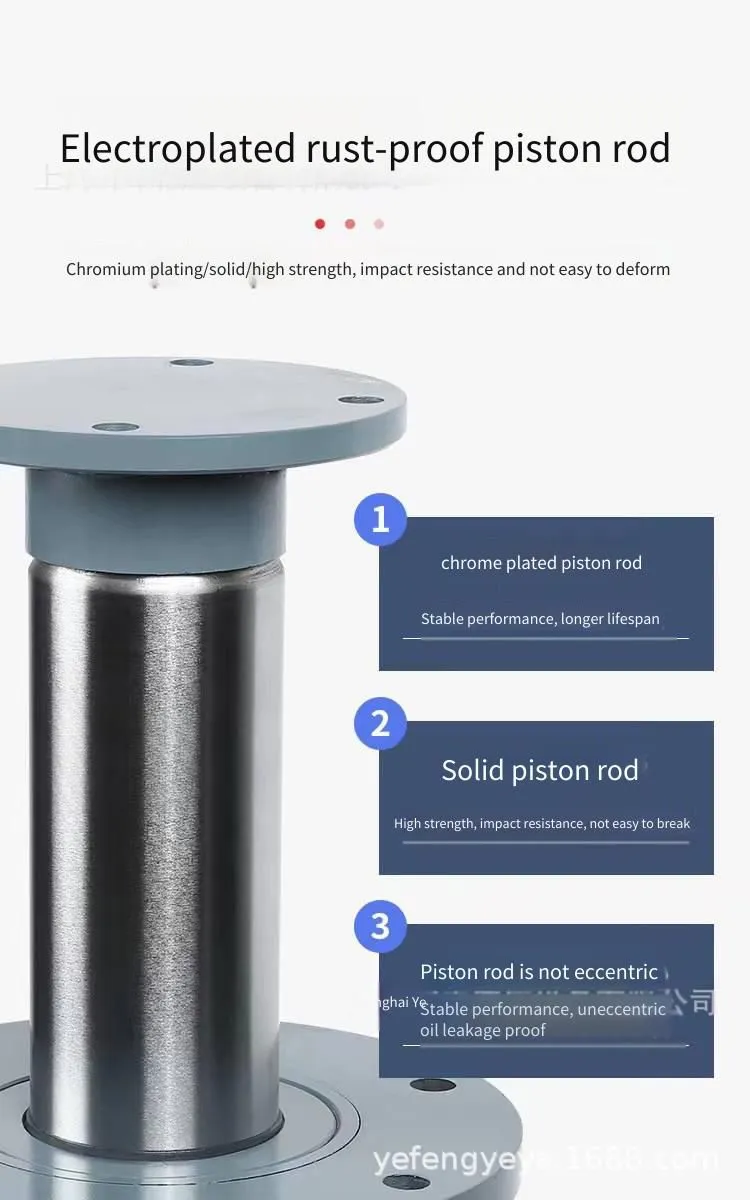

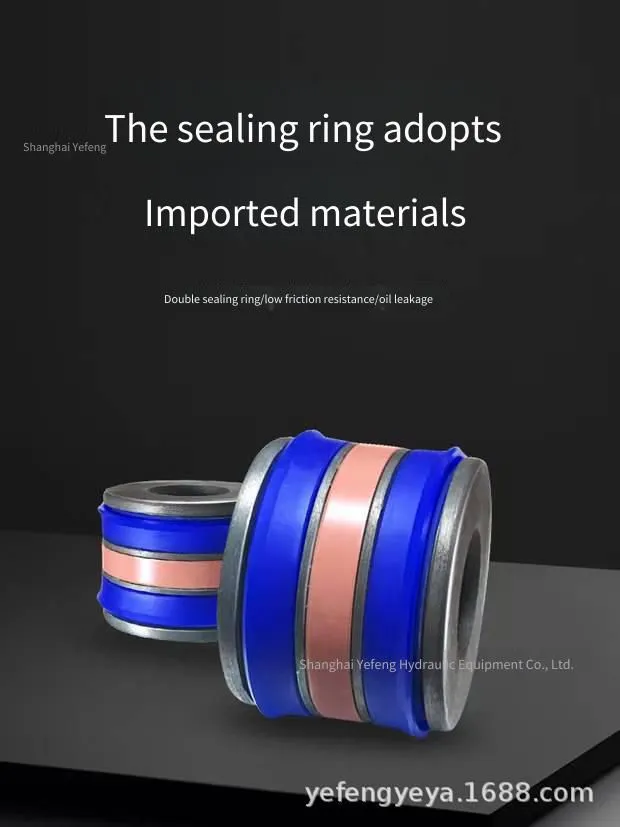

A hydraulic cylinder is a hydraulic actuator that converts hydraulic energy into mechanical energy and performs linear reciprocating motion (or oscillating motion). It has a simple structure and reliable operation. When used to achieve reciprocating motion, it can eliminate the need for a speed reduction device, and there is no transmission clearance, and the motion is smooth. Therefore, it is widely used in the hydraulic systems of various machines. The output force of a hydraulic cylinder is directly proportional to the effective area of the piston and the pressure difference between its two sides; a hydraulic cylinder is basically composed of a cylinder barrel and a cylinder head, a piston and a piston rod, a sealing device, a buffer device, and an exhaust device. The buffer device and the exhaust device depend on the specific application, while the other devices are essential.

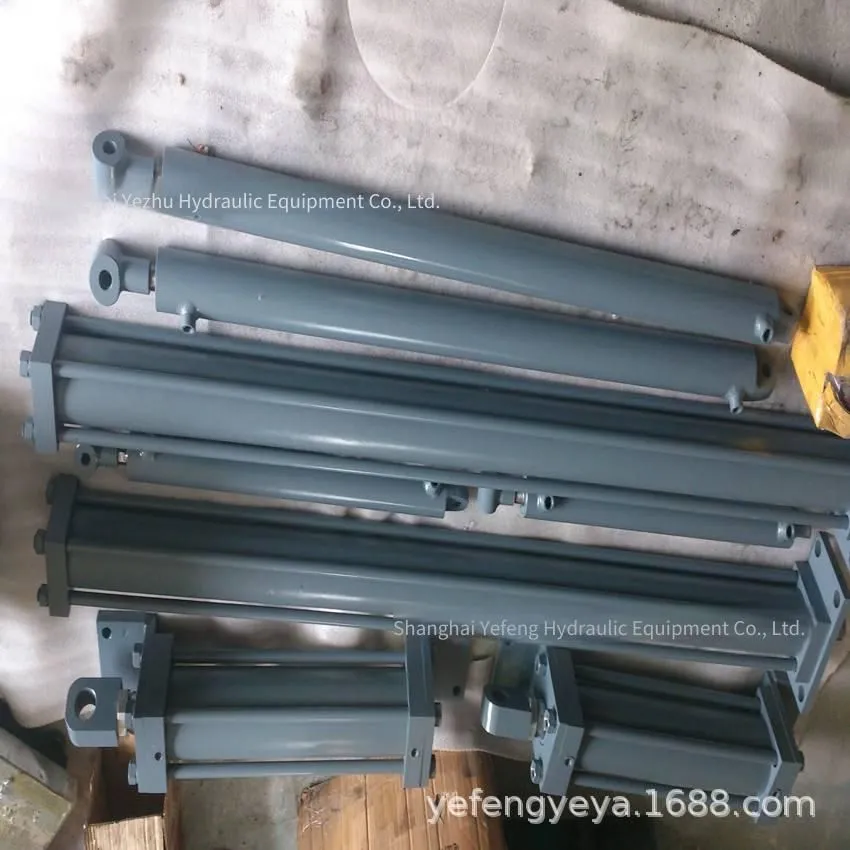

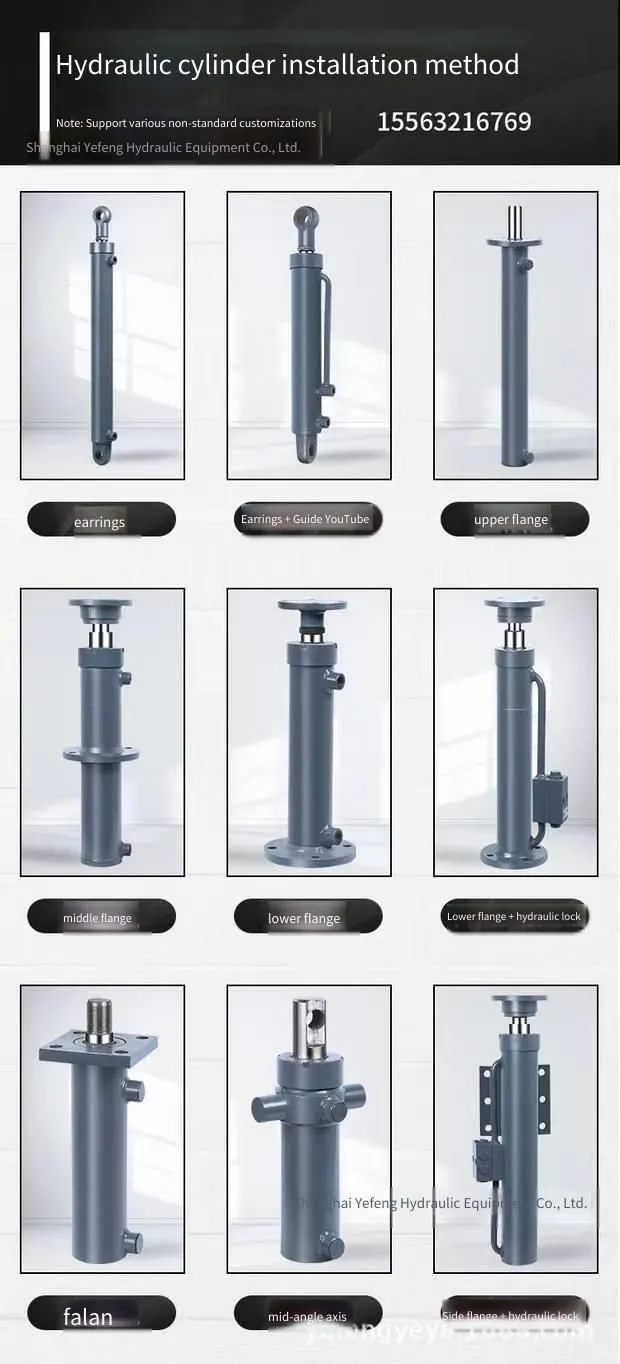

The structural forms of hydraulic cylinders are diverse, and there are also various classification methods: according to the movement mode, they can be divided into linear reciprocating and rotary oscillating types; according to the action of hydraulic pressure, they can be divided into single-acting and double-acting types; according to the structural form, they can be divided into piston, plunger, multi-stage telescopic sleeve, rack and pinion types, etc.; according to the installation form, they can be divided into tie rod, earring, foot, hinge shaft, etc.; according to the pressure level, they can be divided into 16Mpa, 25Mpa, 31.5Mpa, etc.
