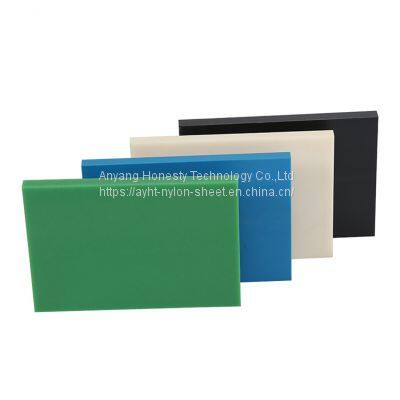

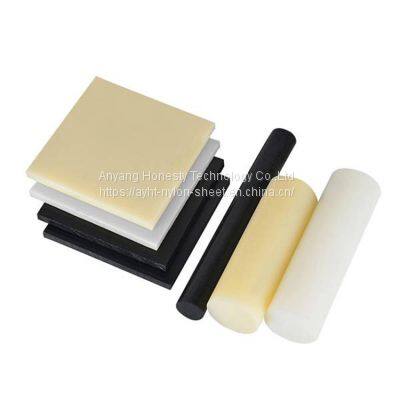

Hot sale good wear resistance Nylon 6 sheet Cast nylon plate for gear

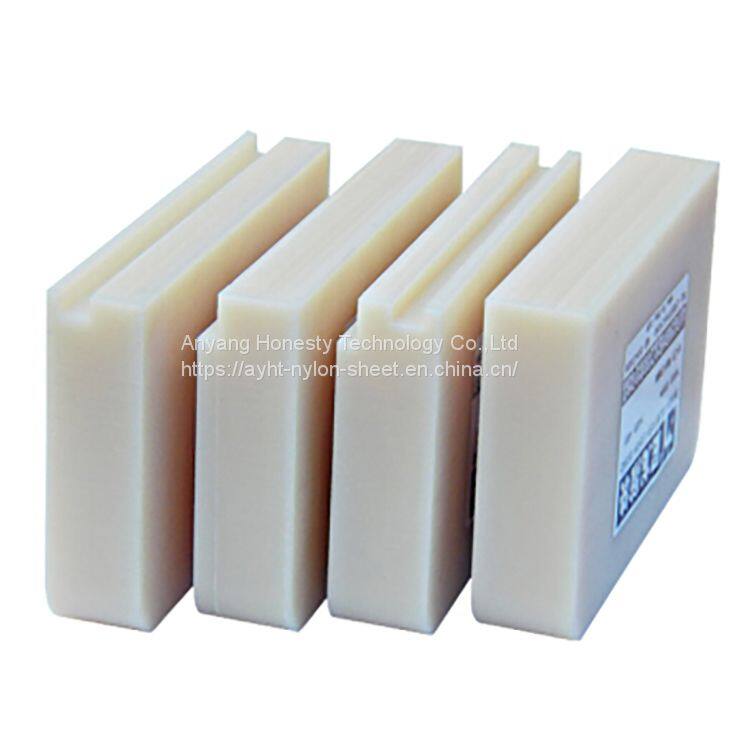

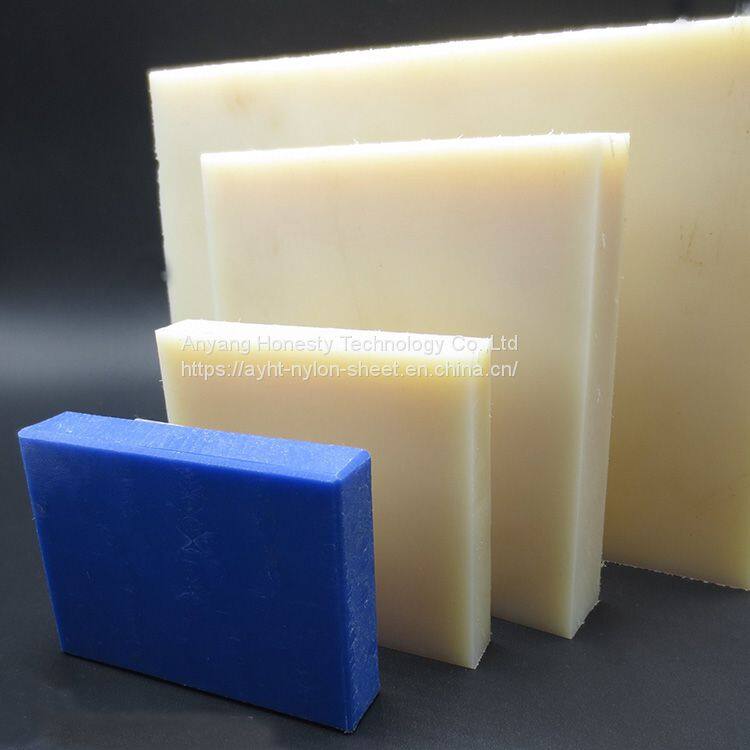

NYLON PLATE DESCRIPTION
Anyang Honesty Tech has several years experience on researching, producing and sale nylon plate(nylon sheet), all kinds of our nylon sheets have excellent wear resistance, self lubricity, corrosion resistance, machinability, dimensional stability has been highly recognized by domestic and foreign customers, could be the representative of high cost-effective manufacturers in the industry.
NYLON PLATE FEATURES
High mechanical strength, stiffness, hardness, toughness, good aging resistance, good mechanical damping ability, good sliding property, excellent wear resistance, good machining performance, used for precision and effective control, no creep phenomenon, good wear resistance, good dimensional stability.
Light weight, high strength, self-lubrication, wear resistance, anti-corrosion, insulation and other unique properties.
NYLON PLATE DATASHEET
Item |
Unit |
Parameter |
|
Physical Performance |
Proportion |
g/cm3 |
1.14～1.16 |
Water absorption |
％ |
0.9 |
|
Thermal Performance |
Matin heatproof |
℃ |
67～74 |
Continuous Heatproof |
℃ |
120 With lubricate |
|
Cold-resistent temperature |
℃ |
-40 |
|
distortion temperature |
℃ |
120 |
|
coefficient of thermal conductivity line |
w/m•℃ |
0.28～0.29 |
|
coefficient of Linear expansion |
10-5℃ |
4～7 |
|
Inflammability |
self-extinguish |
||
Mechanical Performance |
Tensile Strength |
MPa > |
75 |
Tensile elastic modulus |
104MPa |
0.392(40000) |
|
Compressive Strength |
MPa > |
100 |
|
Bending strength |
MPa > |
140 |
|
Impact strength (unnotched) |
KJ/m2 > |
510 |
|
Elongation |
％ |
20 |
|
Hardness |
HPM(°) |
80～90 |
|
Fatigue strength |
(107circle)kg/cm2 |
200 |
|
Coefficient of |
oil-free lubrication |
0.09～0.3 |
|
Electrical Performance |
Volume resistance |
Ωm > |
6×1012 |
Surface resistance |
Ω |
9.7×1014 |
|
Dielectric constant |
106HZ |
3.5-6.5 |
|
Dielectric loss |
106HZ |
1.5-2×10-2 |
|
Breakdown voltage |
MV/m |
15 |
NYLON PLATE APPLICATIONS
nylon sheet widely replace the wear-resisting parts of mechanical equipment and the wear-resisting parts of copper and alloy equipment.It is suitable for making wear-resisting parts, transmission structure parts, household electrical parts, automobile parts, screw preventing machinery parts, chemical machinery parts, chemical equipment.Such as turbine, gear, bearing, impeller, crank, instrument panel, drive shaft, valve, blade, screw, high pressure washer, screw, nut, sealing ring, shuttle, sleeve, sleeve connector, etc.
