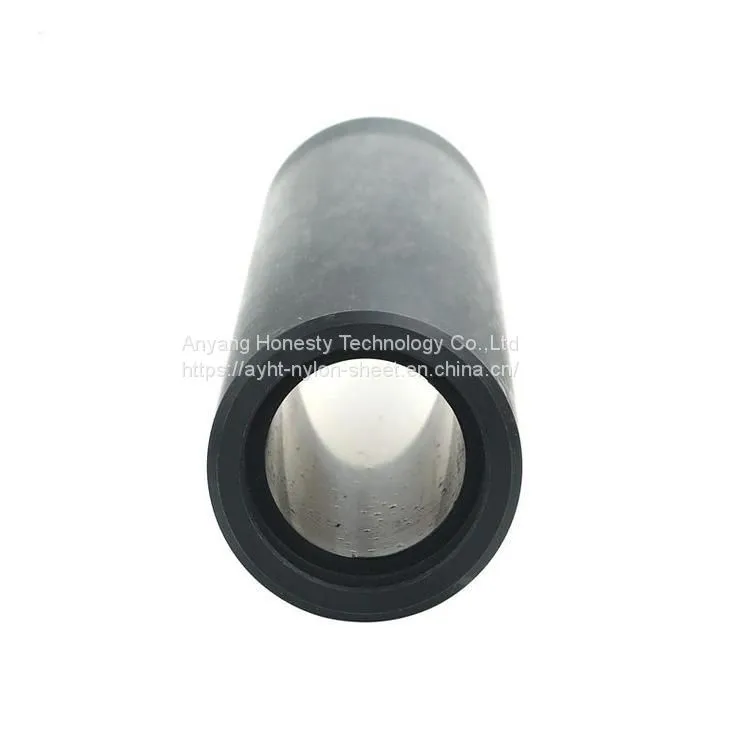

High wear resistant long service life nylon 66 tube for liner
NYLON 66 TUBE DESCRIPTION
Nylon 66 tube (polyamide), referred to as PA66 tube. It high wear resistant, good chemical resistance, high self lubrication, good high temperature resistance and long service life, can be made into various shapes like a metal tube, it can withstand the corrosion of many chemical substances; it can be used as an insulator and can used for liner. Anyang Honesty Tech, high quality mc nylon tube, cast nylon tube, nylon 6 tube manufacturer, our product is exported to more than 30 countries and regions, win costomers trust.
NYLON 66 TUBE FEATURES
Nylon 66 tube has great stability against abrasion, tensile and bending properties, and is easy to install without any special tools. Its good comprehensive performance is unmatched by copper pipes, steel pipes and rubber pipes, and it is an ideal material to replace copper, steel and rubber.
NYLON 66 TUBE TECHNICAL DATASHEET
| Physical Performance | Proportion | g/cm3 | 1.14～1.16 |
| Water absorption | ％ | 0.9 | |
| Thermal Performance | Matin heatproof | ℃ | 67～74 |
| Continuous Heatproof | ℃ | 120 With lubricate | |
| Cold-resistent temperature | ℃ | -40 | |
| distortion temperature | ℃ | 120 | |
| coefficient of thermal conductivity line | w/m•℃ | 0.28～0.29 | |
| coefficient of Linear expansion | 10-5℃ | 4～7 | |
| Inflammability | self-extinguish | ||
| Mechanical Performance | Tensile Strength | MPa > | 75 |
| Tensile elastic modulus | 104MPa | 0.392(40000) | |
| Compressive Strength | MPa > | 100 | |
| Bending strength | MPa > | 140 | |
| Impact strength (unnotched) | KJ/m2 > | 510 | |
| Elongation | ％ | 20 | |
| Hardness | HPM(°) | 80～90 | |
| Fatigue strength | (107circle)kg/cm2 | 200 | |
| Coefficient of | oil-free lubrication | 0.09～0.3 | |
| Electrical Performance | Volume resistance | Ωm > | 6×1012 |
| Surface resistance | Ω | 9.7×1014 | |
| Dielectric constant | 106HZ | 3.5-6.5 | |
| Dielectric loss | 106HZ | 1.5-2×10-2 | |
| Breakdown voltage | MV/m | 15 |
NYLON 66 TUBE APPLICATIONS
Instrument lines, irrigation control systems, textile mills, food factories, fuel delivery pipes, vacuum systems, air conditioning systems, electrostatic insulators and other industries.
