Product Description
|
Pipe Standard |
pipe Material |
|
DIN 17100 DIN 17102 |
St44-2,St44-3,St52-3,St50-2,St60-2,St70-2,StE285 steel pipe, WStE285,TstE285,EstE285,StE315,WstE315,TstE315, EstE315,StE355,WstE355,TstE355,EstE355,StE380,WstE380, TstE380,EstE380,StE420,WstE420,TstE420,EstE420,StE460, WstE460,TstE460,EstE460,StE500,WstE500,TstE500,EstE500, |
|
EN10025 |
S275JR,S275J0,S275J2,S355JR,S355J0,S355J2,S355K2,S450J0 S275M,S275ML,S355M,S355ML,S420M,S420ML,S460M, S460ML,S275N,S275NL,S355N,S355NL,S420N,S420NL,S460N,S460NL |
|
ASTM ASME |
A572/A572M A572 Grade 42,A572 Grade 50,A572 Grade 60, A572 Grade 65 A633/A633M A633 Grade A,A633 Grade C,A633 Grade D,A633 Grade E A709/A709M A709 Grade 36,A709 Grade 50,A709 Grade 50W, A709 Grade HPS 50W,A709 Grade HPS 70W |
|
GB/T1501 |
Q295A,Q295B,Q345A,Q345B,Q345C,Q345D,Q345E,Q390A, Q390B,Q390C,Q390D,Q390E,Q420A,Q420B,Q420C,Q420D, Q420E, Q460A,Q460B,Q460C,Q460D,Q460E |
|
JIS G3106 |
SM490A,SM490B,SM490C,SM490YA,SM490YB,SM520B, SM520C,SM570 |
GRADE
Grade 304/304L (UNS S30400/S30403, EN 1.4301/1.4307)
Grade 316L (UNS S31603, EN 1.4404)
Grade 409L (UNS S40900, EN 1.4512)
Grade 430 (UNS S43000, EN 1.4016)
Grade 441 (UNS S44100, EN 1.4509)
STANDARD
ASTM A240M - Chromium and Chromium - Nickel Stainless Steel Plate, Sheet and Strip for Pressure Vessels and for General Applications.
ASTM 480M - General Requirements for Flat Rolled Stainless and Heat-Resisting Steel Plate, Sheet and Strip ,,,
EN 10088-2

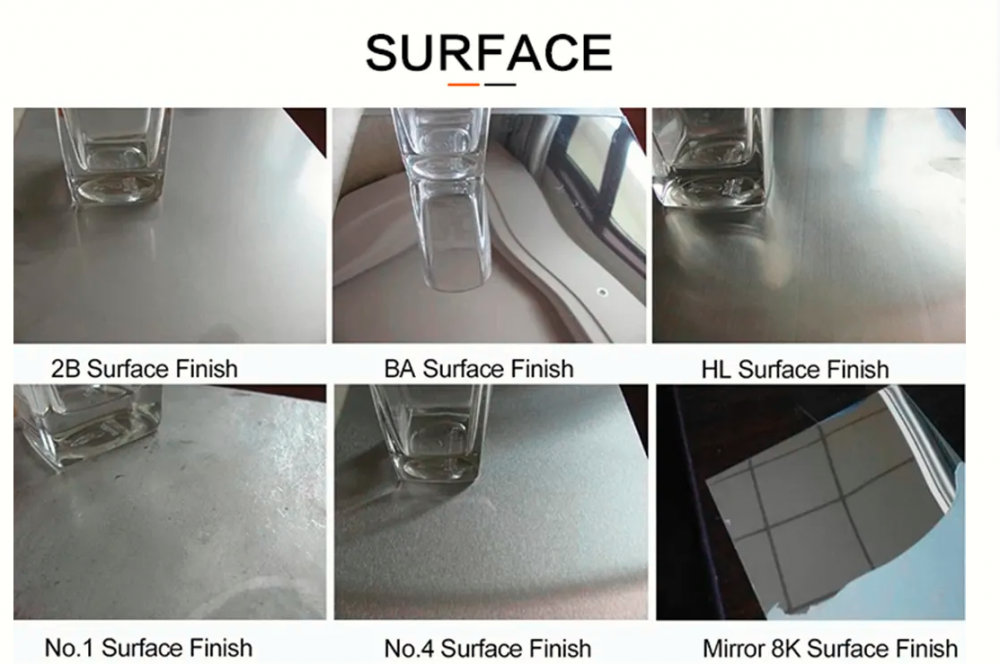

| No.1 | A rough, dull surface, which results from hot rolling to the specified thickness, followed by annealing and descaling. |
||||
|---|---|---|---|---|---|
| Range (mm) | 1000 | 1219 | 1250 | 1500 | 1524 |
| 3.0~6.0 | Δ | Δ | Δ | Δ | Δ |
| 8.0~100.0 | Δ | Δ | |||
| 2D | A dull finish which results from cold rolling followed by annealing and descaling, and may perhaps gets a final light roll pass through unpolished rolls. A 2D finish is used where appearance is not a concern. |
||||
| Range (mm) | 1000 | 1219 | 1250 | 1500 | 1524 |
| 0.3-3.0 | Δ | Δ | Δ | Δ | Δ |
| 2B (Mill Finish) |
A bright, cold-rolled finish resulting in the same manner as 2D finish, except that the annealed and descaled sheet received a final light roll pass through polished rolls. This is the general-purpose cold-rolled finish that can be used as is, or a preliminary step to polishing |
||||
| Range (mm) | 1000 | 1219 | 1250 | 1500 | 1524 |
| 0.3-6.0 | Δ | Δ | Δ | Δ | Δ |
| BA (Bright Anneal) |
The bright annealed mill surface is obtained by annealing the material under an atmosphere, so that scale is not produced on the surface. |
||||
| Range (mm) | 1000 | 1219 | 1250 | 1500 | 1524 |
| 0.3-2.0 | Δ | Δ | Δ | ||
| Brushed Finish (No.3/No.4/No.5/No.6) |
This is a ground unidirectional finish obtained with 150/180/240/320 grit abrasive, which is characterized by parallel brushing lines, it is also known as Satin. |
||||
| Range (mm) | 1000 | 1219 | 1250 | 1500 | 1524 |
| 0.3-6.0 | Δ | Δ | Δ | Δ | Δ |
| Scotch Brite | It's a semi-dull finish with uniform grain, which is obtained using finer abrasives than No.4/NO.5/NO.6. This finish has smooth, soft and exquisite grains which has a low level of reflectivity and unidirectional texture. |
||||
| Range (mm) | 1000 | 1219 | 1250 | 1500 | 1524 |
| 0.3-3.0 | Δ | Δ | Δ | Δ | Δ |
| Hairline | Seemingly endless polishing lines extend uniformly along with the length of the coil give the hairline. It's a well-defined directional finish with long-grain and fine-line. |
||||
| Range (mm) | 1000 | 1219 | 1250 | 1500 | 1524 |
| 0.3-3.0 | Δ | Δ | Δ | Δ | Δ |
| Super Mirror (No.8) |
This is a polished finish having a high degree of reflectiveness which can be done on all the grades of stainless steel. It is produced by progressively using finer abrasives and finally finishing with extremely fine buffing compounds. The final surface is blemish free with a high degree of image clarity. |
||||
| Range (mm) | 1000 | 1219 | 1250 | 1500 | 1524 |
| 0.3-6.0 | Δ | Δ | Δ | Δ | Δ |
| Vibration | Vibration is a multi-directional finish. It is also known by the names Non-Directional Satin and Angel Hair. Vibration has a uniform texture with random, multi-directional grit lines. |
||||
| Range (mm) | 1000 | 1219 | 1250 | 1500 | 1524 |
| 0.3-3.0 | Δ | Δ | Δ | Δ | Δ |
| CD Overlay | CD Overlay is a patterned polished steel finish that is applied mechanically to the surface of stainless steel sheets. These stainless polished steel finishes can be created with various visual effects, which are designed for architectural and other applications. |
||||
| Range (mm) | 1000 | 1219 | 1250 | 1500 | 1524 |
| 0.3-3.0 | Δ | Δ | Δ | ||
| Bead Blast | This finish results in a non-directional textured surface with a soft satin reflection and low reflectivity.This finish has an aesthetic appeal and enhances the surface properties of stainless steel. |
||||
| Range (mm) | 1000 | 1219 | 1250 | 1500 | 1524 |
| 0.3-2.0 | Δ | Δ | Δ | ||
| Etched Finish | Etched patterns are created by selectively applying a protective acid resistant film to a highly polished surface and acid etching the unprotected areas. The etching removes a thin layer of stainless steel, changes the color to a dull silver gray, and roughens the surface. Etched finished made an attractive surface on the metal, which is applied on architectural and other applications. |
||||
| Range (mm) | 1000 | 1219 | 1250 | 1500 | 1524 |
| 0.3-3.0 | Δ | Δ | Δ | Δ | Δ |
| Embossed Finish | Embossed finish is a stainless steel finish that is uniformly textured. There are two main types of Embossed Finish: 1 sided pattern, where the reverse side is paint; another one is 2 sided patterns where the pattern is imprinted through to reverse side. |
||||
| Range (mm) | 1000 | 1219 | 1250 | 1500 | 1524 |
| 0.3-3.0 | Δ | Δ | Δ | Δ | Δ |
| PVD Coating | Physical Vapor Deposition (PVD) is a process to produce a metal vapor (titanium, chromium and aluminum) that can be deposited on electrically conductive materials as a thin highly adhered pure metal or alloy coating. The process is carried out in a vacuum chamber at vacuum using a cathodic arc source. A wide variety of colors can be achieved by adding other gases during the deposition. |
||||
| Range (mm) | 1000 | 1219 | 1250 | 1500 | 1524 |
| 0.3-3.0 | Δ | Δ | Δ | Δ | Δ |
Special dimensions was accepted on request
Customized specific cut-to-length are acceptable from 100mm - 4000mm
Cold rolled stainless steel plate and hot rolled stainless steel plate
Cold rolling is a processing process carried out at room temperature, while hot rolling is a processing process carried out at high temperatures. Normally, the processing temperature of cold-rolled steel plates is at room temperature (usually 20 ºC), while hot rolling is the process of heating steel billets at high temperatures (usually above 1000 ºC) before processing.
Different material properties
Due to different processing temperatures, the properties of stainless steel sheets obtained from cold rolling and hot rolling also differ. Hot rolling processing can improve the ductility and plasticity of steel sheets, while cold rolling can achieve higher hardness and strength. This is also the reason why cold-rolled steel plates are widely used in industrial manufacturing, mechanical parts, shipbuilding, and chemical industries.
Different surface quality
The surface quality of hot rolling and cold rolling is also different. The surface of cold-rolled steel plate is relatively flat, without obvious oxide scale and rust, while hot-rolled steel plate will produce oxide scale and rust on the surface. Therefore, in some special occasions, hot-rolled steel plates require subsequent surface treatment to obtain good surface quality.
ZHEJIANG ZHONGZHENG STAINLESS STEE MANUFACTURING CO., LTD is a professional supplier of stainless steel materials, located in Zhejiang, China with high speed of economic development. We are near shanghai port; the traffic is very convenient.The main stainless steel materials are stainless steel plate, pressure vessel stainless steel plate, high temperature boiler plate, corrosion resistant stainless steel plate, stainless steel seamless pipe, stainless steel industrial pipe, stainless steel welded pipe, stainless steel bar, stainless steel pipe and so on.With the aim of "quality first, timely delivery, good faith cooperation, considerate service and common development", the company has set up a good reputation in the industry for providing high quality stainless steel materials and perfect after-sales service.
PACKING
Standard Coating: Paper Interleaved, PE or Laser PE Coating are available ...
Standard Package: Waterproof wrapping and cardboard encase all the pack of the sheets, with metal edge production for all top edges. The strap aligned from bottom bearer to the top, with edge protection on all top corners that meets the sheets
Wooden Pallets or customized Pallets are acceptable
Metal Pallets are acceptable upon request
