Product Description
Hiperco 50A(1j22) alloy is a soft magnetic alloy which has been used primarily as magnetic core material in electrical core material in electrical equipment requiring high permeability values at very high magnetic flux densities. The magnetic characteristics of this alloy permit weight reduction, reduction of copper turns, and insulation in the end product when compared to other magnetic alloys having lower permeabilities in the same magnetic field range.
AFK502 and Hiperco 50A strip is similar with Chinese 1J22 (GB/T 15002-1994)
High Saturation magnetic induction soft magnetic alloys 1J22(GB/T15002-1994)
Specification: Sheet/Plate, Bar/Rod/Coil
Note: We could do any other products with specified technical standard, say, ASTM,SAE,DIN,S.E.W.,JIS,ISO,IEC,NF,BS.
Grade |
U.K. |
Germany |
U.S.A. |
Russia |
Standard |
|
Hiperco 50A AFK502 |
Permendur |
Vacoflux 50 |
Supermendur HiperCo50 |
GB/T15002-1994 |
Chemical Composition (%) |
|||||||||
C≤ |
Mn≤ |
Si≤ |
P≤ |
S≤ |
Cu≤ |
Ni≤ |
Co |
V |
Fe |
0.04 |
0.30 |
0.30 |
0.020 |
0.020 |
0.20 |
0.50 |
49.0~51.0 |
0.80~1.80 |
Balance |
Physical Property (see Table2 ) Table 2 Physical Property |
|||||
Resistivity /(μΩ•m) |
Density/(g/cm3) |
Curie point/°C |
Magnetostriction Cofficient/(×10-6) |
Tensile Strength,N/mm2 |
|
Unannealed |
Annealed |
||||
0.40 |
8.20 |
980 |
60~100 |
1325 |
490 |
Table 3 DC Magnetic Property Requirements After Heat-Treated |
|||||||
Type |
Minimum Magnetic Flux Density for Different Magnetic Field Strengths (T) |
Coercive force |
|||||
B400 |
B800 |
B1600 |
B2400 |
B4000 |
B8000 |
||
Cold rolled Strips |
1.70 |
1.90 |
2.00 |
2.10 |
2.20 |
2.25 |
110 |
Wires,Forgings,Billets,Bars |
1.60 |
1.70 |
1.80 |
2.05 |
2.15 |
2.20 |
144 |
| Products Name | duplex stainless steel plate |
| Grade | 2205 / S31803 / S32205 / 1.4462 |
| Thickness | Cold Rolled 0.6 - 3.0mm , Hot Rolled 3.0 - 80.0mm |
| Width | 1000mm 1219mm 1500mm 1800mm 2000mm |
| Standard Size | 1000*2000mm 1219*2438mm 1500*6000mm 1800*6000mm 2000*6000mm or cutting as request |
| Brand | POSCO TISCO BAOSTEEL JISCO ESS |
| Other Grade | 304 316L 309S 310S 321 347 2507 904L 254SMO.etc |
| Service | Cutting |
Duplex 2205 stainless steel (both ferritic and austenitic) is used extensively in applications that require good corrosion resistance and strength. The S31803 grade stainless steel has undergone a number of modifications resulting in UNS S32205, and was endorsed in the year 1996. This grade offers higher resistance to corrosion.
At temperatures above 300°C, the brittle micro-constituents of this grade undergo precipitation, and at temperatures below -50°C the micro-constituents undergo ductile-to-brittle transition; hence this grade of stainless steel is not suitable for use at these temperatures.
Duplex 2205, also known as UNS S32205, is a nitrogen-enhanced stainless steel. Users choose Duplex 2205 for its excellent corrosion resistance along with its high strength. It is important to note that Duplex 2205, offers much higher levels of corrosion resistance than most other austenitic stainless steels. Other benefits include:
High resistance to pitting and crevice corrosion
Excellent in most caustic environments
Good weldability
Compositional ranges for grade 2205 duplex stainless steel.
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
|
2205 (S31803) |
Min Max |
- 0.030 |
- 2.00 |
- 1.00 |
- 0.030 |
- 0.020 |
21.0 23.0 |
2.5 3.5 |
4.5 6.5 |
0.08 0.20 |
2205 (S32205) |
Min Max |
- 0.030 |
- 2.00 |
- 1.00 |
- 0.030 |
- 0.020 |
22.0 23.0 |
3.0 3.5 |
4.5 6.5 |
0.14 0.20 |
Mechanical Properties of duplex 2205 stainless steel
The typical mechanical properties of grade 2205 stainless steels are listed in the table below. Grade S31803 has similar mechanical properties to that of S32205.
Grade |
Tensile Str |
Yield Strength |
Elongation |
Hardness |
|
Rockwell C (HR C) |
Brinell (HB) |
||||
2205 |
621 |
448 |
25 |
31 max |
293 max |
Grade Specification Comparison
Table 4 provides the grade comparison for 2205 stainless steels. The values are a comparison of functionally similar materials. Exact equivalents may be obtained from the original specifications.
| Grade | UNS | EN | BS | JIS | SS | |
| 2205 | S31803/S32205 | 1.4462 | X2CrNiMoN22-5-3 | 318S13 | SUS329J3L | 2377 |
Application of duplex 2205 stainless steel
This unique mix of materials makes Duplex 2205 the right choice for a number of different critical applications in a range of industries, including:
Chemical processing, transport, and storage
Marine and Land cargo tanks
Biofuel production
Food processing
Pulp and Paper manufacturing
Oil and gas exploration and processing
Waste management
High chloride environments

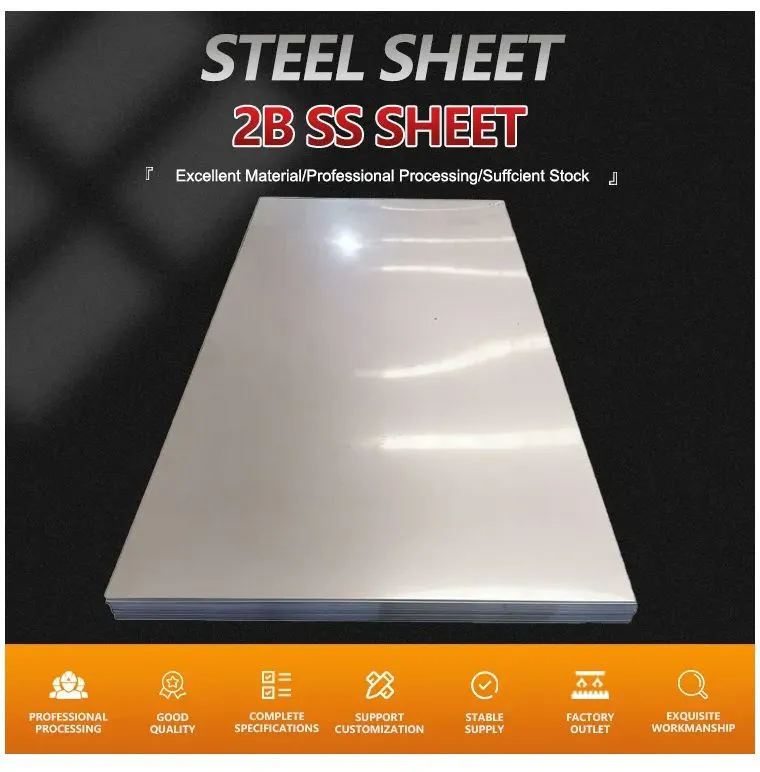

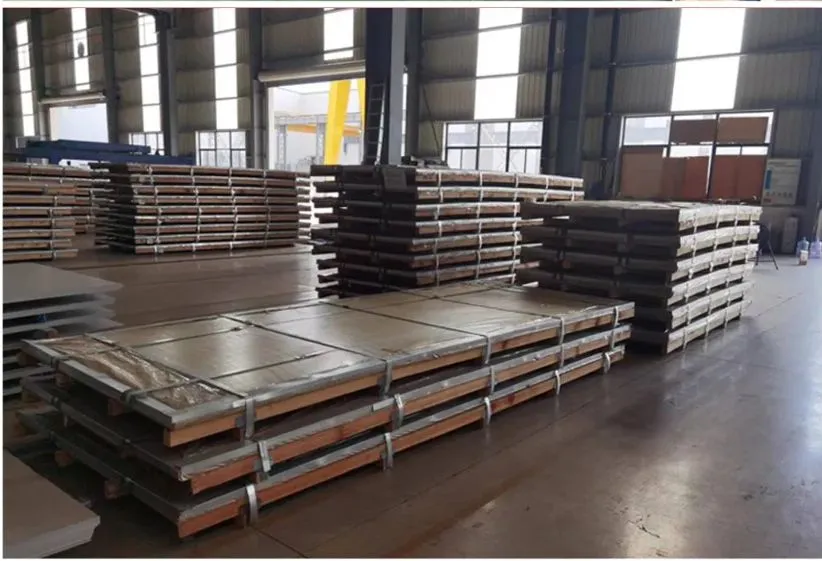

Pictures of our products
Product Description
About Our Company

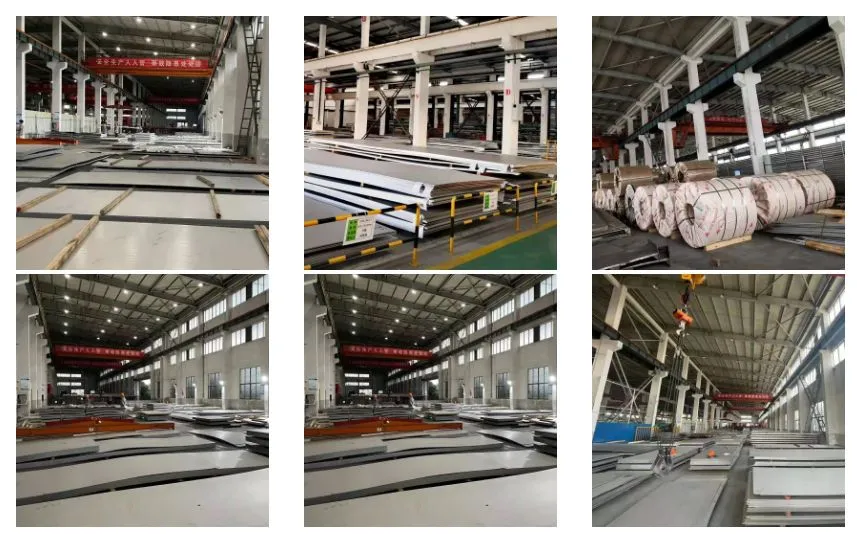

1. Our company is a large company integrating wholesale of duplex steel and material processing.
2. Domestic partners: TISCO, BAOSTEEL, POSCO, JISCO, LISCO, TSINGSHAN, ESS.etc
3. Foreign Partners: COLUMBUS ,NAS,OUTOKUMPU,Nippon metal,NipponYakinKogyoNSC. etc.
4. Our duplex steel main products: 2205, 2507 duplex stainless steel, 254SMO austenitic stainless steel
5. The products are mainly used in: ship washing tower equipment, roadbed desulfurization tower, cooling tower, and many other industries.

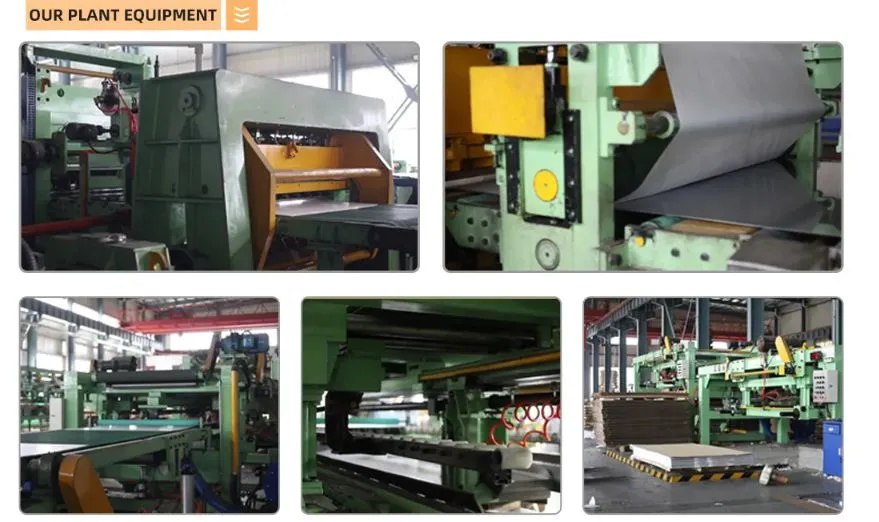

6. Processing equipment: Imported from Italy, hot rolling machine, strip machine, high level water cutting machine, plasma cutting machine, large CNC milling machine, boring machine and many other imported processing equipment.

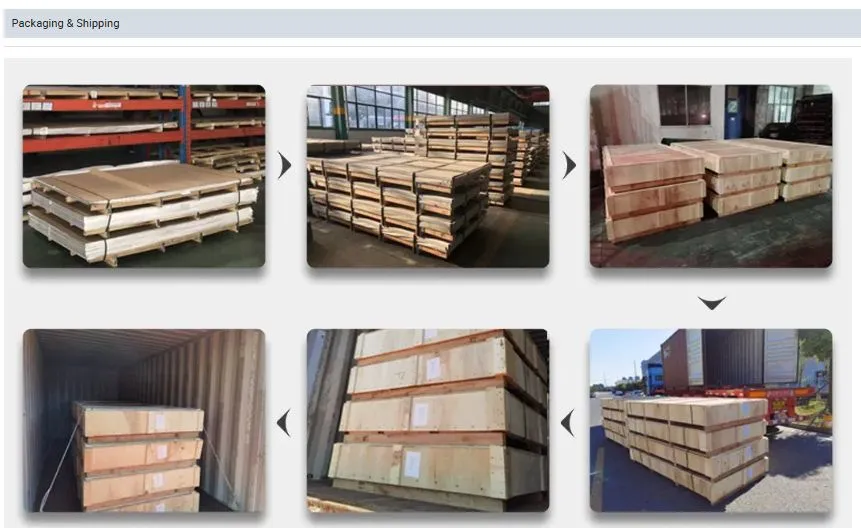

Logistic and Packing Informations
Packing Informations:
Packing Method: wooden pallets and waterproof paper packing
Packing Size:1000*2000mm 1219*2438mm 1500*6000mm 2000*6000mm or as request
Packing Weight: about 2 - 3 Tons each packing
Container loading:
20ft container: 2.2mm width * 2.2m height * 5.8m Length , each container loading 25 Tons
40ft container:2.2mm width * 2.2m height * 11.6m Length , each container loading 25 Tons
rofessional Packing Service
we will provide you the finest of professional packing services.Product order will be shipped within 7-10 working days after payment.Sample is available. Delivery Time: 3-15 working days.We accept Trade Assurance,Bank Transfer,Credit,Western Union,Paypal,etc. If you have any question,please contact with us. Thank you!
FAQ
Q1: Can we visit your factory?
- A: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.
Q2: Can provide OEM/ODM service?
-A: Yes. Please feel free to contact us for more details discuss.
Q3: How is your Payment Term?
-A:We prefer TT, L/C, Western Union, etc.We will show you the photos of products and package before you pay the balance.
Q4: Can you provide sample?
-A: Yes!We could provide the free samples on conditions it is available in stocks, however, the the transportation fee is borne by buyer.
Q5: what is the terms of delivery?
-A: EXW, FOB, CIF, CFR, DDU
Q6: What is the terms of packing?
-A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.
Q7: What is your delivery time?
-A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit. For production
period,it usually takes about 15 days-30 days after receiving the deposit.
Q8: Why choose your company ?
-A:(1)We are specialized in this industry for more than 15+ years (2) We are full stock (3)we have ourselves processing factory.
Q9: What's the MOQ ?
-A: 1 Ton is OK.
