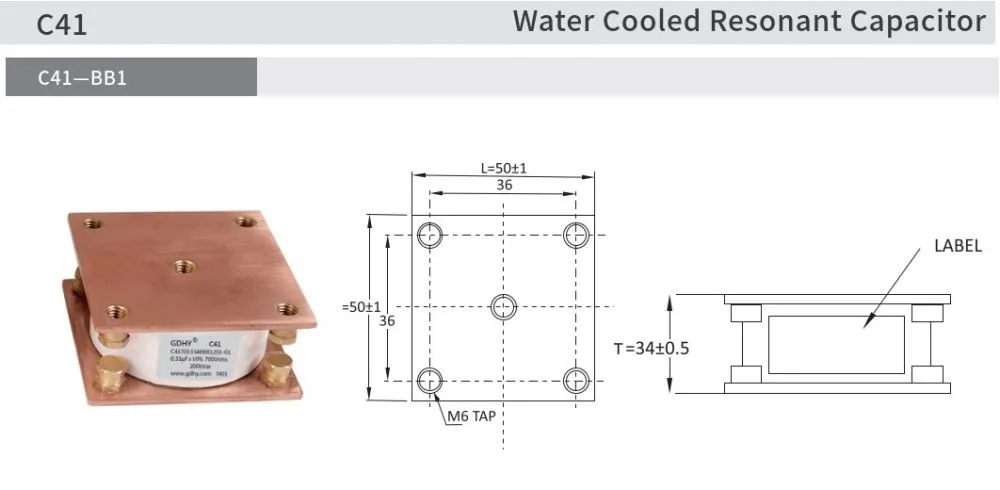

C41 Resonant Capacitor

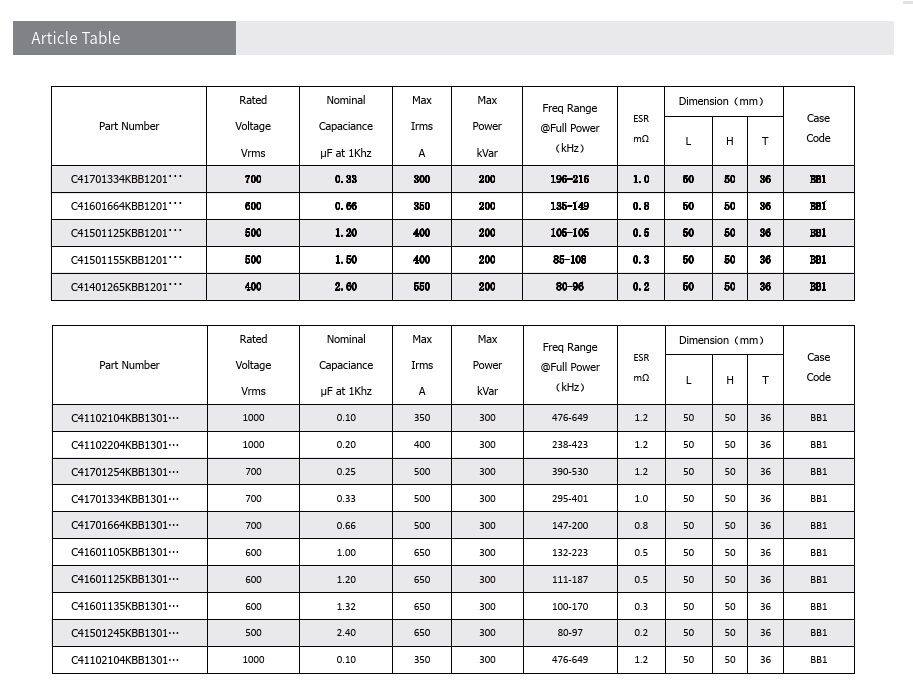

Technical Parameter
Reference Standards |
GB/T 3984-2004 IEC 60110.1 |
Operating Temperature Range |
-40℃～85℃ |
Capacity Range |
0.1μF～85μF |
Capacity Range |
100kVar-1500 kVar |
Rated Voltage |
400-1100VAC |
Capacity Tolerance |
±5% ~ ±10% |
Dissipation Factor |
tgδ≤5×10-4 at 25℃±5℃，1kHz |
Insulation Resistance |
R•C≥3000s，at 100VDC，25℃±5℃，60s |
Life Expectancy |
100000h at UN and 70℃，30000h at Urm |
Application:

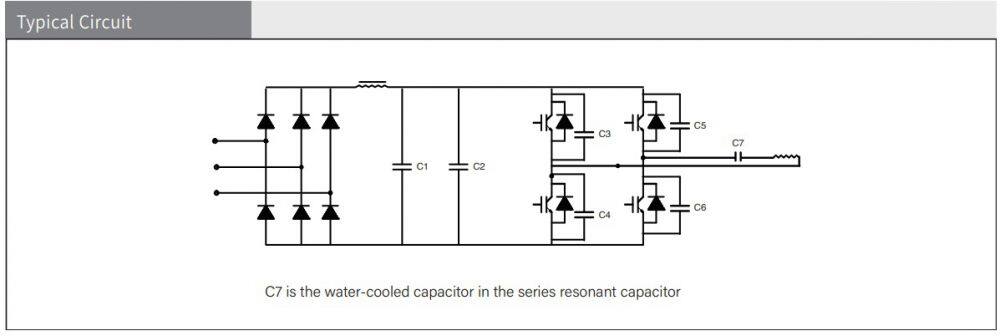

IGBT Snubber circuit; IGBT Snubber equipment
● Widely used in power electronic equipment UPS, inverter, induction heater, welding machine for protect and absorb peak current and peak voltage.
Feature:
● Conduction water-cooled

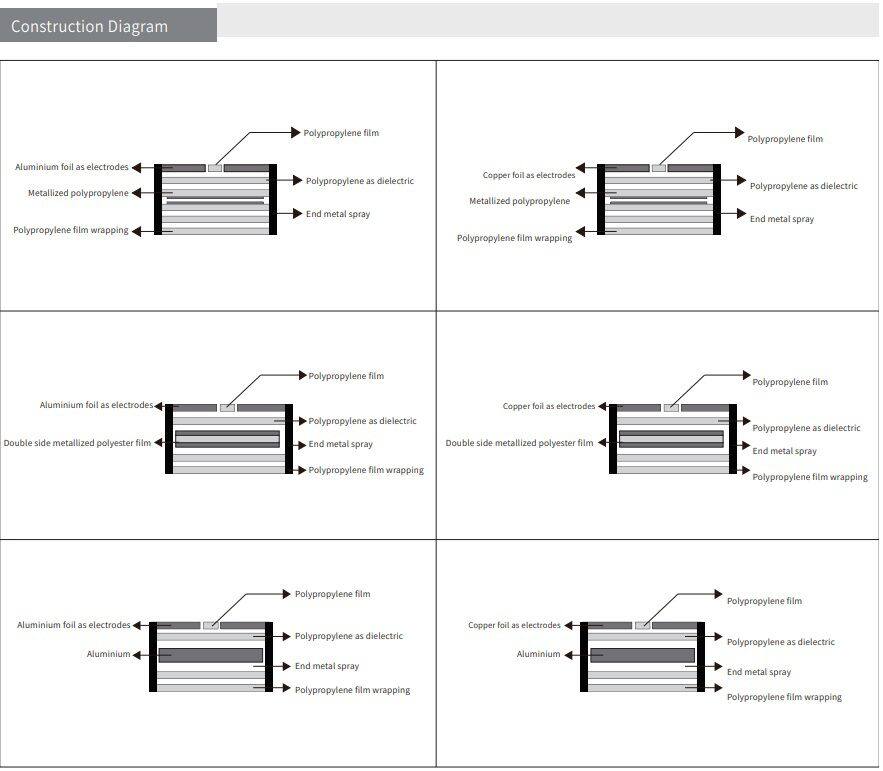

● Polypropylene dielectric
● Low dissipation factor(tgδ), low ESL, low ESR
● High voltage, high frequency and high dV/dt,
● Can bear large current, excellent heat dissipation
