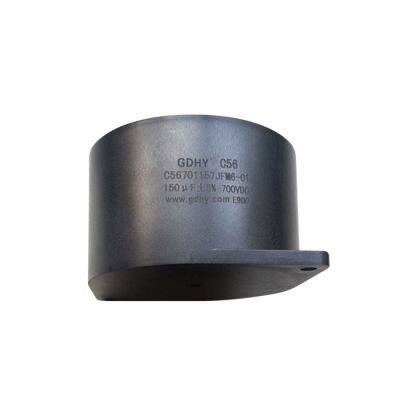

C56 Capacitor

Name: C56 Capacitor
Brand: gdhy
SKU: 172669509
Availability: InStock

Guangdong Huayu ELectronic CO.ltd.

Negotiable MOQ: 10000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

gdhy

Place of Origin:

China

Type:

Polypropylene Film Capacitor

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

15 days

Brand Name gdhy

Place of Origin China

Type Polypropylene Film Capacitor

Application Other, UPS,SMPSs,inverter, welding machine power

Rated Voltage 700-1800Vdc

Operating Temperature -40℃～85℃

Package Type Surface Mount

Capacitance 20uF-750uF

Application:

● Widely used in dc-link Circuits for Filtering and Energy Storage

● Also widely used in Frequency Converter, Inverter, and Inverter Power supplies

Feature:

● Polypropylene film dielectric

● Plastic shell packaging, flame retardant epoxy resin perfusion

● Copper nut /screw elicited

● High ripple current, high dV/dt withstand capacity

● Convenient installation

Technical Parameter

Reference Standards	GB/T 17702, IEC 61071
Operating Temperature Range	-40℃～85℃
Capacity Range	20μF～750μF
Rated Voltage	700VDC～1800VDC
Capacity Tolerance	±5%(J); ±10%(K)
Test Voltage between Terminals	1.5UN（DC）60S 25℃±5℃
Test Voltage btw Terminals & Case	1000+2×UN/√2(VAC) 50Hz 60S (min 3000VAC)
Dissipation Factor	tgδ≤2×10-3 at 25℃±5℃，1KHz
Insulation Resistance	C•R≥5000S，at 100VDC，25℃±5℃，60S
Life Expectancy	100000hrs at Un and 70℃
