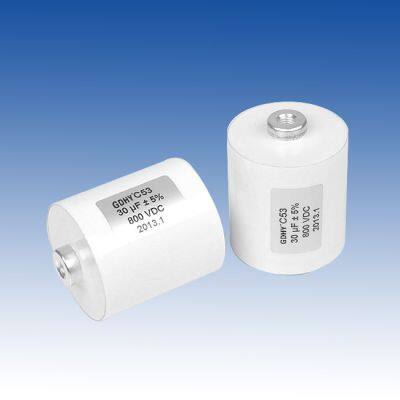

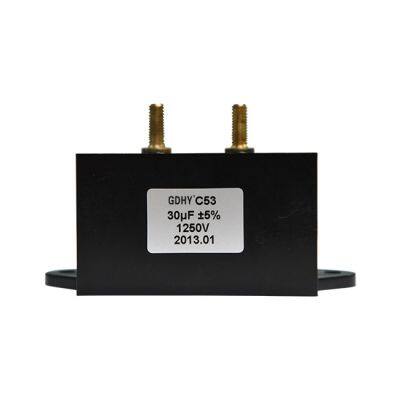

C53 Capacitor

Name: C53 Capacitor
Brand: gdhy
SKU: 172669427
Availability: InStock

Guangdong Huayu ELectronic CO.ltd.

Negotiable MOQ: 10000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

gdhy

Place of Origin:

China

Type:

Polypropylene Film Capacitor

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

15 days

Brand Name gdhy

Place of Origin China

Type Polypropylene Film Capacitor

Application Other, UPS,SMPSs,inverter, welding machine power

Rated Voltage 600Vdc-1200Vdc

Operating Temperature -40℃～85℃

Package Type Surface Mount

Capacitance 15.0uF-300uF

Application:

● Widely used in DC-Link Circuits, as a high frequency filtering and decoupling

● Direct Coupling in Power Electronic equipment

Feature:

● Polypropylene film dielectric

● Myla tape packaging, flame retardant epoxy resin perfusion

● Copper nut elicited, Convenient installation

● Excellent high frequency and high current bearing capacity

Technical Parameter

Reference Standards	GB/T 17702, IEC 61071
Operating Temperature Range	-40℃～85℃
Capacity Range	15μF ~ 300μF
Rated Voltage	600VDC~1200VDC
Capacity Tolerance	±5%(J); ±10%(K)
Test Voltage between Terminals	1.5Un（DC）60S 25℃±5℃
Test Voltage btw Terminals & Case	1000+2×UN/√2(VAC) 50Hz 60S (min 3000VAC)
Dissipation Factor	tgδ≤2×10-3 at 25℃±5℃，1KHz
Insulation Resistance	C•R≥5000S，at 100VDC，25℃±5℃，60S
Life Expectancy	100000hrs at Un and 70℃
