Carbon Steel Plate Nm500 Hot Rolled JIS 3mm 6mm 10mm Wear-Resistant Steel Plate Hot Sale
US$ 800 - 1000
MOQ: 1 Meter
Key Specifications
Get Latest Price
Certification:
ISO, ROHS, AISI, ASTM, GB, EN
Shape:
Other, Blackface
Technique:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
8 days
Related Products
-
Hot Rolled Wear Steel Nm500 Wearing Resistant Heat Treatment Steel Plate Q+T With Wear Resistant Layer Fdsdffgsg Fsgfs Sgfsgf FsgUS$ 800 - 1000MOQ: 1 Meter -
Nm500 Abrasion Resistant Steel Plate Anti Wear PlateUS$ 800 - 1000MOQ: 1 Meter
-
Low Price Customized Nm500 Hot Rolled Wear Resistant Steel Plate 4X8 6mm 8mm 12mm JIS ASTM StandardUS$ 800 - 1000MOQ: 1 Meter
-
Low Price Carbon Wear Resistant Steel Plate Nm500 Carbon-Steel Sufficient Stock Carbon Steel PlateUS$ 800 - 1000MOQ: 1 Meter
-
Nm500 Wear Resistant Steel Sheet Wear Steel PlateUS$ 800 - 1000MOQ: 1 Meter
Certification
ISO, ROHS, AISI, ASTM, GB, EN
Shape
Other, Blackface
Technique
Other
Surface Treatment
Pickling
Model NO.
NM500 wear-resistant steel plate
Production Process
welding/ polishing/inside bead removing
Special Use
Cutting Tools, Measuring Tools, High-str
Transport Package
Packaged in Exporting Standard.
Specification
Customized
Origin
China
Product Description
Shandong Heng Steel Group Co. ,Ltd.------Professional manufacturer of wear resistant/weather resistant/pressure vessuel /shipbuilding/ checkered/carbon steel sheet/coil etc.steel products for more than 15 years. And we can produce 2~300mm thickness with various size.Please tell us the size you need, we'd like to update the latest price according to your needs.
| Wear Resistant Steel Plate |
|
|
Standard Grade |
DIN: XAR300,XAR400, XAR450, XAR500, XAR600, DILLIDUR400V,DILLIDUR450V,DILLIDUR500V; X120Mn12; 1.3401; SSAB:WELDOX700,WELDOX900,WELDOX960; NF: FORA400,FORA500,Creusabro4800,Creusabro8000; EN: QUARD400,QUARD450,QUARD500 ; RAEX320,RAEX400,RAEX450,RAEX500; DUrostat400,DUrostat450,DUrostat500; JIS: WEL-HARD400, WEL-HARD500; SUMIHARD-K340,SUMIHARD-K400,SUMIHARD-K500 GB: NM360,NM400,M450,NM500,NM550,NM600,NR360,NR400,B-HARD360,B-HARD400,B-HARD450,KN-55,KN-60,KN-63. |
| Thickness | 2-300mm (2-100mm usually used) |
| Width | 1000-3000mm (1000-2200mm usually used) |
| Length | 1000-12000mm or as your request |
| Surface | Clean, finishing,blasting and painting according to customer requirement |
|
Delivery States |
Hot-rolled, Controlled rolling, Normalizing, Annealing, Tempering, Quenching, N+T, Q+T,and other delivery states are available as required |
| Certificate | API,ISO,SGS,BV,CE etc |
| Quality | MTC will be provided with goods, third part inspection is acceptable, for example BV,SGS. |

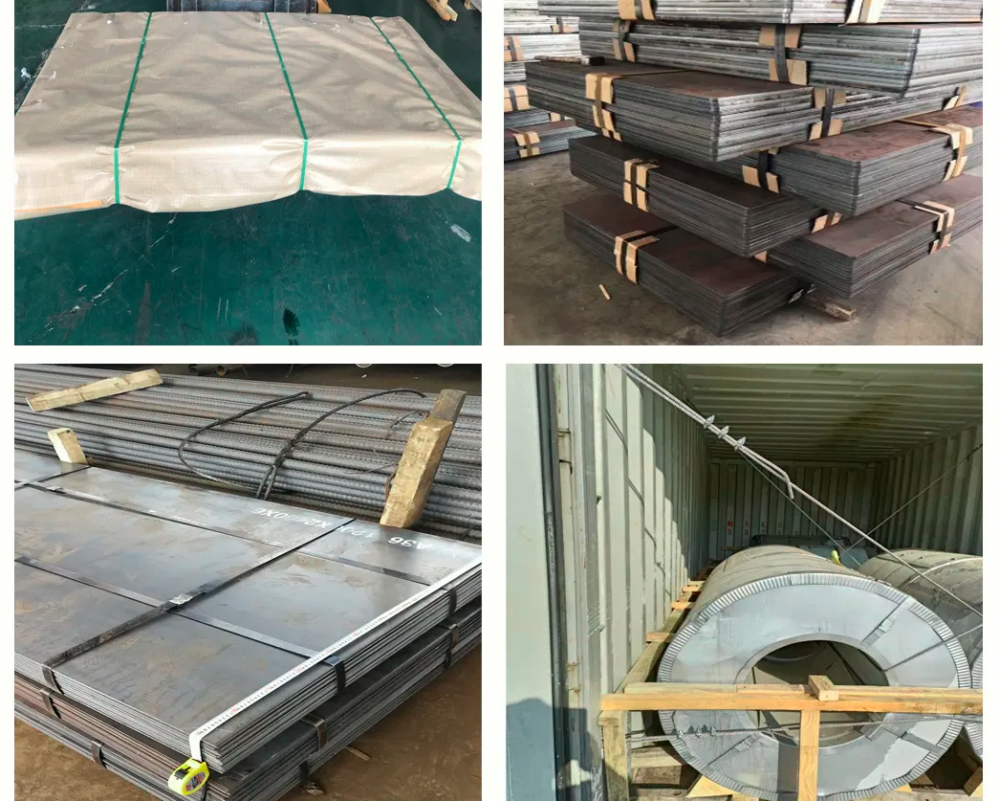

| Package | Standard export seaworthy package,suit for all kinds of transport, or as required. |
|
Container Size |
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) |
| 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) | |
| Trade term | Ex-Work,FOB,CNF,CFR,CIF,etc |
| Application | Widely used in a variety of architectural and engineering structures,such as 1.) metal constructions such as buildings,bridges,ships; 2.) transmission tower, reaction tower; 3.) lifting transportation machinery; 4.) industrial furnace;boilers 5.) container frame, warehouse goods shelves, etc |
| Wear Resistant Steel Plate Chemical Composition and Mechanical Properties |
||||||||||||
| Chemical Composition(Max) | ||||||||||||
| Material | C | Si | Mn | P | S | Cr | Ni | Mo | Ti | Bt | Als | CEV |
| NM300 | 0.23 | 0.70 | 1.60 | 0.025 | 0.015 | 0.70 | 0.50 | 0.40 | 0.050 | 0.0005-0.0006 | 0.010 | 0.45 |
| NM360 | 0.25 | 0.70 | 1.60 | 0.025 | 0.015 | 0.80 | 0.50 | 0.50 | 0.050 | 0.0005-0.0006 | 0.010 | 0.48 |
| NM400 | 0.30 | 0.70 | 1.60 | 0.025 | 0.010 | 1.00 | 0.70 | 0.50 | 0.050 | 0.0005-0.0006 | 0.010 | 0.55 |
| NM450 | 0.35 | 0.70 | 1.70 | 0.025 | 0.010 | 1.10 | 0.80 | 0.55 | 0.050 | 0.0005-0.0006 | 0.010 | 0.60 |
| NM500 | 0.38 | 0.70 | 1.70 | 0.020 | 0.010 | 1.20 | 1.00 | 0.65 | 0.050 | 0.0005-0.0006 | 0.010 | 0.65 |
| NM550 | 0.38 | 0.70 | 1.70 | 0.020 | 0.010 | 1.20 | 1.00 | 0.70 | 0.050 | 0.0005-0.0006 | 0.010 | 0.72 |
| NM600 | 0.38 | 0.70 | 1.90 | 0.020 | 0.010 | 1.50 | 1.00 | 0.70 | 0.050 | 0.0005-0.0006 | 0.010 | 0.76 |
| Material | Tensile MPA | Elongation % | Impact energy -20ºC | HBW | ||||||||
| NM300 | ≥1000 | ≥14 | ≥24 | 270-300 | ||||||||
| NM360 | ≥1100 | ≥12 | ≥24 | 330-390 | ||||||||
| NM400 | ≥1200 | ≥10 | ≥24 | 370-430 | ||||||||
| NM450 | ≥1250 | ≥7 | ≥24 | 420-480 | ||||||||
| NM500 | ≥1250 | ≥7 | ≥24 | ≥470 | ||||||||
| NM550 | ≥1250 | ≥7 | ≥24 | ≥530 | ||||||||
| NM600 | ≥1250 | ≥7 | ≥24 | ≥570 | ||||||||
| Grade | C | Si | Mn | P | S | Cr | Mo | Cu | Ni | B | ||
| XAR400 | 0.20 | 0.80 | 1.50 | 0.025 | 0.010 | 1.00 | 0.50 | -- | -- | 0.005 | ||
| XAR450 | 0.22 | 0.80 | 1.50 | 0.025 | 0.012 | 1.30 | 0.50 | 0.30 | -- | 0.005 | ||
|
XAR500 |
0.28 | 0.80 | 1.50 | 0.025 | 0.010 | 1.00 | 0.50 | -- | -- | 0.005 | ||
|
XAR600 |
0.40 | 0.80 | 1.50 | 0.025 | 0.010 | 1.50 | 0.50 | -- | 1.50 | 0.005 | ||
| Grade |
Yield Strength Reh MPa |
Tensile Strength Rm MPa |
Elongation |
BH (Brinell Hardness) |
||||||||
| XAR400 | 1150 | 1300 | ≥12 | 360-440 | ||||||||
| XAR450 | 1200 | 1350 | ≥10 | 410-490 | ||||||||
| XAR500 | 1500 | 1600 | ≥9 | 450-530 | ||||||||
| XAR600 | -- | -- | -- | ≥550 | ||||||||
| Material | C | Si | Mn | P | S | Cr | ||||||
| Mn13 | 1.1~1.3 | 0.3~0.5 | 12~13 | ≤0.100 | ≤0.040 | ≤1.5 | ||||||
| X120Mn12 | 1.1~1.3 | 0.3~0.5 | 12~13 | ≤0.100 | ≤0.040 | ≤1.5 | ||||||
| 1.3401 | 1.1~1.3 | 0.3~0.5 | 12~13 | ≤0.100 | ≤0.040 |
≤1.5 | ||||||
| SCMnH11 | 0.9~1.5 | 0.3~1.0 | 10~15 | ≤0.100 | ≤0.050 | ≤1.5 | ||||||
| ASTM A128 | 1.1~1.3 | 0.3~0.5 | 12~13 | ≤0.100 | ≤0.050 | ≤1.5 |

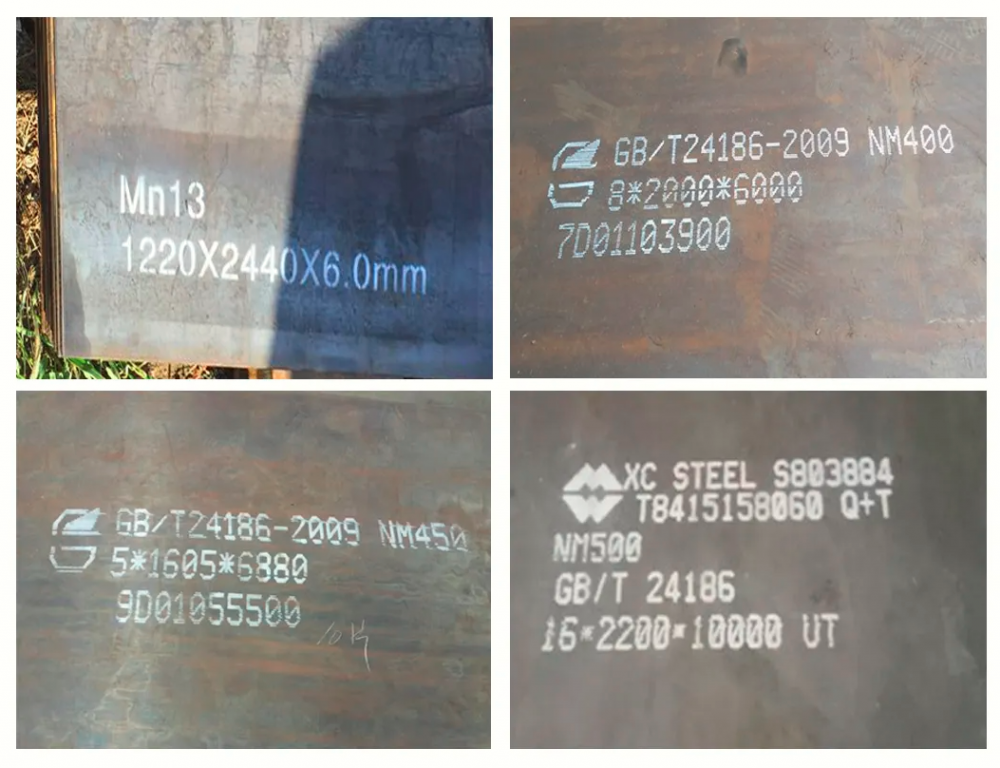

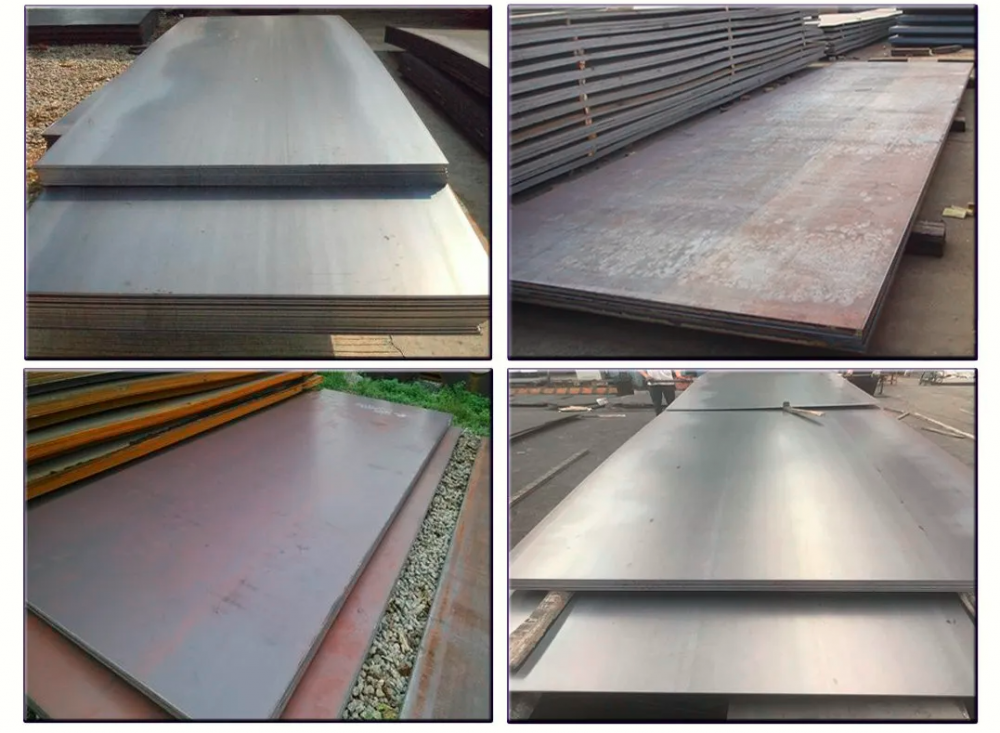

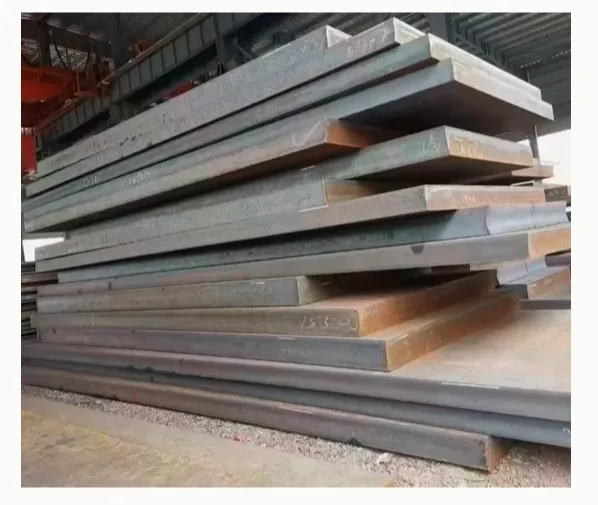

Detailed Photos
