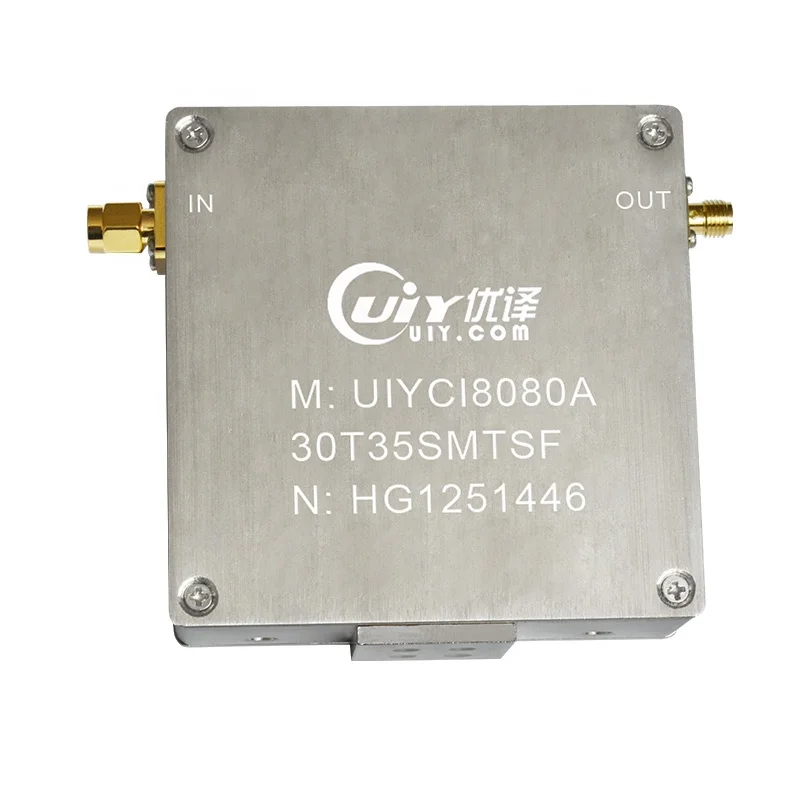

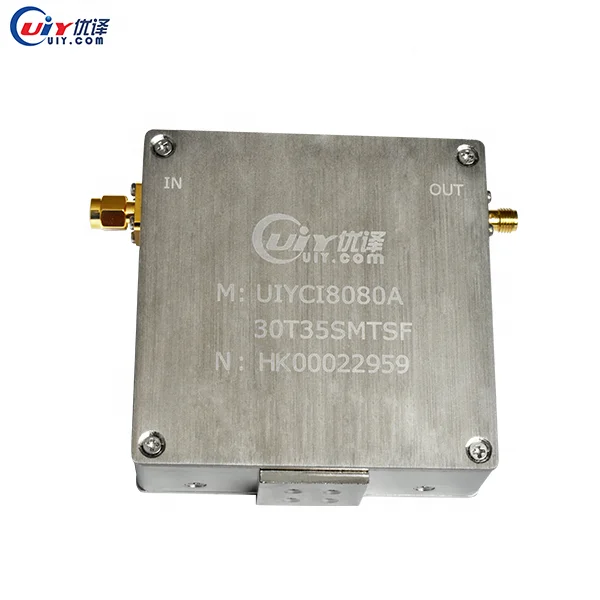

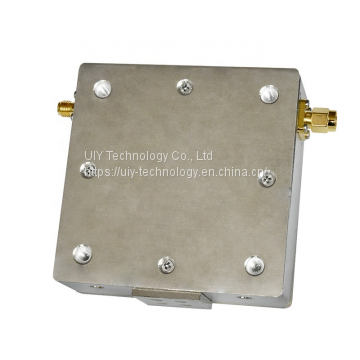

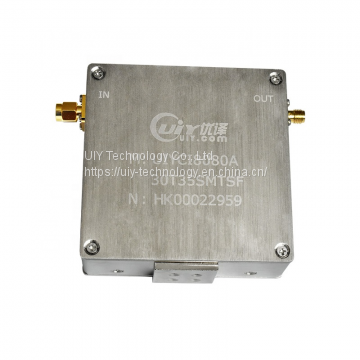

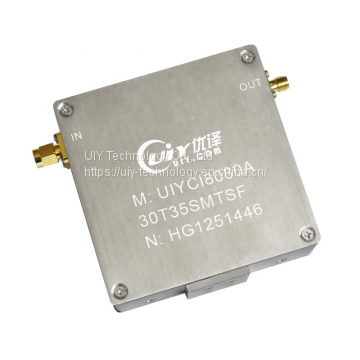

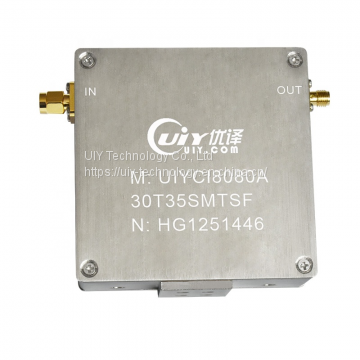

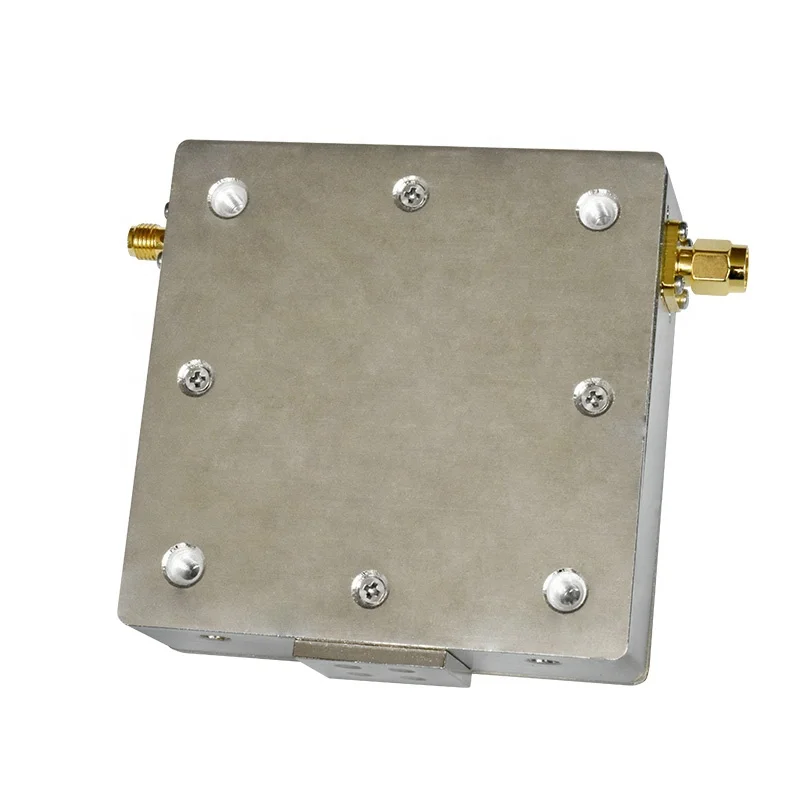

Help CenterUIY RF Coaxial Isolator 5g Communication Module 30-35 MHz With High Quality
Related Products
-
UIY RF Coaxial Isolator 5g Low Frequency 108 ~ 118 MHz With N Female ConnectorUS$ 195 - 200MOQ: 1 Piece -
UIY RF Coaxial Isolator Communication Module 170-200 MHz of China RF IsolatorUS$ 150 - 160MOQ: 1 Piece
-
UIY Customized 5g RF Isolator Design Coaxial Isolator High Quality Isolator 440 ~ 470 MHzUS$ 60 - 70MOQ: 1 Piece
-
High Isolation UIY Customized RF Coaxial Isolator 5g High Quality 413 ~ 424 MHzUS$ 70 - 80MOQ: 1 Piece
-
UIY Customized RF Coaxial Isolator 400-512 MHzUS$ 68 - 78MOQ: 1 Piece

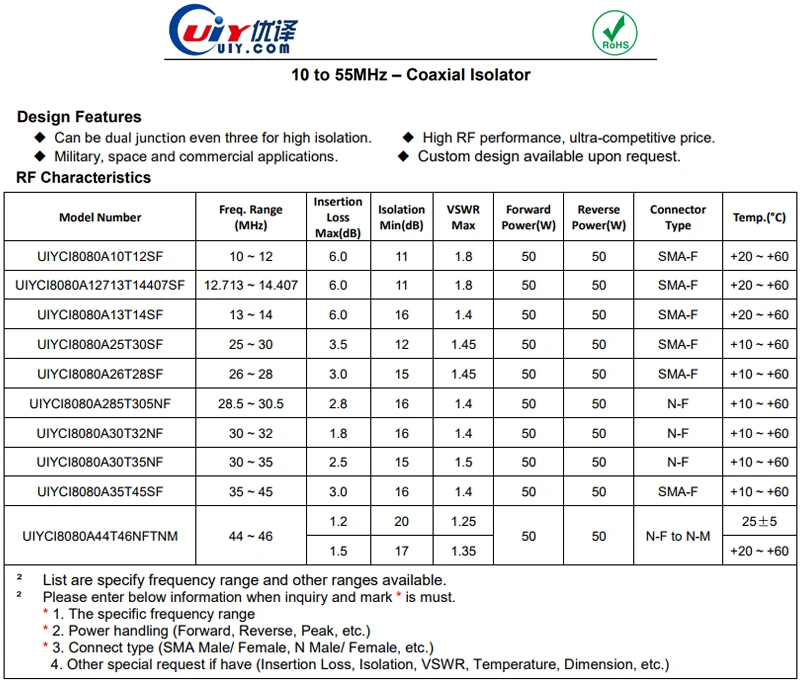

Product Specification:
Product Name |
RF Coaxial Isolator |
Model Number |
UIYCI8080A30T35NF |
Frequency Range (MHz) |
30 ~ 35 MHz |
Insertion Loss Max (dB) |
2.5 |
Isolation Min (dB) |
15 |
VSWR Max |
1.5 |
Forward Power (W) |
50 |
Reverse Power (W) |
50 |
Connector Type |
N-Female |
Temperature (°C) |
+10 ~ +60 |
Dimension L*W*H(mm) |
80×80×28 |
Design Features:
1. Can be dual junction even three for high isolation.
2. High RF performance, ultra-competitive price.
3. Custom design available upon request.
4. Military, space and commercial applications.
Standart Export Cartons for RF Isolator and Circulator
SF Express/DHL/Fedex/UPS/EMS/TNT or other internation express company
we support - Customize upon request
we offer - ISO 9001 & ROHS Compliant
we offer - HFSS Simulation (S Parameters)
we guarantee - Good quality & One-year warranty
we guarantee - Safe & Fast Delivery
Found in 2003 & located in Shenzhen China. UIY is a professional manufacturer engaged in R&D, design, production sale & service of the civilian & military microwave communication device.
Main product: 1) RF Isolators. 2)RF Circulators. 3)RF Filters. 4)RF Amplifiers. 5)Power Divider / Splitter.6) Duplexer/Triplexer. 7)Hybridge Combiner. 8)Coaxial Termination. 9)Coaxial Attenuator. 10)Directional Coupler. 11)Waveguide to Coaxial Adapter etc.
In recent years, our company has introduced a series of advanced equipment. The frequency range is from 300KHz to 110GHz & average power is up to 20KW, with a wide range, good quality, reasonable price and stylish designs, our products are widely used in civil, military, telecommunication, armarium manufacturer, laboratory, aviation, aerospace, space technology & other fields.
Since its foundation, UIY has been keeping in-depth cooperation & communication with renowned enterprises, institutions, scientific research institutions. Our products are with well-equipped testing facilities & strong technical force. Selling well in all cities and provinces around China, our products are also sold all over the world.
1. Question: when can I get the price?
We usually quote within 24 hours after confirming the detailed requirements. If the situation is similar, we can quote immediately.
2. Question: what is the minimum order quantity?
Minimum order 1 piece.
3. Question: when will the goods be delivered?
The delivery time is usually about 7 - 14 days after ordering.
4. Question: do you only have this product?
No, we can do other products, just need you to give the specific requirements of products and data or templates.
5. Question: what is the quality and quantity of your products?
We have international common materials and different material products, and you can choose according to your needs.
6. Question: why do you choose us?
Our products are complete in specifications, small in size, excellent in indicators and low in price.
our products are in full compliance with iso 9001 international standard, with high-precision testing equipment and QC team, and we have established a strict quality control system.
We are committed to providing our customers with high-quality products for a long time.
