Specifications
Melting point apparatus
1.Warranty:2 years
2.Delivery time: About 1 days after received your payment
3.MOQ:1pc
4.ISO Passed
Application:

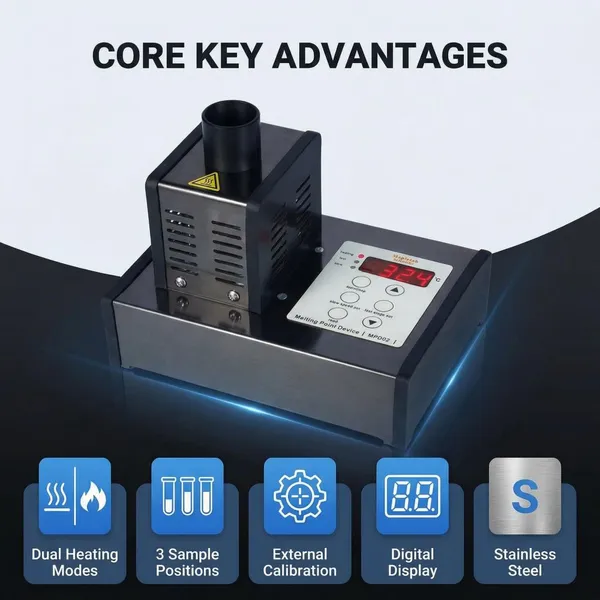

MPD-02 is a economic and easy-use melting point device. With a precise thermistor control system, the measurement range of the device is excellent, giving 0.1ºC resolutions on display.
The device is designed to simultaneously measure two samples. The internal LED light source, together with clear magnified lens and tilt rear feet aids users to have a broader and clearer view.
The measurement ranges from room temperature to 350ºC. The two different ramping speed modes make measurement much quicker and convenient.
The operation is very user friendly. The unit is the most economic pricing makes the device unbeatable in the market.
Technical Specification:
Model |
MPD-02 |
MPD-03 |
Temperature range (ºC ) |
Ambient to 350 |
Ambient to 400 |
Decrease Temperature Time |
30ºC/min |
30ºC/min |
Temperature accuracy (ºC ) |
± 1.0 at 20ºC, ± 2.5 at 300ºC |
± 1.0 at 20ºC, ± 2.5 at 300ºC |
Display |
Four digit LED |
Four digit LED |
Display resolution (ºC ) |
0.1 |
0.1 |
Readout hold |
Yes |
Yes |
Number of samples |
3 |
3 |
Fast Stage Ramp rate (ºC/min ) |
20 fixed |
20 fixed |
Slow Ramp rates |
adjustable between 1 to 10 |
adjustable between 1 to 10 |
Dimensions (w x d x h) |
160 x 220 x 170mm |
160 x 220 x 170mm |
Net weight |
2 Kg |
2 Kg |
Electrical supply |
230V, 50Hz, 80W |
230V, 50Hz, 80W |
New Model:
MPD-02 with built fan. When stop the testing, the fan will be automatically turn on. The cooling
rate is 30ºC/min (it takes 6.3 minutes to cool the heated block from 300ºC to 100ºC).
