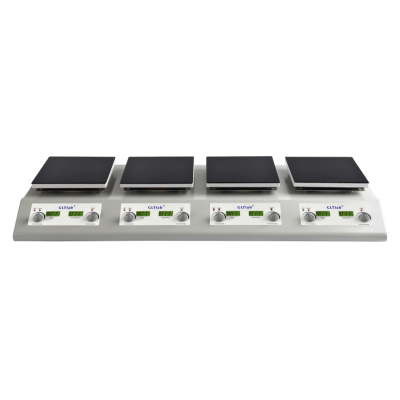

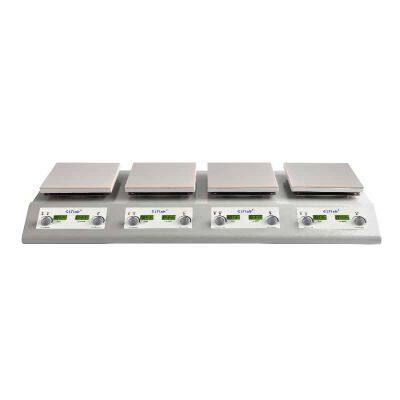

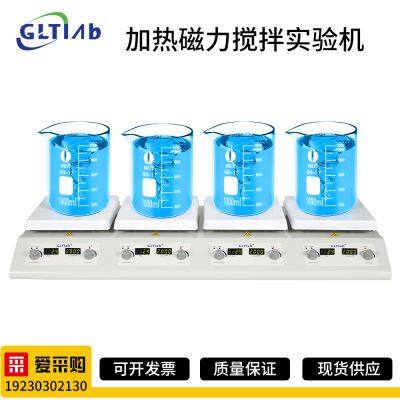

4-Channel Digital Magnetic Hotplate Stirrer SHA-4P
It is widely used in chemical synthesis,physical and chemical analysis, bio-pharmaceuticals etc.
Features
• Independent heating and stirring control
• LED display shows actual temperatures and speed
• PID controller ensures a precise and steady heating process, Max.temperature up to 400℃
• Brushless DC motor enables more powerful speed control
• External temperature sensor(PT1000) with accuracy at 0.2℃
• Overheating protection temperature at 420℃
• Stainless steel work plate with ceramic coating provides good chemical-resistant performance
• A wide variety of accessories are available
fications |
SHA-4P |
Work plate dimension |
178*178mm(7inch) |
Plate material |
aluminum with ceramic coating |
Motor type |
Brushless DC motor |
Motor rating input[W] |
30W×4 |
Power[W] |
800W×4 |
Heating Power[W] |
800×4 |
Voltage |
100-120V,60Hz; 200-240V,50 Hz |
Stirring positions |
4 |
|
Max. stirring quantity of single position (H2O) |
10L |
Max. magnetic bar[mm] |
55 |
Speed range[rpm] |
150-1500 |
Speed display |
LED |
Temperature display |
LED |
Control accuracy of sensor[rpm] |
±20 |
Temperature range[°C] |
25-400℃ |
Over temperature protection[°C] |
430 |
Temperature display accuracy[°C] |
±0.1 |
External temp. sensor |
PT1000(Accuracy±0.2℃) |
IP Protection class |
IP21 |
Dimensions[WxDxH][mm] |
760×290×100 |
Weight[kg] |
15kg |
Permissible ambient temperature[°C] |
5~40 |
Permissible relative humidity |
80% |
