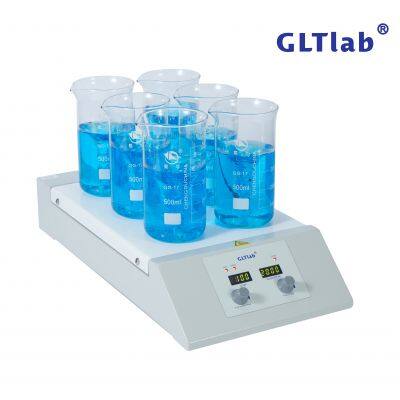

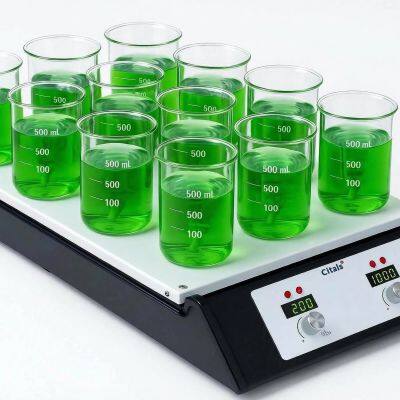

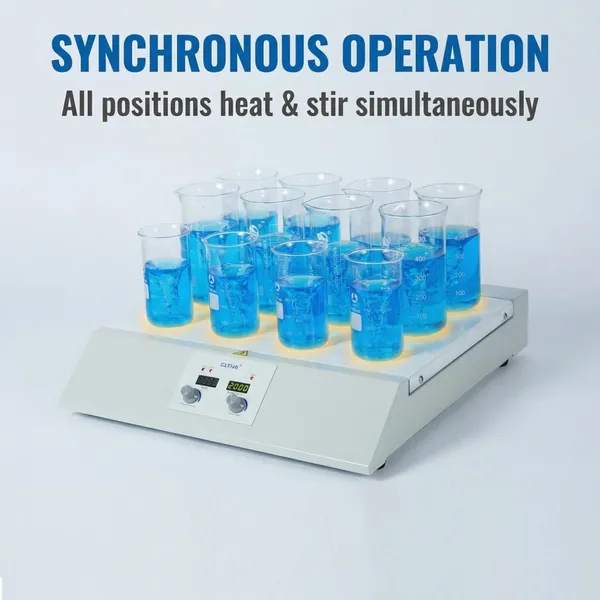

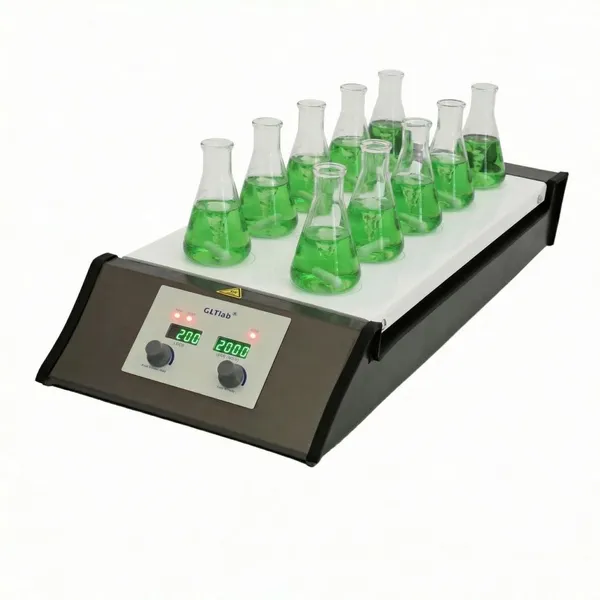

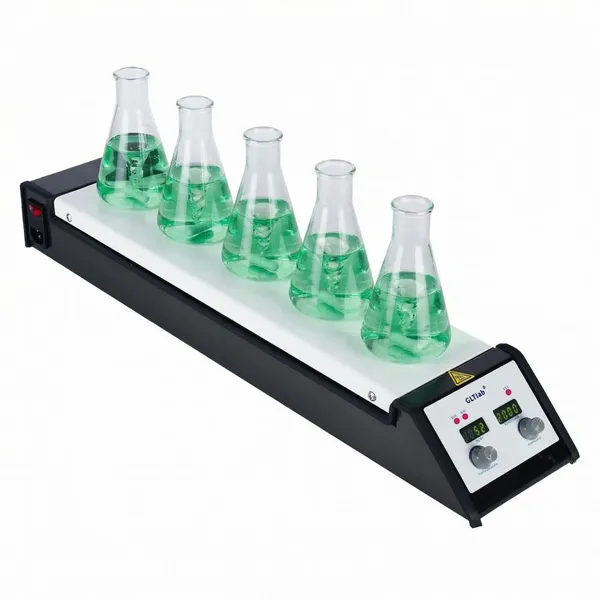

Multi Position Magnetic Stirrer With Heater

Product Spotlights

10 heating and stirring positions, 100-2000rpm, stainless steel body, digital, LED, ceramic coated aluminum top plate.

US$ 650 1 - 9 Piece

US$ 600 10 - 19 Piece

US$ 560 ≥20 Piece

Key Specifications

Material:

Alloy

Type:

Hot Plate

Certification:

CE, ISO, ROHS

GLT (Shenzhen) Science And Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

1 days

Material Alloy

Type Hot Plate

Certification CE, ISO, ROHS

Warranty 1 year

Application Industry, School, Hospital, Lab

Structure Desktop

After-sales Service 1 year

Customized Customized

Transport Package wooden box

Specification 1 piece/box

Trademark GLTLab

Origin China

4-Position Digital Magnetic Hotplate Stirrer SHA-4N

It is widely used in chemical synthesis,physical and chemical analysis, bio-pharmaceuticals etc.

Features

• Independent heating and stirring control

• LED display shows actual temperatures and speed

• PID controller ensures a precise and steady heating process, Max.temperature up to 220℃

• Brushless DC motor enables more powerful speed control

• External temperature sensor(PT1000) with accuracy at 0.2℃

• Overheating protection temperature at 220℃

• Stainless steel work plate with ceramic coating provides good chemical-resistant performance

• A wide variety of accessories are available

fications	SHA-4N
Work plate dimension	220*550
Plate material	aluminum with ceramic coating
Motor type	Brushless DC motor
Motor rating input[W]	30W×10
Power[W]	800W
Heating Power[W]	800W
Voltage	100-120V,60Hz; 200-240V,50 Hz
Stirring positions	10
Max. stirring quantity of single position (H2O)	1L*10
Max. magnetic bar[mm]	35
Speed range[rpm]	100-2000
Speed display	LED
Temperature display	LED
Control accuracy of sensor[rpm]	±20
Temperature range[°C]	25-220℃
Over temperature protection[°C]	240
Temperature display accuracy[°C]	±0.1
External temp. sensor	PT1000(Accuracy±0.2℃)
IP Protection class	IP21
Dimensions[WxDxH][mm]	65022085
Weight[kg]	15kg
Permissible ambient temperature[°C]	5~40
Permissible relative humidity	80%
