I. Product Positioning

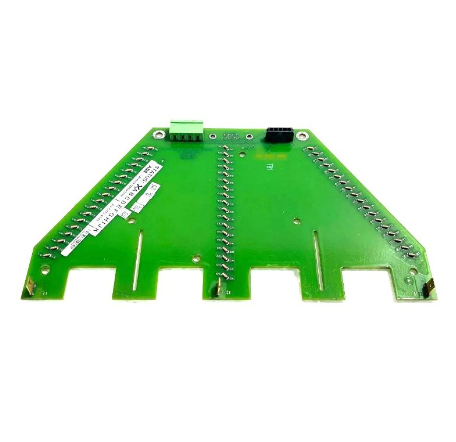

ABB XVC772A102 (Order No.: 3BHE032285R0102) is an industrial‑grade embedded control board used for accurate product identification, procurement and traceability.
Integrating high‑performance embedded processing technology, multi‑type signal interface design and industrial‑grade anti‑interference architecture, it strictly complies with relevant standards in the industrial control field. It is mainly used for signal acquisition, processing, transmission and execution of control commands in industrial automation systems, and is seamlessly compatible with ABB DCS (Distributed Control System) and PLC (Programmable Logic Controller) equipment.
It is suitable for heavy industrial applications including power, chemical, metallurgy and water treatment. Its core role is to build a bridge for signal processing and command execution in control systems, ensuring efficient, stable and precise operation of industrial control systems.
II. Technical Parameters
| Item | Specification |
|---|---|
| Type | XVC772A102 |
| Order No. (Material Code) | 3BHE032285R0102 |
| Module Type | Industrial‑grade embedded control board, part of the ABB XVC series industrial control components |
| Power Supply | Input voltage: DC 24 V (industrial standard), tolerance ±10%; with overvoltage and overcurrent protection |
| Signal Interface | Analog Input (AI): 4–20 mA / 0–10 V; Analog Output (AO): 4–20 mA; Digital Input (DI): 24 V DC; Digital Output (DO): 24 V DC / 220 V AC |
| Processing Capacity | High‑performance embedded microprocessor, supports multi‑task parallel processing, data processing delay ≤ 10 ms, fast response |
| Communication Protocol | Supports mainstream industrial protocols including PROFINET, Modbus, EtherNet/IP for seamless data exchange |
| Operating Environment | Operating temperature: -20°C ~ +60°C; relative humidity: ≤95% (non‑condensing); dustproof and vibration‑resistant |
| Protection Class | IP20 (for cabinet mounting, dustproof and touch‑proof, suitable for industrial environments) |
| Mounting | Modular embedded design, compatible with ABB DCS and PLC equipment, can be easily installed in system racks |
| Key Features | High stability, strong anti‑interference, precise control, multi‑interface compatibility, mainstream protocol support, modular design, self‑diagnosis |
| Redundancy | Supports redundant IGCT configuration, reduces voltage load on single device, lowers breakdown risk, improves converter reliability and efficiency |
III. Core Functions
1. Multi‑type Signal Acquisition and Conditioning
The module integrates a complete signal acquisition system, which can accurately collect various sensor signals in industrial sites, including analog signals such as temperature, pressure, flow and level, as well as digital signals such as equipment status (on/off, fault), fully covering key parameter monitoring requirements in industrial production.
It incorporates high‑precision signal conditioning circuits that filter, amplify and calibrate raw signals, effectively suppressing electromagnetic interference on site, reducing distortion, ensuring data authenticity and reliability, and providing accurate data support for subsequent control logic operations.
2. Efficient Data Processing and Control Command Execution
Equipped with a high‑performance embedded microprocessor as the “core brain”, the board supports multi‑task parallel processing with high computing speed and data processing delay ≤ 10 ms. It can respond to external signals in real time and execute preset control logic. Using control algorithms such as PID (Proportional‑Integral‑Derivative), it calculates, analyzes and judges the collected signals to determine optimal control output values.
A dedicated control output module sends corresponding signals to actuators (valves, pumps, motors, etc.): analog outputs precisely adjust operating parameters (valve opening, motor speed), while digital outputs control start/stop or trigger fault alarms, achieving accurate regulation of industrial processes.
3. Seamless Communication and Data Exchange
A dedicated communication module supports mainstream industrial protocols including PROFINET, Modbus and EtherNet/IP, establishing stable connections with host computers (monitoring PCs, SCADA systems), other control modules and smart instruments for full‑range data exchange.
It uploads field data and equipment status to the host computer in real time for remote monitoring, and receives control commands and parameter settings from the host to implement remote control and adjustment, improving system operation and maintenance efficiency.
4. Reliable Power Management and Fault Protection
A built‑in power management module provides stable power for all functional units, with filtering, voltage regulation, overvoltage, overcurrent and short‑circuit protection. It responds quickly to power fluctuations or abnormalities, cutting off or regulating voltage to avoid internal component damage.
A fault diagnosis and protection module monitors operating status (voltage, chip temperature, communication links, etc.). When abnormalities (overvoltage, communication loss, module failure) are detected, it activates protection: disconnecting outputs, triggering alarms or sending fault information to the host for quick troubleshooting, reducing production risks. Redundant IGCT configuration further lowers breakdown risk and extends service life.
5. Easy Installation and System Compatibility
The compact modular embedded design fits easily into ABB DCS and PLC system racks with flexible, efficient installation and simple wiring. It conforms to industrial mounting standards, enabling fast integration with existing systems and reducing upgrade and retrofitting costs.
With wide voltage tolerance (DC 24 V ±10%) and strong environmental adaptability, it operates stably in harsh industrial conditions from -20°C to +60°C and high humidity (non‑condensing), delivering high versatility across various applications.
IV. Applications
As core hardware for ABB industrial control systems, this embedded control board is widely used in heavy industrial sectors including power, chemical and metallurgy, providing signal processing, command execution and data exchange for various control systems:
Power Industry: Control systems in thermal power plants, hydropower stations and substations for boiler combustion, turbine governing and load distribution, monitoring temperature, pressure and level to ensure stable unit operation.
Chemical Industry: Reactor control and material transfer regulation, monitoring reaction temperature, pressure and concentration to maintain safe and stable processes and ensure product quality.
Metallurgy: Ironmaking, steelmaking and non‑ferrous smelting, monitoring furnace temperature, pressure and material level to optimize feeding and airflow for high efficiency and low energy consumption.
Water Treatment: Water quality monitoring, pump and valve control in sewage and tap water production, regulating pH, dissolved oxygen, turbidity and level for automated and compliant operation.
Other Fields: Automation and intelligent instrument monitoring systems in large manufacturing plants, improving automation and stability.
V. Product Advantages
High Stability & Reliability: Industrial anti‑interference, dustproof and vibration‑resistant design; wide temperature and voltage range; redundant IGCT configuration for low failure risk and long service life.
Precise Control & High Efficiency: High‑performance processor with multi‑task processing and ≤10 ms delay; high‑precision conditioning and advanced algorithms for accurate process control.
Multi‑interface & High Compatibility: Full analog and digital I/O; supports major industrial fieldbuses; seamlessly integrates with ABB DCS/PLC for broad application.
Easy Maintenance & Integration: Modular design for simple installation and replacement; self‑diagnostics for fast troubleshooting; reduced downtime and maintenance cost.
