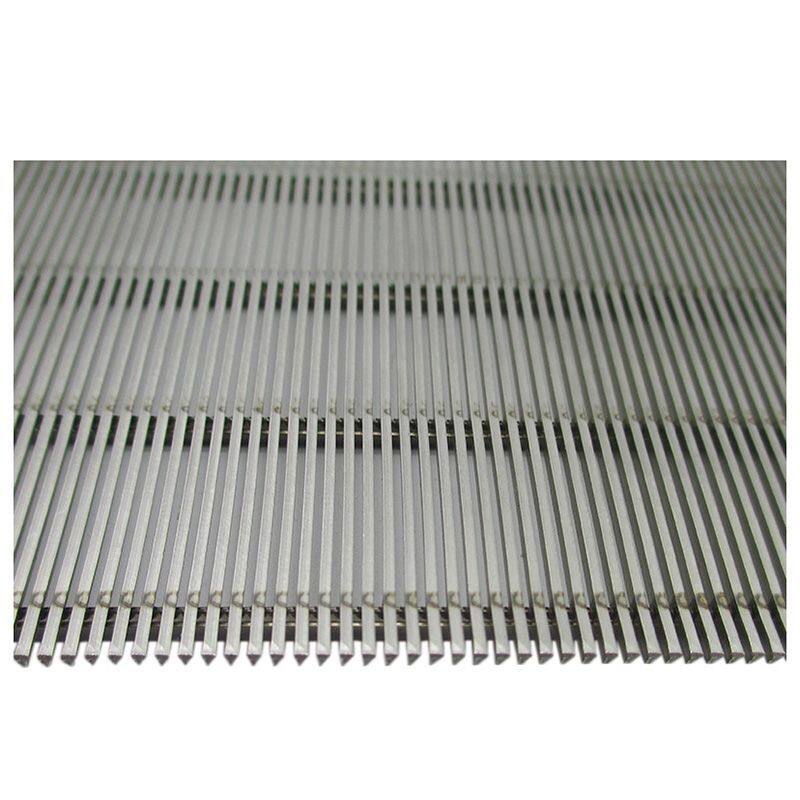

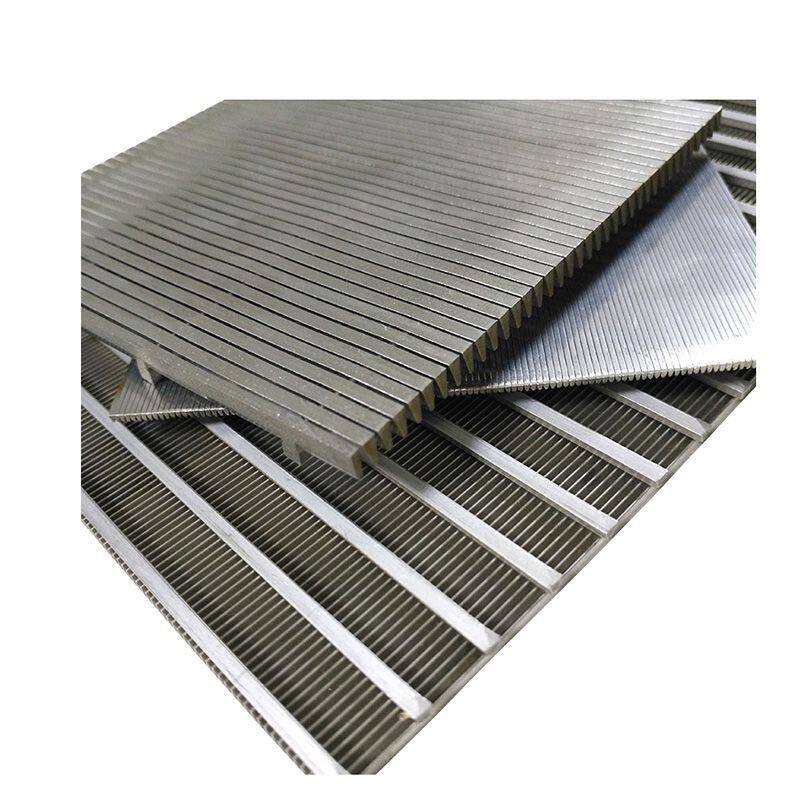

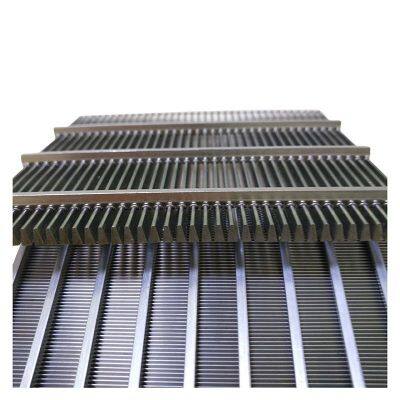

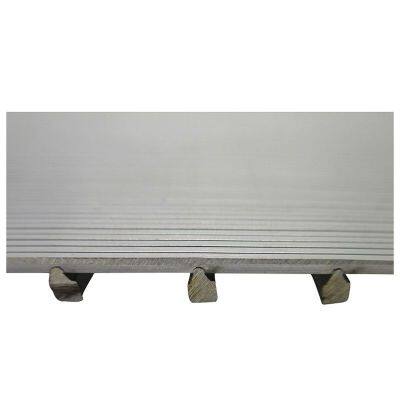

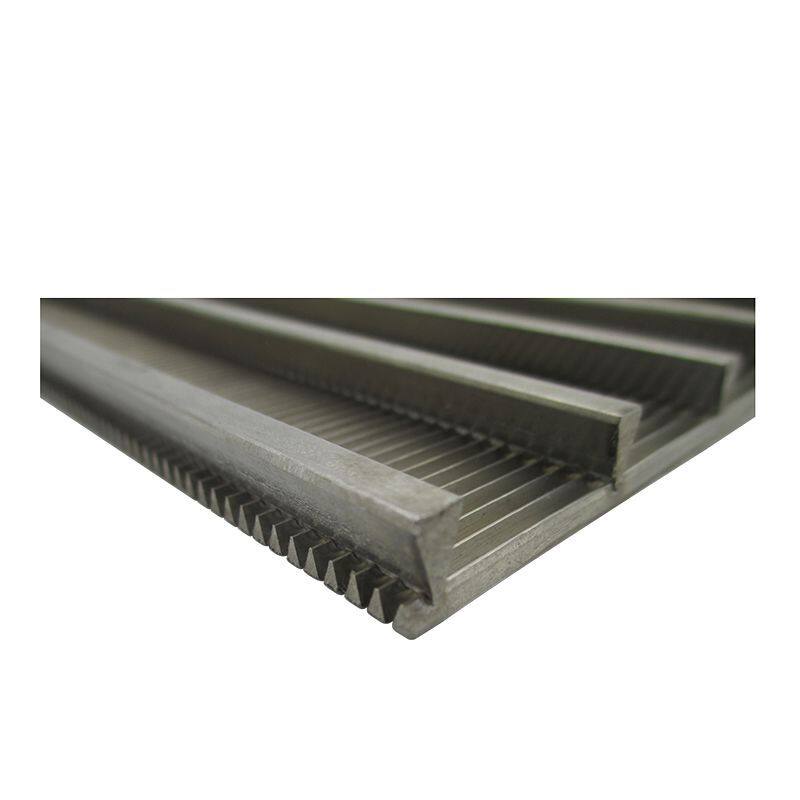

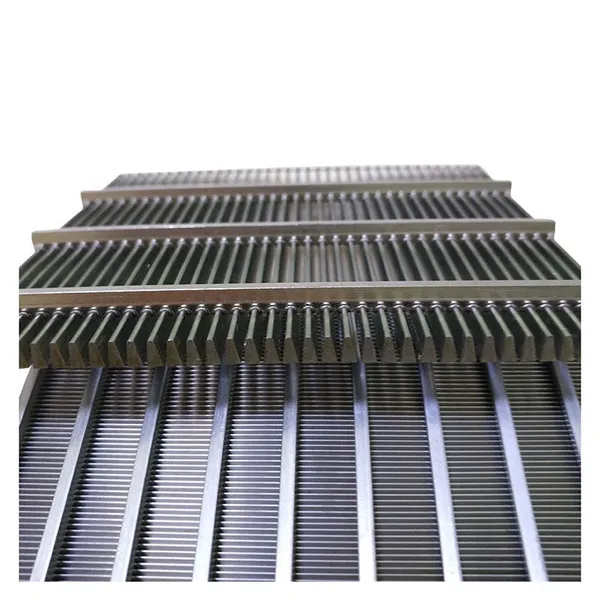

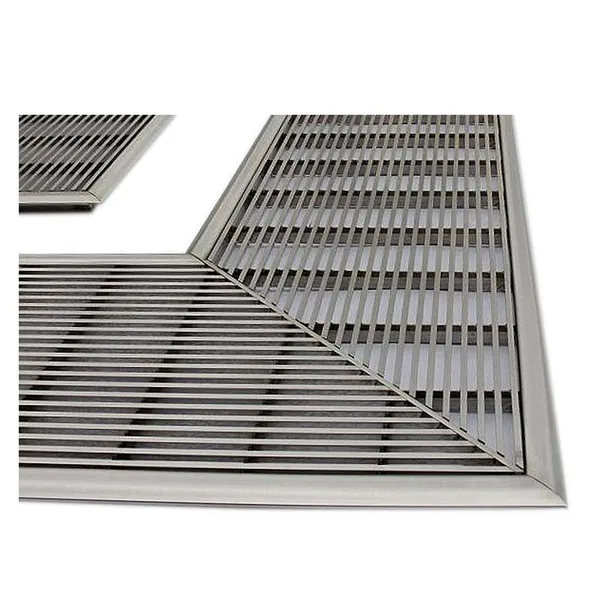

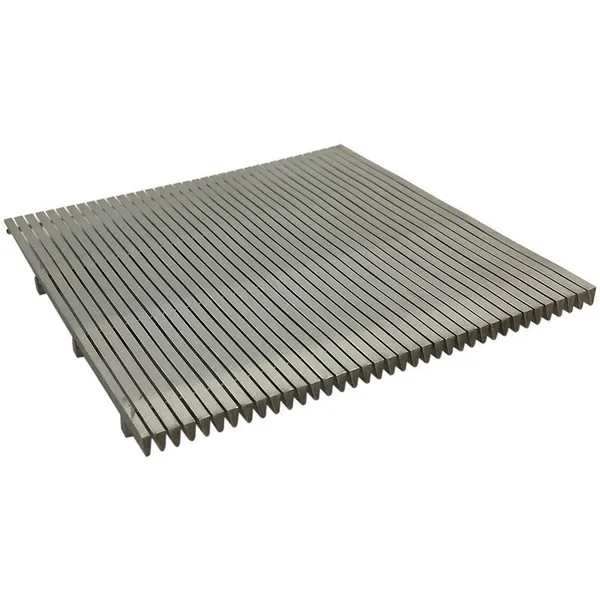

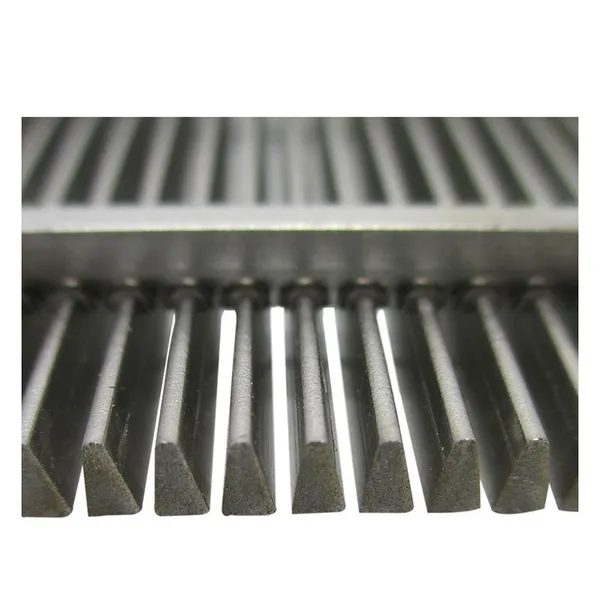

What are Wedge Wire Screen Panels?
The flat wedge wire screen panel also referred to as a panel screen, is a rectangular wedge wire filtration system designed to enhance the accuracy of the filtration process through vibration or fluid flow.
Flat wedge wire screen panels offer effective filtration solutions across various applications, thanks to their well-suited geometry. The panel design of these wedge wire screens allows them to be versatile and adaptable for a diverse range of applications.
Wedge Wire Screen Panels – Applications & Industries
Wedge wire screen panels are highly versatile filtration and separation components used across a wide range of industrial and commercial applications. Their robust construction, high open area, and non-clogging slot design make them ideal for both heavy-duty processing and precision screening.
Below are the most common industries and applications where wedge wire flat screen panels are used:
🔩 1. Vibrating Screen Decks
Wedge wire panels are widely used as decking material in vibrating screens. They provide efficient solid-liquid separation and particle size classification, even under continuous vibration and high-impact conditions. Their resistance to blinding ensures consistent performance over time.
💧 2. Surface Water Intake Screens
These screens serve as protective barriers at water intake points, preventing debris, aquatic plants, and marine life from entering pumps or cooling systems—while maintaining high flow rates with minimal pressure drop.
🐟 3. Fish Diversion & Protection Screens
Installed at cooling water intakes for power plants or industrial facilities, wedge wire panels help safely divert fish and other aquatic organisms away from hazardous areas, meeting environmental compliance standards.
🧬 4. Hatchery Screens
In aquaculture and fish hatcheries, wedge wire screens are used to separate eggs, fry, or juvenile fish by size. The precise slot openings allow for gentle and accurate grading without harming the aquatic life.
🌾 5. Grain Drying Screens
Wedge wire panels form the floor of grain dryers, allowing heated air to circulate evenly through the grain bed while preventing grain kernels from falling through. This ensures uniform drying and high energy efficiency.
🍺 6. Malt Kiln & Germination Floors
In the malting process, wedge wire panels are used in germination and kilning beds. They provide optimal airflow and drainage, creating ideal conditions for barley germination and consistent malt quality.
🏛️ 7. Architectural & Decorative Elements
Beyond industrial use, wedge wire panels are also valued for their modern aesthetic. With their clean lines and geometric patterns, they are increasingly used in architectural cladding, facades, interior partitions, and decorative screens.
✅ Why Choose Wedge Wire Screen Panels?
High Strength & Rigidity – Welded construction supports heavy loads
Precision Slot Control – Consistent openings from 0.1mm to several mm
Non-Clogging Design – V-shaped slots reduce particle wedging
Customizable – Available in various materials (SS304, SS316L), sizes, and shapes
Easy to Clean – Ideal for CIP (Clean-in-Place) systems
📞 Contact Us for Custom Wedge Wire Solutions
Whether you need standard panels or custom-designed screens for a specific application, we offer tailored solutions to meet your exact requirements. Contact us today for a quote or technical consultation.
