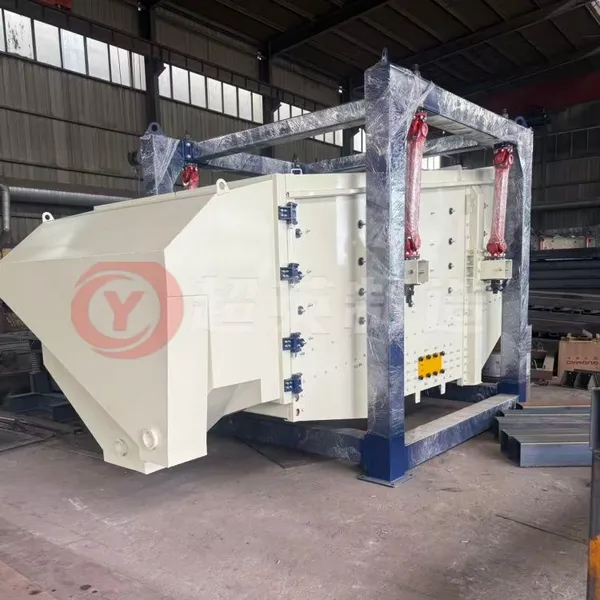

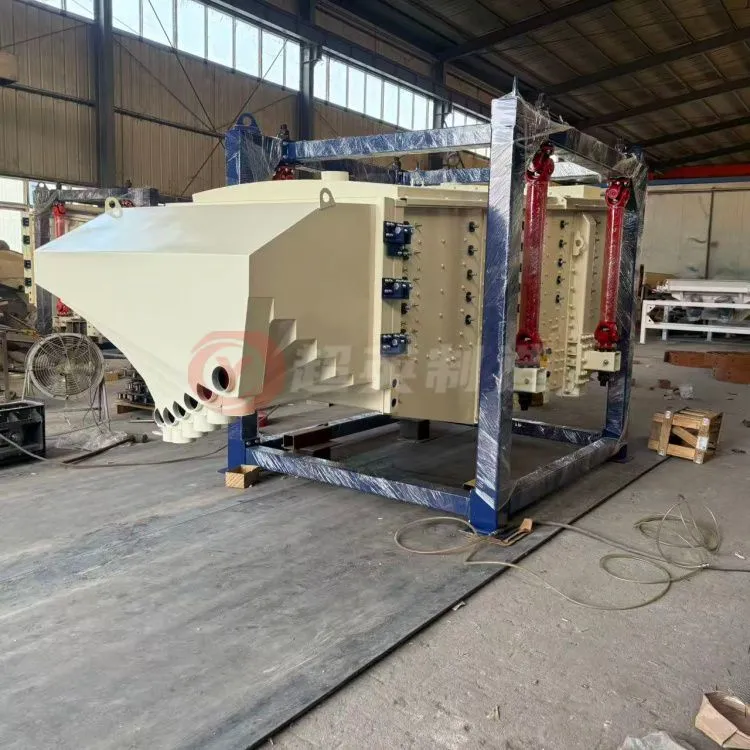

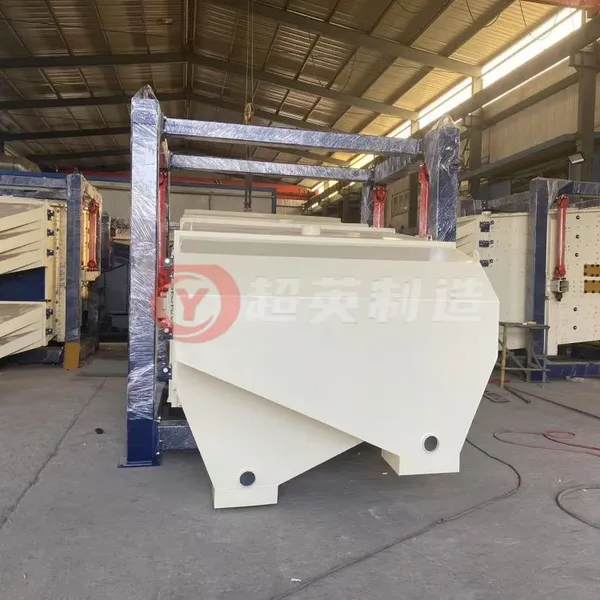

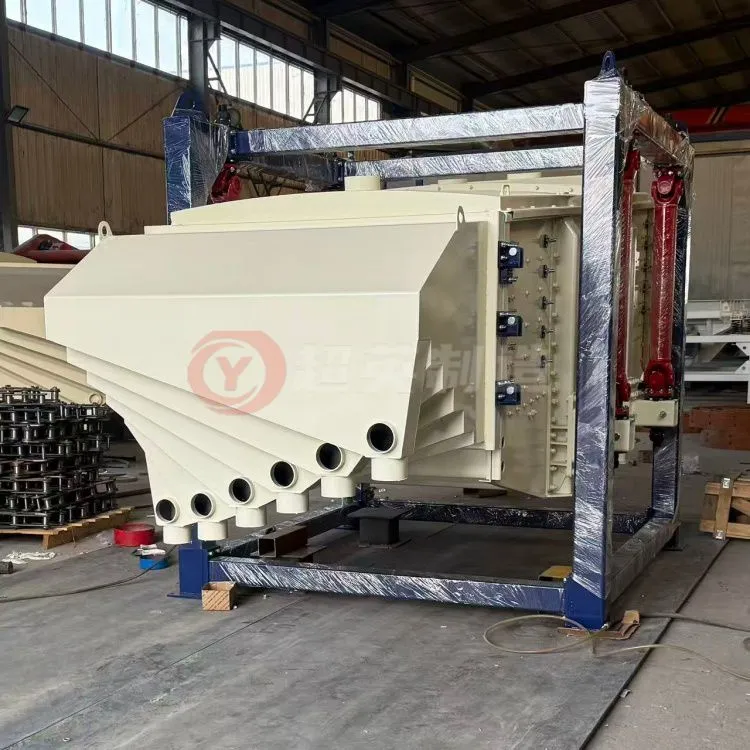

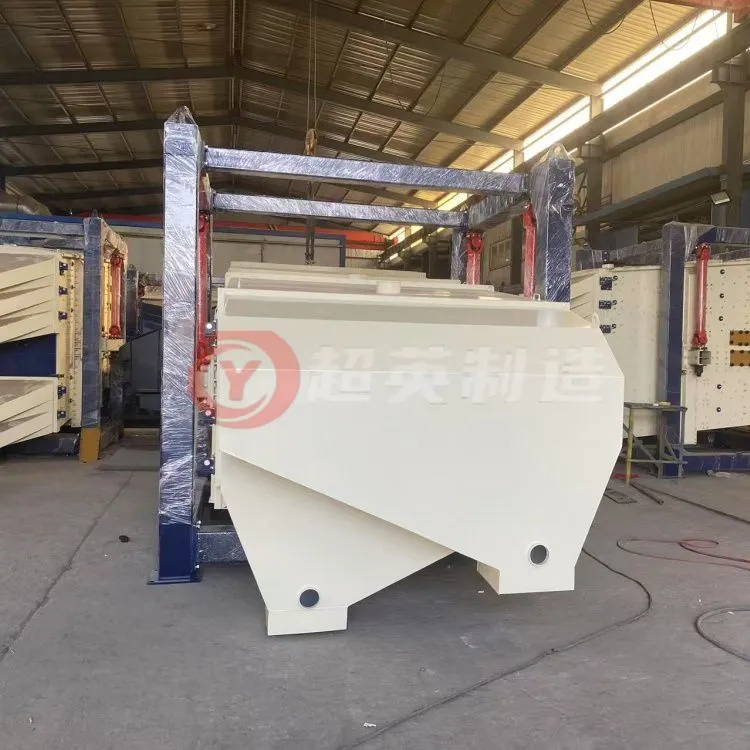

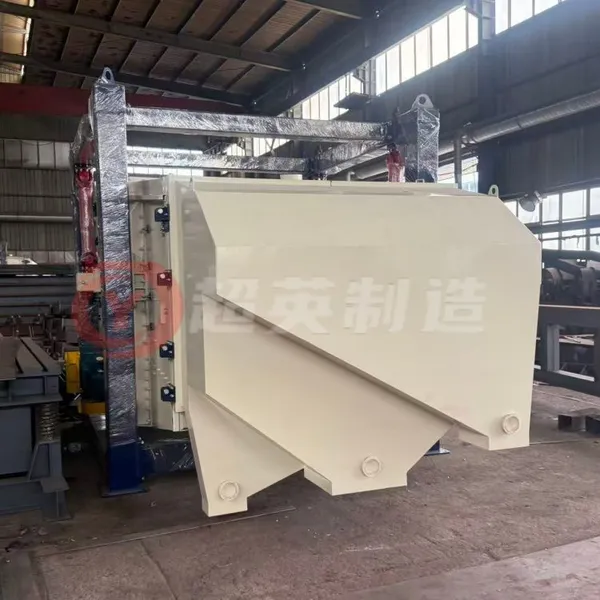

Square Swinging Sieve Manufacturer Sand Casting Grading and Impurity Removal Grading and Screening EquipmentThe 2040 Square Swing Screen is a high-precision screening device designed for quartz sand, chemical, silicon-manganese slag, metallurgy, non-ferrous metals, food, and abrasive industries. Featuring a multi-section screen surface and suspended design, it significantly reduces the motor's load. Powered by an electric motor, it offers three motion modes: circular, elliptical, and linear. With a width of 200cm, the screen can be customized for specific production requirements. Configuration details of the 2040 Square Swinging Screen: Screen: The 2040 model supports 1-5 screen layers with customizable configurations. Effective area: Featuring 8m² per layer, the total effective screening area reaches 80m² across 10 layers. Screen surface inclination: Adjustable between 5° and 10°. Rotations: Operates at approximately 260 rpm. Motor power: 11 kW. Screen box stroke: Adjustable from 25-40 cm. Dimensions: Standard size: 4850×2700×2700 mm (customizable). Screen type: Available as woven mesh or perforated plate. Processing capacity: Capable of handling 15 tons/hour with customizable configurations. Applications: Suitable for mining, chemical processing, food processing, and other industrial sectors. Automation level: Fully automated operation. Sealing performance: Features a fully sealed structure with multiple dust removal ports at the top and discharge port for efficient dust control.
