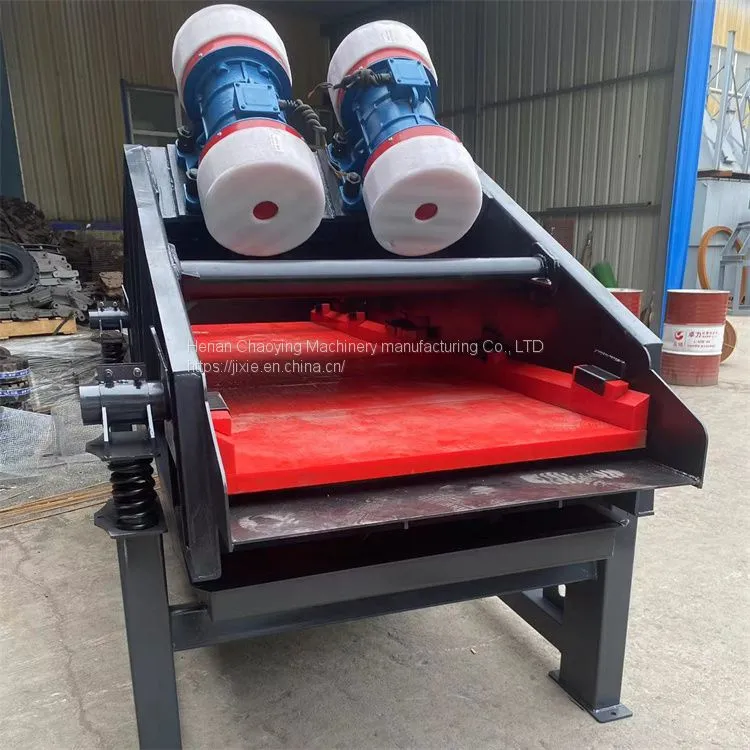

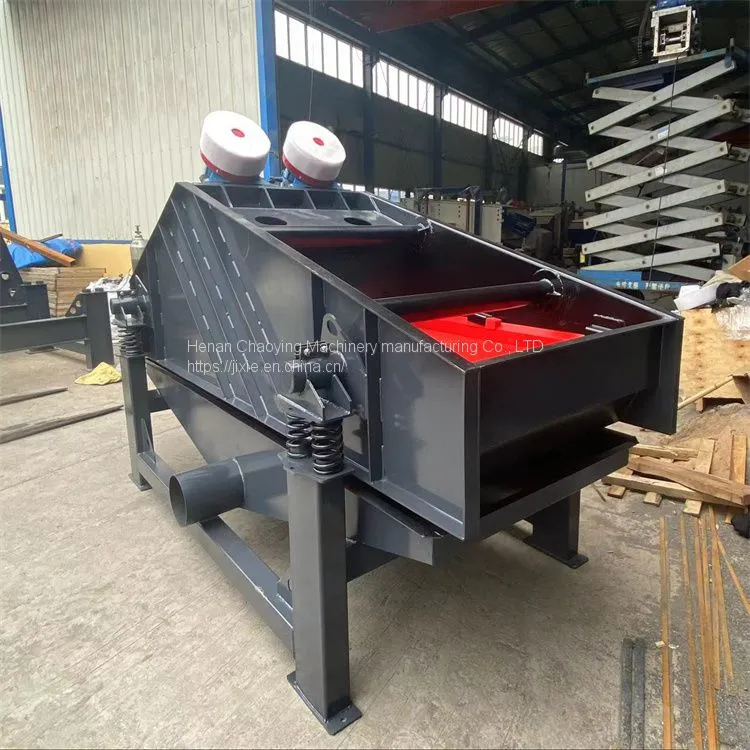

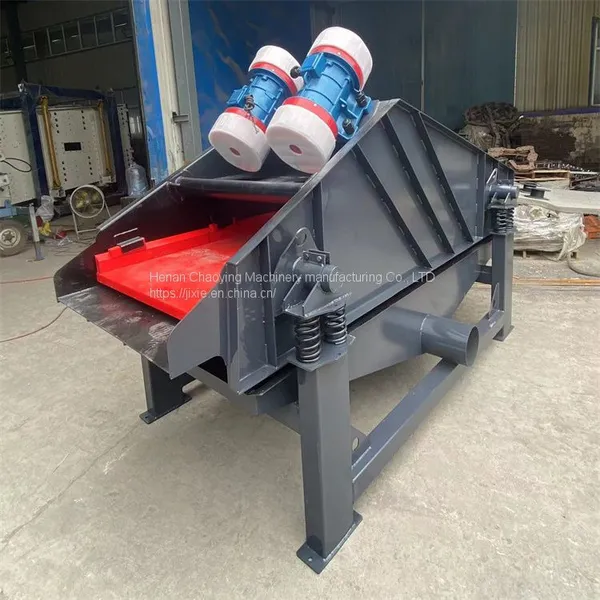

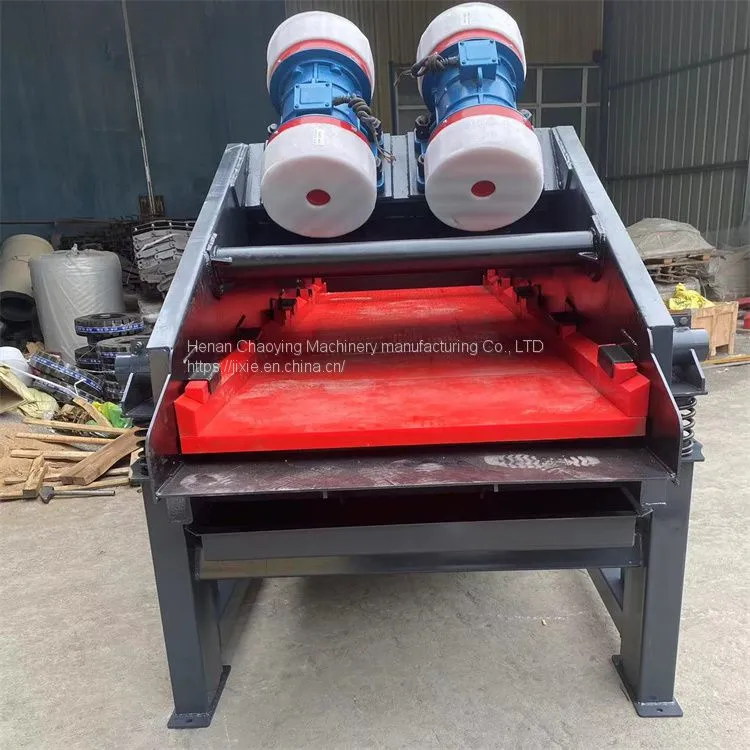

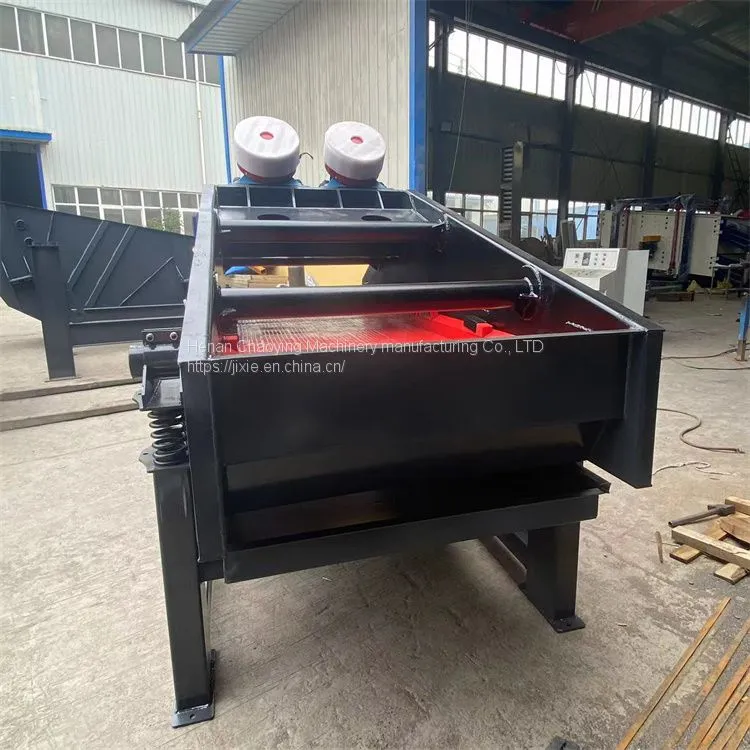

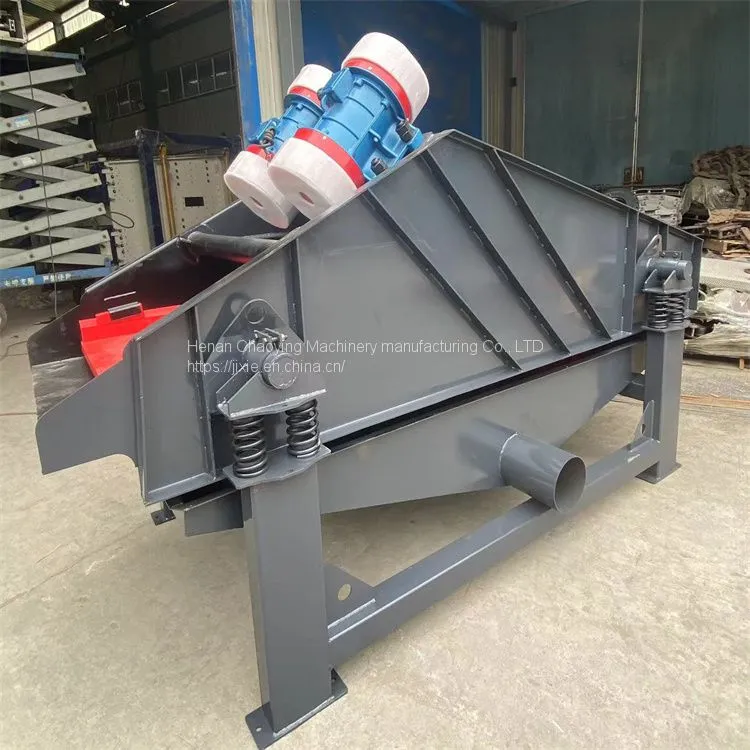

High-frequency dewatering screen, washed sand, wet sand, mud and sand screening machinery, vibrating screen manufacturerThe tailings slurry is concentrated to over 60% concentration through a high-efficiency cyclone concentrator, then uniformly fed into the V-shaped inlet screen surface. The screen plate of the large 5-type dewatering screen is positioned at a 45-degree angle to the main plate. Two balanced vibration motors are horizontally installed, with one mounted atop the other. The unbalanced gravity-induced rotational effect during operation ensures stable screen performance. Featuring dual vibration motor excitation, the screen plate's main structure is designed with a slightly upward horizontal tilt, resulting in a robust and compact design that overcomes traditional eccentric vibrators' drawbacks including oversized size, oil leakage, excessive wear, high noise levels, and maintenance difficulties. The liquid is filtered out. Under power influence, the tailings are forced to move forward, separating liquids to form a coarse filter layer for secondary internal water filtration. Fine tailings are separated from water tension and mixed with sand to form clumps. The coarse sand filter layer containing block-like tailings then moves rapidly straight to the sand discharge port for dry discharge. The moisture content of the discharged tailings is controlled within 10%-15%, achieving transportation, dry stacking, and subsequent transportation objectives. Characteristics of the dehydration screen: 1. High-output and high-frequency dehydration screen. The sieve plate is designed with its main part offset upward by 5 degrees horizontally, and the rear section of the sieve plate forms a 45-degree angle with the main plate. Two balanced vibration motors are installed horizontally, one atop the other. The unbalanced gravity during rotation creates a stabilizing effect, enhancing the operational stability of the screen. 2. The system uses dual vibration motors for excitation, featuring a robust and compact structure. It overcomes the drawbacks of traditional eccentric vibrators, such as large size, oil leakage, excessive wear, high noise levels, and difficult maintenance. 3. The side guard plate of the dehydration screen is coated with rubber, which prevents deformation or rupture caused by wear and reduces iron contamination of the material. 4. The high-frequency dehydration screen employs an embedded polyurethane composite mesh, which has a lifespan 3-10 times longer than traditional metal screens. This design prevents direct contact between the metal frame and ore, reduces noise, and minimizes the heavy sensation of metal screens. 5. The vibration damping device of the dehydration screen employs rubber damping columns, which are more suitable for humid working conditions, effectively reducing vibrations while ensuring operational efficiency. 6. Product Improvement: The high-efficiency multi-frequency dehydration screen features side openings on the sieve plate, allowing rapid water drainage through these holes to enhance dehydration efficiency. Additionally, this design prevents motor damage caused by water splashing.
