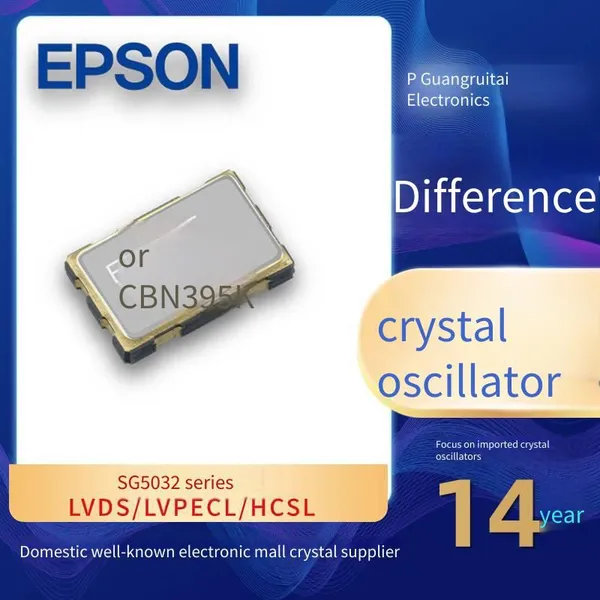

Help CenterSwitch Clock Source Sg5032van 200mhz Lvds Epson Differential Crystal Oscillator With Ultra-low Jitter, Epson
Related Products
-
Low-power and Low-jitter Sg5032van Lvds 100mhz Differential Crystal Oscillator From Epson Epson AgentUS$ 2.31MOQ: 1000 Pieces -
Ddr5 Memory Controller Clock Source Sg5032ven 500mhz ±50ppm Low Phase Jitter Differential Crystal OscillatorUS$ 2.31MOQ: 1000 Pieces
-
Low Jitter Clock Output Sg3225ean Lv-pecl 125mhz Epson Differential Crystal OscillatorUS$ 2.31MOQ: 1000 Pieces
-
Space Internet of Things Terminal Differential Crystal Oscillator Sg5032ean Lv-pecl ±30ppm 125mhz Epson EpsonUS$ 2.31MOQ: 1000 Pieces
-
Adas Module Clock Source Sg7050ven Lvds Epson Differential Crystal Oscillator 1.8 - 3.3vUS$ 2.31MOQ: 1000 Pieces
The following is a comprehensive analysis of differential crystal oscillators, presenting key information in a structured manner by combining technical principles, application scenarios, and selection points: --- ⚡ I. Core Concepts of Differential Crystal Oscillators 1. Working Principle - Output two complementary clock signals with a phase difference of 180° (such as LVDS/LVPECL/HCSL). Through differential transmission, common-mode noise is cancelled, significantly improving anti-interference ability. - Compared with single-ended output (CMOS), differential signals can reduce jitter by 30% - 50% in high-frequency (>100MHz) scenarios. 2. Core Advantages - Anti-electromagnetic interference (EMI): Cancels external noise, suitable for complex environments such as motor control and wireless communication. - Low-power transmission: The differential swing is small (e.g., LVDS is only 350mV), saving more than 20% of power compared to CMOS. - Long-distance transmission: The effective transmission distance can reach 10 meters (single-ended is usually 25Gbps) | | Automotive electronics | In-vehicle Ethernet (100BASE-T1) | LVDS | | Industrial control | High-speed ADC/DAC clocks | LVDS (low jitter) | | Medical imaging | MRI gradient controller | HCSL (low radiation) | --- ⚠️ III. Design Considerations 1. PCB Layout - The differential traces must be strictly of equal length (length difference
