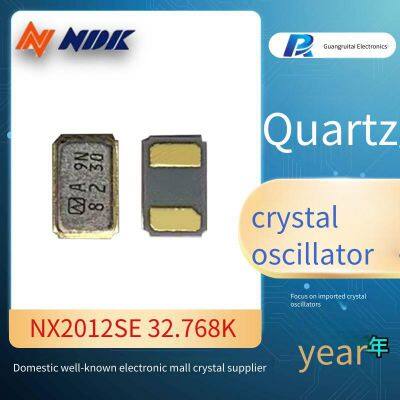

Help CenterHeart Pacemaker Clock Source Crystal Resonator Nx2012se 32.768k 2.0*1.2mm Ndk Crystal Oscillator
Related Products
-
Ndk Best-selling Crystal Oscillator 32.768khz Nx2012sa 12.5pf, Clock Source for Smart Water Meters, Electric Meters and InstrumentsUS$ 0.1 - 0.12MOQ: 1000 Pieces -
Motherboard Clock Chip Quartz Surface-mount Crystal Oscillator 38.4mhz Nx1210ac With Built-in Temperature SensorUS$ 0.1 - 0.12MOQ: 1000 Pieces
-
Dynamic Blood Glucose Monitor Clock Source Nx1610sa 32.768k 6pf/9pf/12.5pf Ndk Quartz Smd Crystal OscillatorUS$ 0.1 - 0.12MOQ: 1000 Pieces
-
Epson Active Crystal Oscillator Sg3225van, 100mhz Lvds, Low Phase Noise, Clock Source for High-speed Serial InterfaceUS$ 2.31MOQ: 1000 Pieces
-
Switch Clock Source Sg5032van 200mhz Lvds Epson Differential Crystal Oscillator With Ultra-low Jitter, EpsonUS$ 2.31MOQ: 1000 Pieces
NDK's NX2012SE series (32.768kHz, 2012 package) has become the core clock solution in cutting-edge devices that require fast startup, high stability, and microampere-level power consumption, thanks to its ultra-low equivalent series resistance (ESR) (typical value 40kΩ, leading in the industry). The following is an analysis of its typical application areas and technologies in 2025:
I. Core Application Scenarios (The Core Value of Low Resistance)
1. Ultra-low Power Consumption IoT Terminals
Battery-powered sensors:
Soil moisture monitor (Button battery with a 5-year lifespan)
Intelligent fire smoke detector (ESR ≤ 40kΩ ensures an emergency wake-up time of 0.3 seconds)
LPWAN communication module:
NB-IoT water meter (Standby current 0.8μA@3V)
LoRa agricultural sensor (Cold start time at -40℃ Case: Tesla Optimus Gen3 finger joint controller uses NX1610SE, with a clock error of 0.5% under mechanical vibration).
III. Selection Considerations (Industry Trends in 2025)
Capacitance matching
6pF/7pF/9pF versions are available. A 7pF + 22nF matching circuit is recommended for the STM32U6 series.
Reflow soldering process
Peak temperature ≤ 245℃ (Gold electrodes have better heat resistance than silver).
