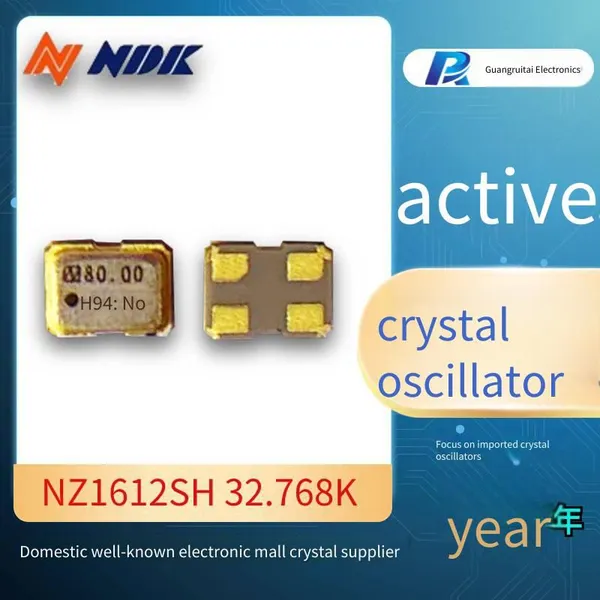

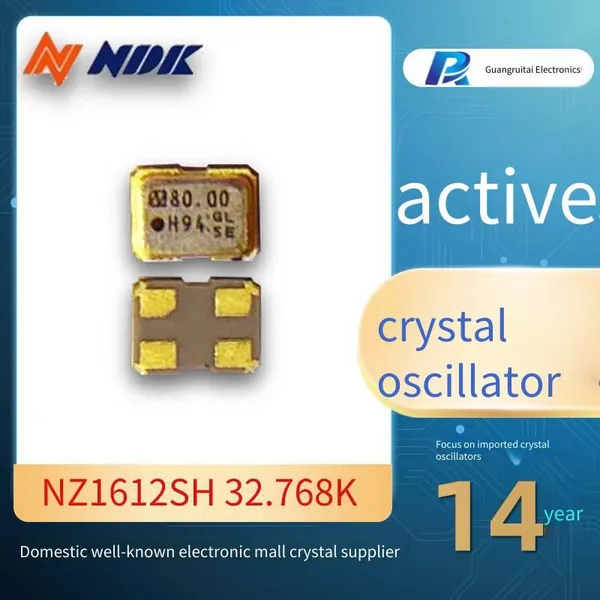

Help CenterUltra-small Surface Mounted Device (smd) Crystal Oscillator Nz1612shb 32.768k Active Crystal Oscillator, Agent for Ndk
Related Products
-
Embedded System Nz2520shb 32.768khz Osc Active Crystal Oscillator Quartz Crystal Oscillator NdkUS$ 0.36 - 0.38MOQ: 1000 Pieces -
Agent for Nx3225gb 12mhz Ndk 150-degree High-temperature Quartz Smd Crystal Oscillator as Clock Source for Automotive EcuUS$ 0.1 - 0.12MOQ: 1000 Pieces
-
5g Small Base Station Quartz Smd Crystal Oscillator Nx5032ga 8mhz Std-csk-7 Ndk Passive Crystal ResonatorUS$ 0.1 - 0.12MOQ: 1000 Pieces
-
Mobile Phone and Tablet Computer Clock Chip Resonator Ndk Nx3225ga ±10ppm Smd Crystal Oscillator, ImportedUS$ 0.1 - 0.12MOQ: 1000 Pieces
-
Ds1302 Chip Solution X1g005601044500 Sg-8018cg 62.536m Epson Active Crystal OscillatorUS$ 0.4MOQ: 1000 Pieces
1. Core application scenarios (core value of low resistance)
1. Ultra-low power consumption IoT terminals
Battery-powered sensors:
Soil moisture monitor (button battery with a lifespan of 5 years)
Smart fire smoke detector (ESR ≤ 40kΩ ensures an emergency wake-up time of 0.3 seconds)
LPWAN communication module:
NB-IoT water meter (standby current of 0.8μA@3V)
LoRa agricultural sensor (cold start time at -40℃ Case: Tesla Optimus Gen3 finger joint controller uses NX1610SE, with a clock error of 0.5% under mechanical vibration).
3. Precautions for model selection (industry trends in 2025)
Capacitance matching
Versions of 6pF/7pF/9pF are available. For the STM32U6 series, a matching circuit of 7pF + 22nF is recommended.
Reflow soldering process
Peak temperature ≤ 245℃ (the heat resistance of gold electrodes is better than that of silver).
