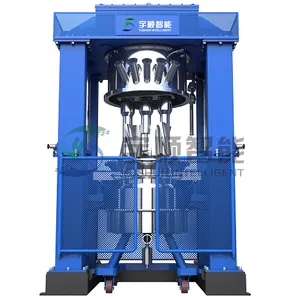

Yushun Intelligent Large Vertical Planetary Kneader

Yushun Intelligent Large Vertical Planetary Kneader photo-1

Product Spotlights

It is suitable for viscosities ranging from approximately 10,000 CP to 2,000,000 CP. It is suitable for the mixing and kneading of high-viscosity and high-elasticity materials, and can be applied to lithium battery materials, rubber, sealants, hot melt adhesives, food gum bases, pyrotechnic agents
US$ 18300 1 Combo
US$ 18100 ≥2 Combo
Key Specifications
Get Latest Price
Certification:
ISO
Main Material:
Alloy Steel, Carbon Steel, Stainless Steel
Application:
Granules, Liquid, Liquid with Suspended Solids, Powder, Viscous Fluid
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Certification ISO
Main Material Alloy Steel, Carbon Steel, Stainless Steel
Application Granules, Liquid, Liquid with Suspended Solids, Powder, Viscous Fluid
Condition New
Additional Capabilities Coating, Drying, Granulating, Milling, Vacuum
Cooling Method Water Cooling
After-sales Service Engineers Available to Service Machinery Overseas, Free Spare Parts, Online Support, video Technical Support
Control System Touch Screen Control
Heating Method Electric Heating
Application Area Agricultural Chemicals, Chemical, Daily Chemical, Engineering & Construction, Food, Metallurgy&Mineral, Pharmaceutical
Mixing Capacity 100-250L
Speed Range 50-59 R/min
Stirring Type Spiral
Working Shear Mixer
Temperature Control With Cooling System
Safety Features Anti-slip Feet, Emergency Stop Button, Overload Protection, Safety Lock, Splash Guard, Other
Speed Control Variable Speed
Transport Package Packed in wooden cases
Specification 300L-6000L
Trademark Yushun
Origin China

The application scenario is suitable for viscosities ranging from approximately 10,000 CP to 2,000,000 CP. It is suitable for the mixing and kneading of high-viscosity and high-elasticity materials, and can be applied to lithium battery materials, rubber, sealants, hot melt adhesives, food gum bases, pyrotechnic agents, aerospace and other products.

Product features:

1. Planetary stirring structure, no dead corners, high efficiency.

2. It can be designed into double-paddle and triple-paddle structures according to different products, making it suitable for a wide range of products.

3. It is suitable for both solvent-free dry mixing and high-viscosity wet mixing.

4. The stirring paddle precisely processed by the five-axis CNC machine tool has high precision and outstanding kneading effect.

5. It can be operated in a vacuum to meet the vacuum environment requirements of the product.

6. The simplified lifting structure is conducive to achieving automatic feeding and is convenient for cleaning the discharged materials.


Product parameters



Model[L]

NHJ-200

NHJ-300

NHJ-400

NHJ-500

NHJ-650

NHJ-1000

Usable volume[L]

200L

300L

400L

500L

650L

1000L

Motor power[kw]

30-37KW

37-45KW

45-55KW

55-75KW

75-90KW

110-132KW

Vacuum degree[mm]

-0.095MPA

-0.095MPA

-0.095MPA

-0.095MPA

-0.095MPA

-0.095MPA


Product Tags: Planetary Mixer , Large vertical planetary kneader , Yushun Intelligent
