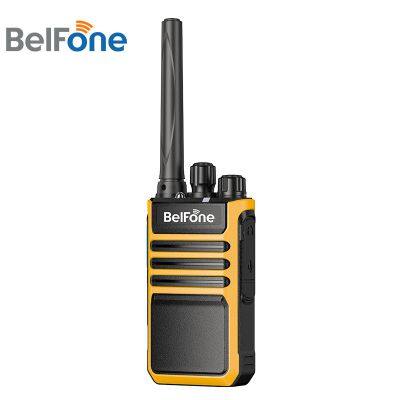

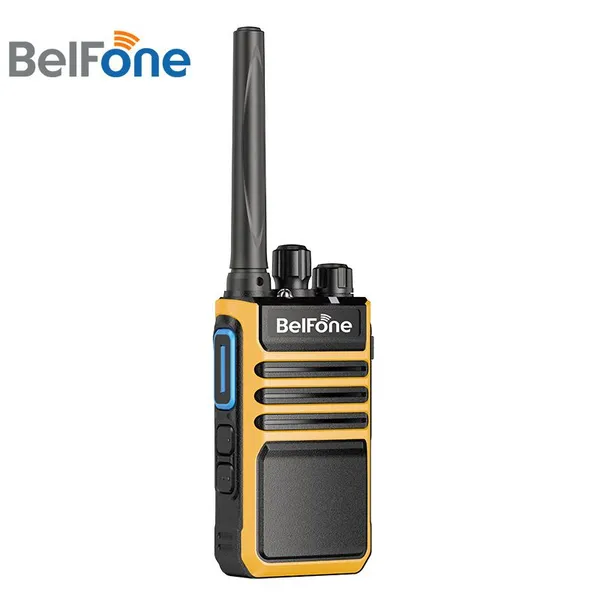

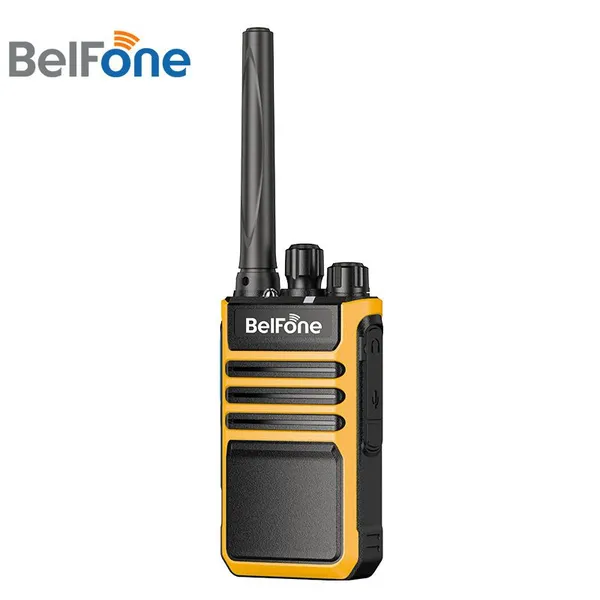

BelFone UHF Walkie Talkie Analog Digital Dmr Two Way Radio With Encryption (DP3016)
US$ 23
5 - 99 Pieces
US$ 21
100 - 499 Pieces
US$ 20
≥500 Pieces
Key Specifications
Get Latest Price
Display Type:
Without Display
Battery Type:
Lithium-ion
Communication Distance:
1-4km
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
15 days
Related Products
-
BelFone New Analog Digital Mode Industrial Two Way Radio Walkie Talkie With Alarm (DP3018)US$ 20 - 23MOQ: 5 Pieces -
Belfone Analog Digital Dual Modes Dmr Two Way Radio (BF-TD520)US$ 60 - 76MOQ: 5 Pieces
-
Belfone High End Professional Dmr Portable Two Way Radio With Encryption (BF-TD935)US$ 225 - 259MOQ: 5 Pieces
-
BelFone License Free PMR446 Dmo Pseudo Trunk Two Way Radio (BF-TD446)US$ 75 - 86MOQ: 5 Pieces
-
Belfone ATEX Explosion Proof Walkie Talkie for Oil & Gas (BF-TD511EX)US$ 257MOQ: 1 Piece
Display Type
Without Display
Battery Type
Lithium-ion
Communication Distance
1-4km
Features
Emergency Alarm, Encrypted Communication, Noise Suppression
Channels
32 channels
Encryption
AES Encryption
Specification
53(L)*30(W)*95(H)mm
Trademark
BelFone
Origin
China
DP3016 commercial digital radio features a modern industrial design in black and yellow. It has achieved remarkable success in terms of aesthetics, ease of use and product performance. The advanced digital voice technology guarantees clearer and louder communication sound quality. It supports a hybrid digital/analog communication mode to realize the smooth transition from analog to digital mode. The rich functions of DP3016 provide the outstanding communication experience, making it easy to handle both daily use and task processing.
Lone Worker
One Key Alarm
Noise Reduction *
Same ID Interoperability
Digital/Analog Compatible
Automatic Two-time Slots
AES256/ARC4 Encryptions
Specifications
| General | |
| Frequency Range(Optional) | UHF: 400-480MHz |
| Channel Capacity | 32 |
| Zones | 2 |
| Channel Spacing | 12.5KHz |
| Operating Voltage | DC 3.7V (±20%) |
| Battery capacity | 1800mAh |
| Average Battery Working Time(5/5/90) | Digital: 18 hours Analog:15 hours |
| Frequency Stability | ±1.5ppm |
| Antenna Impedance | 50Ω |
| Dimensions (L×W×H) | 53(L)*30(W)*95(H)mm |
| Weight | 161g(Including battery) |
| Transmitter | |
| RF Output Power | ≤3W |
| 4FSK Modulation | 12.5kHz (only data):7K60FXD 12.5kHz (data and voice):7K60FXE |
| FM Modulation | 12.5 kHz:8K50F3E; 25 kHz:16KΦF3E; |
| Modulation Limitation | ±2.5kHz @ 12.5kHz; ±5kHz @ 25kHz |
| Conducted Emission | -36 dBm≤1GHz/-30 dBm≥1GHz |
| Adjacent Channel Power | ≤-60dB |
| Frequency Response | +1/-3dB |
| Audio Distortion | 3% |
| Receiver | |
| Digital Sensitivity | 0.25 uV(5% BER) |
| Analog Sensitivity | 0.25 uV (12 dB SINAD) |
| Intermodulation | 60dB |
| Adjacent Channel Selectivity | 60dB |
| Spurious Suppression | 60dB |
| FM Noise | -40dB |
| Frequency Response | +1/-3dB |
| Rated Audio Output Power | 0.25W |
| Max Audio Output Power | 0.8W |
| Rated Audio Distortion | 3% |
| Conducted Radiation | -57dBm |
| Environmental Specifications | |
| Operation Temperature | -20℃-+60℃ |
| Storage Temperature | -30℃-+85℃ |

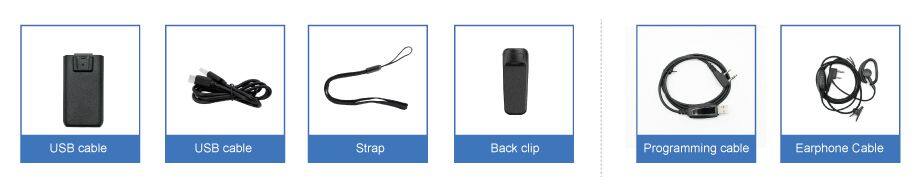

Accessories
