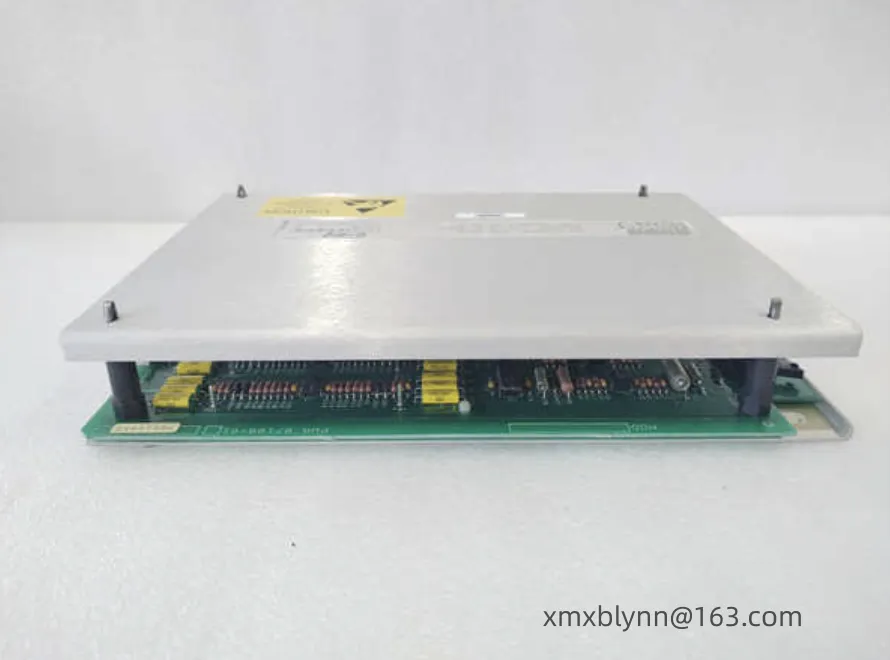

Bently nevada 87199-01 Eddy current sensor
The Bently Nevada 87199-01 is a 4-channel proximity monitoring module (3500/40M) for the 3500 system. It is compatible with eddy current sensors and can measure parameters such as radial vibration, axial displacement, differential expansion, and shaft eccentricity. It supports paired channel configuration, multi-level alarms, and relay interlocking. Compatible with the 3500 frame and System 1 software, it is used for shaft condition monitoring and protection in critical rotating machinery such as turbines and compressors.
Core Parameters
Parameter Details
Model 87199-01 (3500/40M 4-Channel Proximity Monitoring Module)
System Compatibility: 3500 monitoring frame, requires 3500/05 power supply, 3500/03 system monitor, and 3500 frame software configuration.
Input Configuration: 4 channels, compatible with 3300 XL/3301 series eddy current probes (including preamplifier/extension cable).
Measurement Functions: Radial vibration, axial displacement (thrust position), differential expansion, shaft eccentricity, REBAM (rolling bearing vibration).
Signal Processing: Independent filtering/peak hold/trend recording per channel, supports key phase synchronization and spectrum analysis.
Alarm Output: Programmable warning/danger threshold per channel, 4 independent SPDT relays (2A@250VAC).
Communication Interface: Supports TDe/SDI/DDI internal bus, compatible with TDXnet™/SDIX/DDIX communication processors.
Power Requirements: 3500 frame. 5VDC/±15VDC, power consumption approximately 5W. Operating environment: 0°C～+60°C, humidity 5%-95% RH (non-condensing), conforms to API 670 standard.
Email: xmxblynn@163.com
Phone: +86 18059884797
Core Functions and Features
Multi-parameter Channel Configuration: Channels 1-2 and 3-4 can be configured in pairs, supporting two different/identical measurement functions to adapt to complex shaft system monitoring needs.
Precise Shaft System Measurement: Compatible with eddy current sensors, radial vibration resolution up to 0.1μm, axial displacement accuracy ±0.5% FS, capable of capturing minute shaft system anomalies.
Hierarchical Alarm Interlocking: Each channel has independently set warning/danger thresholds; exceeding limits triggers relay output; supports local/remote reset and channel bypass to ensure equipment safety.
Synchronous Signal Processing: Supports key phase signal input, enabling vibration phase analysis and synchronous speed measurement, aiding in fault diagnosis such as rotor imbalance and misalignment.
Data Integration and Diagnosis: Uploads real-time/historical data via the 3500 frame bus, compatible with System 1 software for trend analysis, spectrum diagnosis, and predictive maintenance.
Redundancy and Self-Testing: Supports hot-swappable modules and frame-level redundancy; built-in self-testing for circuit faults, power abnormalities, etc., ensuring monitoring continuity and reliability.
Typical Application Scenarios
Turbine Machinery: Monitoring of shaft radial vibration, axial displacement, and differential expansion in steam turbines and gas turbines to prevent shaft rubbing and thrust bearing wear.
Compressors/Generators: Monitoring shaft eccentricity and vibration in centrifugal compressors and generators, using key phase signals for rotor dynamic analysis.
Pumps/Fans: Monitoring shaft vibration and position in critical process pumps and large fans to reduce unplanned downtime.
Petrochemicals/Power: Compliant with API 670 standards, compatible with unit protection systems, and supports DCS/PLC integration and centralized monitoring.
