1. Product Overview
The TRM-ZS6 Automatic Weather Station with LED Display is a professional-grade, intelligent meteorological monitoring system designed for campuses, parks, urban environments, agricultural sites, and environmental monitoring stations.
The system integrates multiple high-precision sensors and a data acquisition unit to automatically collect, store, process, and display real-time environmental data in both graphical and numerical formats. It provides intuitive, visual, and reliable environmental information for scientific research, public awareness, smart city applications, and environmental management.
Equipped with a customizable LED meteorological information display screen, the TRM-ZS6 not only serves as a monitoring device but also as an effective tool for environmental data visualization and public communication.
2. Core Functions
The TRM-ZS6 system is capable of monitoring and displaying the following key environmental parameters:
Atmospheric Pressure
Air Temperature
Relative Humidity
Wind Speed
Wind Direction
Rainfall
Solar Radiation
Air Quality (optional, e.g., PM2.5 / PM10)
All data are collected automatically in real time and can be stored locally or transmitted remotely to cloud platforms or central monitoring systems.
3. Technical Specifications
3.1 Measured Parameters and Performance
| Parameter | Measurement Range | Resolution | Accuracy |
|---|---|---|---|
| Ambient Temperature | -40 ～ +80 °C | 0.1 °C | ±0.2 °C |
| Ambient Humidity | 0 ～ 100 %RH | 0.1 %RH | ±2% (≤80%RH) / ±5% (>80%RH) |
| Wind Direction | 0 ～ 360° | 1° | ±3° |
| Wind Speed | 0 ～ 70 m/s | 0.1 m/s | ±(0.3 + 0.03V) m/s |
| Atmospheric Pressure | 300 ～ 1100 hPa | 0.1 hPa | ±0.3 hPa |
| Total Solar Radiation | 0 ～ 2000 W/m² | 1 W/m² | ≤ 5% |
| Sunshine Duration | 0 ～ 24 h | 0.1 h | ±0.1 h |
| Effective Solar Radiation | 0 ～ 500 W/m² | 1 W/m² | ≤ 5% |
| Illuminance | 0 ～ 200,000 lux | 1 lux | ±5% |
| Rainfall | 0 ～ 999.9 mm | 0.2 mm | ±0.4 mm |
| Evaporation | 0 ～ 100 mm | 0.1 mm | ±1.5% |
| Carbon Dioxide (CO₂) | 0 ～ 2000 ppm | 0.1 ppm | ±30 ppm |
| Soil Temperature | -40 ～ +80 °C | 0.1 °C | ±0.2 °C |
| Soil Humidity | 0 ～ 100% | 0.1% | ±2% |
| Negative Oxygen Ions | 0 ～ 100,000 /cm³ | 1 /cm³ | ≤ ±15% |
| Ultraviolet Radiation | 0 ～ 500 W/m² | 1 W/m² | <5% |
| PM2.5 | 0 ～ 1000 µg/m³ | 1 µg/m³ | ±10% FS |
| Noise Sensor | 35 ～ 100 dB | 0.1 dB | ±0.5 dB |
| Ozone Sensor | 0 ～ 100% | 0.1% | ±3% |
3.2 Notes
The TRM-ZS6 Automatic Weather Station supports flexible sensor configuration. Users can select or expand sensors according to application requirements, including air quality, soil, radiation, noise, and environmental monitoring parameters. All sensors are industrial-grade, ensuring high precision, long-term stability, and reliable operation in harsh outdoor environments.
4. Data Acquisition & Processing
The system uses a high-performance multi-channel data logger with:
High-speed microprocessor
Large-capacity data storage
Support for up to 32 sensor channels
LCD touch membrane keypad
Stable performance in harsh environments
The data acquisition unit ensures high accuracy, reliability, and long-term stability.
5. Communication & Networking
The TRM-ZS6 supports multiple communication methods:
RJ45 (Ethernet)
WiFi
GPRS / 4G (optional)
RS485 (Modbus protocol)
The system can be integrated into centralized meteorological monitoring networks, smart campus systems, or environmental data platforms for real-time remote monitoring and analysis.
6. LED Meteorological Information Display
The system can be equipped with a high-brightness LED meteorological information display screen, which features:
Outdoor weather-resistant design
Real-time display of key meteorological data
Customizable screen size and color
Configurable data format and refresh rate
Typical displayed parameters include:
Temperature
Humidity
Wind Speed & Direction
PM2.5 / PM10 (optional)
Atmospheric Pressure
Rainfall
Time & Date
This makes the system ideal for campuses, parks, scenic areas, and public spaces.
7. Environmental Adaptability
The TRM-ZS6 is designed for extreme environments with:
IP65 protection rating
Anti-corrosion housing
Lightning protection design
Anti-interference capability
Reliable operation in high humidity, heat, or cold climates
It is suitable for outdoor installation in urban, rural, coastal, and desert environments.
8. Customization & Integration
Users can customize:
Sensor selection and configuration
LED display size, color, and layout
Data transmission method
Software interface and cloud integration
The system is compatible with most environmental monitoring platforms and can be tailored for specific project needs.
9. Applications
9.1 The TRM-ZS6 Automatic Weather Station with LED Display is widely used in:
Smart campuses
Environmental monitoring stations
Agricultural research sites
Urban air quality monitoring
Parks and scenic areas
Industrial and renewable energy sites
Photovoltaic power plants

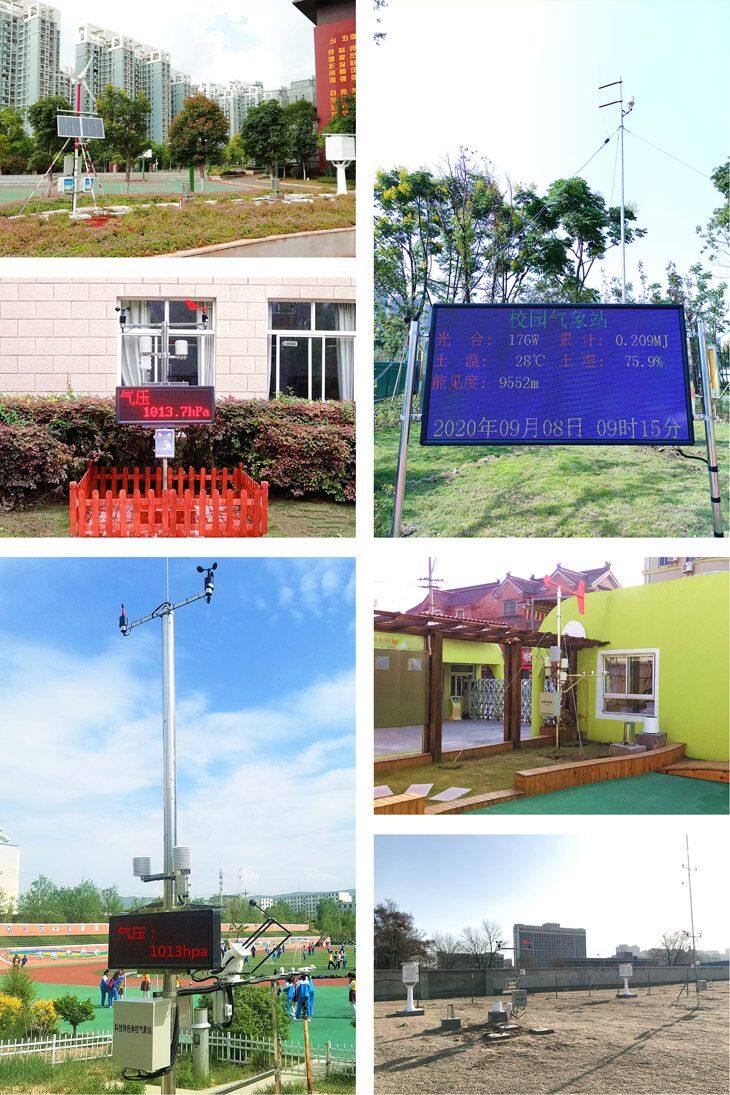

9.2 Application Cases:
10. Conclusion
The TRM-ZS6 Automatic Weather Station with LED Display combines advanced sensor technology, intelligent data processing, and visual data presentation into a single integrated solution. It is a reliable, scalable, and customizable meteorological monitoring system that supports scientific research, environmental protection, and smart city development.
