1. Product Overview

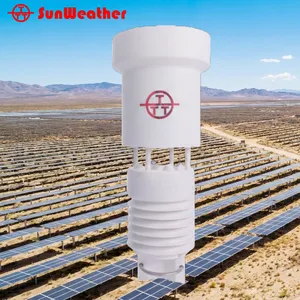

The PC-8K Six-Parameter Meteorological Monitoring Instrument is a professional-grade integrated automatic weather station independently developed by our company. It is designed for real-time monitoring of multiple key meteorological parameters, including air temperature, air humidity, wind speed, wind direction, atmospheric pressure, and rainfall.
The system integrates high-precision sensors with advanced data acquisition technology, providing stable, reliable, and real-time environmental monitoring. The tipping bucket rain gauge adopts a high-precision flip-type design, ensuring accurate rainfall measurement with fast response and excellent repeatability.
With its standardized digital output interface, the PC-8K can be directly connected to PCs, data loggers, or external monitoring platforms, making it widely applicable in meteorology, environmental protection, agriculture, transportation, and industrial monitoring.
2. Product Features
Integrated Design – Compact all-in-one structure, easy installation and maintenance.
ABS Engineering Plastic Housing – Corrosion-resistant, UV-resistant, and durable for outdoor use.
No Moving External Parts – Reduces mechanical wear and improves long-term stability.
High Storage Capacity & Intelligent System Commands – Supports multi-parameter data processing.
Multiple Monitoring Modes – Supports cloud platform, PC terminal, and mobile APP monitoring.
Maintenance-Free & Field Calibration-Free – Reduces operational cost and complexity.
Integrated High-Precision Tipping Bucket Rain Gauge – More accurate and reliable rainfall measurement.
IP65 Protection Level – Suitable for harsh outdoor environments.
3. Measurement Parameters
The PC-8K monitors the following six key meteorological elements:
| Parameter | Measurement Range | Resolution | Accuracy |
|---|---|---|---|
| Air Temperature | -40 ~ +80°C | 0.1°C | ±0.2°C |
| Air Humidity | 0 ~ 100% RH | 0.1% RH | ±2% (≤80%), ±5% (>80%) |
| Atmospheric Pressure | 300 ~ 1100 hPa | 0.1 hPa | ±0.3 hPa |
| Wind Direction | 0 ~ 359° | 1° | ±3° |
| Wind Speed | 0 ~ 70 m/s | 0.1 m/s | ±(0.3 + 0.03V) m/s |
| Rainfall | 0 ~ 999.9 mm | 0.1 / 0.2 mm | ±3% (indoor static) |
Additional Calculated Parameters:
2-minute average wind speed
10-minute average wind speed
Dew point temperature
4. Technical Specifications
Dimensions: Φ200 × 487 mm
Weight:
Power Supply: DC 12V
Power Options: Solar power / DC12V / AC220V / UPS
Working Temperature: -40 ~ +80°C
Working Humidity: 0 ~ 100% RH
Output Protocol: RS485 Modbus RTU
Average Power Consumption: 25 mA @ 12V DC
Protection Level: IP65
Baud Rate: 4800 ~ 115200 bps (Default: 9600 bps)
Communication Modes: WiFi / GPRS / RS232 / RS485 / Wireless Point-to-Point
Data Access: Wireless cloud platform, APP, PC, Web, or secondary development interface
Housing Material: Imported ABS + outdoor anti-UV coating
Mounting Options:
Fixed bracket (2m / 3m / 6m / 10m)
Portable tripod
Vehicle-mounted bracket
5. Communication & Data Platform
The PC-8K supports multiple communication methods to meet different application needs:
RS485 Modbus RTU
4G / LTE
Ethernet
The system can transmit real-time data to:
Cloud-based monitoring platform
PC software dashboard
Mobile APP
Web-based visualization interface
Users can view live data, historical trends, alarms, and export reports remotely.
6. Applications
The PC-8K is widely used in:
Meteorological Observation Stations
Environmental Monitoring
Smart Agriculture & Precision Farming
Urban Climate Monitoring
Highway & Traffic Weather Monitoring
Industrial Parks & Power Plants
Airports & Ports
Research Institutions & Universities
7. Environmental Adaptability
Designed for extreme weather conditions
Operates reliably under rain, snow, frost, and high temperature
Anti-corrosion and anti-aging outdoor materials
Stable performance with minimal maintenance
8. Optional Accessories
Solar power supply system
Data logger
LED weather information display screen
Wireless transmission module
Custom mounting bracket
9. Conclusion
The PC-8K Six-Parameter Meteorological Monitoring Instrument is a high-precision, reliable, and cost-effective solution for professional meteorological and environmental monitoring. With its integrated design, remote data transmission capabilities, and strong environmental adaptability, it is an ideal choice for modern smart weather monitoring systems.
10. About Company
Need more information? Feel free to leave a message or contact us.
Sales Manager: Xie Meng
Email: xiemenghit@gmail.com
Whats app: +1(416)8260959
Website: www.sunweather.ca
TikTok: sunshine.met.tech
QQ: 619243274
WeChat: 619243274
