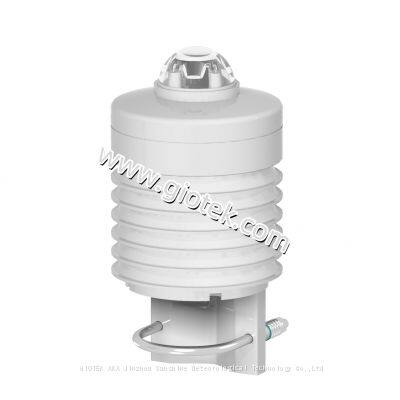

Integrated PM2.5 PM10 noise sensor outdoor dust monitoring system RS485 RS232 weather station

1.Product

The PC-8 meteorological environmental station is primarily designed to monitor data such as wind direction, wind speed, atmospheric pressure, ambient temperature, humidity, hazardous gases like CO, NO2, SO2, O3, PM2.5, PM10 in the monitoring area.

Note: This product is a collection of multiple sensors. The types of measurement sensors can be customized and can be matched in any way. The price of the product also depends on the measurement parameters you need. If you want to ask for a quotation, please tell me what needs to be measured. Parameters, voltage, output mode, thank you!

2.Options

1)Free software platform for data management.

2)Offers various communication options. Supports standard RS232/485 communication, compatible with standard MODBUS communication protocol. It can also achieve remote wireless data communication through options like GPRS, RJ45, and wireless transmission.

3)Optional integration of various radiation sensors such as total solar radiation and ultraviolet radiation.

4)Optional integration of a rain gauge sensor for measuring rainfall.

5)Multiple power source options: AC and DC power, solar panels, and vehicle power.

6)Monitoring parameters can be customized according to specific needs.

7)Optional installation method: Fixed mounting or portable stand based on site requirements.

8)Optional mounting mode: Flange base or fixed brackets.

3.Technical Specifications

Mechanical Specifications

Performance

Measurement performance

Optional measurement performance

4.Performance

1)The environmental temperature and humidity sensor measures environmental temperature, environmental humidity, and dew point temperature. Its output can be analog or digital.

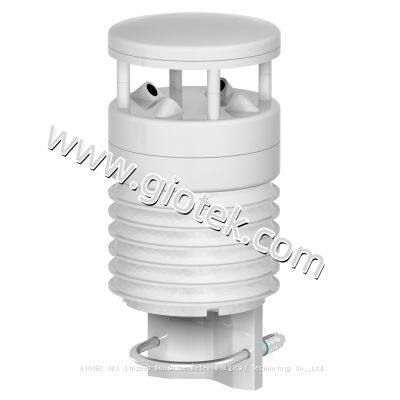

2)The ultrasonic anemometer probe uses ultrasonic principles to measure wind direction and wind speed.

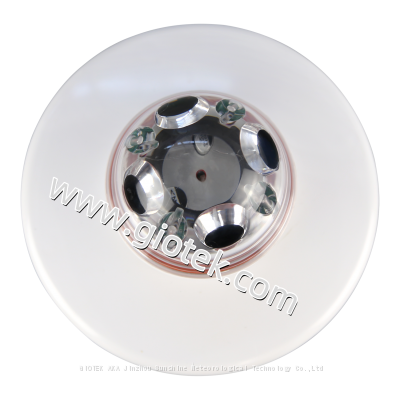

3)Rainfall is measured using optical principles.

4)The solar radiation sensor utilizes photovoltaic principles to measure total solar radiation, ultraviolet radiation, and more.

5)The barometric pressure sensor measures atmospheric pressure.

6)The dust sensor measures PM2.5 and PM10 in the air.

7)The gas module is used to measure air quality parameters.

8)The CO2 sensor uses infrared principles to measure carbon dioxide content in the air.

5.Feature

1)All-in-one design, flexible sensor configuration for customizable services.

2)Stainless steel lightweight metal bracket and outdoor protective casing. Portable anti-seismic structure. Lightning-proof and immune to interference, operates automatically regardless of environmental conditions.

3)Utilizing a microprocessor as the main CPU, with built-in substantial memory.

4)Power outage protection feature.

5)Networked base station deployment model, data monitoring achievable through local networks or wireless networks.
