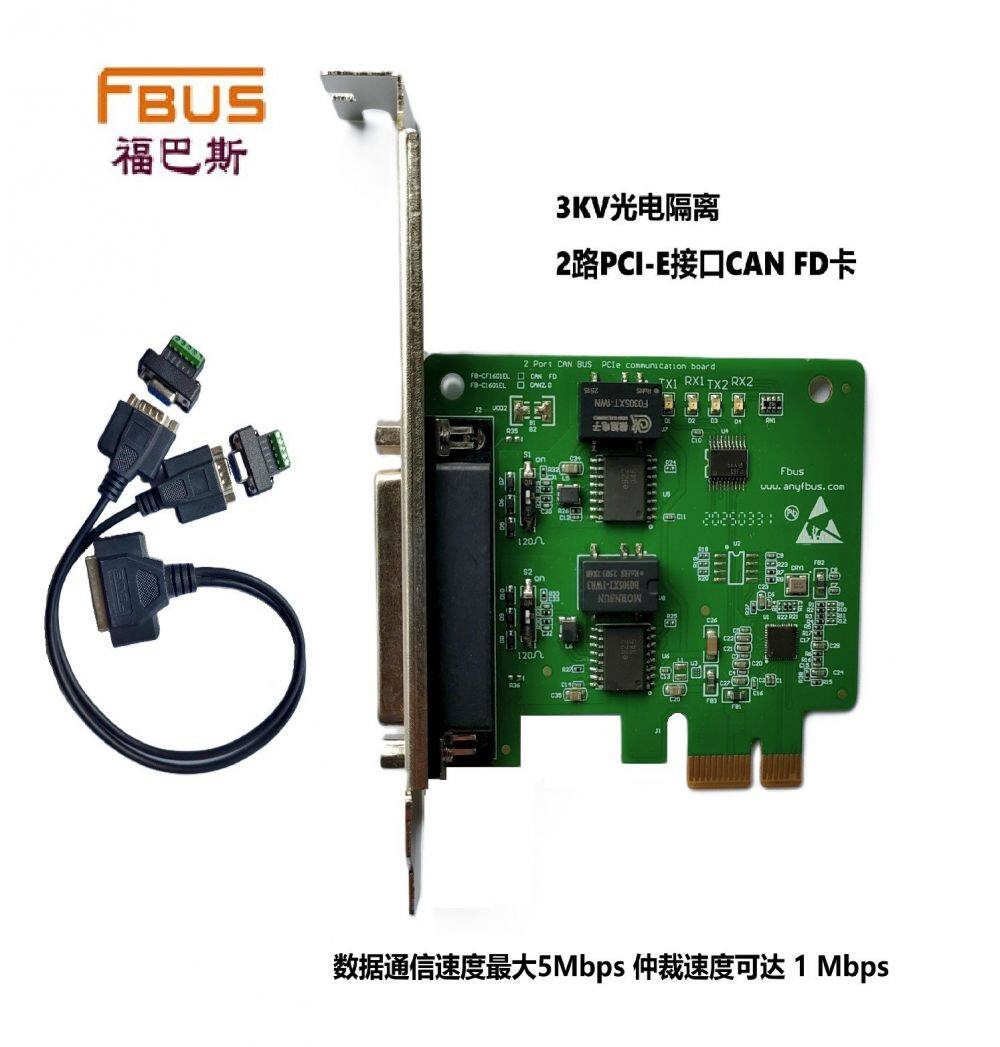

Hangzhou Huite FBUS PCIe CAN FD Card; 2-port CAN FD Card; Industrial-grade 2-port Isolated CAN FD Card

Hangzhou Huite FBUS PCIe CAN FD Card; 2-port CAN FD Card; Industrial-grade 2-port Isolated CAN FD Card thumbnail-1
Hangzhou Huite FBUS PCIe CAN FD Card; 2-port CAN FD Card; Industrial-grade 2-port Isolated CAN FD Card photo-1
US$ 85 1 - 99 Piece
US$ 80 ≥100 Piece
Key Specifications
Get Latest Price
Type:
Other
Application:
Commercial, Industrial
Accessories:
Other
Contact Supplier Request Quote Chat Now
Hangzhou Huite Technology CO.Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other
Application Commercial, Industrial
Accessories Other
Touch Screen Other
Installation Other
Power Supply Type Other
Rack Unit 4U
System Expansion Slot Other
Hard Disk Rack Type Other
CPU Card Size Other
Trademark FBUS
Origin China

Model: FB-CF1601EL

 M.2 Specification 2-Port CAN FD PCI Express Card

CAN FD Card: Arbitration up to 1 Mbps, Data Phase up to 5 Mbps

Drivers provided for mainstream Windows and Linux OS

Built-in LED indicators for easy troubleshooting and software management

15 kV ESD and surge protection

2.5 kV optical isolation on CAN bus interfaces

DIP switch for 120-ohm termination resistor on each channel


Introduction

M.2 Specification 2-port PCIE CAN Bus Card, suitable for industrial automation manufacturing systems and

system integration. The PCIE CAN bus card is compatible with any mainstream operating system,

including Windows and Linux. Its CAN bus channels feature independent 2.5 kV optical isolation,

protecting the computer from ground loop currents and enhancing system reliability in harsh

environments.

It provides a unified Application Programming Interface (API) along with a complete and

diverse set of sample application codes, including development examples for VC, VB, Delphi, and

LabVIEW, facilitating user application development.


Specitications

Hardware

Interface: DB25

Cable: CBL-M25M9×2-50

Number of Ports: 2

Interface Standard: CAN

voltage isolation: 2.5 kV

ESD Protection: Built-in 15 kV ESD


Environment

Operatingtemperature:-40°C~+85°C

Operating Humidity: 5% to 95% RH

Storage Temperature: -40°C to +85°C

CAN Communication Parameters

Baud Rate: Up to 5 Mbps

I/O Address & IRQ: BIOS-assigned

CAN Signals: CANH, CANL, GND

Supported Operating Systems

Windows: 2000, XP, 2003, Vista, 7, 8, 10, 11 / Server 2008, 2012, 2016

Linux: Kernel 2.4 and above, including distributions such as Red Hat, Ubuntu, Debian,

Kylin OS, Galaxy Kylin, CentOS, Deepin, and others

Dimensional Drawings:

•  FB-CF1601EL

Compatible with two types of chassis: 4U full-height and 2U half-height


Package Contents:

 CAN Bus Card

CBL-M25M9×2-50 Adapter Cable

Software CD

Quick Installation & Test Guide

       DB9 (Male):

       Interface      Pin 9

         1

         2                  CANL

         3                  GND

         4

         5

         6                  GND

         7                  CANH


Optional Accessory:

DB9 (Female) to Terminal Block Adapter Cable

The terminal block adapter facilitates easier connection to the CAN bus, eliminating the hassle of creating custom

cables.




For detailed information please visit the official website or contact me for ffy@anyfbus.com.




Product Tags: 2-port CAN FD Card , PCIe CAN FD Card , Industrial-grade 2-port isolated CAN FD Card
