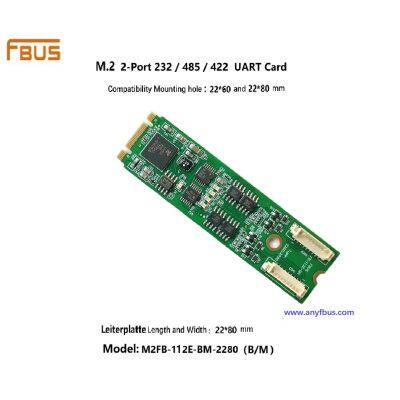

FBUS M.2 B Key and M Key to 2 Ports Rs-232/422/485 DB9 Card. Industrial-grade M.2 2-port Serial Card High-speed

FBUS M.2 B Key and M Key to 2 Ports Rs-232/422/485 DB9 Card. Industrial-grade M.2 2-port Serial Card High-speed thumbnail-1
FBUS M.2 B Key and M Key to 2 Ports Rs-232/422/485 DB9 Card. Industrial-grade M.2 2-port Serial Card High-speed thumbnail-2
FBUS M.2 B Key and M Key to 2 Ports Rs-232/422/485 DB9 Card. Industrial-grade M.2 2-port Serial Card High-speed thumbnail-3
FBUS M.2 B Key and M Key to 2 Ports Rs-232/422/485 DB9 Card. Industrial-grade M.2 2-port Serial Card High-speed thumbnail-4
FBUS M.2 B Key and M Key to 2 Ports Rs-232/422/485 DB9 Card. Industrial-grade M.2 2-port Serial Card High-speed thumbnail-5
FBUS M.2 B Key and M Key to 2 Ports Rs-232/422/485 DB9 Card. Industrial-grade M.2 2-port Serial Card High-speed photo-1
FBUS M.2 B Key and M Key to 2 Ports Rs-232/422/485 DB9 Card. Industrial-grade M.2 2-port Serial Card High-speed photo-2
FBUS M.2 B Key and M Key to 2 Ports Rs-232/422/485 DB9 Card. Industrial-grade M.2 2-port Serial Card High-speed photo-3
FBUS M.2 B Key and M Key to 2 Ports Rs-232/422/485 DB9 Card. Industrial-grade M.2 2-port Serial Card High-speed photo-4
FBUS M.2 B Key and M Key to 2 Ports Rs-232/422/485 DB9 Card. Industrial-grade M.2 2-port Serial Card High-speed photo-5
US$ 55 1 - 99 Piece
US$ 50 100 - 499 Piece
US$ 48 ≥500 Piece
Key Specifications
Get Latest Price
Type:
Other
Screen Size:
Other
Application:
Industrial
Contact Supplier Request Quote Chat Now
Hangzhou Huite Technology CO.Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other
Screen Size Other
Application Industrial
Accessories Industrial Power Supply
Touch Screen Other
Installation Other
CPU Type 486
Power Supply Type Other
Rack Unit Other
System Expansion Slot Other
Hard Disk Rack Type Other
CPU Card Size Other
Product Name M.2 to Serial Port card
Product Model M2FB-112E-BM-2280
Motherboard size 22*80mm
Hardware interface M.2
Port 2
BUS PCI-Express
Interface standard RS-232/422/485
Baud rate 50 bps ~ 7.8125 Mbps
ESD Protect Bulit-in 15 KV ESD Protect
Operating temperature -40 to 85°C
Transport Package Paper box packaging
Specification 155*100*60mm
Trademark FBUS
Origin China

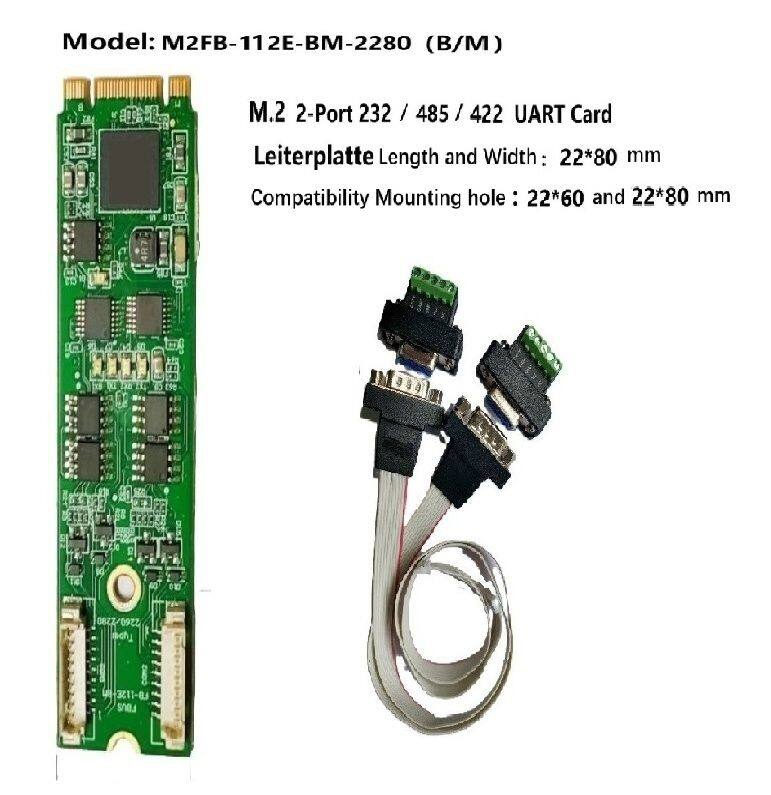

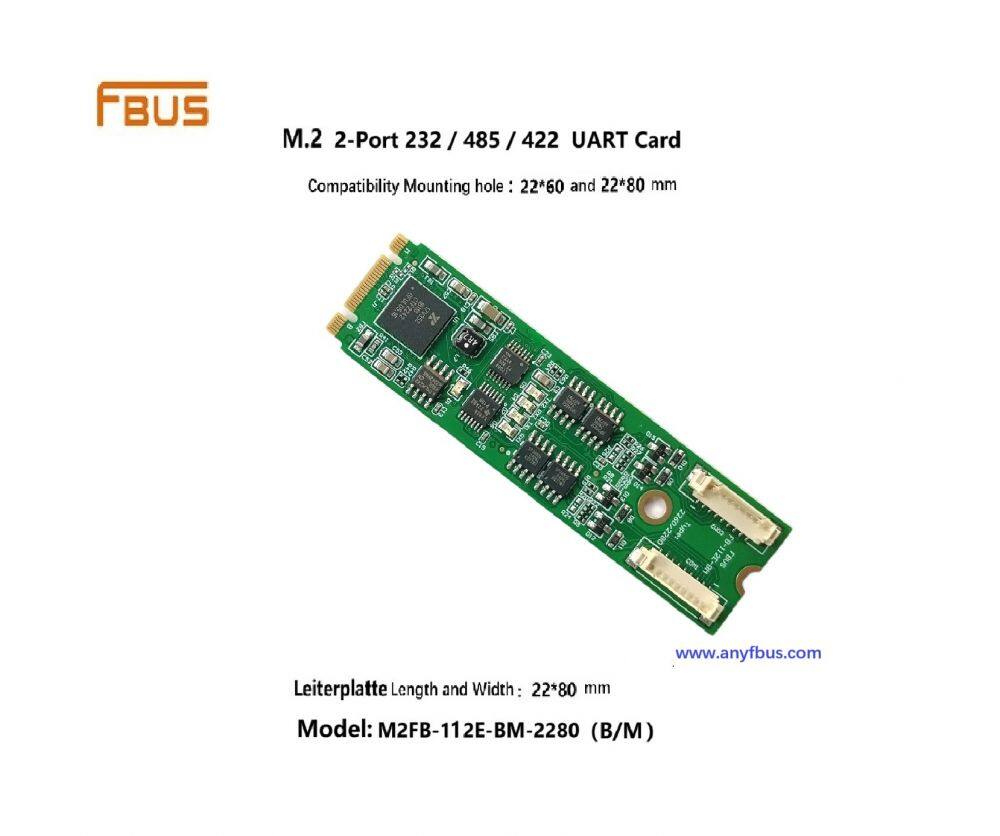

产品介绍1M2FB-112E-2280 英文1

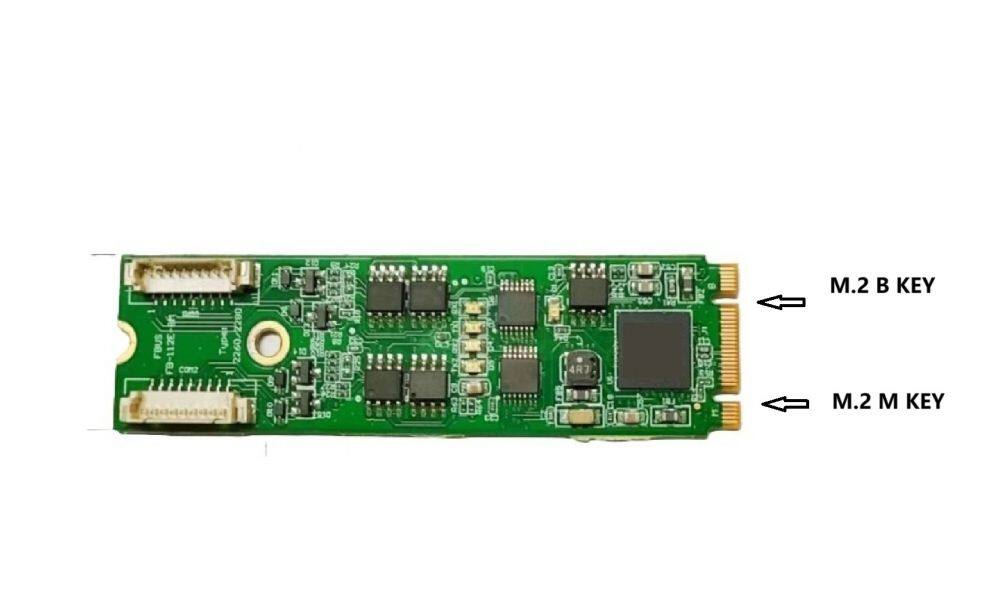

M2FB-112E-2280英文3

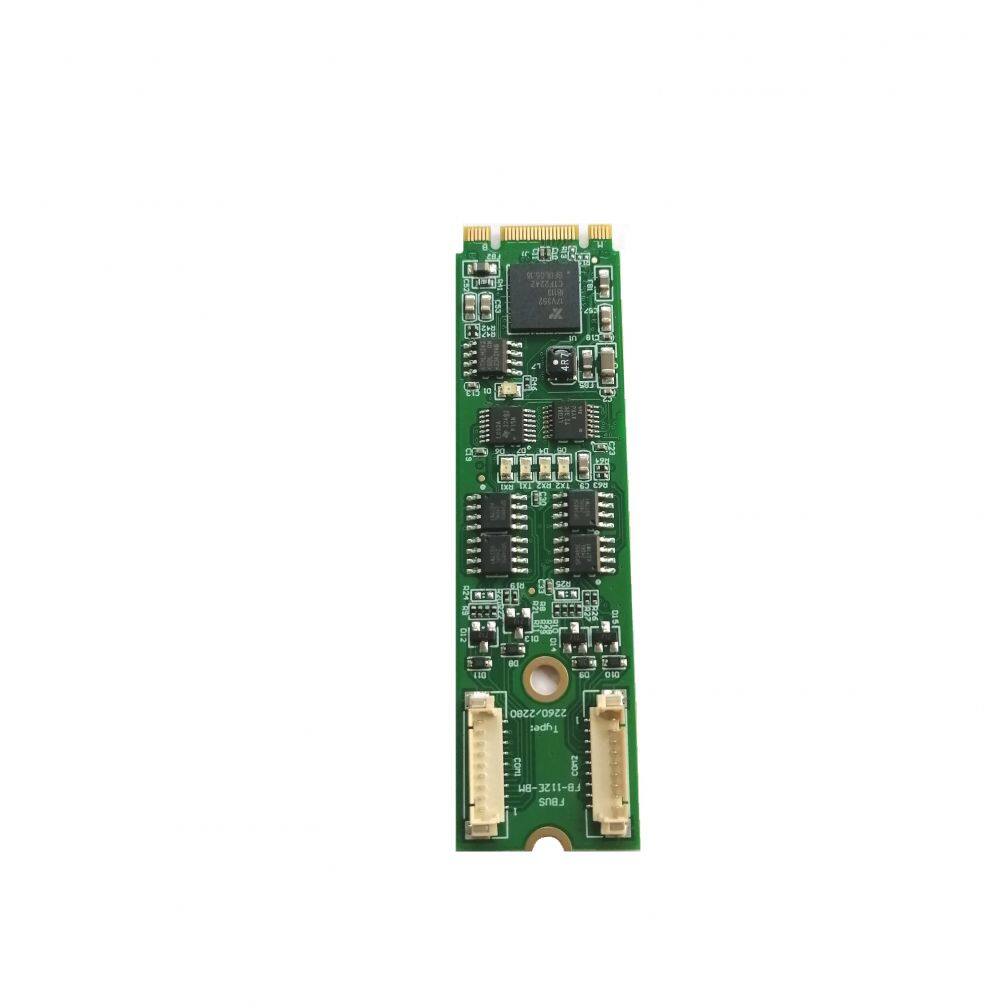

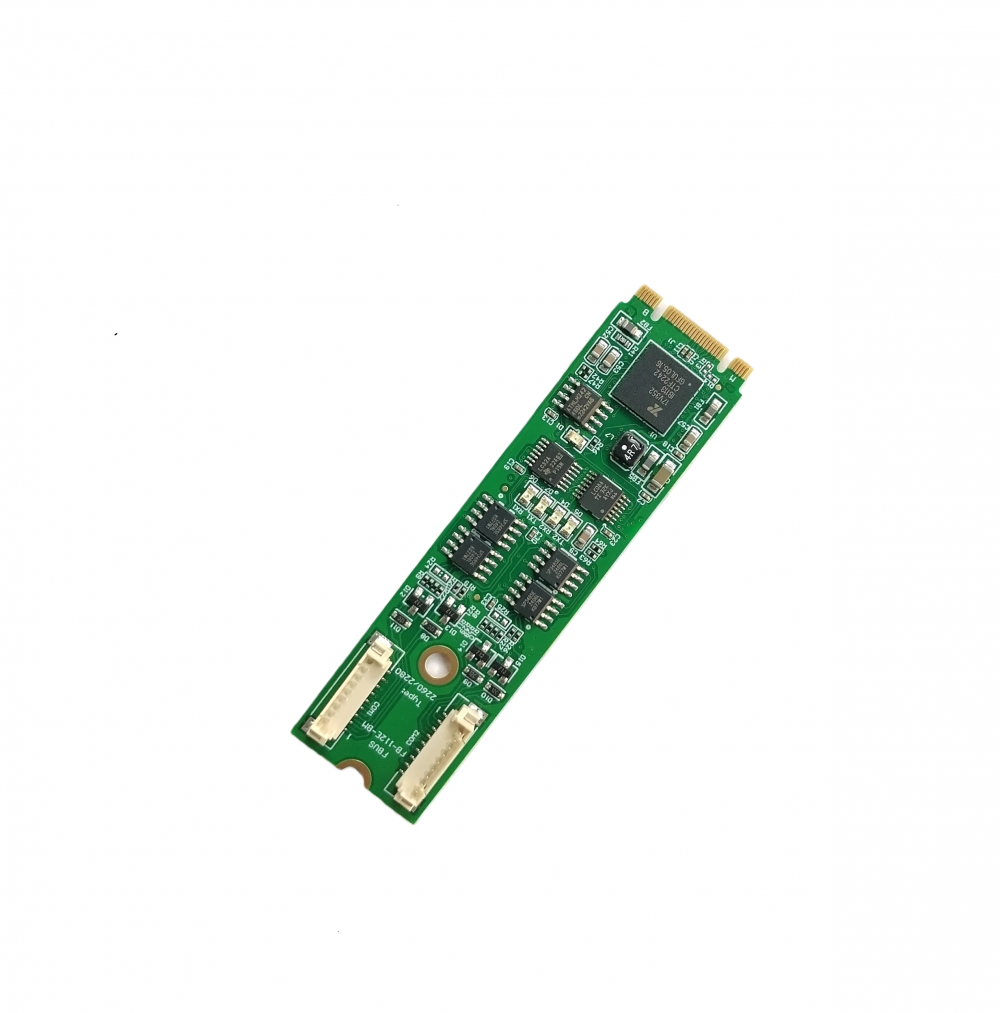

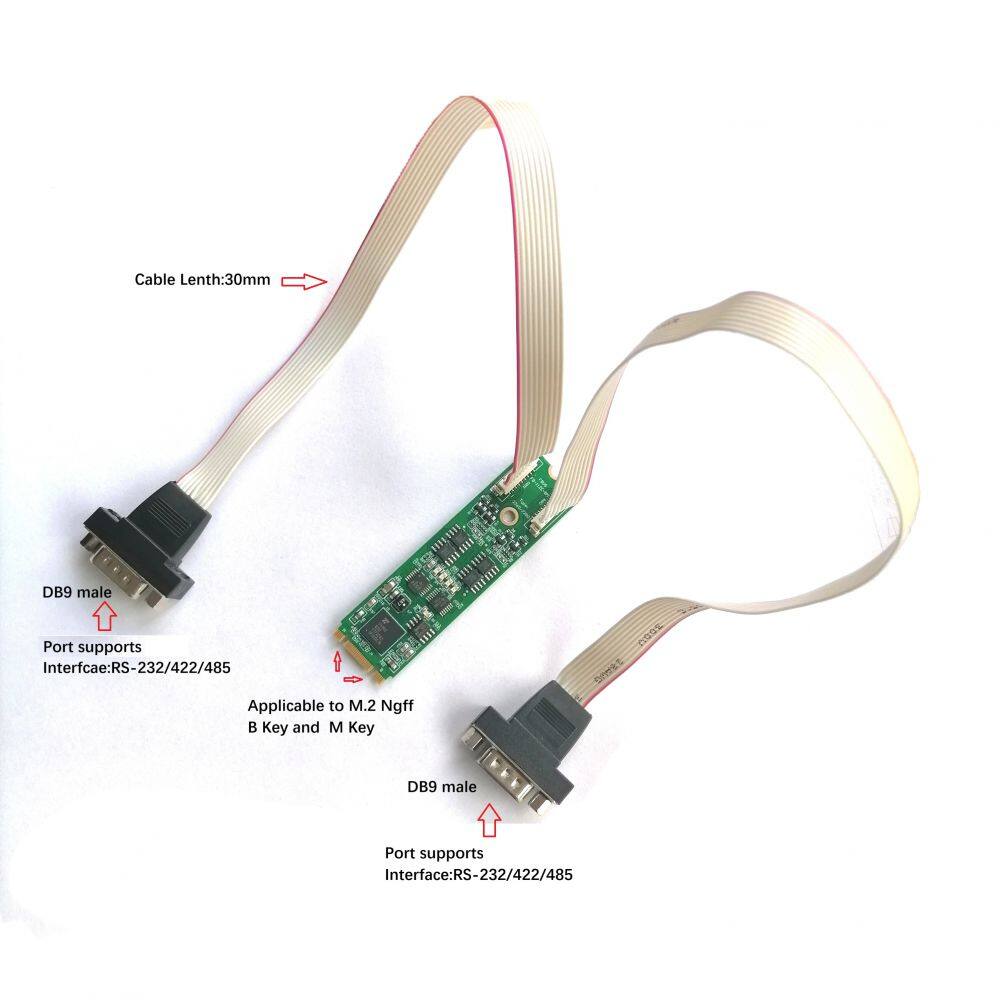

微信图片_20251024101624_73_20无标题1M2FB-112E-BM-2280白底4


M2FB-112E-BM-2280

M.2  Interface 2-port RS-232/422/485 Serial card


•  The RS-232 communication speed can reach 921.6 Kbps.



•  The RS 422/485 communication speed can reach 7.8125 Mbps



• 64-byte FIFO and on-chip H/W, S/W flow control



• The built-in LED display lights make it easy to maintenance and software management



• 15 kV ESD protection and surge protection on the board



• Wide temperature model available for -40 to 85°C environments



• Drivers provided for a broad selection of operating systems,including the latest Windowsand Linux


▲ interface

Bus: M.2  PCIe

Number of serial ports: 2

▲ signal

RS-232：TxD，RxD，RTS，CTS，DTR，DSR，DCD，GND

RS-422：TxD+(A)，TxD-(B)，RxD+(A)，RxD-(B)，GND

4-wire RS-485: TXD + (a), txd- (b), RXD + (a), rxd- (b), GND

2-wire RS-485: data + (a), data - (b), GND


FAQ:

Q1. What is your terms of packing?

      A: Generally, we pack our goods in neutral brown boxes and brown cartons. If you have legally registered patent,

    we can pack the goods in your branded boxes after getting your authorization letters.

       Q2. What is your terms of payment?

       A: Full payment. Goods would be shipped in 3-5 work days after payment received, finally depends on quantities.

       Q3. What is your terms of delivery?

       A: EXW.

       Q4.What is your Sample Policy?

      A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and

            Express shipping fee.

      Q5. Do you test all your goods before delivery?

      A: Yes, we have 100% test before delivery.

    Q6: How do you make our business long-term and good relationship?

   A:1. We keep good quality and competitive price to our customers benefit .

       2. We respect every customer as our friend and we sincerely do business and make friends with them,

            no matter where they come from.

Contact:

For more products information,please visit . and Please leave a message, and I will reply to you during workying hours:from 9:00AM to 5:30 PM Beijing Time.

 Thangks.




Product Tags: PCIe Serial Expansion Card , M.2 2-port RS-232/422/485 Serial card , Industrial UART Expansion card
