Product model: NE-FBPORT2110A
▲ Product Overview

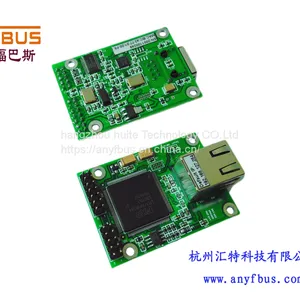

The ne-fbport2110a module is an embedded serial port device networking module, which can be directly installed in the customer's products to allow the customer's equipment to be easily networked. The ne-fbport2110a module provides a standard RS-422 / 485 interface and four user configurable IO pins.
The ne-fbport2110a module is very compact. Such a small size module can be installed on almost any serial port device. Engineers can greatly reduce programming in TCP / IP and focus more on developing other major features, thus shortening the time to market. The configuration of the module is very easy, and there are many methods to configure it, including user-friendly fbport configuration tool, web browser, and serial port console. The user can select any one to configure. In addition, an available Windows based NECI (network enabler configuration interface) library can help users develop their own windows programs.
▲ product features
※ 4 gpios
※ a standard 232 interface
※ compact shape and plug and play design
※ support TCP server, TCP client, UDP, real com driven operati
※ low power consumption (1.5W)
※ support a variety of user-friendly configuration methods
※ software reset
※ real com driver supports Windows2000 / XP / 2003 / Vista / win7 / win8, TTY supports Linux 2.4 / 2.6
▲ serial port signal
TTL：TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
▲ serial port parameters
Check bits: none, even, odd, space, mark
Data bit: 5.6.7.8
Stop position: 1.1.5.2
Speed: 50 BPS ~ 921.6 kbps
Flow control: RTS / CTS, Xon / XOFF
▲ hardware
Ethernet interface: RJ45
Serial port interface: pin array
▲ working environment
Working temperature: - 45 ~ 85 ℃, 5 ~ 95% RH
Storage temperature: - 45 ~ 85 ℃, 5 ~ 95% RH
▲ power demand
Power demand: 5VDC
