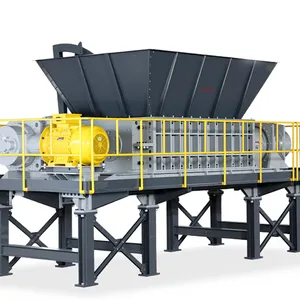

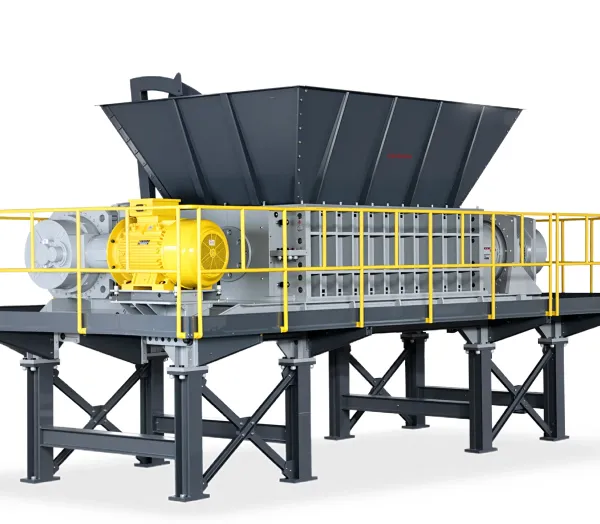

Help CenterDouble Shaft Shredder
Related Products
Equipment Introduction:
The twin-shaft shredder cuts and tears materials into smaller sizes through the shearing and tearing action of the blades during their relative rotation, which facilitates subsequent processing or achieves the purpose of volume reduction. Thanks to its structural form and low-speed rotation, the twin-shaft shredder is characterized by high torque, strong shearing force, high processing capacity, good stability, and low noise. Therefore, it is widely used in the field of solid waste treatment and can meet the recycling and reuse processing needs of various types of solid waste.
Application Range:
| Industrial waste | tires, ceramic or glass products, leather and textile scraps, defective plastic products, defective electronic products, waste wood, waste paper, waste slag, waste materials, waste packaging, etc., and non-metallic waste. |
| Domestic waste | large items such as computers, refrigerators, washing machines, sofas, mattresses, disposable food containers, chopsticks, waste paper, plastic, and other metal or non-metallic waste |
| Bulk waste | disposable food containers, chopsticks, beverage bottles, waste paper, plastics, and other metallic or non-metallic waste materials |
| Agricultural waste | straw, tree branches, bamboo, animal carcasses, plastic mulch, etc. |
| Construction waste | construction wood forms, old doors and windows, gypsum boards, drop ceilings, color steel tiles, etc. |
| Medical waste | syringe waste, pharmaceutical waste, small medical equipment, used masks, surgical gowns, bed linen, and other medical waste. |
Model parameters:
| Model | GTS-E103 | GTS-E205 | GTS-E208 | GTS-E21 | GTS-E310 | GTS-E312 |
| Crushing chamber size (mm) | 300×300 | 520×500 | 810×500 | 980×516 | 1010×730 | 1170×730 |
| Swing diameter (mm) | φ170 | φ278 | φ278 | φ288 | φ400 | φ400 |
| Blade thickness (mm) | 20 | 30 | 30 | 30 | 40 | 40 |
| Motor power (kW) | 7.5 | 22 | 30 | 22×2 | 55×2 | 90×2 |
| Dimensions (L×W×H)(mm) | 1680×700×1790 | 2280×1540×2000 | 2580×1590×2000 | 3180×1820×2000 | 3760×2510×2910 | 4250×2910×2910 |
| Overall weight (kg) | Approx 800 | Approx 2300 | Approx 2700 | Approx 3300 | Approx 10000 | Approx 11800 |
The above models are standard universal models. If you require other models, please contact our staff, and we can also provide customized services according to your needs.
Technical Highlights:
1. Bearing life is long
Multiple protective measures are taken to extend the service life of the bearings
2. Low crushing resistance
Different blade profile designs are selected according to the requirements of the crushed materials to minimize crushing resistance as much as possible.
3. High crushing efficiency
The specially designed fixed knife not only serves as a material rejection function but also forms additional shearing with the moving knife, enhancing the overall crushing efficiency
Effect Comparison:
