Equipment Introduction:
The briquette press, also known as a chip briquette press, consists of a hydraulic station, hydraulic cylinder, feeding module, mold cavity, and pressing head. The feeding module is responsible for adding material, while the hydraulic cylinder drives the pressing head to compress the material within the mold cavity to form it. The briquette press has high pressure and a small compression area, thus providing a significant compression pressure. The resulting briquette blocks are small in volume and high in density, which not only increases the value of the material but also reduces storage space, lowers transportation costs, and reduces smelting losses. Additionally, the briquetting process can extrude most of the cutting fluid, which can be centrally recycled and reused after treatment, reducing environmental pollution and saving costs. Therefore, it is widely used in the processing of metal chips in machine shops.
Application Range:
| Automobile Manufacturing | Recycled stainless steel chips, carbon steel chips, cast iron chips, aluminum chips, copper chips |

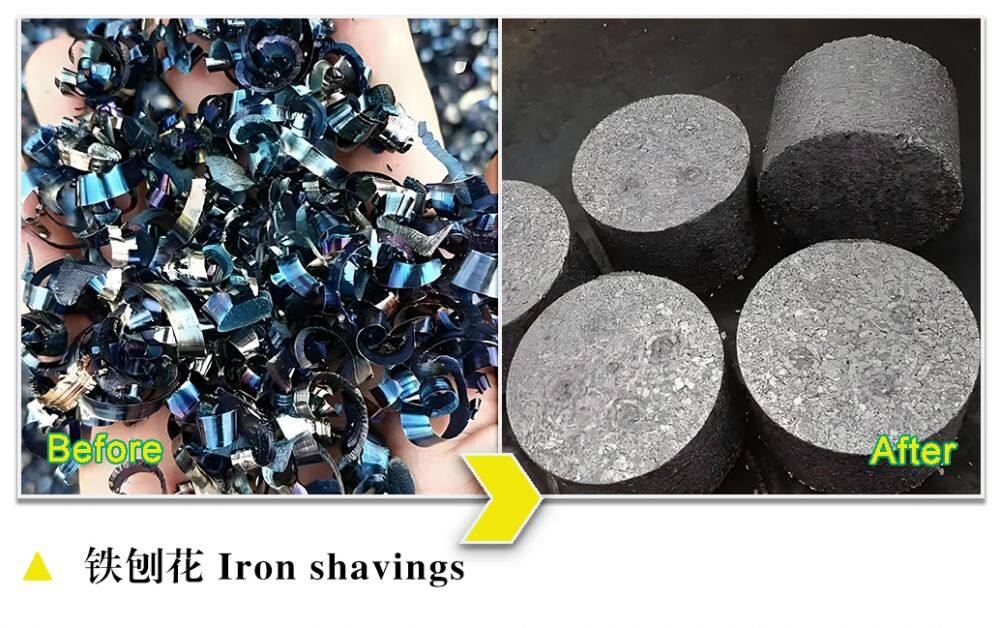

| General Metal Shavings | Stainless steel shavings, carbon steel shavings, iron shavings |

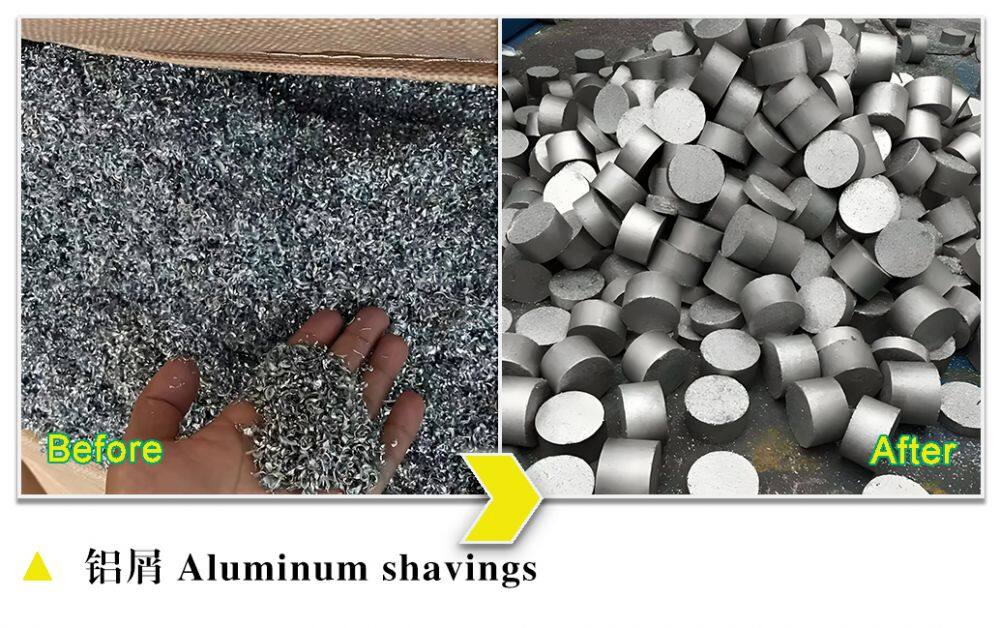

| Aerospace | Liquid aluminum shavings, aluminum chips, titanium chips |
| Battery & Radiator Components | Aluminum foil and copper foil from lithium battery electrodes, aluminum lumps and copper tubes from radiators |
| Metal Chips with Cutting Fluids | Stainless steel chips, carbon steel chips, cast iron chips, aluminum chips, copper chips (all containing cutting fluid/oil) |
| Miscellaneous Materials | Shredded currency, paper scraps, wood chips, coconut fiber, various liquid-containing scraps |
| Other Industries | Part Manufacturing applications |
Model Parameters:
| Model | GFB-B0910 | GFB-B1116 | GFB-B1320 |
| Packaging Size (mm) | φ90 | φ110 | φ130 |
| Main Cylinder Pressure (T) | 100 | 160 | 200 |
| Gate Cylinder Pressure (T) | 12.5×2 | 16×2 | 20×2 |
| Hydraulic Power (kW) | 11 | 18.5 | 22 |
| Host Size (L×W×H)(mm) | 2080×1100×1900 | 2530×1300×2150 | 2650×1400×2300 |
| Overall Weight (kg) | Approx. 2600 | Approx. 3800 | Approx. 4500 |
The above models are standard universal models. If you require other models, please contact our staff, and we can also provide customized services according to your needs.
Technical Highlights:
1. Intelligent Program
An intelligent PLC program meticulously crafted by engineers, which allows for setting a variety of process parameters with idiot-proof operation, is extremely easy to use.
2. Modular Structure
The machine adopts a modular design, with a compact structure and small footprint.
3. Standardized Molds
Molds are manufactured according to standards, with strict tolerance control, ensuring interchangeability
