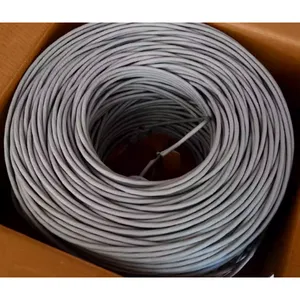

Putian Hanfei Cat5e Cable HSYV 4×2×0.5 & Cat6 Cable HSYS-6 4×2×0.57, Putian Group
Negotiable
MOQ: 100 Cartons (Price negotiable depending on order volume and customization)
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Raisecom 24-port Gigabit PoE Switch, Model: ISCOM S2600-24T4X-PWR-AC/S (4 x 10G SFP+ Uplink Ports)NegotiableMOQ: 100 Pieces -
Raisecom Gigabit Ethernet Media Converter, Model: RC552-GE-S1/S2/S3/M/SS13/SS15/SS24/SS25 (1 x 10/100/1000Base-T RJ45, 2 x 1000Base-X SFP Slots)NegotiableMOQ: 100 Blades
-
Raisecom RC112-2FE-S1 Single-Mode Dual Network Port Card-Type TransceiverNegotiableMOQ: 100 Blades
-
Fibercom FC-ST Fiber Optic Patch Cord Fibercom FC-LC Single-mode Patch Cord Fibercom FC-FC Fiber Optic Patch CordNegotiableMOQ: 100 Boxes
-
Raisecom Gazelle S1020i-8GF-8GE-2R-LI-DCW24 Gigabit Managed Industrial SwitchUS$ 500 - 750MOQ: 10 Units
Origin
china
Putian Hanfei Cat5e & Cat6 Cable Core Parameters
The following is a comparison table of the core parameters of Putian Hanfei Cat5e and Cat6 cables, with data sourced from product manuals and official specifications, suitable for engineering selection and procurement reference.
| Parameter Category | Cat5e (HSYV-5e 4×2×0.5) | Cat6 (HSYV-6 4×2×0.57) | Remarks |
|---|---|---|---|

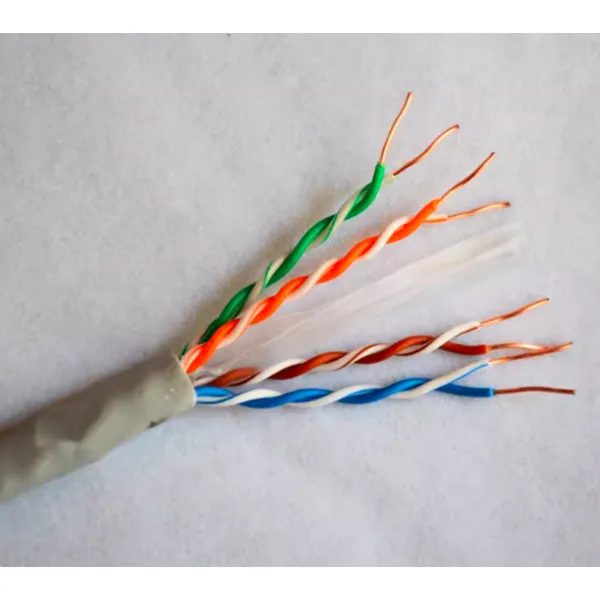

| Basic Specifications | Unshielded, 4 pairs × 8 cores, 24AWG | Unshielded, 4 pairs × 8 cores, 23AWG, with cross-separation skeleton | The cross-separation skeleton of Cat6 cables enhances crosstalk resistance |
| Conductor | Oxygen-free round copper (99.96%), diameter 0.5±0.005mm | Oxygen-free round copper (99.96%), diameter 0.57±0.005mm | Thicker conductor of Cat6 results in lower resistance |
| Insulation | HDPE, insulation outer diameter 0.9±0.005mm | HDPE, insulation outer diameter 1.05±0.002mm | Solid polyolefin insulation material for both types |
| Sheath | PVC, thickness 0.55±0.01mm, outer diameter 5.1±0.1mm | PVC, thickness 0.55±0.01mm, outer diameter 6.1±0.1mm | Low-smoke zero-halogen (LSZH) and outdoor sheaths available upon customization |
| Electrical Performance | Characteristic impedance: 100±15ΩSingle conductor resistance: ≤9.5Ω/100mInsulation resistance: ≥5000MΩ/kmConductor resistance unbalance: ≤2.5%Working capacitance: ≤5.6nF/100m | Characteristic impedance: 100±15ΩSingle conductor resistance: ≤7.5Ω/100mInsulation resistance: ≥5000MΩ/kmConductor resistance unbalance: ≤2.5%Working capacitance: ≤5.6nF/100m | Cat6 offers superior transmission performance |
| Transmission Capacity | Bandwidth: 100MHz, supports Gigabit Ethernet, maximum channel length: 100m | Bandwidth: 250MHz, supports Gigabit/10 Gigabit Ethernet (short-distance), maximum channel length: 100m | Cat6 bandwidth is 2.5 times that of Cat5e |
| Physical & Environmental Performance | Bending radius during installation: ＞8× cable outer diameterShort-term tensile strength: ＜110NLong-term tensile strength: ＜20NOperating temperature: -20℃～+70℃ | Bending radius during installation: ＞8× cable outer diameterShort-term tensile strength: ＜110NLong-term tensile strength: ＜20NOperating temperature: -20℃～+70℃ | Consistent construction and environmental parameters for both types |
| Packaging Length | 305m/box (standard), customized lengths like 100m available | 305m/box (standard), customized lengths like 100m available | Complies with industry universal packaging standards |
| Certifications | RoHS, TELCORDIA certification, complies with YD/T 1019 standard |
