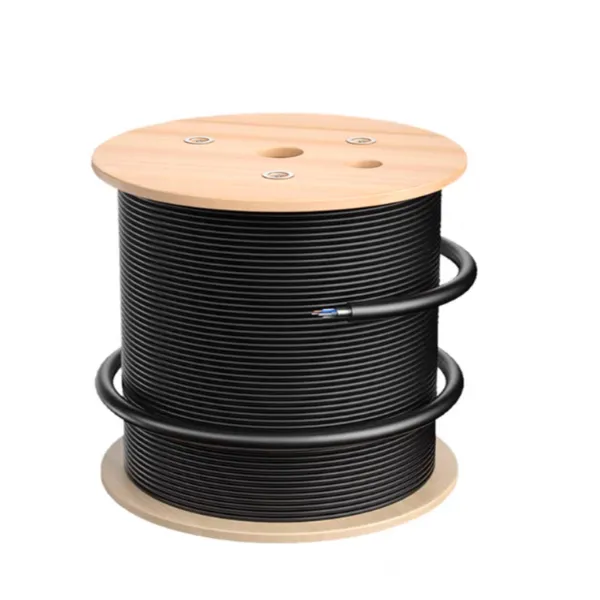

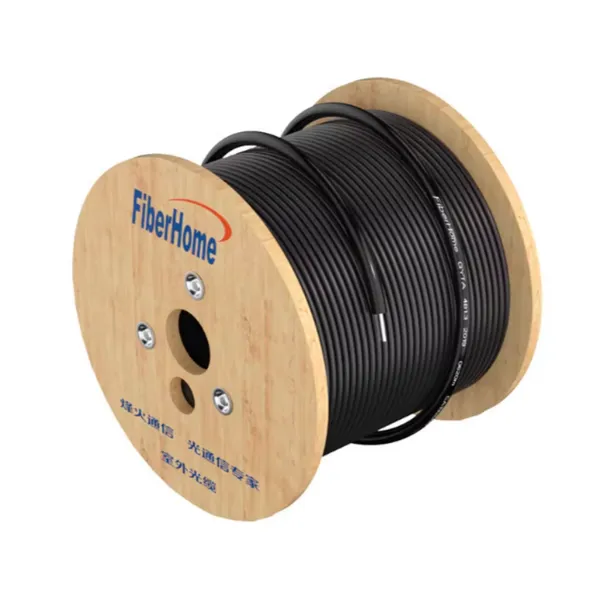

Changfei Outdoor Single-mode Armored Optical Cable GYTA/GYTS (4/6/8/12/16/24/48 Cores) & ADSS Optical Fiber Cable
Negotiable
MOQ: 100000 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Tianjin Port, Qingdao Port, Shanghai Port
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
16-port/8-port Desktop GPON OLT Optical Fiber Device, Compatible With Huawei, Suitable for PON Networks in Small HotelsNegotiableMOQ: 100 Units -
Telecom-grade OM3 Fiber Optic Patch Cord, LC-LC Duplex, 10G Multi-mode Dual-core, 3-meter Jumper CableNegotiableMOQ: 100 Pairs
-
Integrated Access Device: 30-channel Voice Telephone PDH PCM Telephone Optical MultiplexerNegotiableMOQ: 20 Units
-
Putian Hanfei Cat5e Cable HSYV 4×2×0.5 & Cat6 Cable HSYS-6 4×2×0.57, Putian GroupNegotiableMOQ: 100 Cartons
-
Raisecom 24-port Gigabit PoE Switch, Model: ISCOM S2600-24T4X-PWR-AC/S (4 x 10G SFP+ Uplink Ports)NegotiableMOQ: 100 Pieces
FiberHome, Hengtong, Changfei National Standard Outdoor Optical Cable GYTA/GYTS (Single-mode, 4/6/8/12 Cores up to 288 Cores)
Changfei Outdoor Single-mode Armored Optical Cable GYTA/GYTS (4/6/8/12/16/24/48 Cores) & ADSS Optical Fiber Cable
National Standard Loose Tube Stranded Outdoor Single-mode Optical Cable
Compliant with GB/T 7424.1-2023 standard, this cable is suitable for long-distance optical fiber transmission scenarios such as telecommunications, security systems, and campus network deployment. The core parameters of the three major brands—FiberHome, Hengtong, and Changfei—are consistent, detailed as follows:
| Category | Parameter Item | Technical Specification |
|---|---|---|
| Basic Attributes | Cable Model | GYTA (Non-armored), GYTS (Steel Tape Armored) |
| Optical Fiber Type | G.652D single-mode fiber (mainstream); G.657A1 optional (bend-resistant type) | |
| Core Count Range | 4-core, 6-core, 8-core, 12-core, 16-core, 24-core, 48-core, 72-core, 96-core, 144-core, 288-core | |
| Executive Standard | GB/T 7424.1-2023 (China National Standard), IEC 60794-1 | |
| Structural Parameters | Cable Core Structure | Loose tube stranded type: Optical fibers are enclosed in high-modulus plastic loose tubes filled with water-blocking compound |
| Strength Member | Central strength member: Phosphated steel wire (standard for GYTA/GYTS); aramid yarn optional (for light-armored type) | |
| Armored Layer | GYTA: Non-armored, suitable for duct/ aerial installationGYTS: Steel tape armored, suitable for direct burial/duct installation | |
| Sheath Material | Polyethylene (PE) sheath, weather-resistant, corrosion-resistant and UV-resistant | |
| Reference Outer Diameter | 4-core: approx. 8.0mm (GYTA) / 9.5mm (GYTS)24-core: approx. 11.0mm (GYTA) / 12.5mm (GYTS)288-core: approx. 22.0mm (GYTA) / 24.0mm (GYTS) | |
| Optical Performance | Attenuation Coefficient (@20℃) | 1310nm: ≤0.36dB/km1550nm: ≤0.22dB/km1625nm: ≤0.27dB/km |
| Dispersion Coefficient | 1310nm: Zero-dispersion wavelength 1300~1324nm, maximum dispersion slope 0.093ps/(nm²·km)1550nm: ≤18ps/(nm·km) | |
| Bending Loss | G.652D at 1550nm: ≤0.1dB/loop under 10mm static bending radius; ≤0.05dB/loop under 30mm dynamic bending radius | |
| Mechanical & Environmental Performance | Tensile Performance | Short-term: GYTA ≥600N; GYTS ≥1500NLong-term: GYTA ≥200N; GYTS ≥600N |
| Crush Performance | Short-term: GYTA ≥1000N/100mm; GYTS ≥3000N/100mmLong-term: GYTA ≥300N/100mm; GYTS ≥1000N/100mm | |
| Operating Temperature | -40℃ ~ +70℃ (all-climate type) | |
| Installation Method | GYTA: Aerial, duct, troughGYTS: Direct burial, duct, aerial (outer sheath required) | |
| Service Life & Reliability | Design Life | ≥25 years |
| Water-blocking Performance | Full-section water-blocking; loose tubes filled with ointment + cable core filled with water-blocking yarn/ointment |
Supplementary Notes on Brand Differences
FiberHome: Focuses on the centralized procurement market of telecom operators. Its cables feature strong consistency and compatibility, and are suitable for mainstream optical communication equipment.
Hengtong: The armored layer of its direct-burial GYTS cables has outstanding protective performance, making them suitable for installation in complex geological environments.
Changfei: Its fiber cores have superior attenuation indicators, ideal for long-distance transmission links (over 80km).
