Introduction to overhead cranes, gantry crane wiring, sliding contact lines, trolley wires, and contact wires
Due to the unstable price of raw materials, the product price is also unstable. The above quotation is only for platform display. The specific purchase price shall be subject to telephone contact.
Overhead cranes, gantry crane wiring, sliding contact lines, trolley wires, and contact wires
The copper trolley wire for electric traction has good electrical conductivity, high strength, and good safety. It is suitable for contact wires used in electric traction in the coal mine, metallurgy, and lifting industries. The product models are divided into:
The copper contact wire, also known as copper trolley wire, copper double - groove wire, and copper sliding contact wire. Its product models can be divided according to different cross - sectional sizes: CT50, CT65, CT85, CT100, CT120, CT150, CT185, CT200, CT250, etc. The corresponding old product models are: TCG50, TCG65, TCG85, TCG100, TCG120, TCG150, TCG185, TCG200, TCG250, etc. Customized models and quantities are supported.

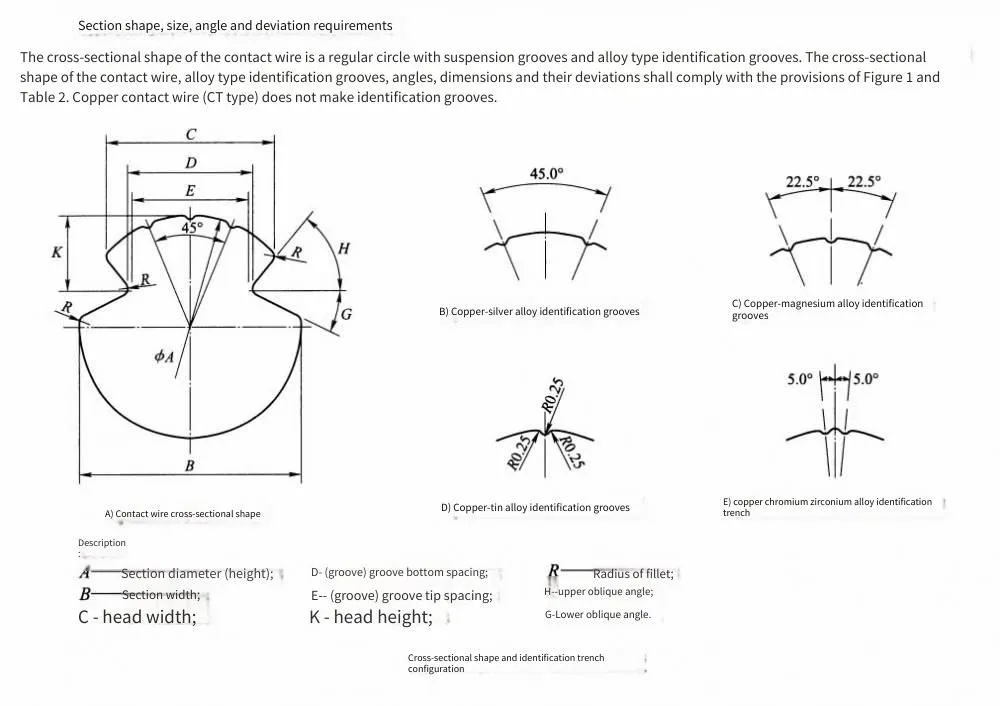

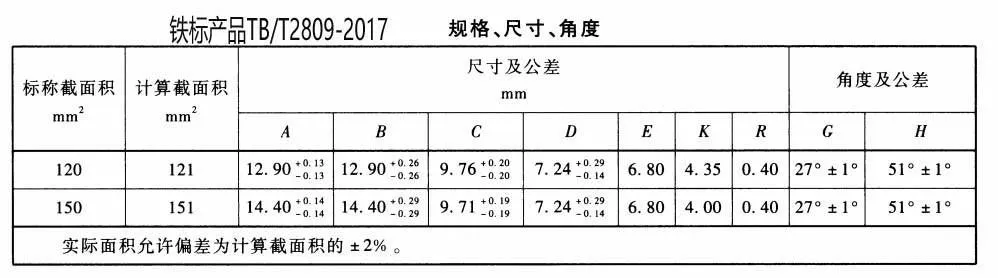

The product technical parameters are as follows

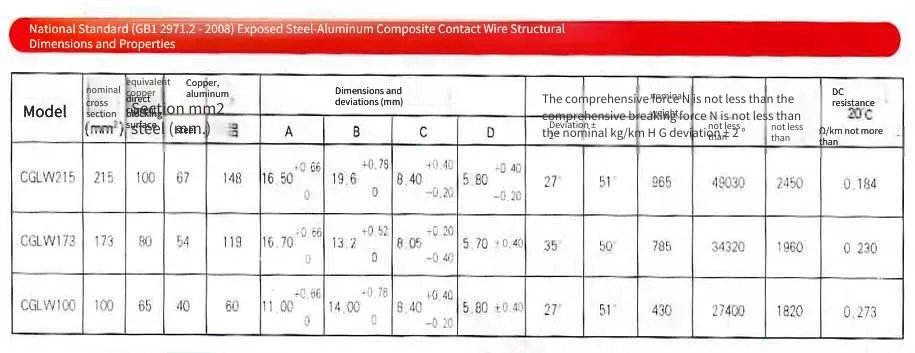

The model parameters of the exposed steel - aluminum composite contact wire and the aluminum - clad steel trolley wire are as follows

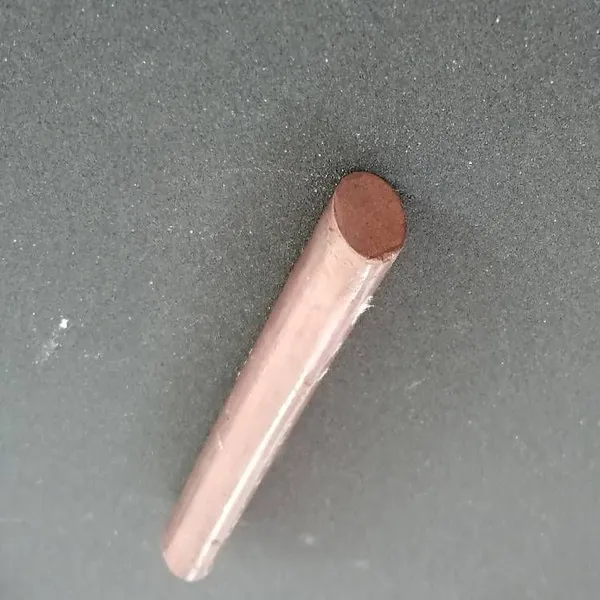

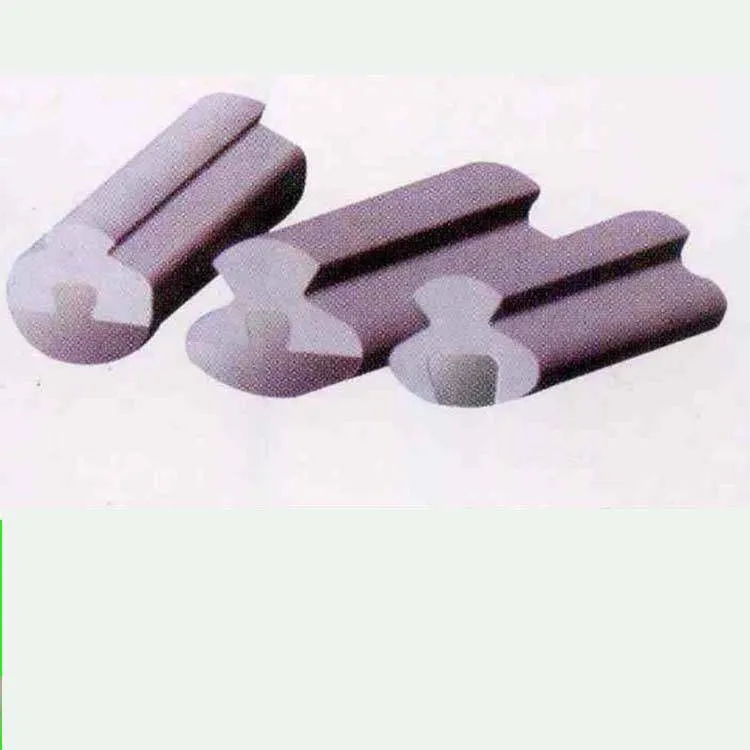

The physical picture of the product is as follows
