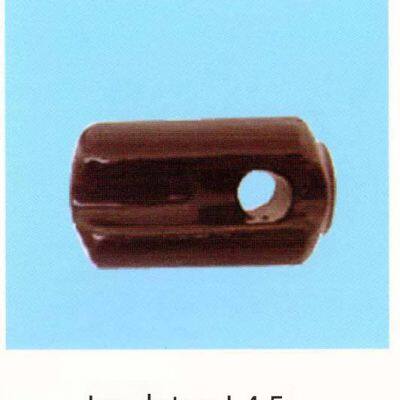

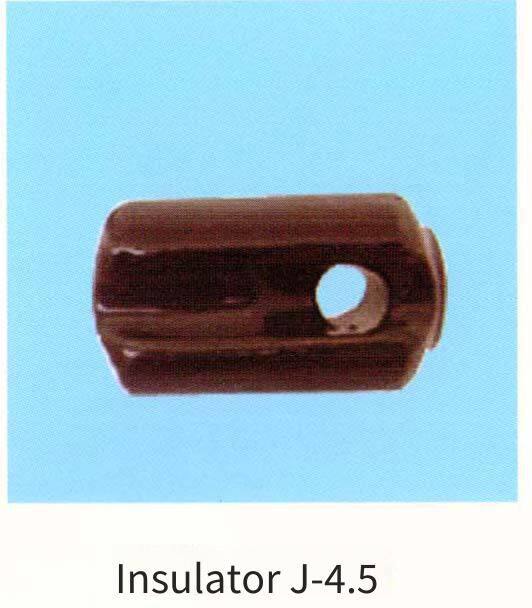

Stay insulators, tension insulators, with models J-1, J-2, J-4.5
; Suspension insulator porcelain insulators CD-1, CD-2, WX-1; Pin insulators P-6, P-10, PD-1, PD-2
Pin insulators for rigid suspension in subways

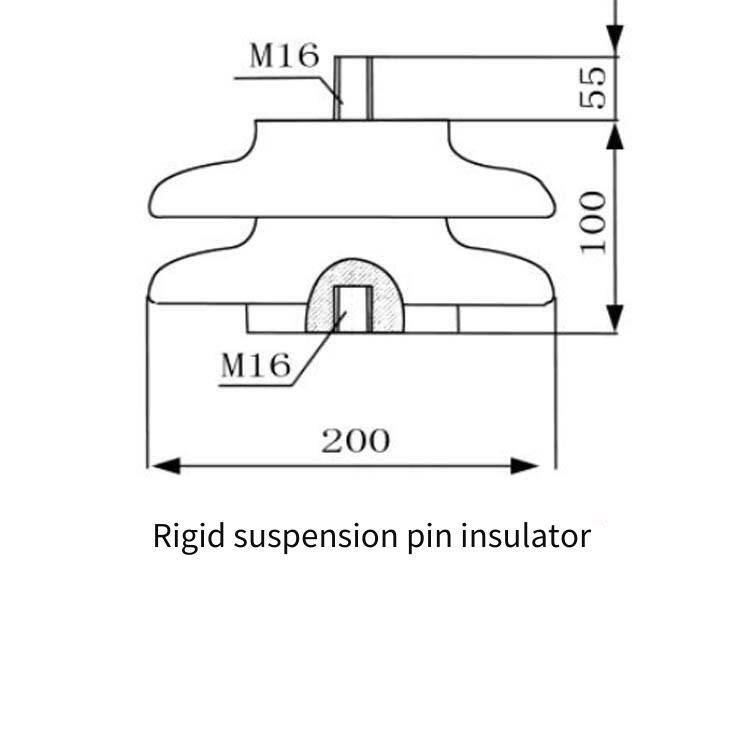

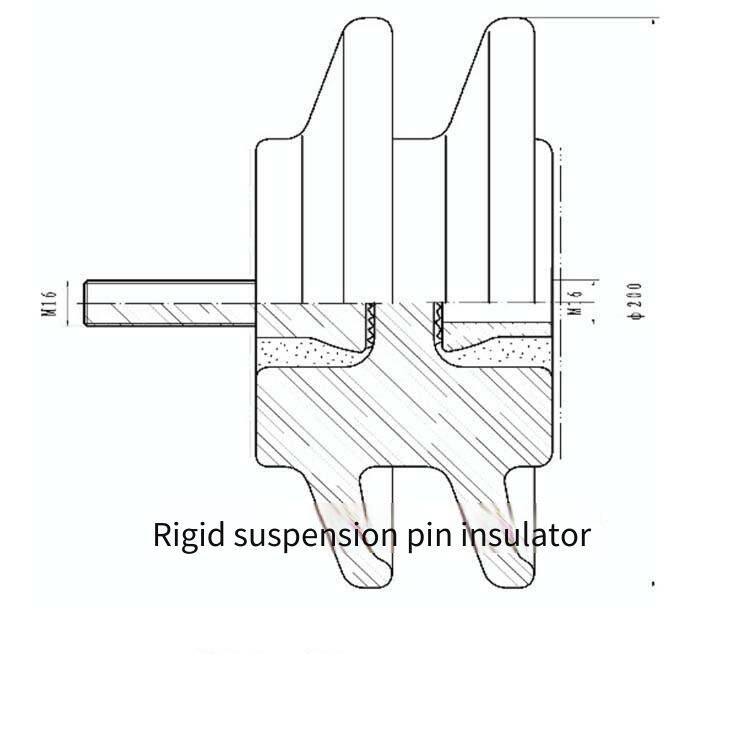

The structure of the pin insulator is as follows:

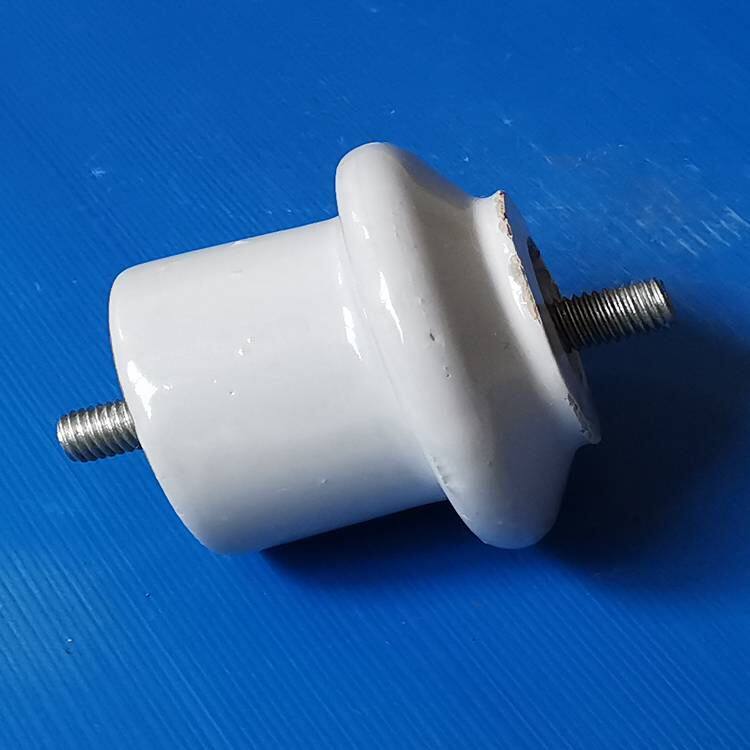

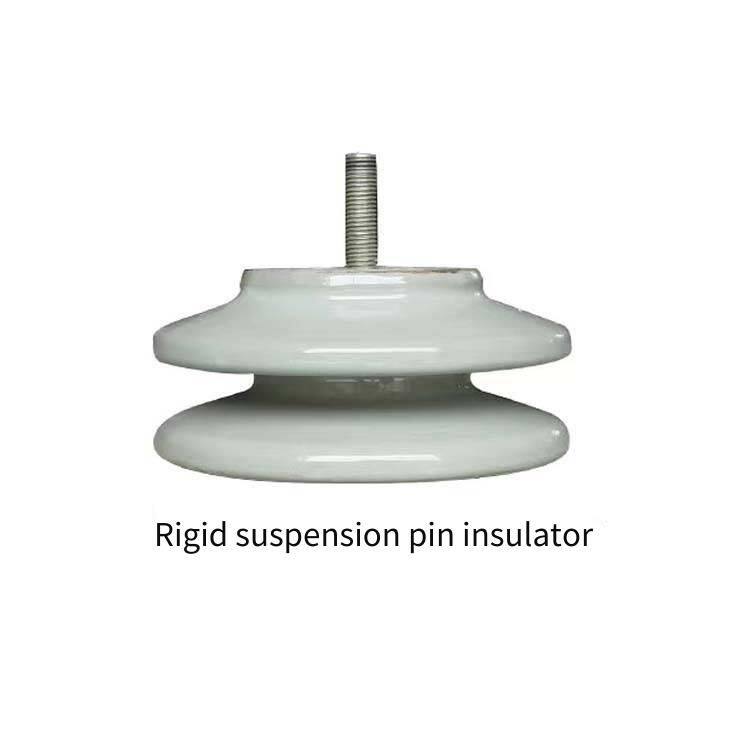

Physical picture of the pin insulator for rigid suspension

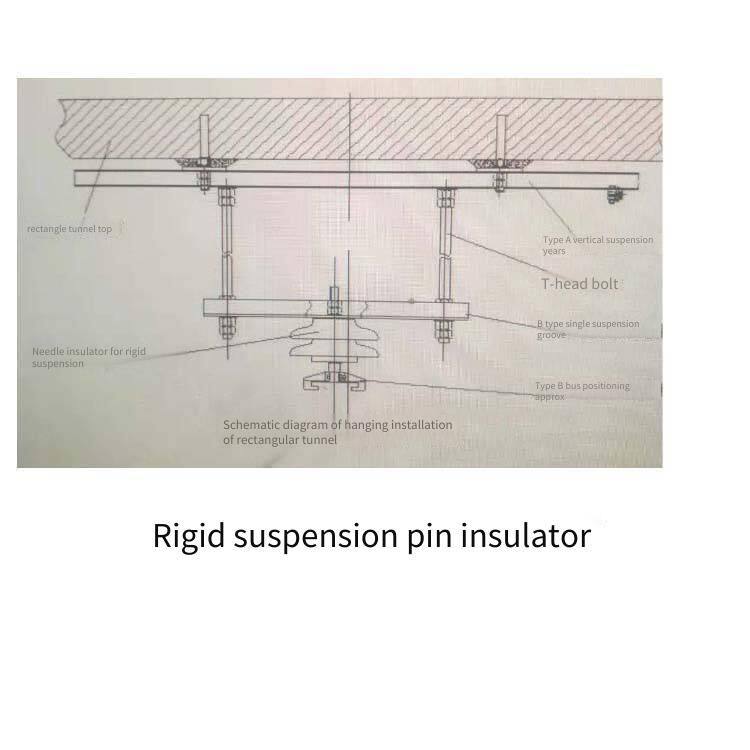

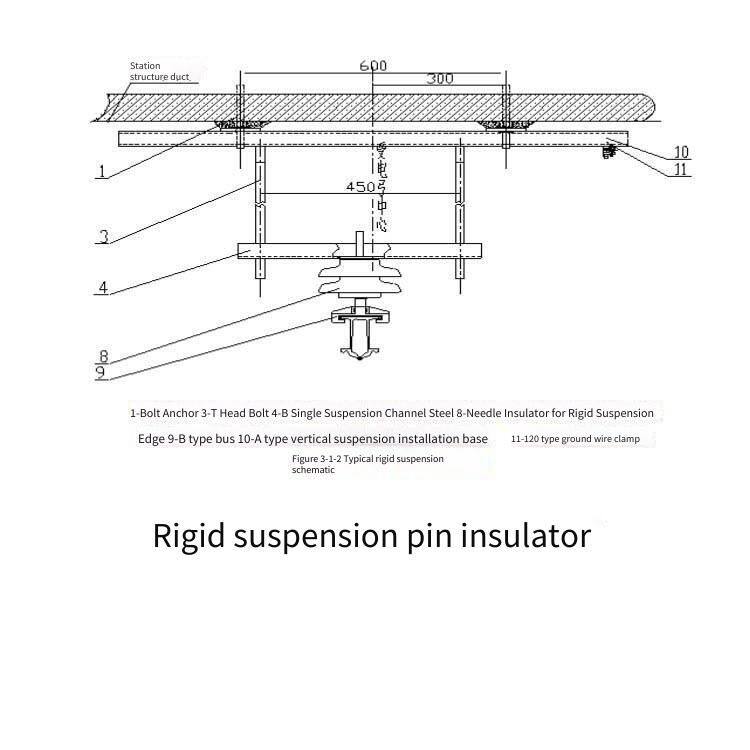

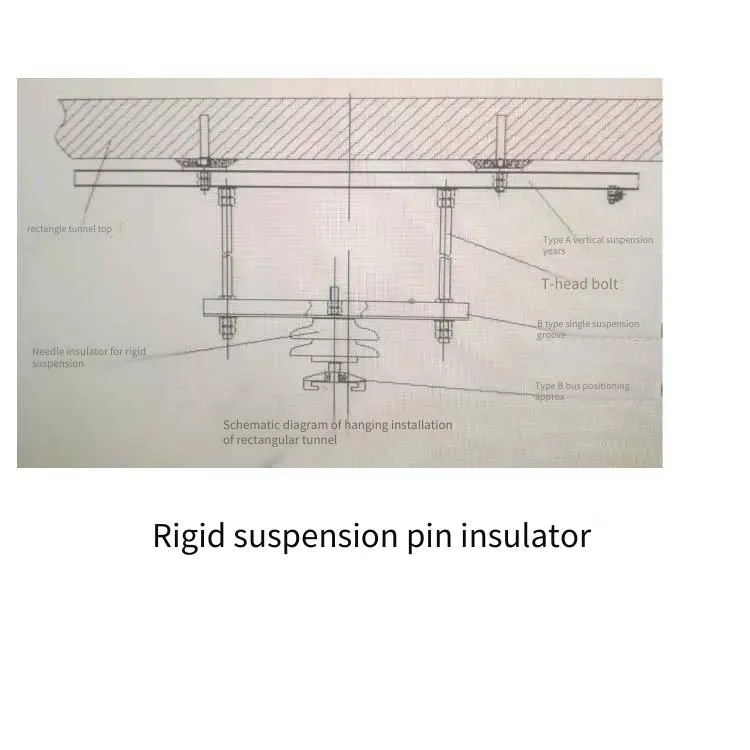

Schematic diagram of the installation of the pin insulator for rigid suspension in a rectangular tunnel

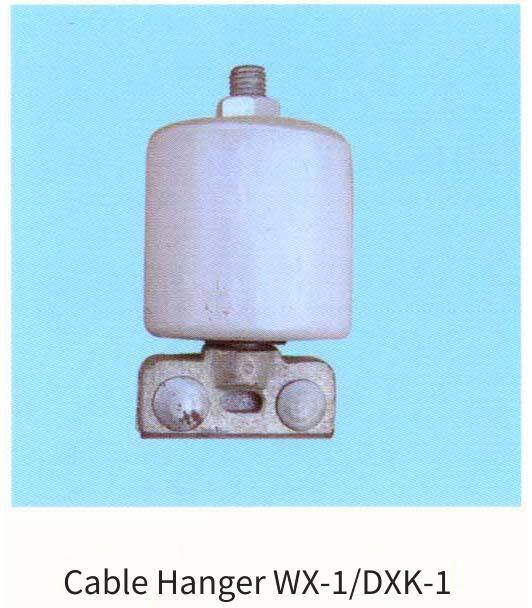

1. Suspension device types: Adjustable suspension devices, chain chord suspension devices, rigid suspension devices, rigid suspension device assemblies, curve suspension devices; Curve suspension device CD-001; Curve suspension device WX-001, suspension device WX-1, bakelite suspension device -1; Bakelite suspension device -2, porcelain suspension device assembly; Armored suspension device AK-1,
2. Insulator types: Insulators J-1, J-2, J-4.5; Suspension insulator porcelain insulators CD-1, CD-2, WX-1; Pin insulators P-6, P-10, PD-1, PD-2; 3. Clamp types: Single wire clamp DXK-1; Double wire clamp DXK-2; Parallel connection clamp BJK-2; Rigid clamp L-100, L-120, L-300; Hanging string DJ-1, DJ-2; Suspension device ED-2; Traction device XK-1; Connecting copper rod; Copper joint clamp TJ-1, TJ-2; Copper feeder clamp KDT-1; Aluminum feeder clamp KDL-1; Long loop clamp KH-1
4. Anchoring types: Terminal clamp ZD-2, ZD-3; Horizontal suspension hook (terminal hook) Ф12x250, Ф16x335; Wall terminal hook; Stay wire ring, hoop; Rail end connection Ф16X240; Inter - rail connection L-600, L-762, L-900
5-zone switches HHP1-200A, HHP1-400A, HHP1-600A, HHP1-800A, HHP1-1200A, HHP1-1600A, HHP1-2000A; Zone insulators F-3, F-2, F-1; Insulated rail splints 12kg, 15kg, 18kg, 24kg, 30kg, 38kg, 43kg; Arc-suppression zone switches
6 Current collector assemblies, current collector heads, carbon sliders
